NSN 4820-00-059-9952 WD201ALB, WD201ALV, WD201ALVB
Product Details | BUTTERFLY VALVE

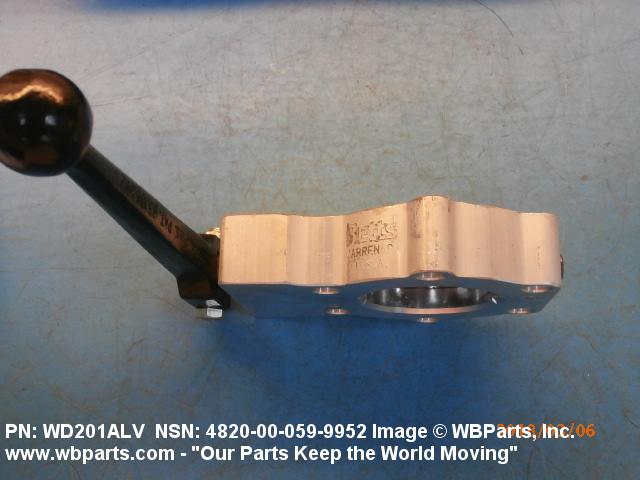

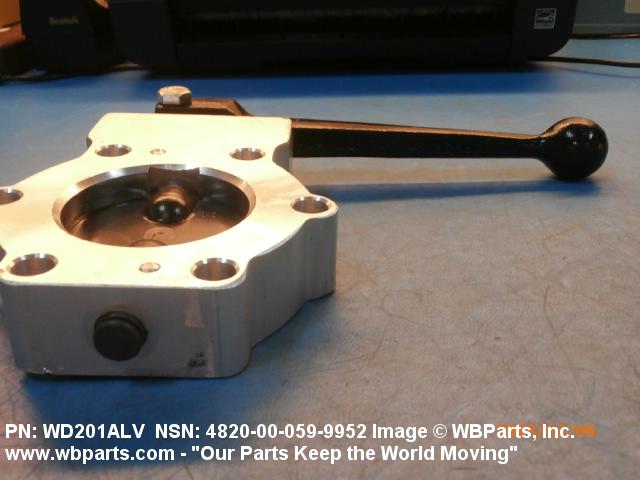

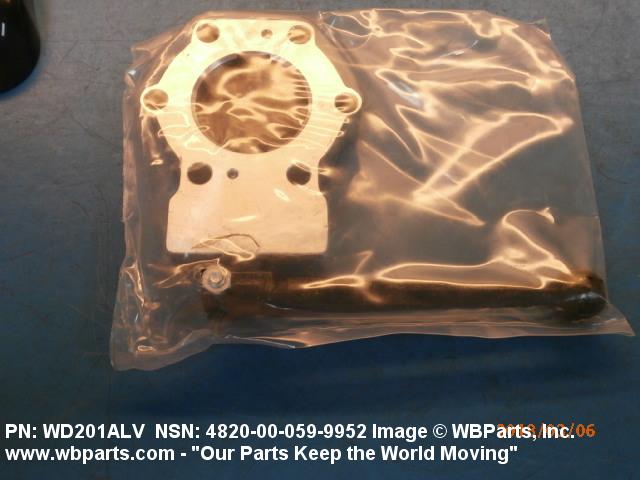

4820-00-059-9952 A valve that controls flow by a circular disk, or a pair of semicircular disks, attached to a common spindle or lever turning on a diametral axis.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: WD201ALB, WD201ALV, WD201ALVB , WD21AL, 4820-00-059-9952, 00-059-9952, 4820000599952, 000599952
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 JUN 1967 | 00-059-9952 | 05489 ( VALVE, BUTTERFLY ) |

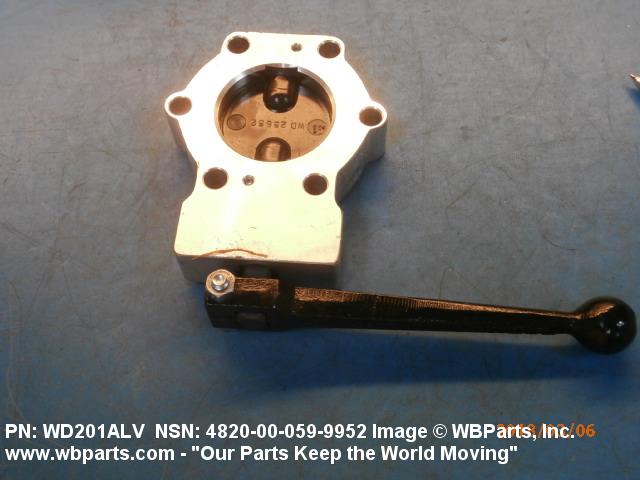

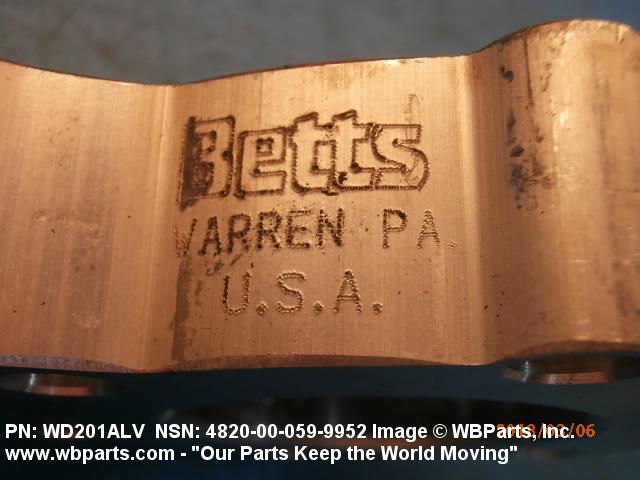

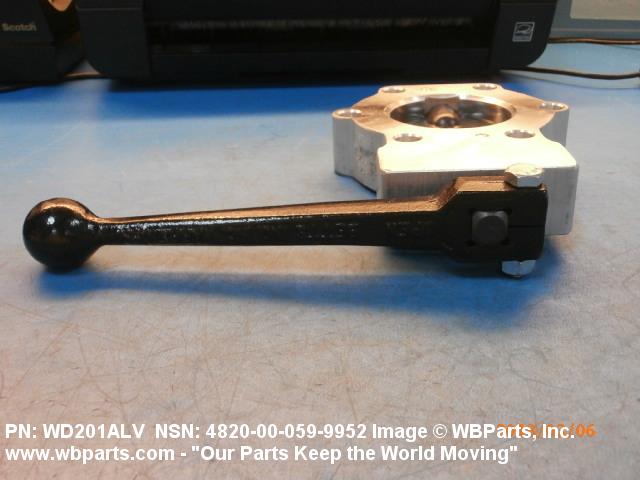

Drawings & Photos | NSN 4820-00-059-9952
Demand History | NSN 4820-00-059-9952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-059-9952 | 2018-11-329 | 40 | DIBBS |
| 4820-00-059-9952 | 2018-06-179 | 11 | DIBBS |
| 4820-00-059-9952 | 2018-04-95 | 17 | DIBBS |
| 4820-00-059-9952 | 2018-01-18 | 2 | us |
| 4820-00-059-9952 | 2013-02-32 | 40 | DIBBS |
| 4820-00-059-9952 | 2011-09-244 | 20 | DIBBS |
| 4820-00-059-9952 | 2011-08-235 | 10 | DIBBS |
| 4820-00-059-9952 | 2010-09-263 | 49 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-059-9952
Related Products | NSN 4820-00-059-9952
Technical Data | NSN 4820-00-059-9952

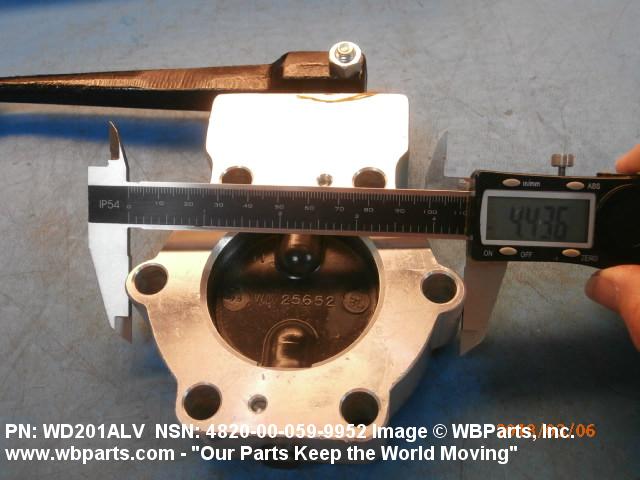

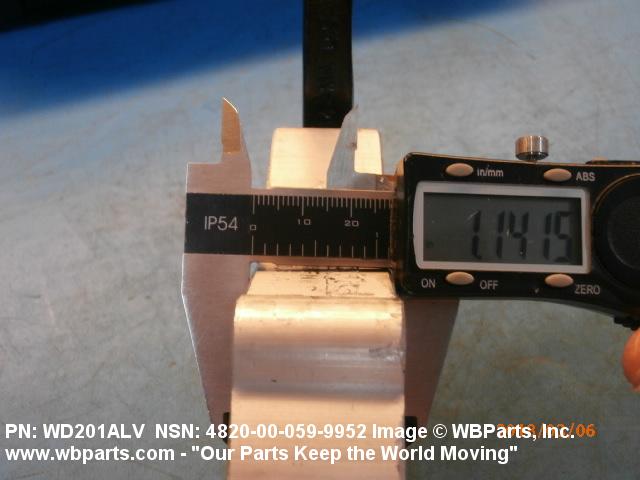

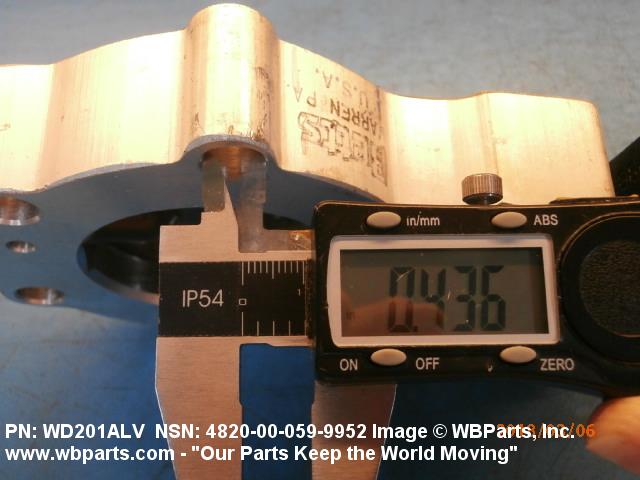

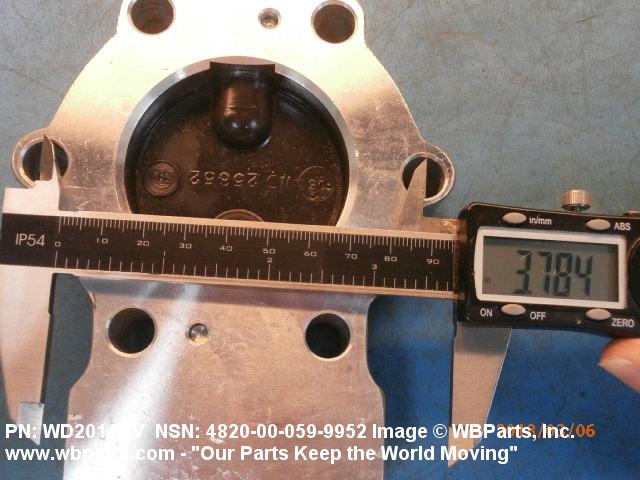

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BODY RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR FLOW CONTROL DEVICE |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 4.500 INCHES ALL ENDS |
| NOMINAL THICKNESS | 1.128 INCHES ALL ENDS |
| BOLT HOLE QUANTITY | 6 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.442 INCHES ALL ENDS |
| BOLT CIRCLE NOMINAL DIAMETER | 3.750 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
