NSN 4820-01-433-2416 R203044AA1FM, R2030-44AA-1FM, 3IN R2030-44AA-1FM
Product Details | BUTTERFLY VALVE
4820-01-433-2416 A valve that controls flow by a circular disk, or a pair of semicircular disks, attached to a common spindle or lever turning on a diametral axis.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: R203044AA1FM, R2030-44AA-1FM, 3IN R2030-44AA-1FM, 3INR203044AA1FM, 4820-01-433-2416, 01-433-2416, 4820014332416, 014332416
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 25 JUN 1996 | 01-433-2416 | 05489 ( VALVE, BUTTERFLY ) |

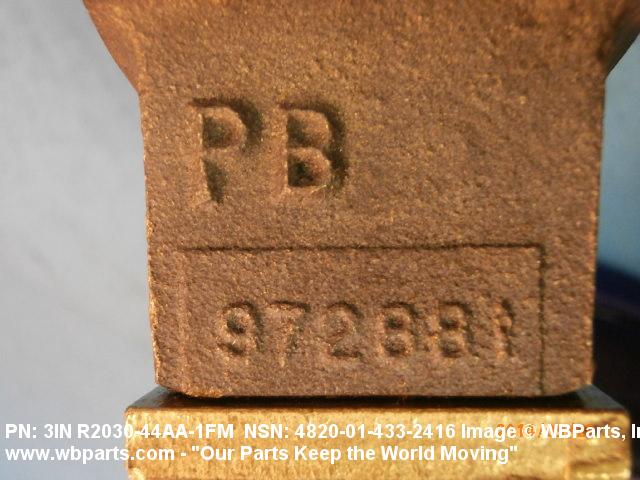

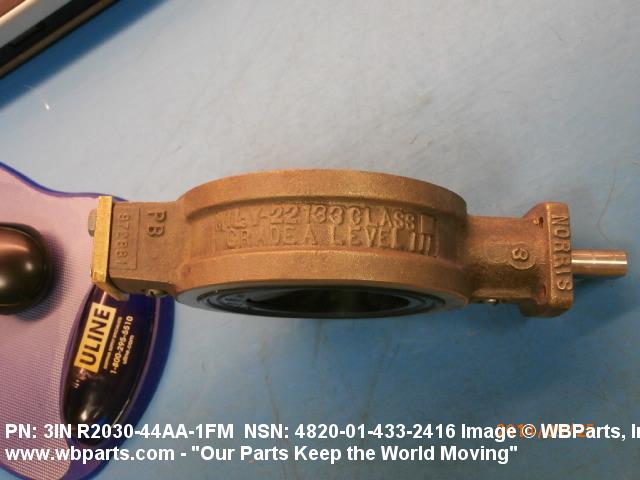

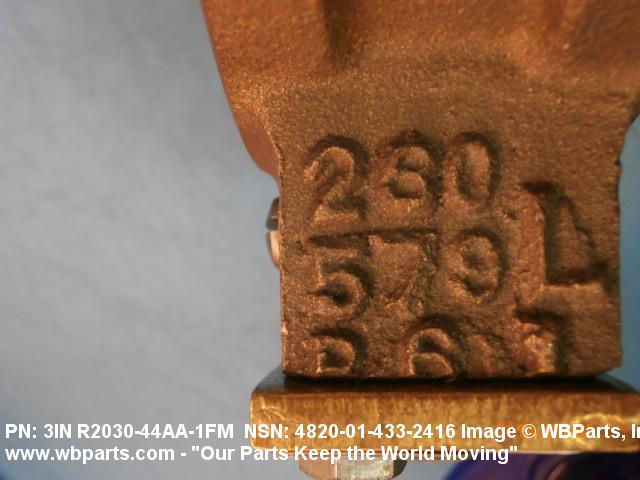

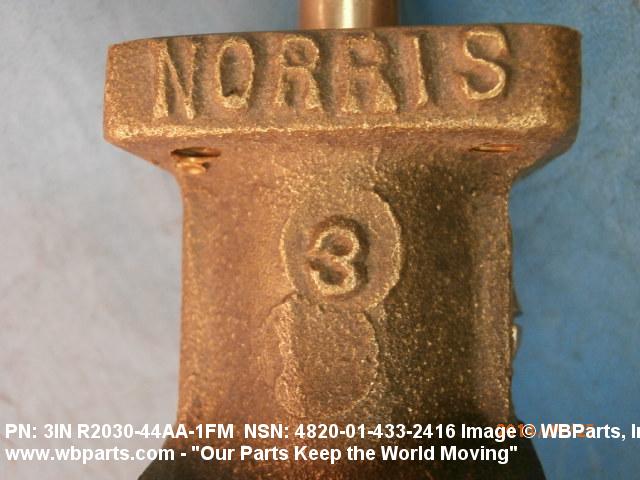

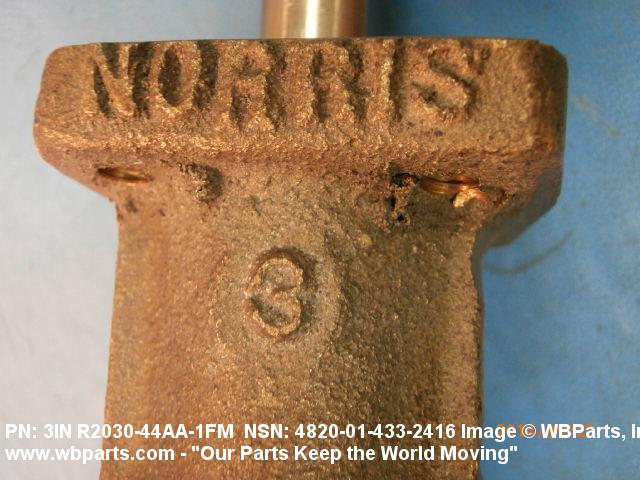

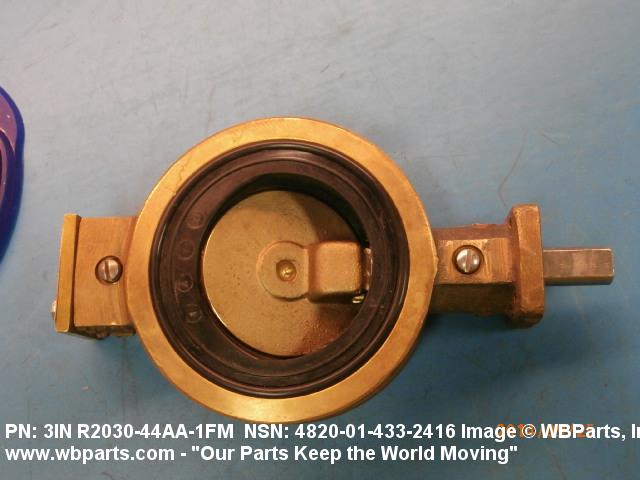

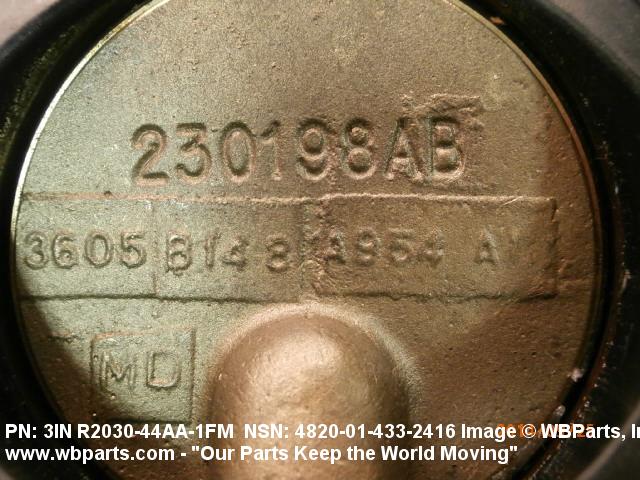

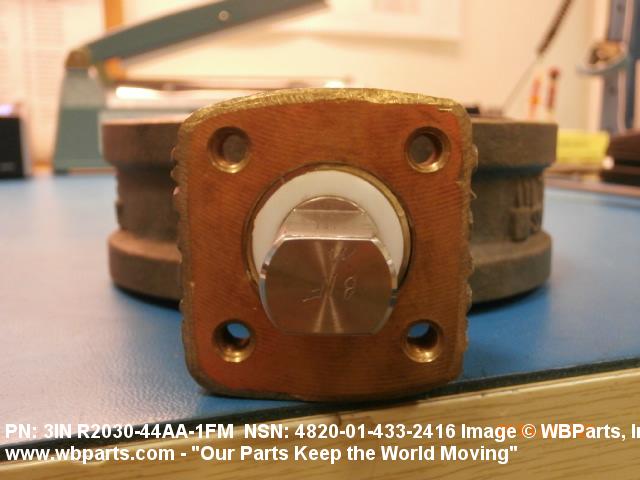

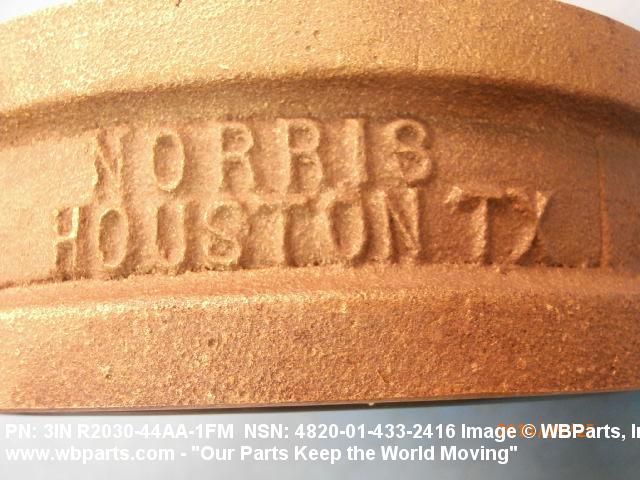

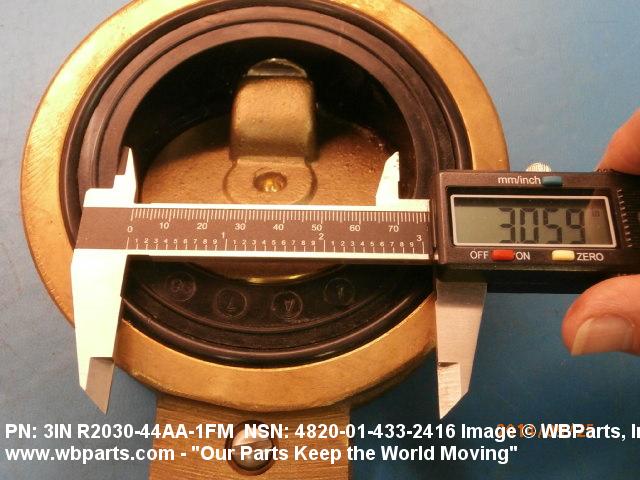

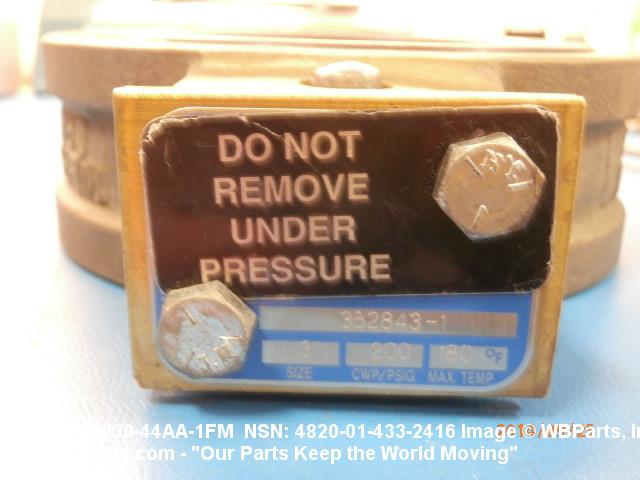

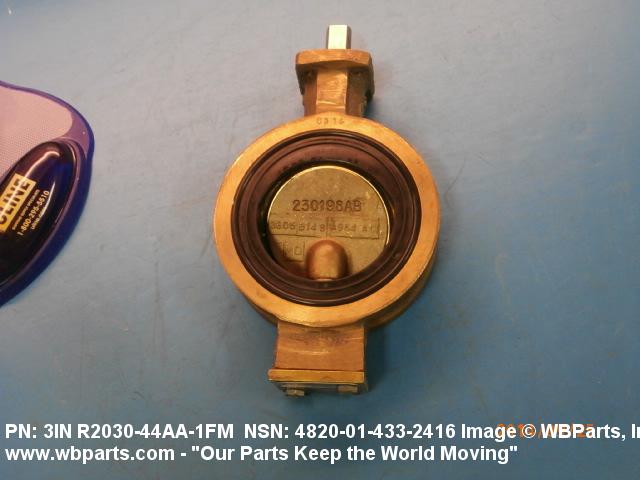

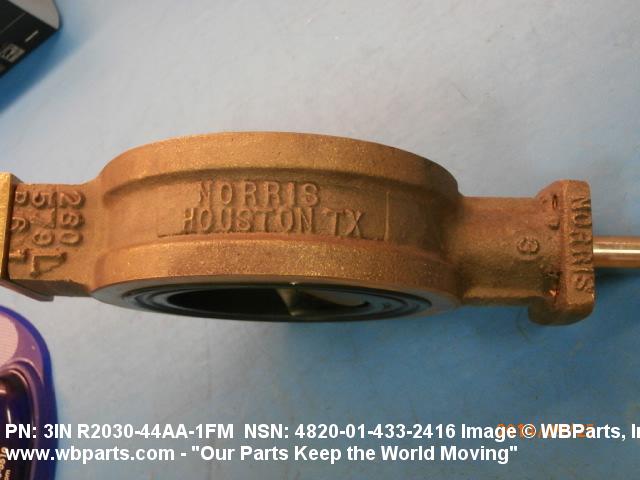

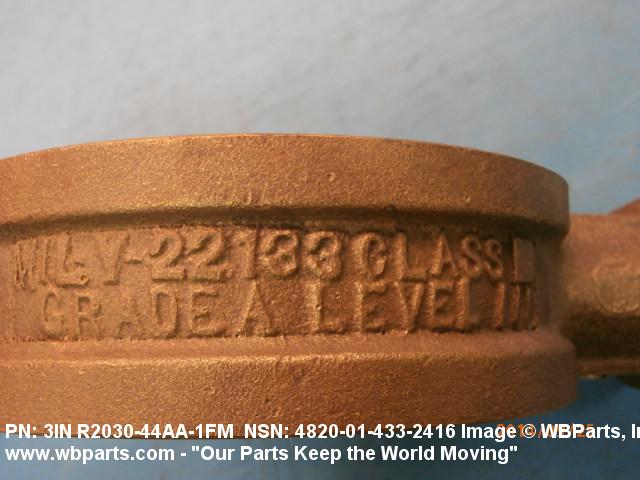

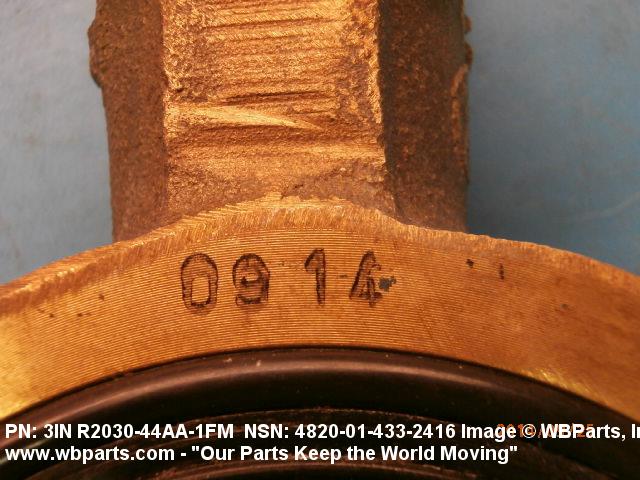

Drawings & Photos | NSN 4820-01-433-2416
Demand History | NSN 4820-01-433-2416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3IN R2030-44AA-1FM | 2019-05-149 | 4 | DIBBS |
| 4820-01-433-2416 | 2014-09-253 | 1 | United States |
| 4820-01-433-2416 | 2009-04-118 | 20 | DIBBS |
| 4820-01-433-2416 | 2009-02-40 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-433-2416
Related Products | NSN 4820-01-433-2416
Technical Data | NSN 4820-01-433-2416
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 922 BODY COPPER ALLOY 954 FLOW CONTROL DEVICE RUBBER SYNTHETIC PACKING RUBBER SYNTHETIC SEAT NICKEL ALLOY 400 STEM |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | WATER, SALT 1ST RESPONSE WATER, FRESH 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G60B PLAIN ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 3.000 INCHES ALL ENDS |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| MOUNTING FACILITY | BRACKET |
| SPECIAL FEATURES | INCLUDES 10 POSITION SQUEEZE TRIGGER HANDLE |
| III END ITEM IDENTIFICATION | SEA VALVE ON 41 FT UTB CLASS COAST GUARD VESSELS |
Restrictions/Controls & Freight Information | NSN 4820-01-433-2416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-433-2416
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
