NSN 4810-00-529-3550 1040862, 104086-2, 00-529-3550
Product Details | BUTTERFLY VALVE
4810-00-529-3550 A valve that controls flow by a circular disk, or a pair of semicircular disks, attached to a common spindle or lever turning on a diametral axis.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1040862, 104086-2, 4810-00-529-3550, 00-529-3550, 4810005293550, 005293550
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-529-3550 | 05489 ( VALVE, BUTTERFLY ) |

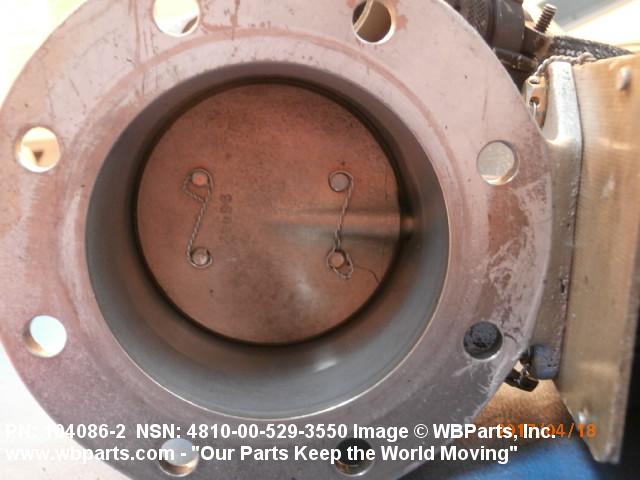

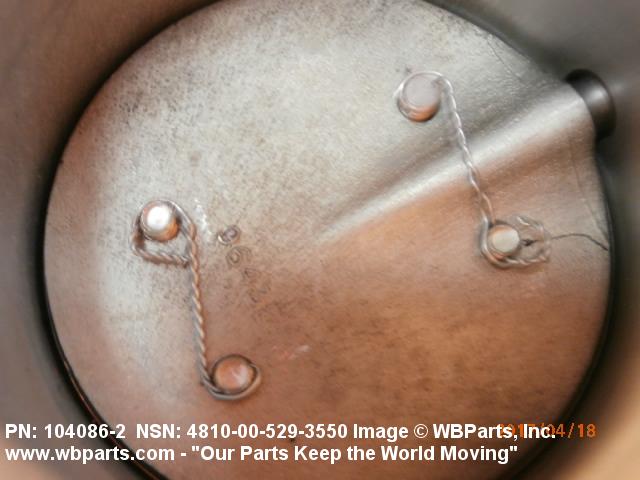

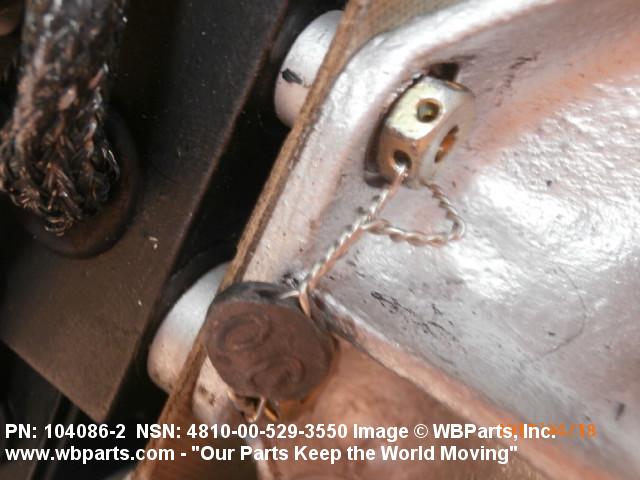

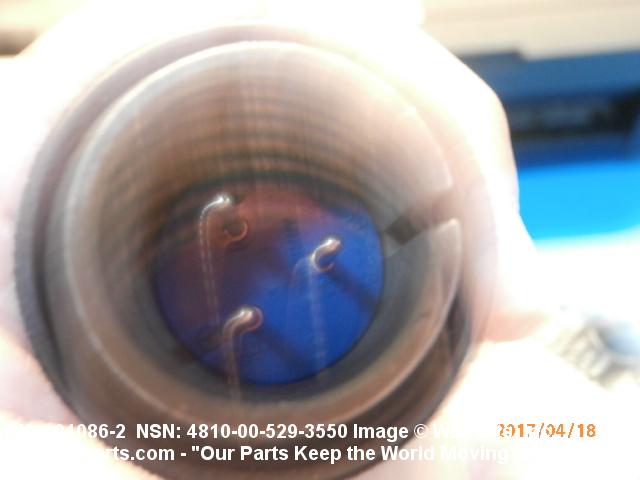

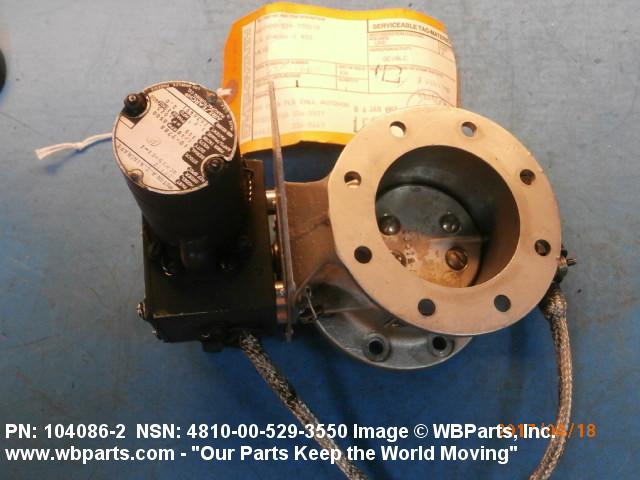

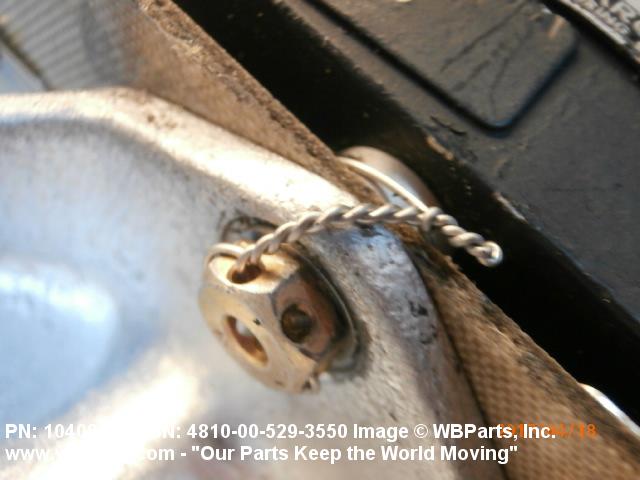

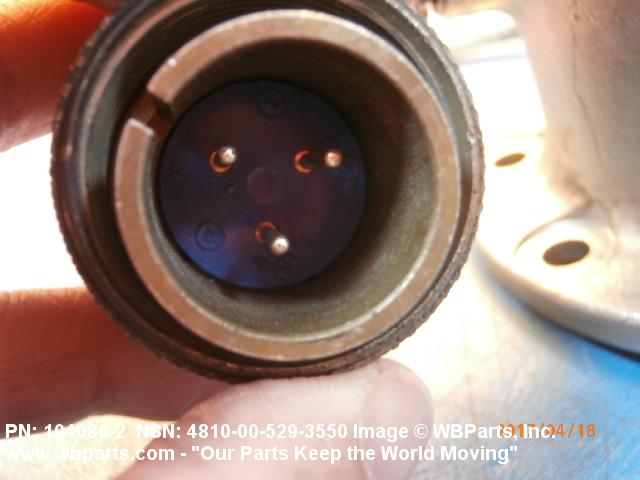

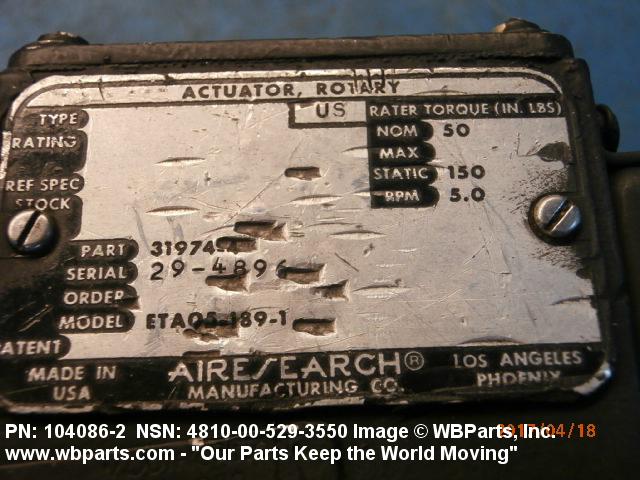

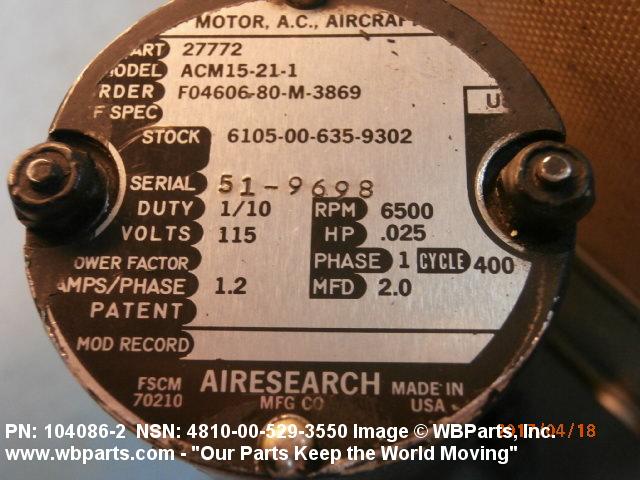

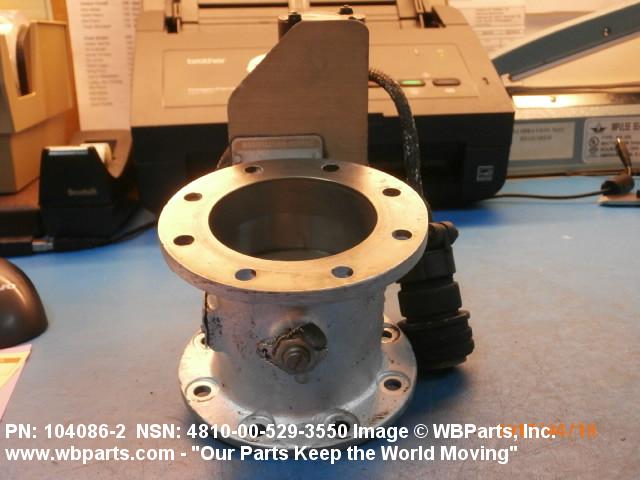

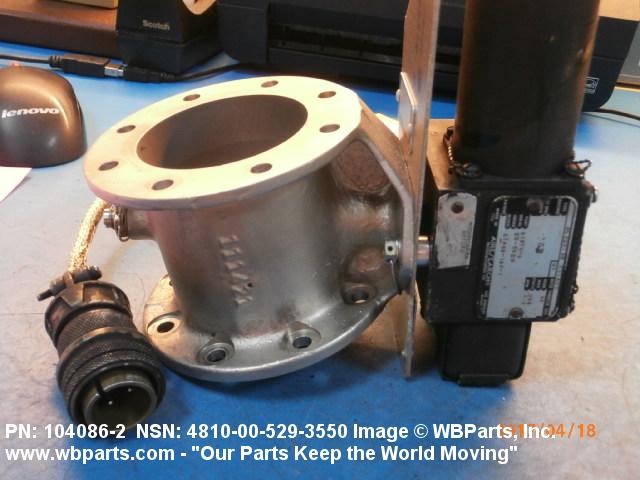

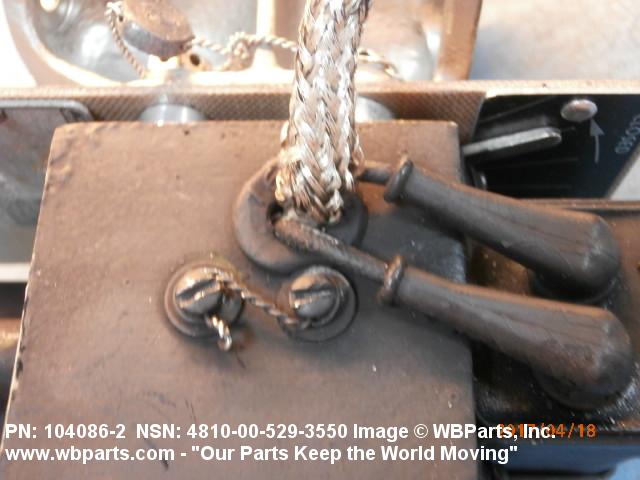

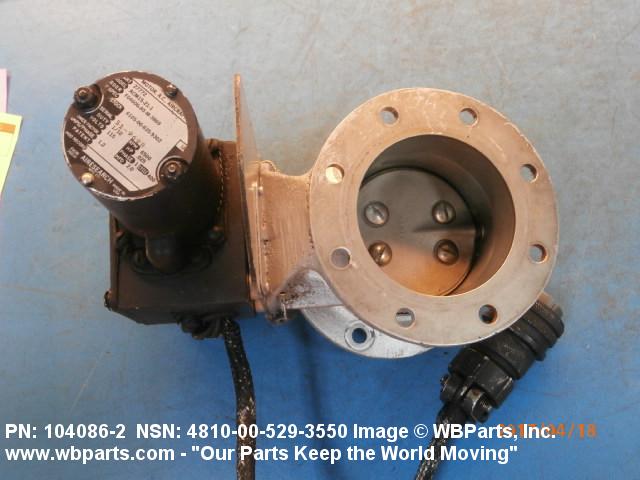

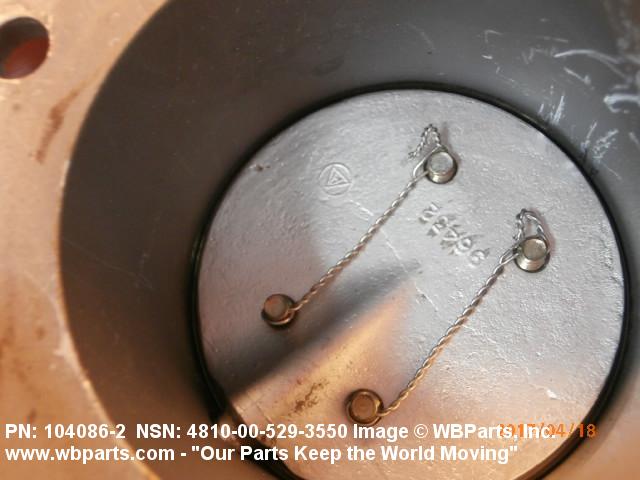

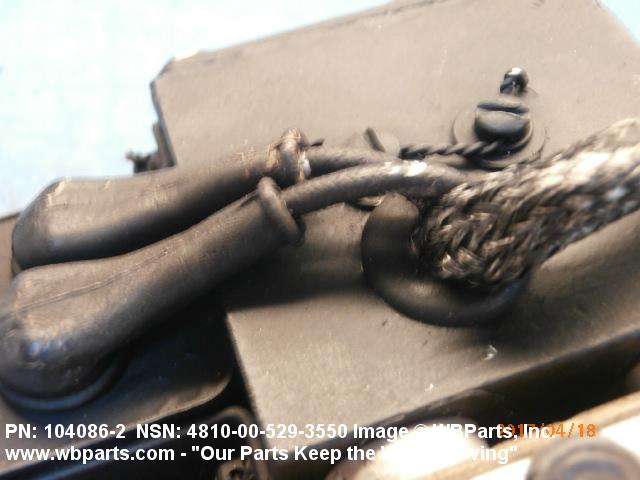

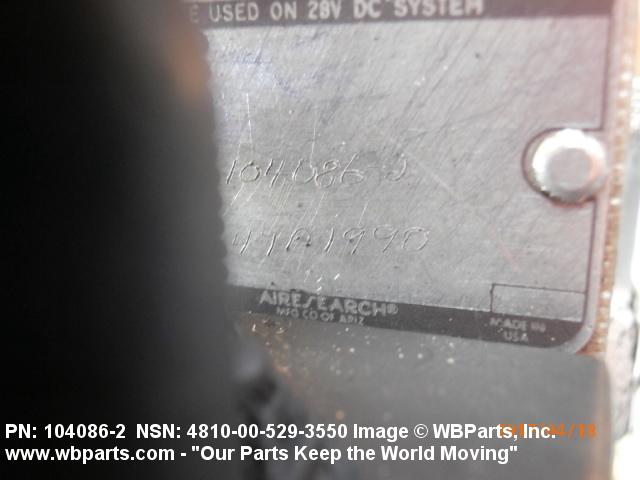

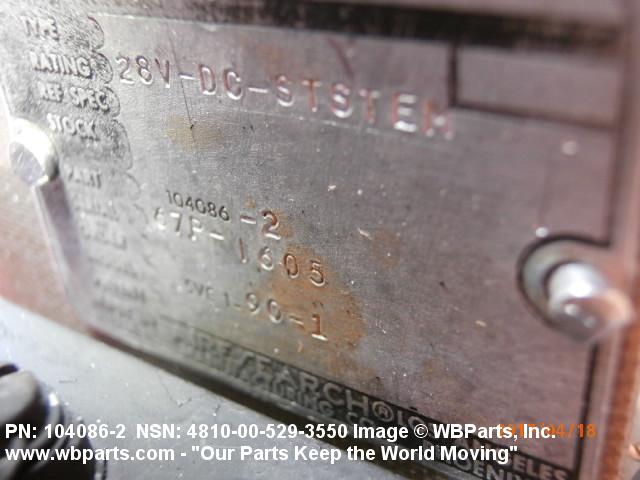

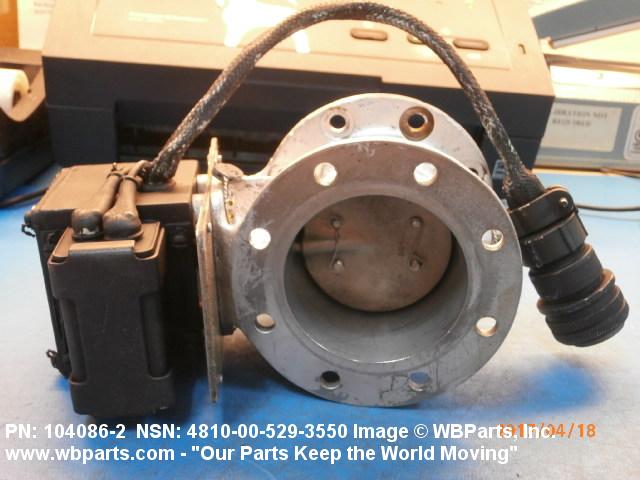

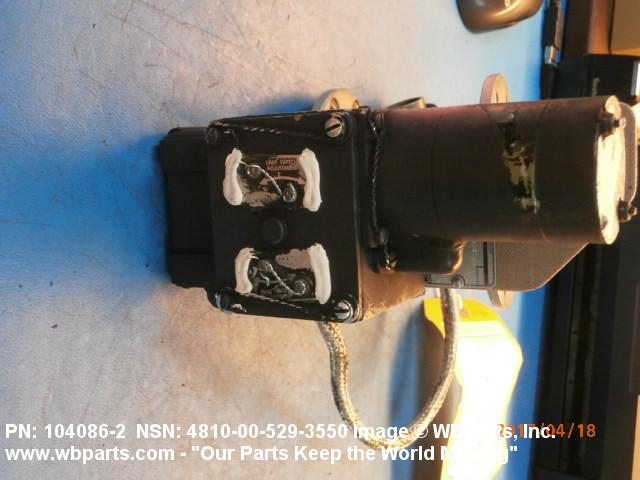

Drawings & Photos | NSN 4810-00-529-3550
Demand History | NSN 4810-00-529-3550
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1040862 | 2017-03-80 | 2 | United States |
| 1040862 | 2017-03-80 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-529-3550
Related Products | NSN 4810-00-529-3550
Technical Data | NSN 4810-00-529-3550
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON CAST BODY |
| STYLE DESIGNATOR | A1A STRAIGHT THRU FLANGED ENDS |
| FACE TO FACE DISTANCE | 3.030 INCHES |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 220.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FREQUENCY IN HERTZ | 400.0 |
| PHASE | SINGLE |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END |
| NOMINAL OUTSIDE DIAMETER | 4.030 INCHES 1ST END |
| BOLT HOLE QUANTITY | 8 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.281 INCHES 1ST END |
| BOLT CIRCLE NOMINAL DIAMETER | 3.350 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END |
| SPECIAL FEATURES | MANUFACTURERS SUGGESTED NAME IS VALVE, AIR SHUTOFF, TWO AND ONE-HALF INCH DIAMETER, ELECTRIC (MODEL NO. SVE1-90-1) |
| III END ITEM IDENTIFICATION | T.O. 15A2-2-13-1 |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 104086-2 |
Restrictions/Controls & Freight Information | NSN 4810-00-529-3550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-529-3550
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TP | SX:"TEMPERATURE AND PRESSURE CONTROLS, AIRCRAFT" |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
