NSN 4810-00-529-3929 1064751, 106475-1, 695197

Product Details | DIRECTIONAL CONTROL LINEAR VALVE

4810-00-529-3929 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 1064751, 106475-1, 695197, 4810-00-529-3929, 00-529-3929, 4810005293929, 005293929

Valves | Valves, Powered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1963	00-529-3929	61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL )

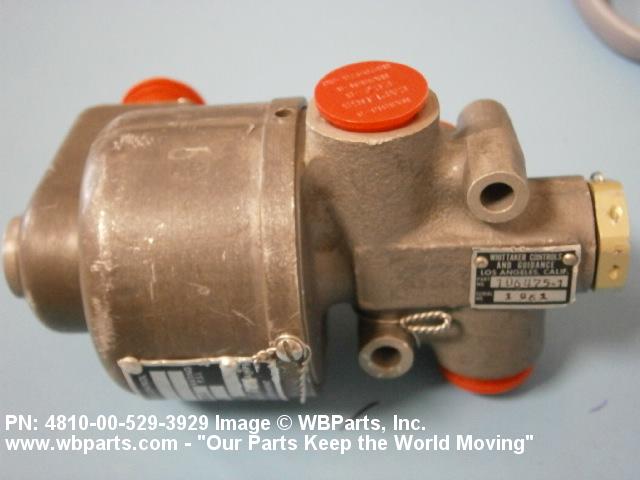

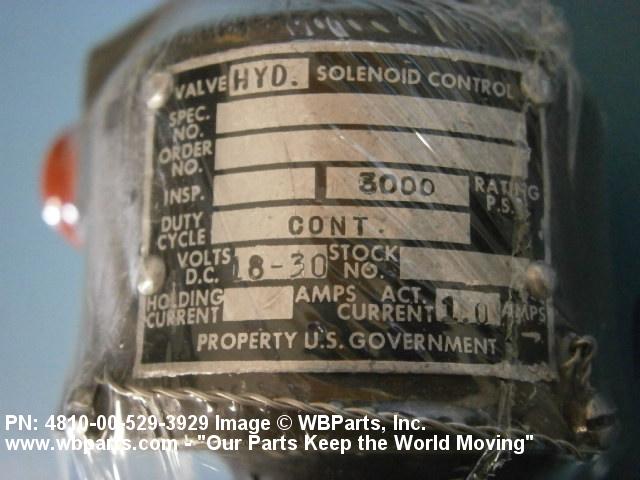

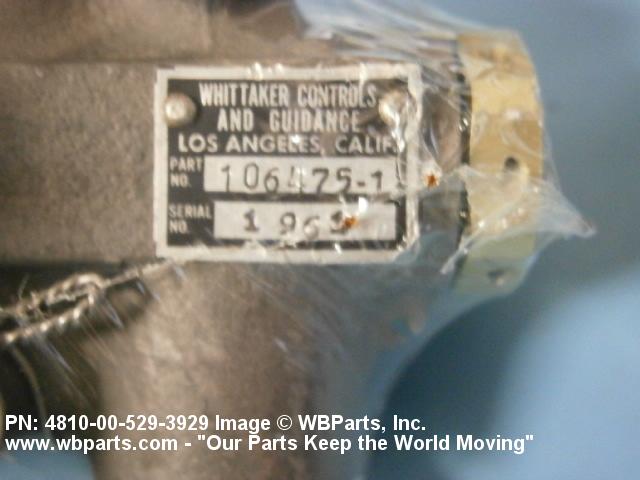

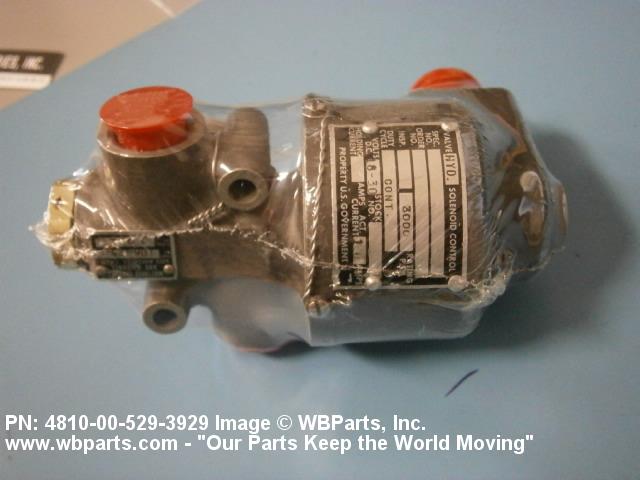

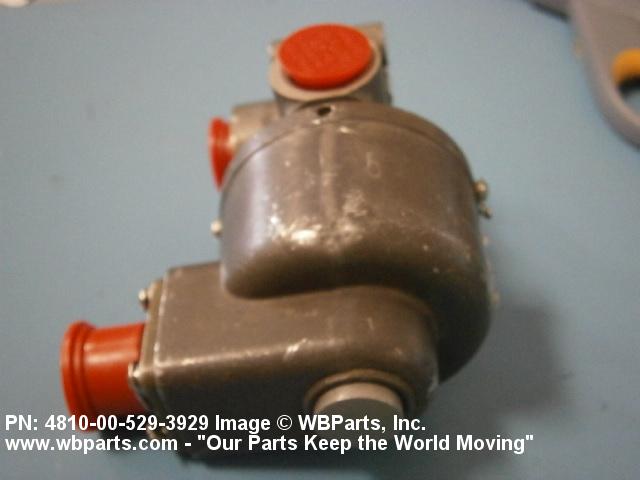

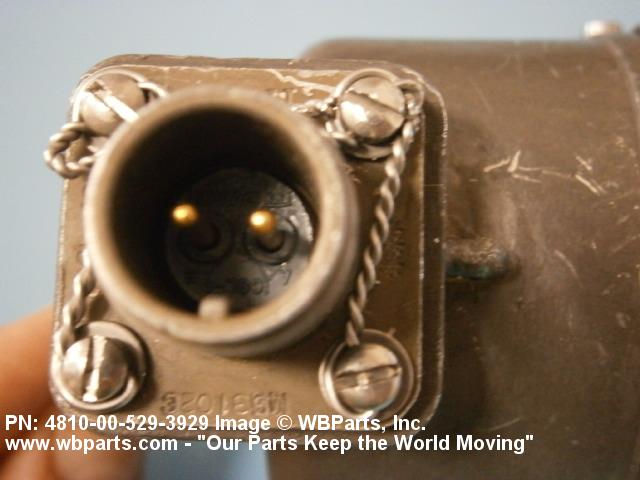

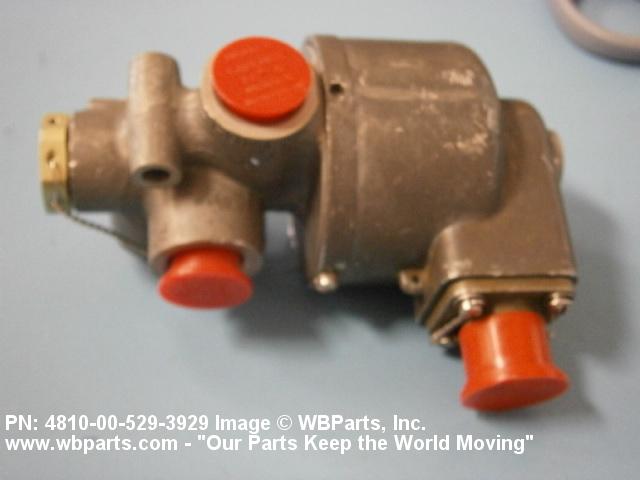

Drawings & Photos | NSN 4810-00-529-3929

Part Number	Request Date	QTY	Origin
1064751	2020-02-50	6	ZA
1064751	2014-05-149	2	Sri Lanka
4810-00-529-3929	2012-04-100	1	Indonesia
1064751	2011-12-354	1	Indonesia
4810-00-529-3929	2011-10-279	2	Indonesia
4810-00-529-3929	2006-10-295	1	Turkey
4810-00-529-3929	2006-10-294	1	Turkey
4810-00-529-3929	2006-10-294	1	Turkey

Cross Reference | NSN 4810-00-529-3929

Part Number	Cage Code	Manufacturer
106475-1	79318	MEGGITT (NORTH HOLLYWOOD), INC.
695197	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4810-00-529-3929

Compare

Related Products | NSN 4810-00-529-3929

4810-00-529-3932, 4810-00-529-4083, 4810-00-529-4184, 4810-00-529-4312, 4810-00-529-4316

Technical Data | NSN 4810-00-529-3929

Characteristic	Specifications
BODY MATERIAL	ALUMINUM ALLOY
SPOOL QUANTITY	1
FLOW PATTERN QUANTITY	3
SPOOL POSITION QUANTITY	2
VALVE DISCHARGE FLOW RATE	3.5 GALLONS PER MINUTE
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	275.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE
VALVE OPERATION METHOD	SOLENOID
VOLTAGE IN VOLTS AND CURRENT TYPE	17.0 DC AND 30.0 DC
CURRENT RATING IN AMPS	1.0
END CONNECTION QUANTITY	3
CONNECTION TYPE	THREADED INTERNAL BOSS
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.563 INCHES
THREAD CLASS	3B
SPECIAL FEATURES	MANUFACTURERS SUGGESTED NAME IS VALVE, THREE-WAY, TWO POSITION, SOLENOID OPERATED HYDRAULIC
III END ITEM IDENTIFICATION	ACFT HYDRAULIC SYSTEM

Restrictions/Controls & Freight Information | NSN 4810-00-529-3929

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	127220	PRESSURE REG/RED/RELIEF VALVES NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4810-00-529-3929

Air Force
Navy

Category	Code	Description
Materiel Management Aggregation Code	HS	SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	FHZ	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	1R	Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia
Special Material ID	LC	CARGO/TRANSPORTAIRCRAFT(C130)
Source of Supply	N32	Naval Inventory Control Point Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	D	Field Level Reparables
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
