NSN 4810-01-079-4543 201R6HC3, 201R6WC3, 01-079-4543
Product Details | DIRECTIONAL CONTROL LINEAR VALVE
4810-01-079-4543 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 201R6HC3, 201R6WC3, 4810-01-079-4543, 01-079-4543, 4810010794543, 010794543
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 JUL 1979 | 01-079-4543 | 61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL ) |

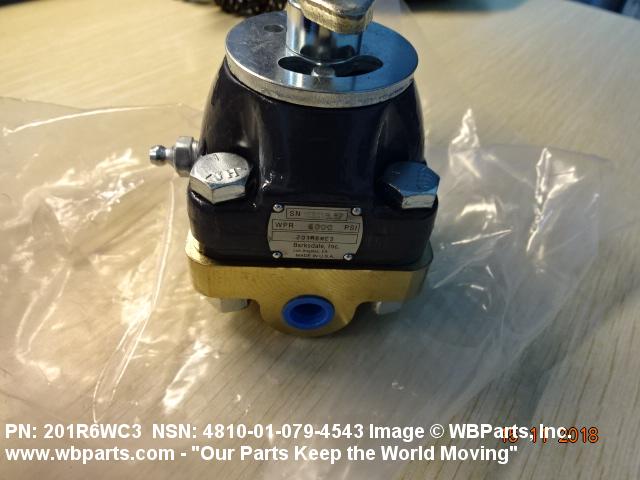

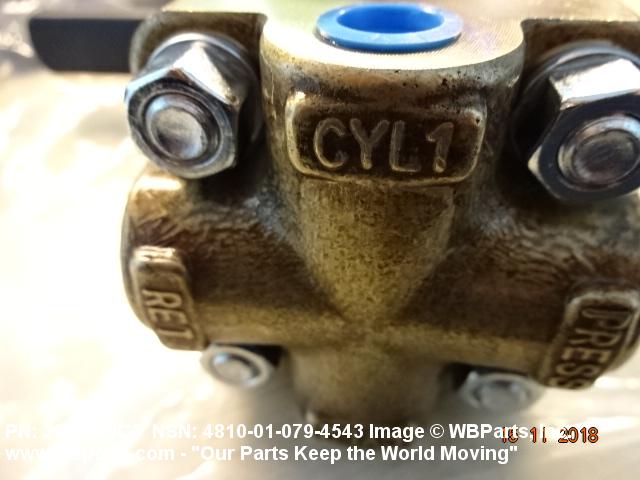

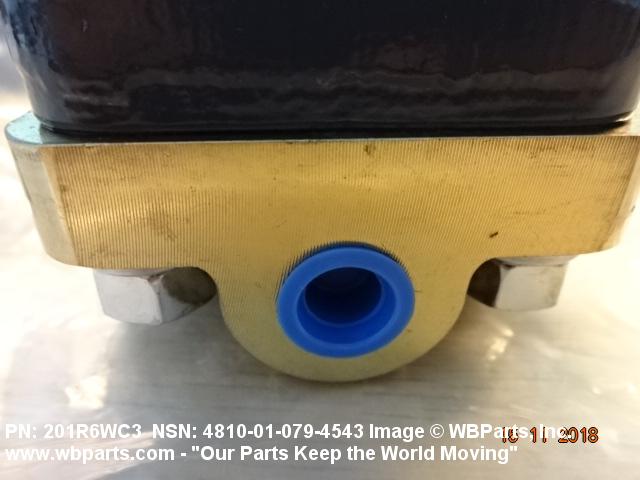

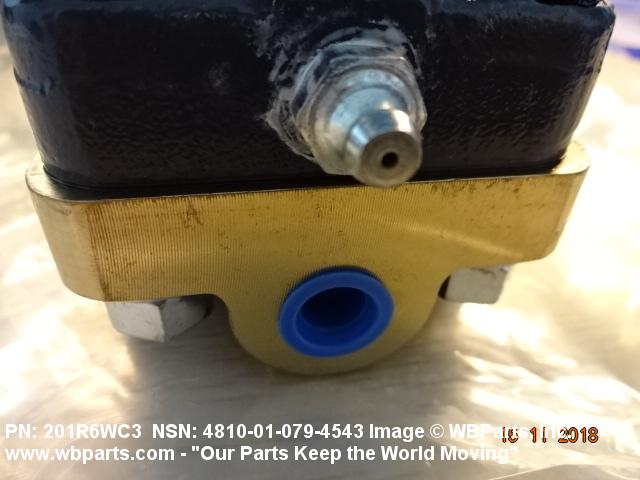

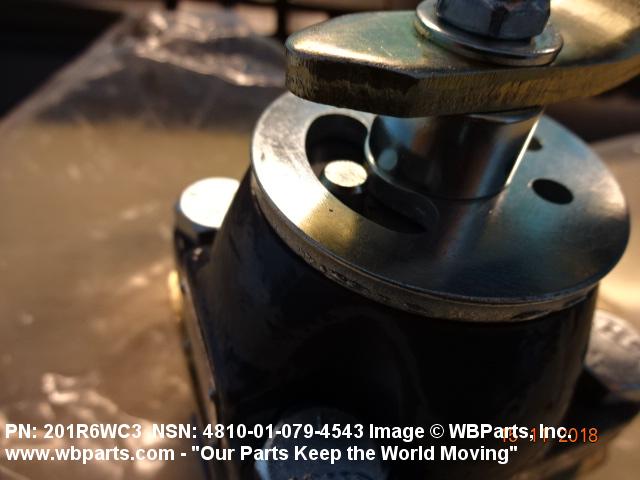

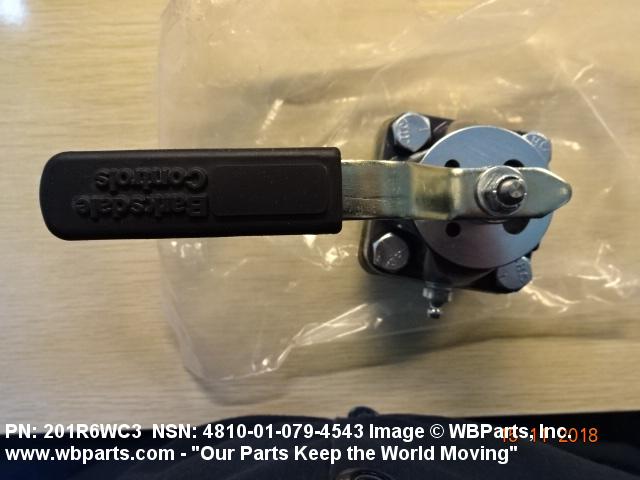

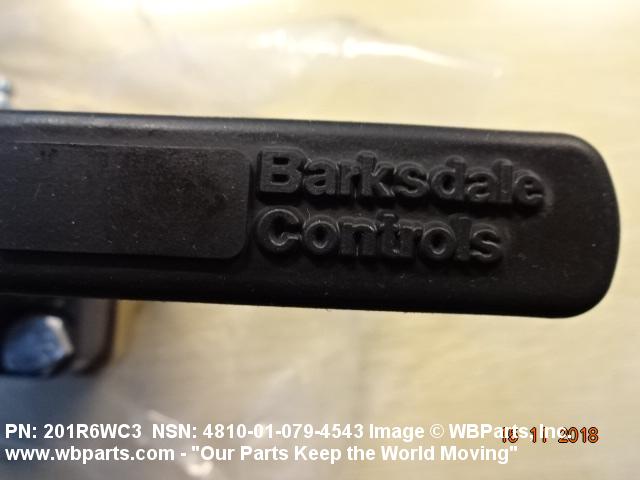

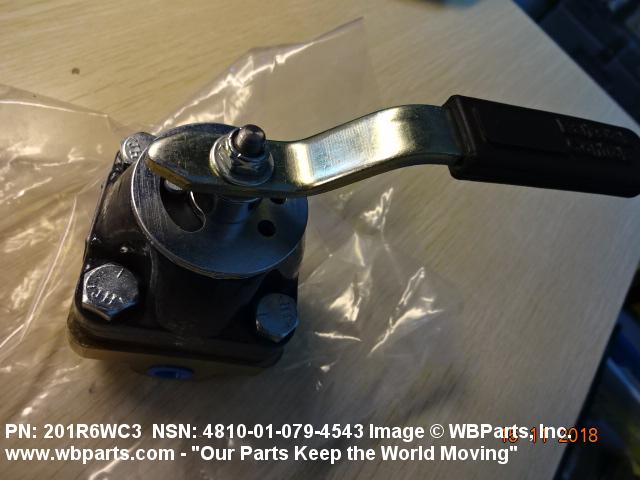

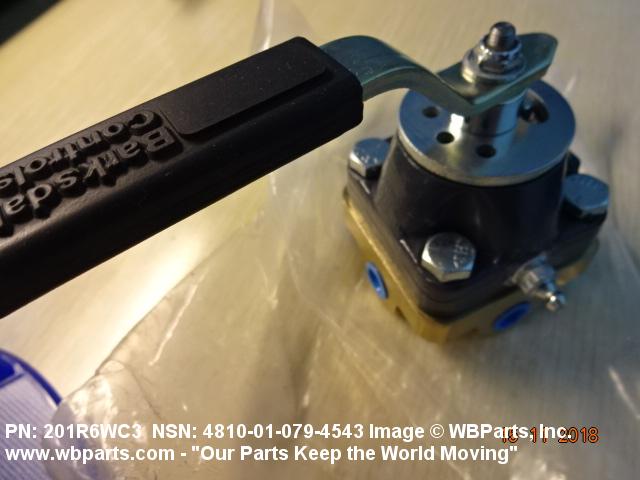

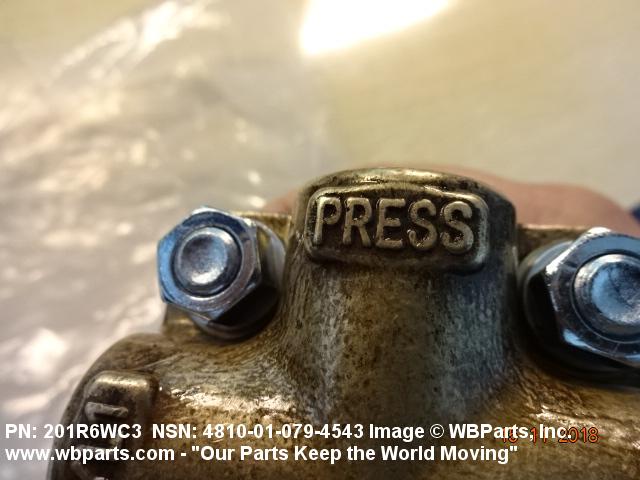

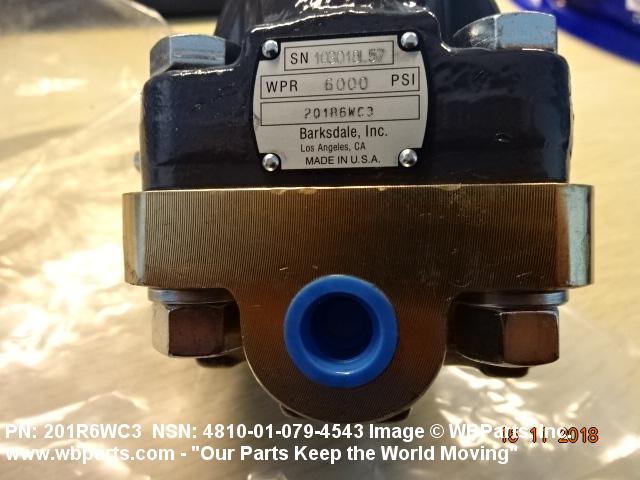

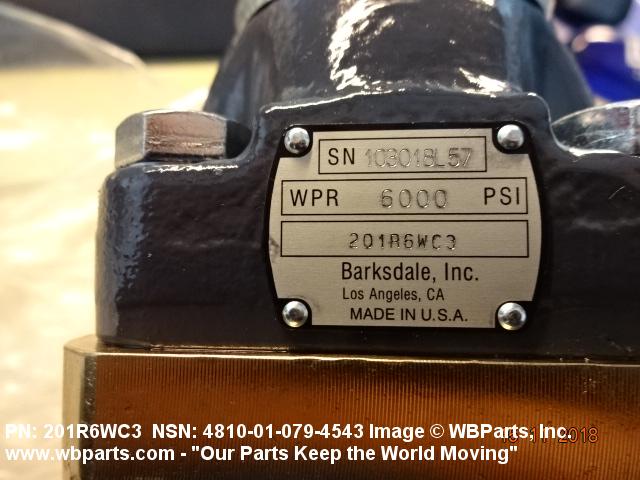

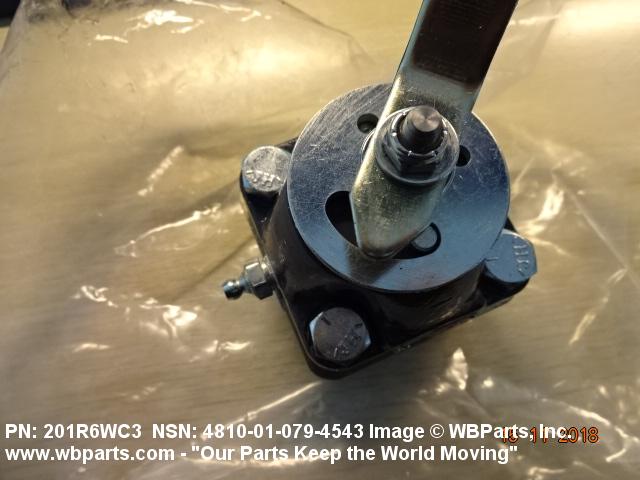

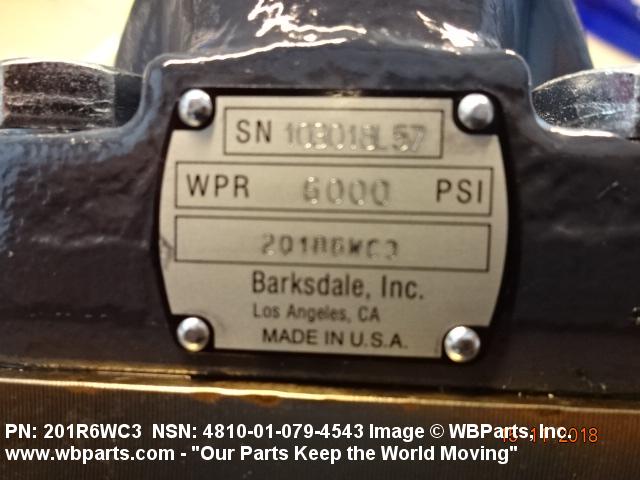

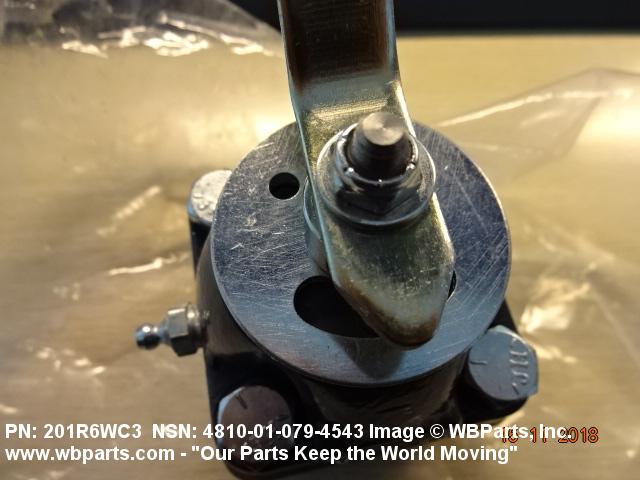

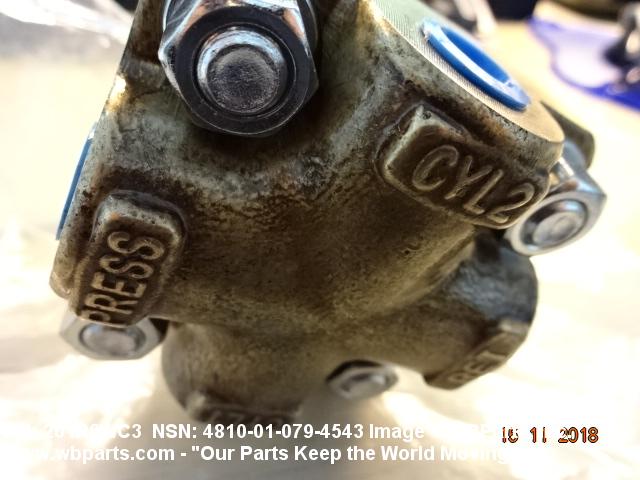

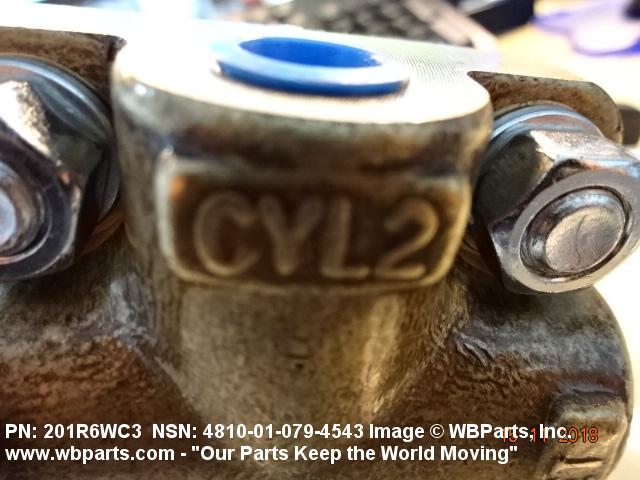

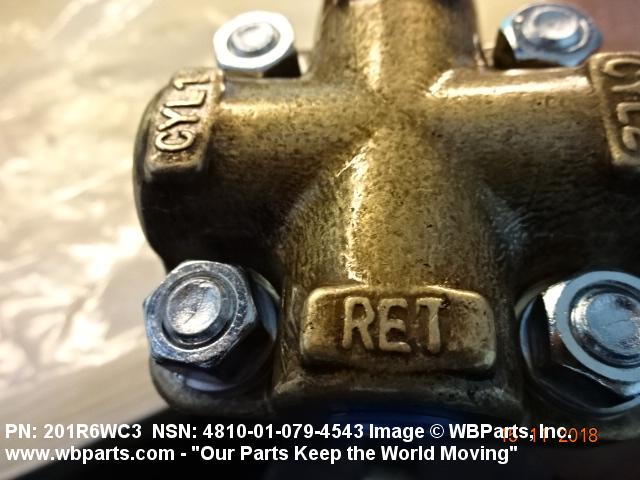

Drawings & Photos | NSN 4810-01-079-4543
Demand History | NSN 4810-01-079-4543
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 201R6HC3 | 2019-10-287 | 1 | United Kingdom |
| 201R6WC3 | 2019-10-287 | 1 | United Kingdom |
| 201R6HC3 | 2018-09-253 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-079-4543
Technical Data | NSN 4810-01-079-4543
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | FOUR-WAY IN-LINE PORTS FEMALE 0.250 NPT DESIGNED FOR LUBRICATED WATER 6000 PSI 250 DEG F MAX AIR OPERATING TEMP CLOSED CENTER OPERATING POSITION 250 PSI BACK PRESSURE ON RETURN PORT OPERATION |
Restrictions/Controls & Freight Information | NSN 4810-01-079-4543
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
