NSN 4810-00-516-3534 104164, 10416417, 104164-1-7
Product Details | BUTTERFLY VALVE
4810-00-516-3534 A valve that controls flow by a circular disk, or a pair of semicircular disks, attached to a common spindle or lever turning on a diametral axis.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 104164, 10416417, 104164-1-7, 4810-00-516-3534, 00-516-3534, 4810005163534, 005163534
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-516-3534 | 05489 ( VALVE, BUTTERFLY ) |
Drawings & Photos | NSN 4810-00-516-3534
Cross Reference | NSN 4810-00-516-3534
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104164 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 104164 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 104164-1-7 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 104164-1-7 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 104164-1-7 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-00-516-3534
Related Products | NSN 4810-00-516-3534
Technical Data | NSN 4810-00-516-3534
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY ALUMINUM ALLOY STEM |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 5.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 400.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 26.0 DC |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE 1ST END |

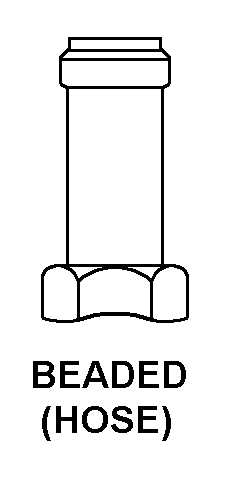

| CONNECTION STYLE | G63 BEADED 1ST END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 6.000 INCHES ALL ENDS |
| MOUNTING FACILITY | THREADED FASTENER |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 104164 |
Restrictions/Controls & Freight Information | NSN 4810-00-516-3534
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-00-516-3534
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | MC | CARGO/TRANSPORTAIRCRAFT(C131) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
