Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-605-8620 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: A-A-59326/4, AA593264, AA59326IV14, 4730-01-605-8620, 01-605-8620, 4730016058620, 016058620
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 APR 2012 | 01-605-8620 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-605-8620
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-605-8620
Technical Data | NSN 4730-01-605-8620
| Characteristic | Specifications |
|---|---|
| NOMINAL WIDTH ACROSS FLATS | 4.705 INCHES |

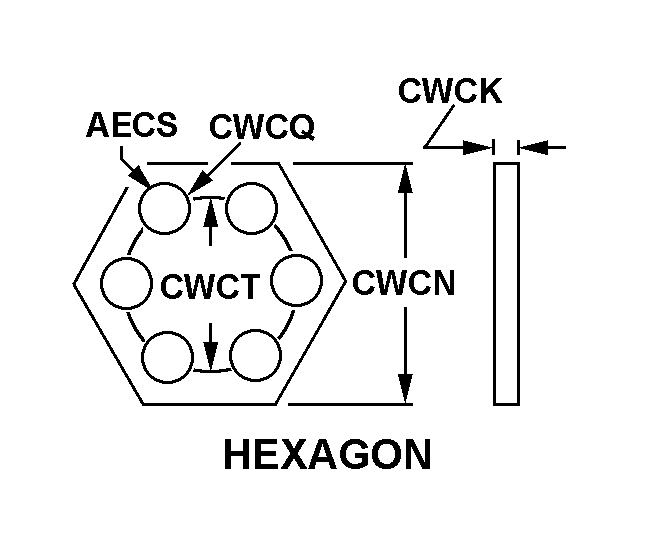

| BASIC SHAPE STYLE | 1 HEXAGON SECOND QUICK DISCONNECT END |
| BOLT CIRCLE NOMINAL DIAMETER | 5.875 INCHES |
| SURFACE TREATMENT | ANODIZE OVERALL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COULPING HALF, QUICK-DISCONNECT, MALE |
| CONNECTION TYPE | FLANGE FIRST FLUID END CONNECTION |
| BASIC SHAPE STYLE | 3 ROUND FIRST FLUID END CONNECTION |
| END ITEM IDENTIFICATION | 2330-01-050-5634 |
| NOMINAL OUTSIDE DIAMETER | 6.625 INCHES |
| LEG LENGTH | 2.070 INCHES NOMINAL |
| NOMINAL THICKNESS | 0.375 INCHES |
| BOLT HOLE QUANTITY | 8 |
| BOLT HOLE NOMINAL DIAMETER | 0.438 INCHES |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| CONNECTION STYLE | PLAIN ALL ENDS |
| STYLE DESIGNATOR | MALE COUPLING HALF |
