NSN 4730-01-577-9558 AE74537M, 7M1261N16F, 01-577-9558
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-577-9558 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE74537M, 7M1261N16F, 4730-01-577-9558, 01-577-9558, 4730015779558, 015779558
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 SEP 2009 | 01-577-9558 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

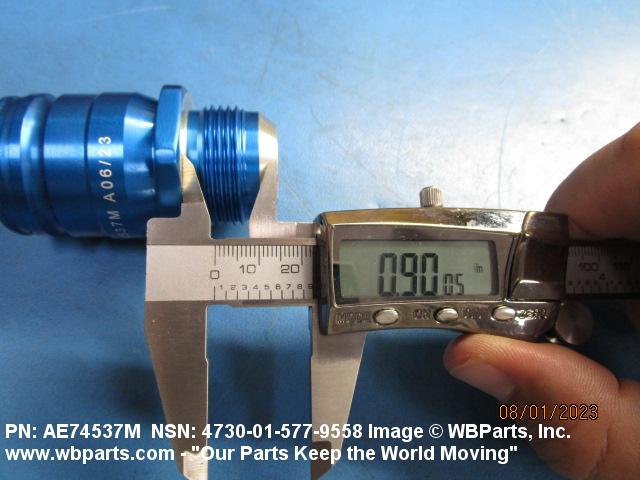

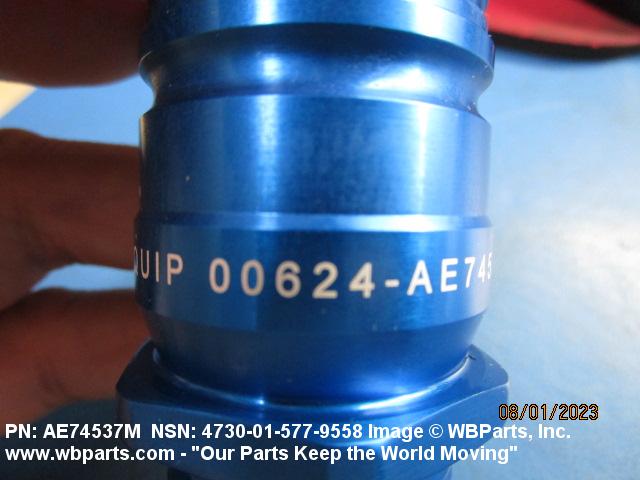

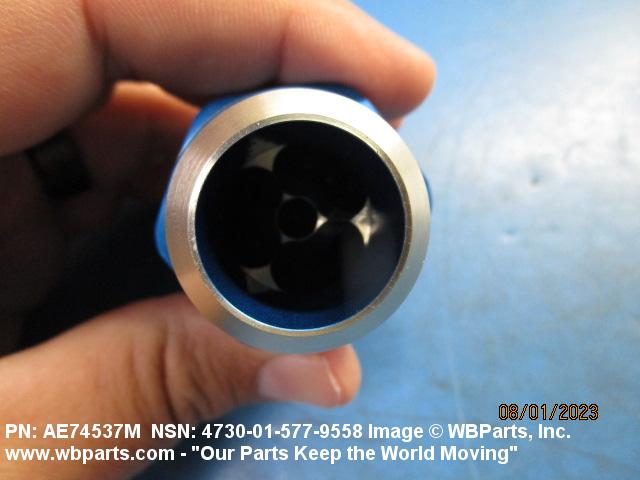

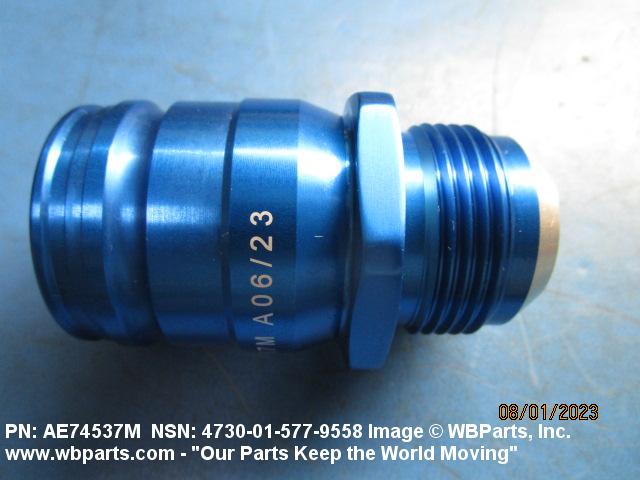

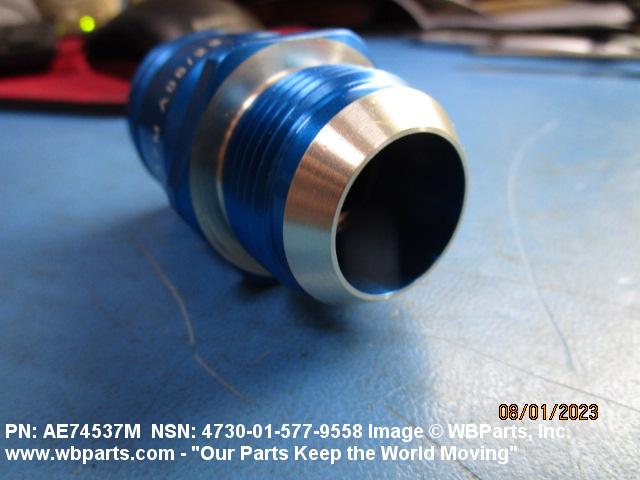

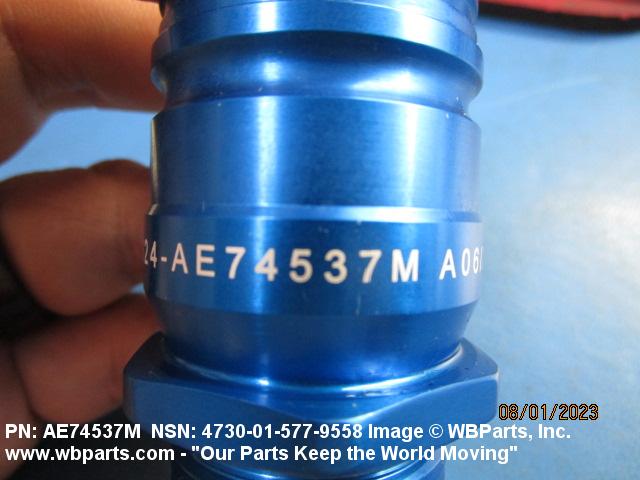

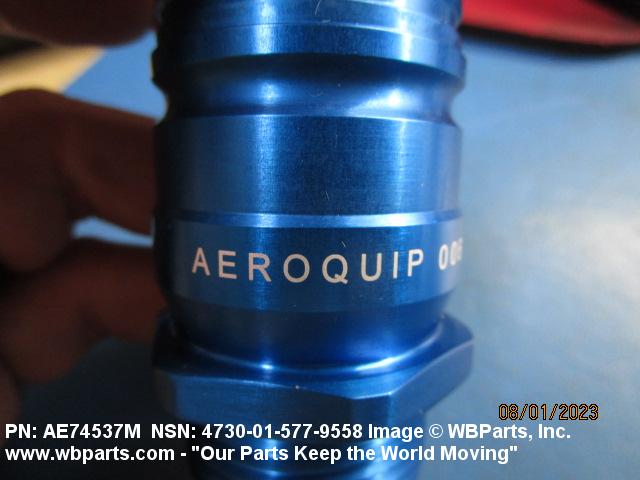

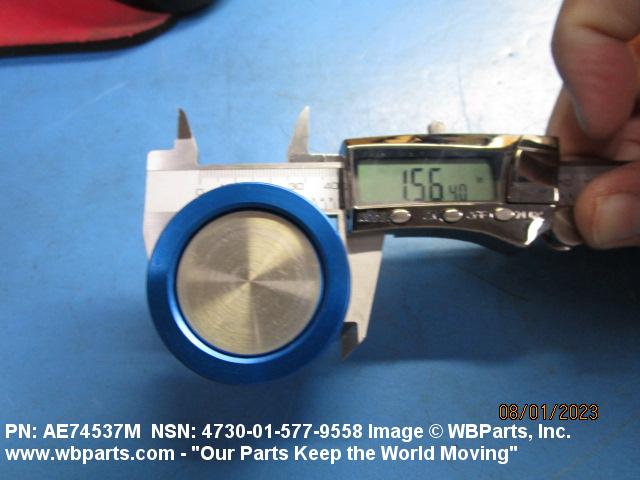

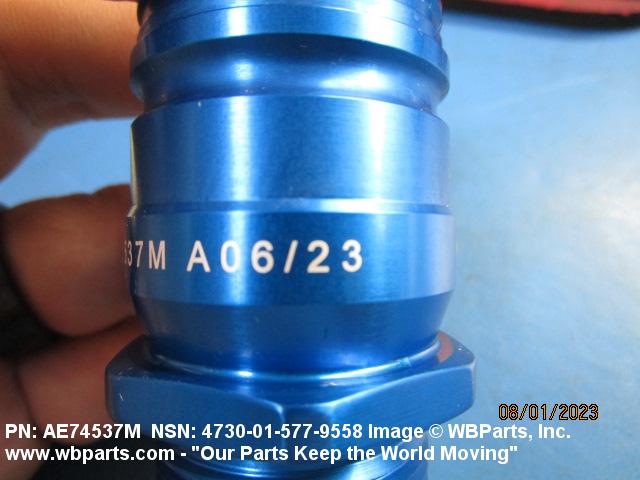

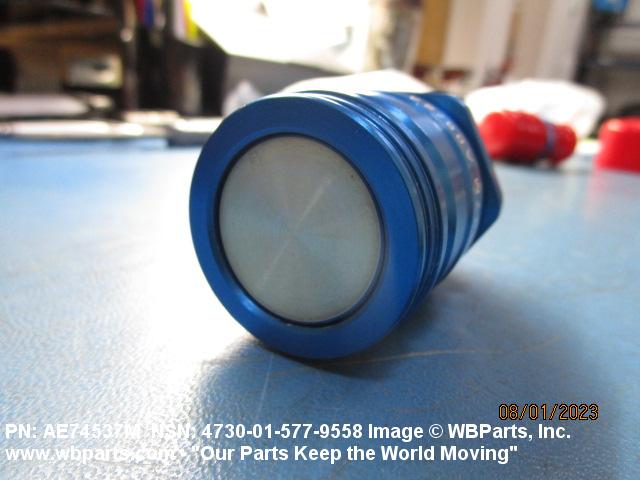

Drawings & Photos | NSN 4730-01-577-9558
Demand History | NSN 4730-01-577-9558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-577-9558 | 2024-06-157 | 2 | US |
| AE74537M | 2023-03-89 | 5 | United States |
| 4730-01-577-9558 | 2016-12-350 | 4 | United States |
| AE74537M | 2013-06-171 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-577-9558
Technical Data | NSN 4730-01-577-9558
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING HALF, QUICK DISCONNECT, SELF-SEALING, HOSE ATTACHING |
| END ITEM IDENTIFICATION | F-15SG STRIKE EAGLE |

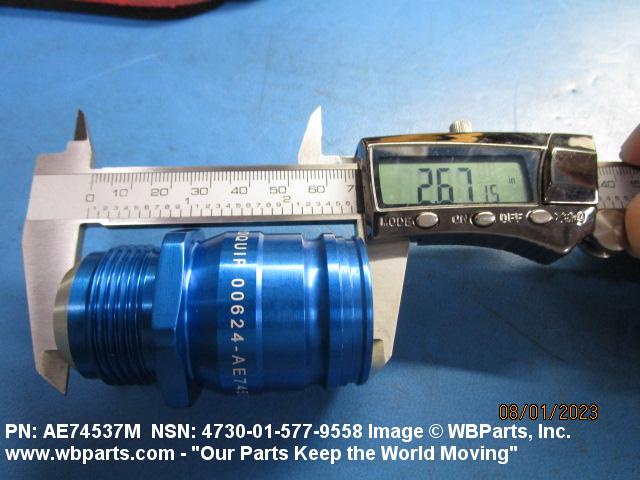

| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| SPECIAL FEATURES | ASSEMBLY CONSISTS OF ALUMINUM ADAPTER, GUIDE AND VALVE; ALSO CONSISTS OF CRES SPRING, STEEL COLLAR, TFE FILLED FLUOROSILICONE PACKING, AND TEFLON RETAINER; ONE END MATES WITH 7M1262 COUPLING, THE OTHER END IN IAW AS4395E16 EXCEPT HEX FOR TUBE SIZE OF 1.000 INCHES |
| MAXIMUM OPERATING PRESSURE | 500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
Restrictions/Controls & Freight Information | NSN 4730-01-577-9558
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
