NSN 4730-01-553-6404 3750016, 375001-6, 01-553-6404
Product Details | TUBE COUPLING ASSEMBLY
4730-01-553-6404 An item consisting of two or more tube fittings which are complete items and may be assembled in a combination forming a single item of supply designed to connect tube lines. Excludes COUPLING ASSEMBLY, SELF-SEALING and COUPLING ASSEMBLY, QUICK DISCONNECT.
Part Alternates: 3750016, 375001-6, 4730-01-553-6404, 01-553-6404, 4730015536404, 015536404
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUL 2007 | 01-553-6404 | 39980 ( COUPLING ASSEMBLY, TUBE ) |

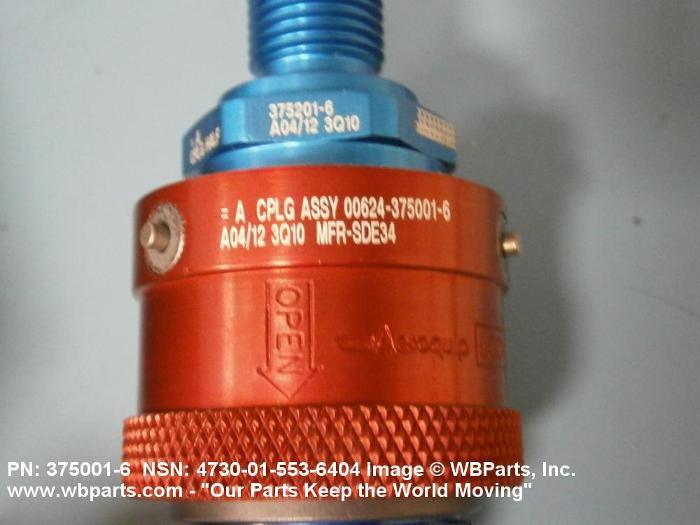

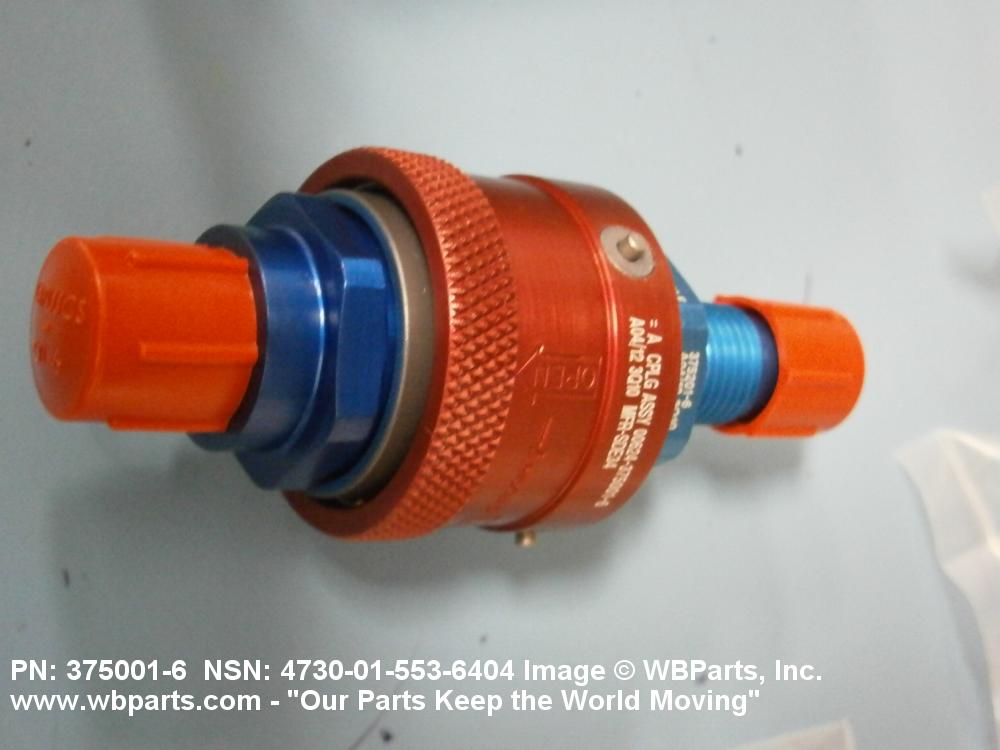

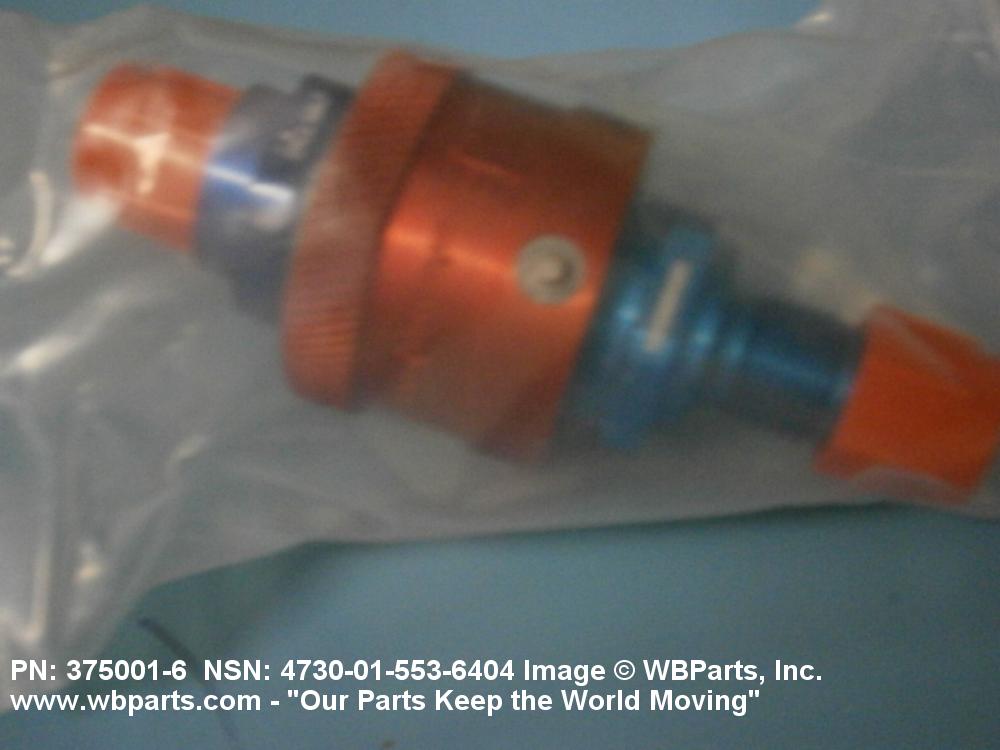

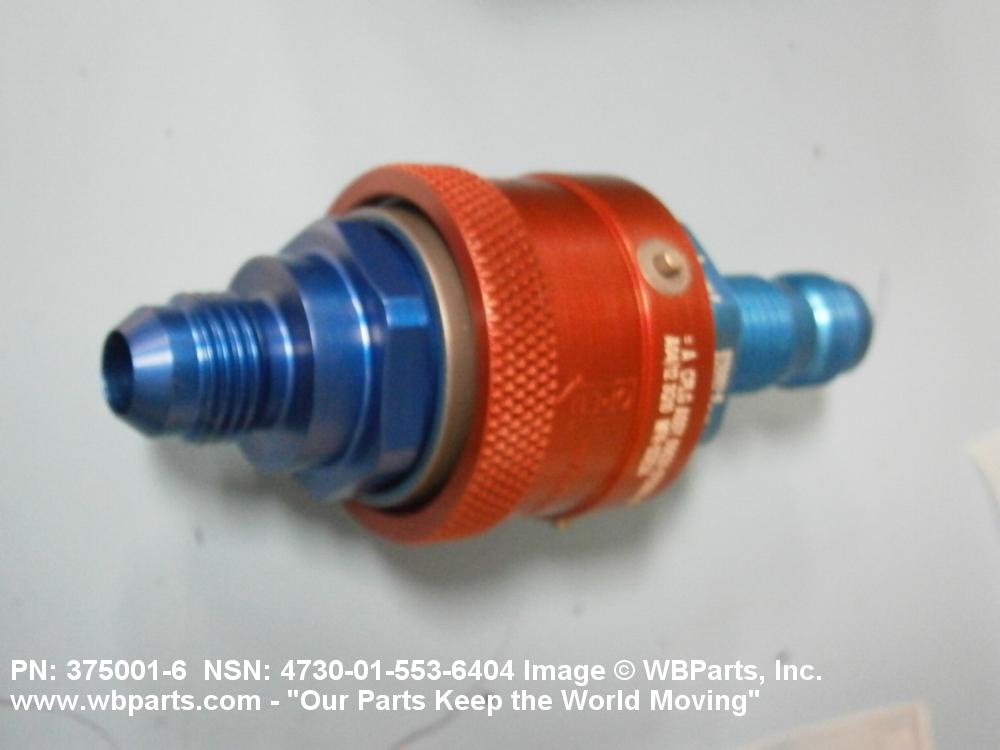

Drawings & Photos | NSN 4730-01-553-6404
Demand History | NSN 4730-01-553-6404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 375001-6 | 2012-11-310 | 1 | |
| 3750016 | 2011-12-353 | 2 | Italy |
| 3750016 | 2011-10-299 | 2 | Italy |
| 3750016 | 2009-11-322 | 10 | Italy |
Cross Reference | NSN 4730-01-553-6404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 375001-6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-553-6404
Technical Data | NSN 4730-01-553-6404
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 1.095 INCHES ALL ENDS |
| NOMINAL LENGTH | 3.705 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| SPECIAL FEATURES | SELF-SEALING QUICK DISCONNECT WIT H INDICATOR PINS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 4730-01-553-6404
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
