Product Details | TUBE COUPLING ASSEMBLY

4730-01-446-9057 An item consisting of two or more tube fittings which are complete items and may be assembled in a combination forming a single item of supply designed to connect tube lines. Excludes COUPLING ASSEMBLY, SELF-SEALING and COUPLING ASSEMBLY, QUICK DISCONNECT.

Part Alternates: AS1650, AS1652, AS1652C16, 14J0216C, 14J02-16C, 4730-01-446-9057, 01-446-9057, 4730014469057, 014469057

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 21 JUL 1997 01-446-9057

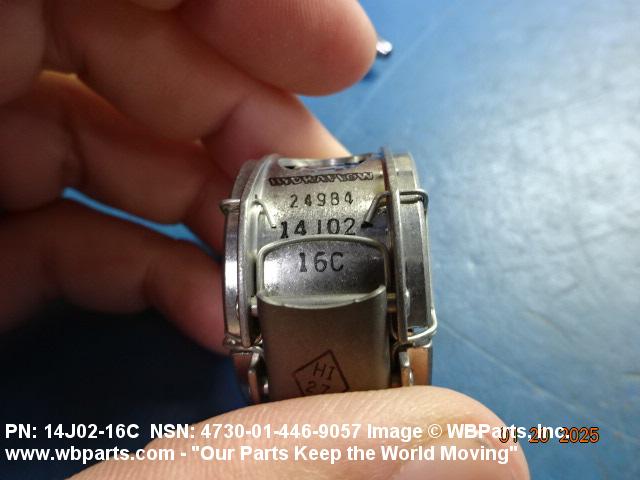

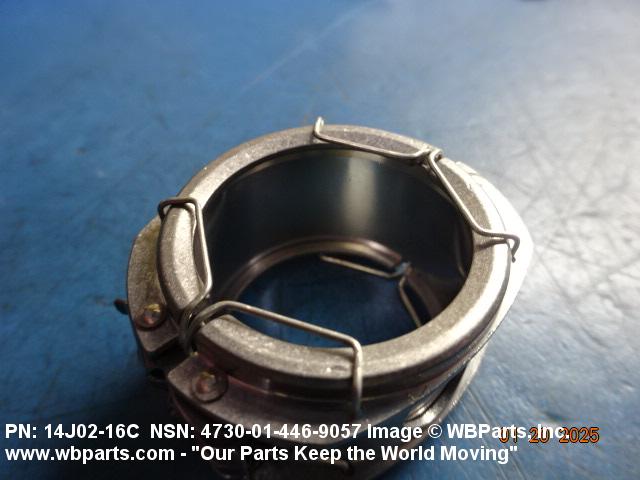

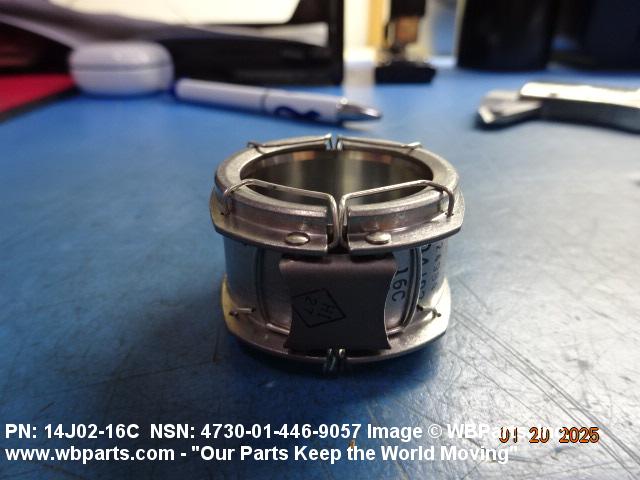

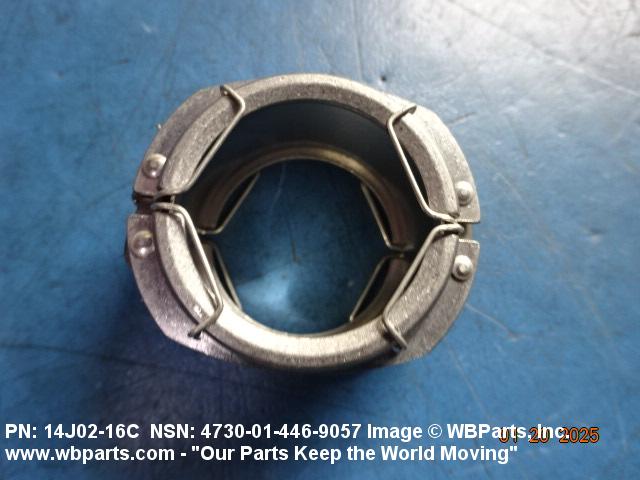

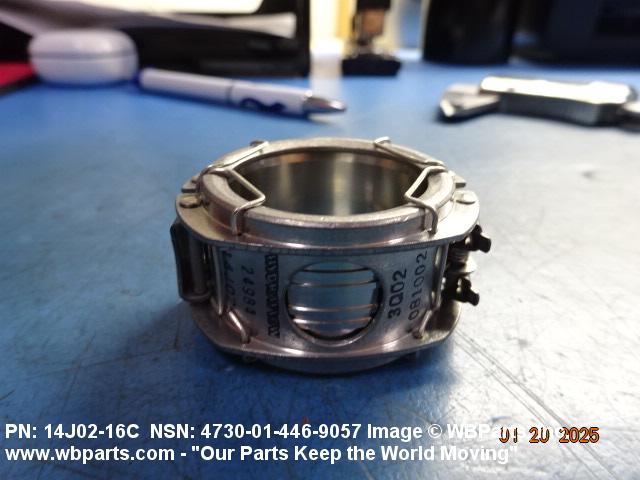

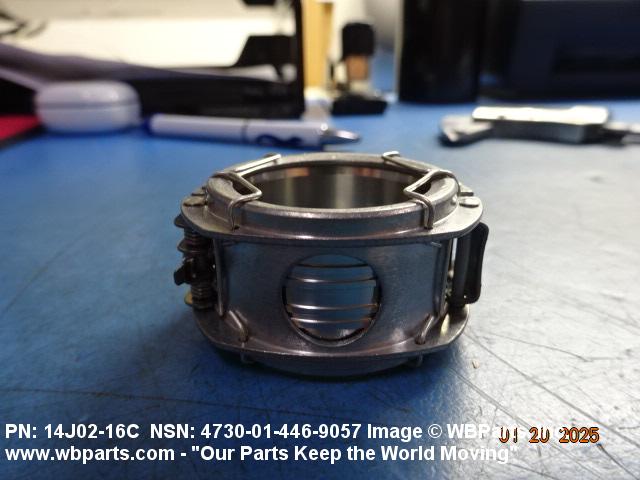

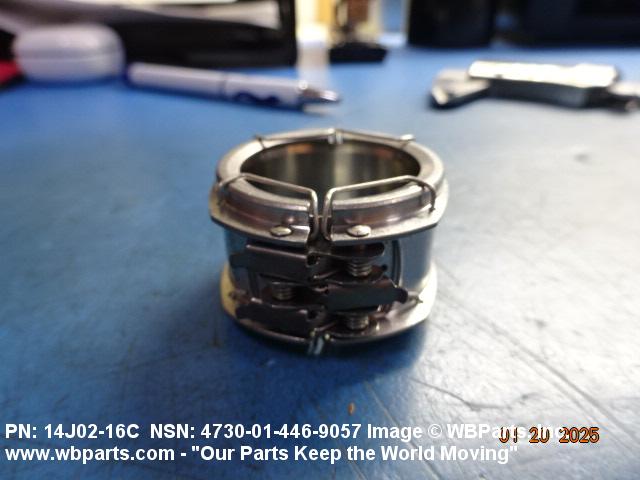

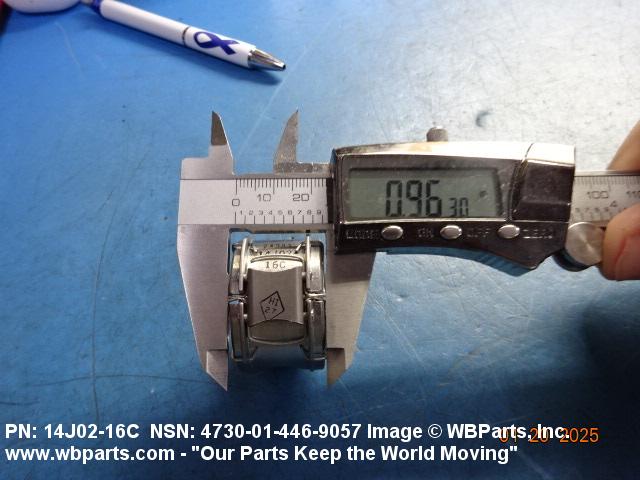

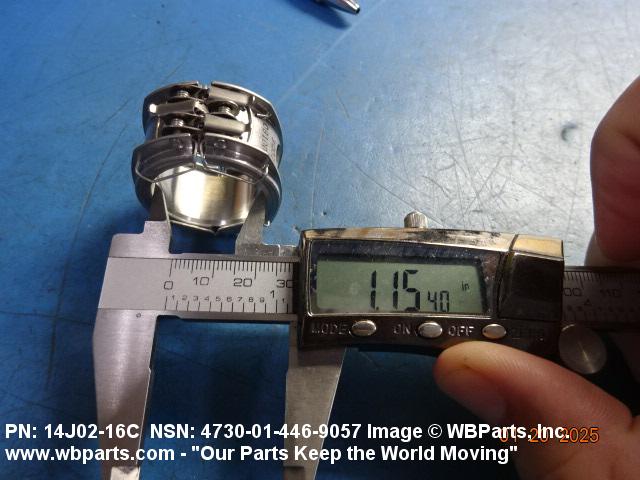

Drawings & Photos | NSN 4730-01-446-9057


Demand History | NSN 4730-01-446-9057

Part Number Request Date QTY Origin
4730-01-446-9057 2024-07-199 1 US
4730-01-446-9057 2024-06-169 11 Saudi Arabia
4730-01-446-9057 2022-08-223 65 DIBBS
4730-01-446-9057 2022-02-46 27 DIBBS
14J0216C 2021-04-102 1 United States
14J0216C 2019-06-155 1 United States
14J0216C 2019-06-155 3 United States
14J0216C 2019-06-154 2 United States
14J0216C 2019-05-136 2 United States
14J0216C 2019-05-130 2 United States
4730-01-446-9057 2018-11-309 59 DIBBS
4730-01-446-9057 2017-10-283 24 DIBBS
4730-01-446-9057 2017-04-94 5 United States
AS1652C16 2017-03-88 6 United States
4730-01-446-9057 2017-02-33 15 DIBBS
4730-01-446-9057 2016-12-364 9 DIBBS
4730-01-446-9057 2016-12-355 8 DIBBS
4730-01-446-9057 2016-11-314 6 DIBBS
4730-01-446-9057 2016-11-314 12 DIBBS
4730-01-446-9057 2016-09-264 20 United States
4730-01-446-9057 2013-05-132 7 DIBBS
4730-01-446-9057 2012-07-188 4 DIBBS
4730-01-446-9057 2011-11-314 2 DIBBS
14J02-16C 2011-06-179 1
AS1652 2011-01-04 3 US
4730-01-446-9057 2009-08-240 1 DIBBS
AS1652C16 2008-06-164 10 United States
AS1652C16 2007-12-355 180 United States

Cross Reference | NSN 4730-01-446-9057

Part Number Cage Code Manufacturer
14J02-16C 24984 HYDRAFLOW
AS1650 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1652 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS1652C16 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-446-9057

Technical Data | NSN 4730-01-446-9057

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 1.000 INCHES ALL ENDS
SPECIAL FEATURES CONSISTS OF COUPLING AND SLEEVE.
III END ITEM IDENTIFICATION 1430-01-418-4396

Restrictions/Controls & Freight Information | NSN 4730-01-446-9057

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 4730-01-446-9057

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
