NSN 4730-01-526-4603 AS1652A16, 01-526-4603, 015264603
Product Details | TUBE COUPLING ASSEMBLY
4730-01-526-4603 An item consisting of two or more tube fittings which are complete items and may be assembled in a combination forming a single item of supply designed to connect tube lines. Excludes COUPLING ASSEMBLY, SELF-SEALING and COUPLING ASSEMBLY, QUICK DISCONNECT.
Part Alternates: AS1652A16, 4730-01-526-4603, 01-526-4603, 4730015264603, 015264603
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 DEC 2004 | 01-526-4603 | 39980 ( COUPLING ASSEMBLY, TUBE ) |

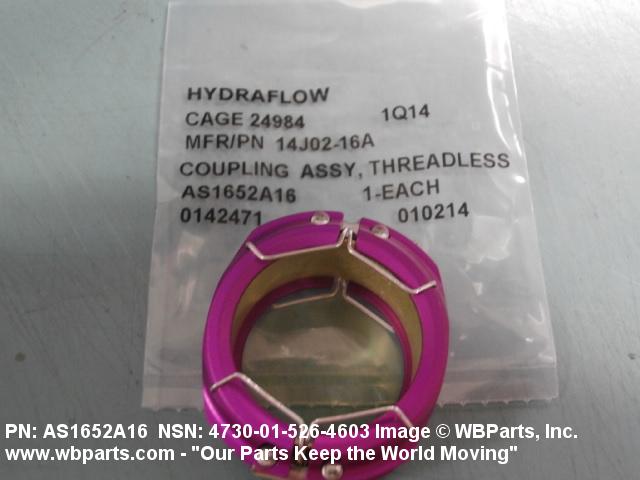

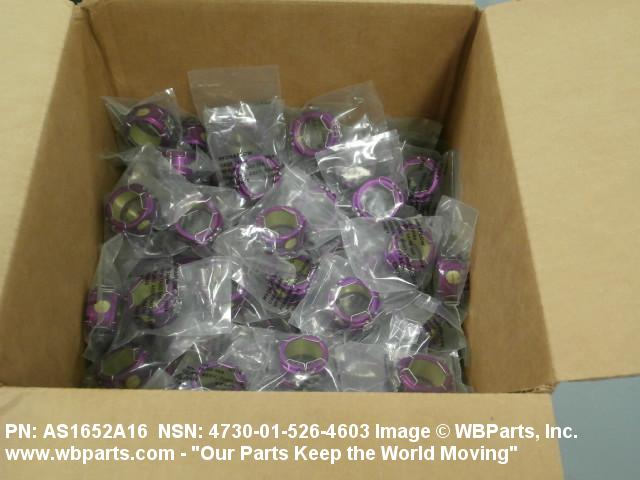

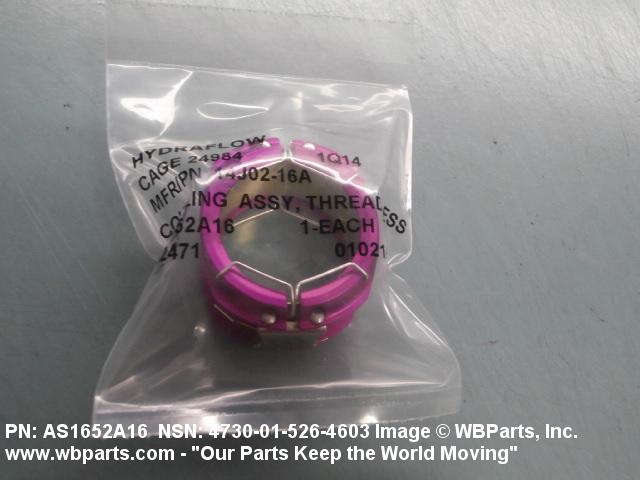

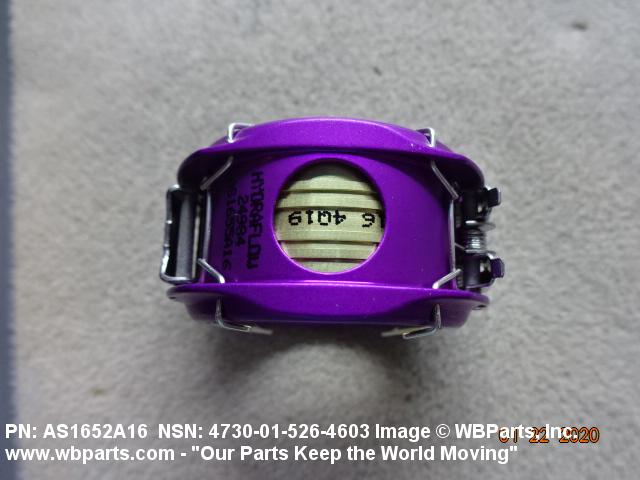

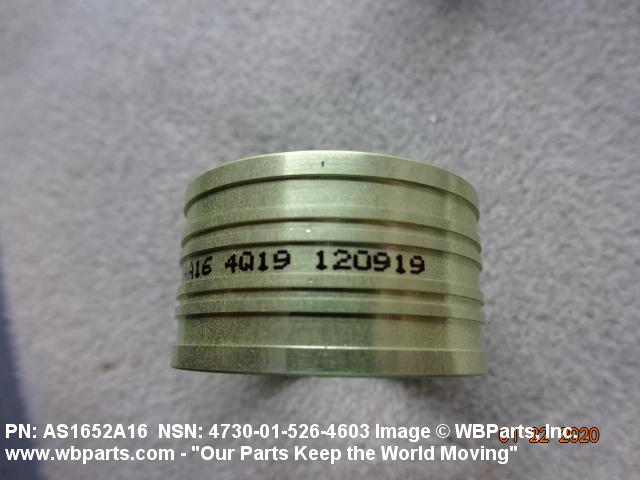

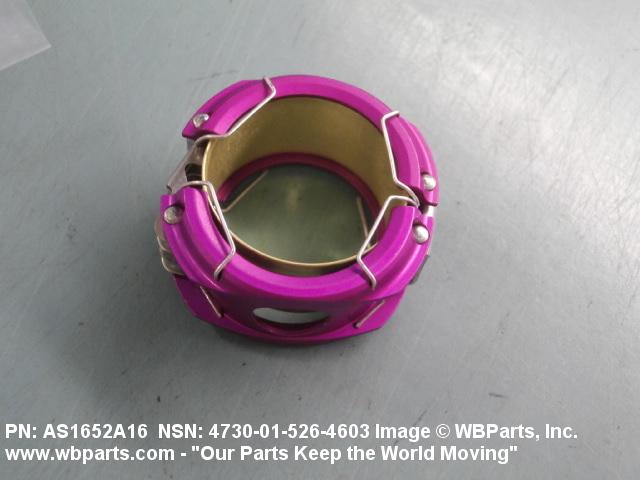

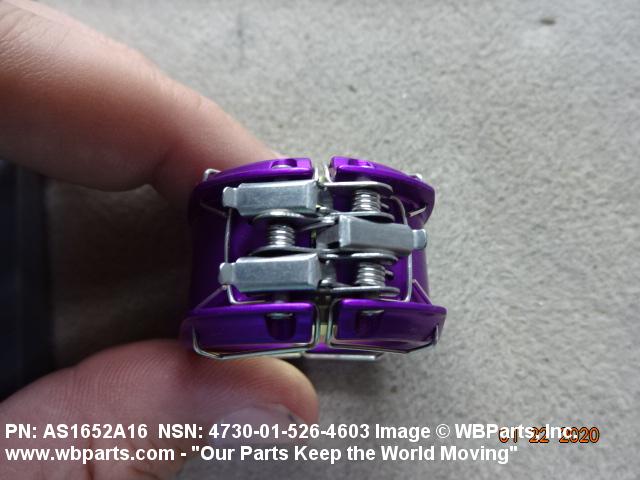

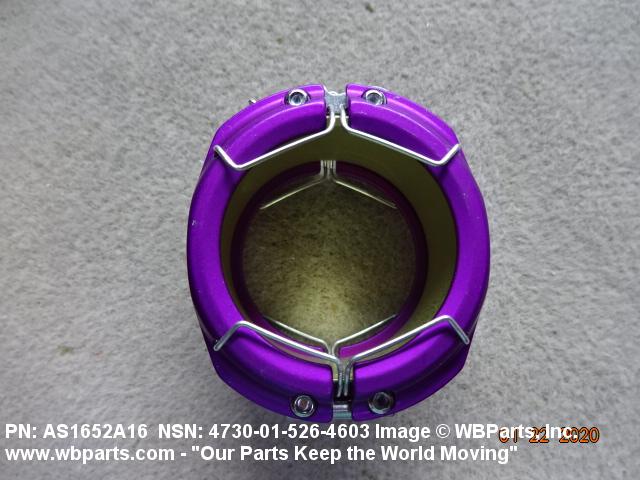

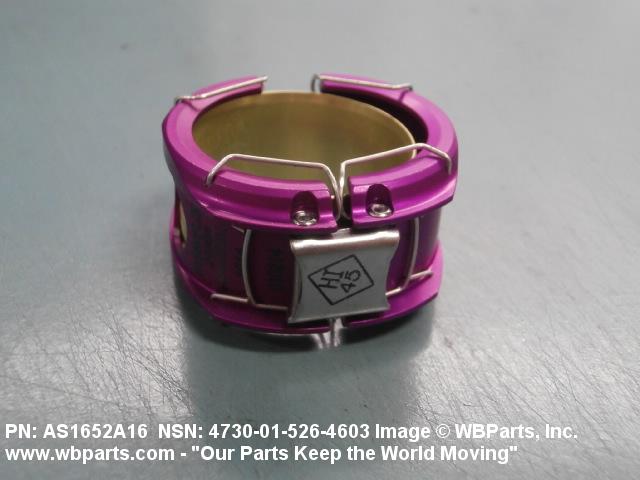

Drawings & Photos | NSN 4730-01-526-4603
Demand History | NSN 4730-01-526-4603
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-526-4603 | 2023-06-173 | 32 | US |
| 4730-01-526-4603 | 2023-06-172 | 10 | US |
| 4730-01-526-4603 | 2023-06-172 | 32 | US |
| AS1652A16 | 2023-06-172 | 68 | US |
| AS1652A16 | 2023-03-76 | 24 | US |
| AS1652A16 | 2023-03-76 | 10 | US |
| 4730-01-526-4603 | 2022-06-172 | 1 | UK |
| AS1652A16 | 2021-12-337 | 13 | United States |
| AS1652A16 | 2020-07-188 | 10 | US |
| AS1652A16 | 2020-03-85 | 103 | United States |
| 4730-01-526-4603 | 2020-03-84 | 3 | China |
| AS1652A16 | 2020-01-16 | 2 | United States |
| AS1652A16 | 2019-07-193 | 1 | United States |
| 4730-01-526-4603 | 2018-10-284 | 154 | DIBBS |
| 4730-01-526-4603 | 2018-05-151 | 136 | DIBBS |
| AS1652A16 | 2018-03-80 | 5 | US |
| AS1652A16 | 2017-06-164 | 1 | United States |
| 4730-01-526-4603 | 2017-06-163 | 20 | DIBBS |
| AS1652A16 | 2015-02-47 | 100 | US |
| AS1652A16 | 2015-01-28 | 40 | United States |
| AS1652A16 | 2014-02-55 | 165 | Russian Federation |
| AS1652A16 | 2006-08-216 | 20 | US |
Cross Reference | NSN 4730-01-526-4603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS1652A16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-526-4603
Related Products | NSN 4730-01-526-4603
Technical Data | NSN 4730-01-526-4603
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BODY ALUMINUM SLEEVE |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B36 PLAIN ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES ALL ENDS |

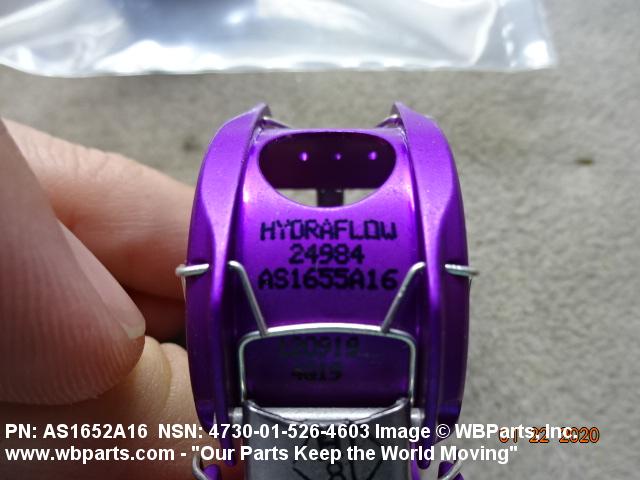

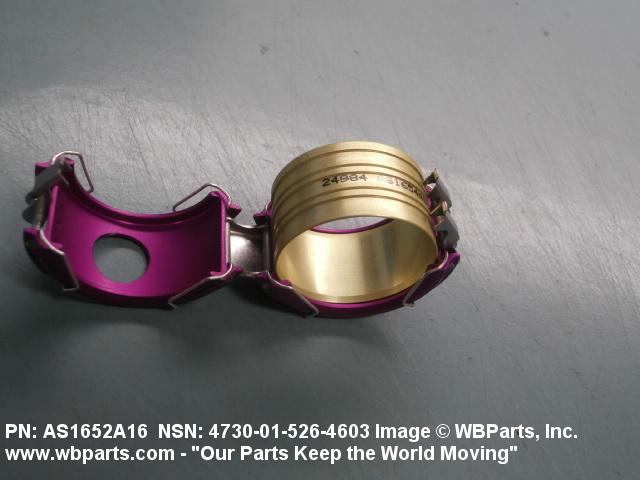

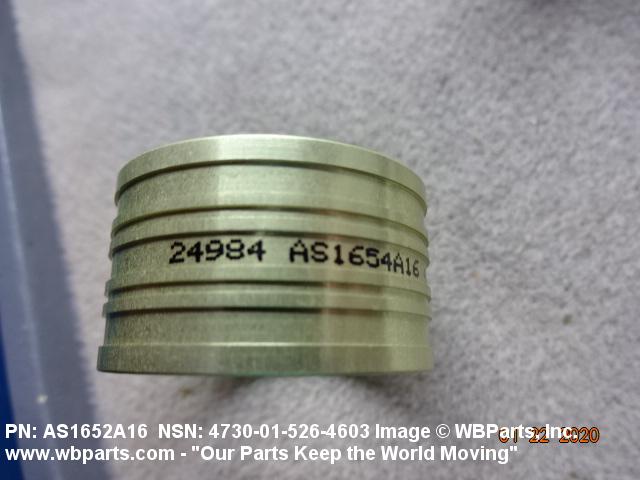

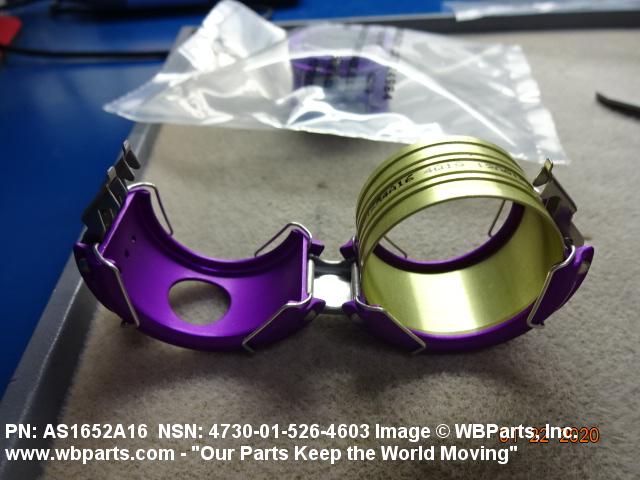

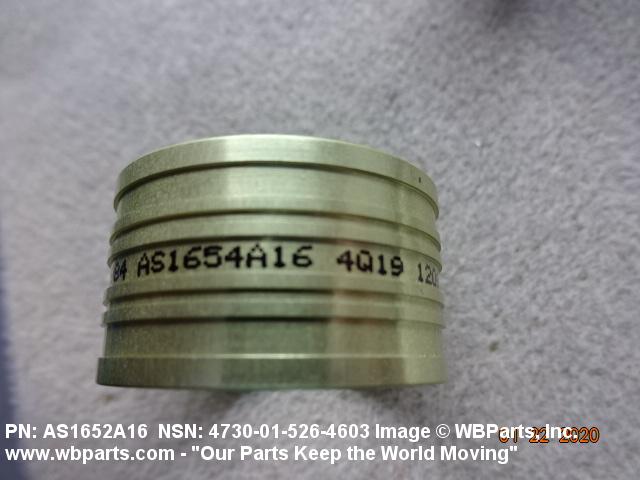

| SPECIAL FEATURES | CONSIST OF SLEEVE AS1654 AND COUPLING BODY AS1655 |
| III END ITEM IDENTIFICATION | GLOBAL HAWK RQ-4A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING ASSEMBLY,THREADLESS-FLEXIBLE |
Restrictions/Controls & Freight Information | NSN 4730-01-526-4603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-526-4603
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | DN | TM:RQ-4A |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | F78 | Northrop Grumman Ryan Aero San Diego, CA 92127-ND |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
