Product Details | SEDIMENT STRAINER

4730-01-535-1500 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.

Part Alternates: 1361, 1361/141B-3.0IN-3/32IN PERF., 1361141B30IN332INPERF, 4730-01-535-1500, 01-535-1500, 4730015351500, 015351500

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 16 NOV 2005 01-535-1500

Drawings & Photos | NSN 4730-01-535-1500


Demand History | NSN 4730-01-535-1500

Part Number Request Date QTY Origin
0309WB-60602001 2024-06-179 2 DIBBS
0309WB-60602001 2023-12-341 2 DIBBS
0309WB-60602001 2023-07-187 1 DIBBS
0309WB-60602001 2022-11-317 1 DIBBS
1361/141B-3.0IN-3/32IN PERF. 2022-06-153 1 DIBBS
1361/141B-3.0IN-3/32IN PERF. 2022-01-09 1 DIBBS
4730-01-535-1500 2018-01-15 3 DIBBS
4730-01-535-1500 2014-10-279 1 DIBBS
4730-01-535-1500 2014-09-265 1 DIBBS

Cross Reference | NSN 4730-01-535-1500

Part Number Cage Code Manufacturer
1361 78527 STAPLES & PFEIFFER INC.
1361/141B-3.0IN-3/32IN PERF. 78527 STAPLES & PFEIFFER INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-535-1500

Technical Data | NSN 4730-01-535-1500

Characteristic Specifications

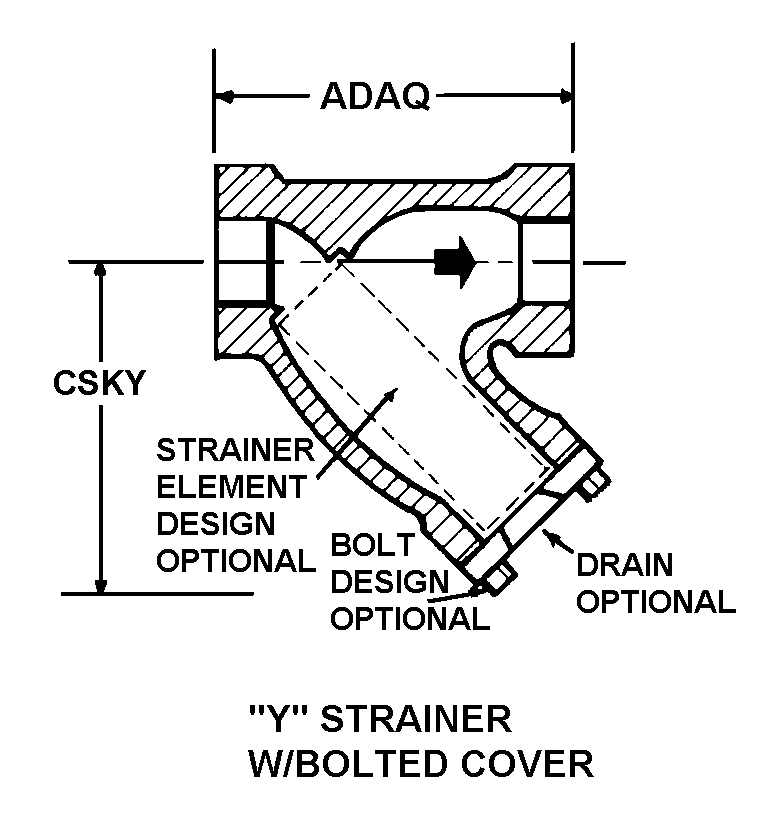

STYLE DESIGNATOR C2 Y STRAINER W/BOLTED COVER
BODY LENGTH 12.125 INCHES NOMINAL
DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET 7.500 INCHES NOMINAL
MOUNTING FLANGE BOLT HOLE QUANTITY 2
THREAD SERIES DESIGNATOR NPT
MATERIAL COPPER ALLOY BODY NICKEL ALLOY SCREENING
FILTERING MEDIA DESIGN PERFORATED SINGLE FILTERING MEDIA RESPONSE
MESH SIZE 0.093
PERFORATION DIAMETER 0.093 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE 250.0 POUNDS PER SQUARE INCH
FIRST INTAKE CONNECTION TYPE PLAIN FACE FLANGE LINE
FIRST INTAKE NOMINAL OUTSIDE DIAMETER 6.625 INCHES
SECOND INTAKE CONNECTION RELATIONSHIP TO FIRST INTAKE CONNECTION IDENTICAL
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION NOT IDENTICAL
FIRST DISCHARGE CONNECTION TYPE PLAIN FACE FLANGE BOTTOM
MOUNTING TYPE INLET CONNECTION AND OUTLET CONNECTION LINE

Restrictions/Controls & Freight Information | NSN 4730-01-535-1500

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 052440 STRAINERS PIPE LINE I/S BODY
Less than car load rating
Less than truck load rating S 60.0
Water commodity Code 576 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
