Product Details | QUICK DISCONNECT COUPLING HALF

4730-01-482-1355 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: CAN3R25, CAN-3R25, 4730-01-482-1355, 01-482-1355, 4730014821355, 014821355

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 09 FEB 2001 01-482-1355

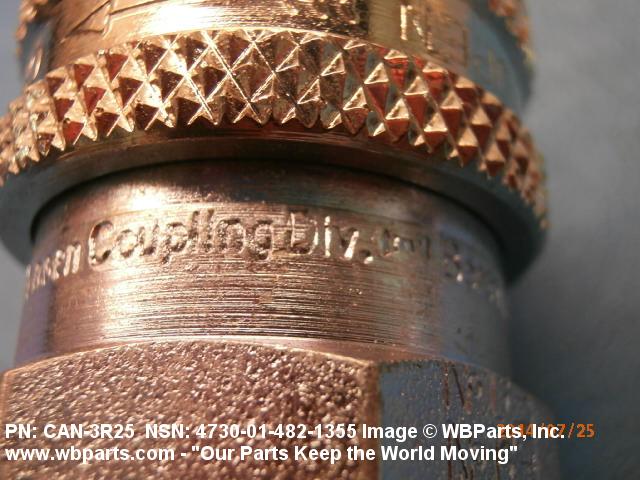

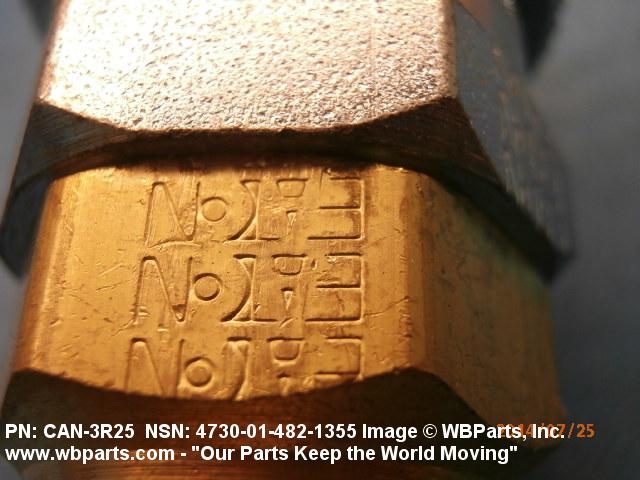

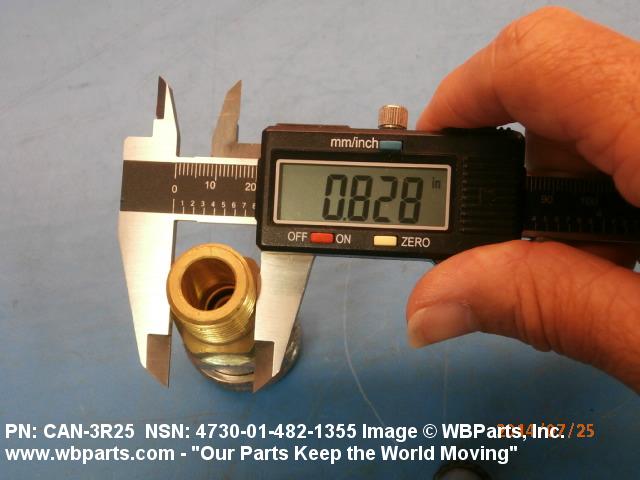

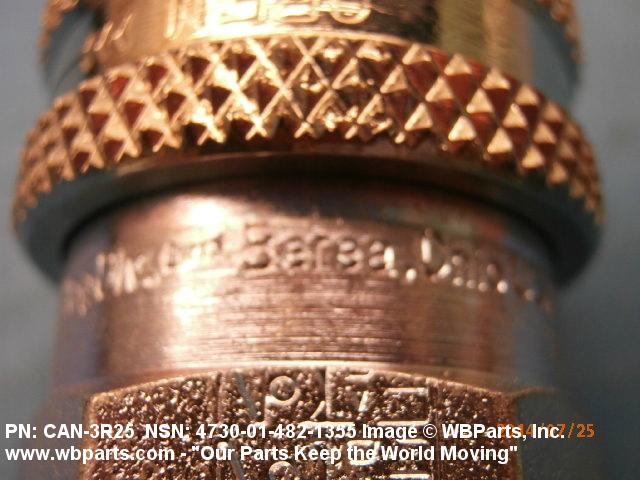

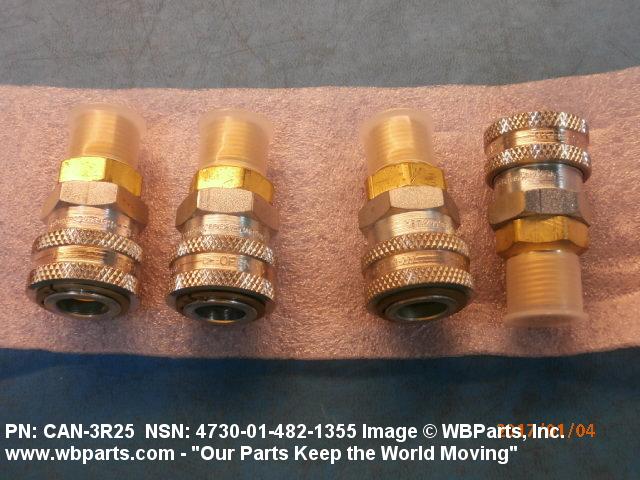

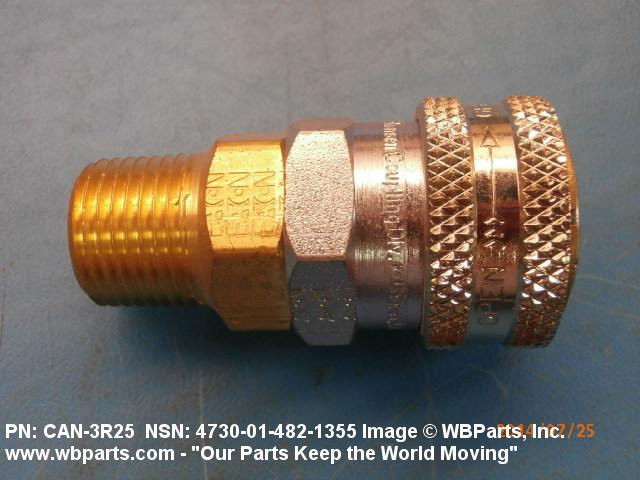

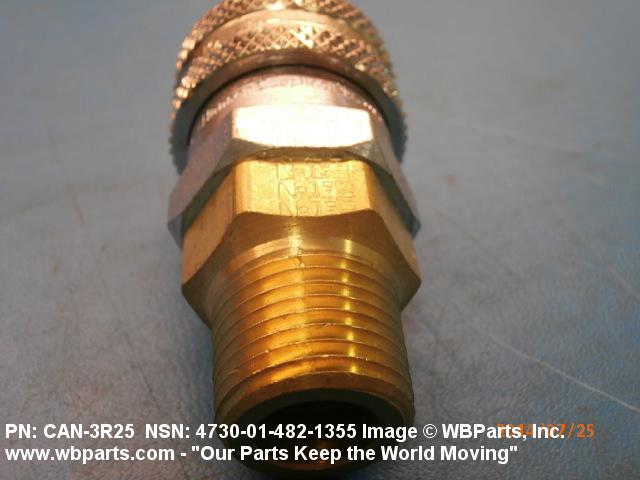

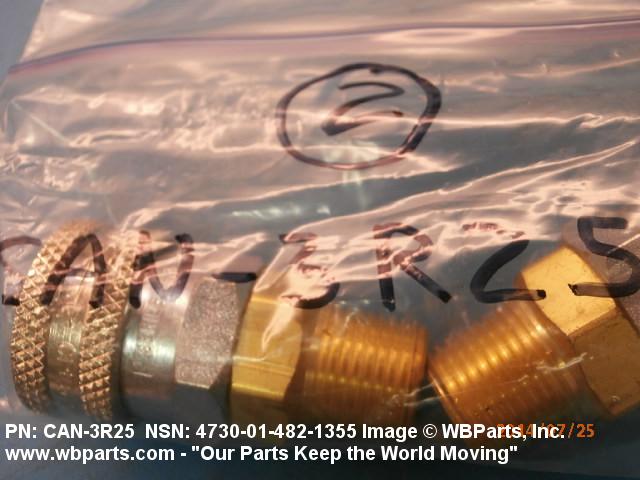

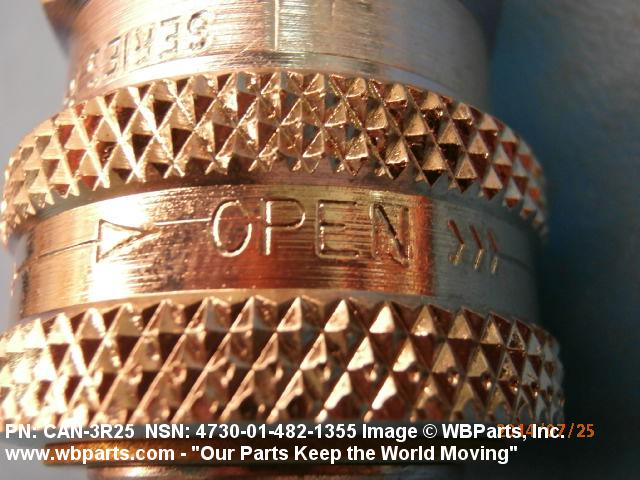

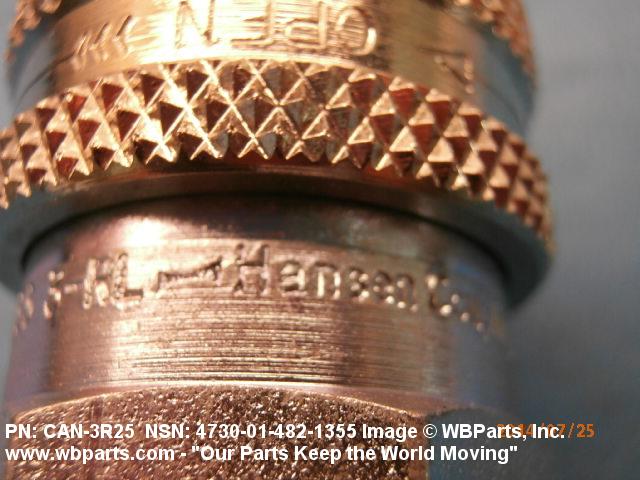

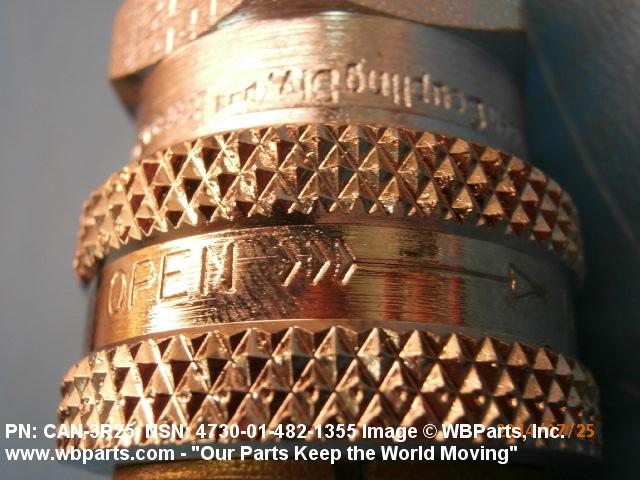

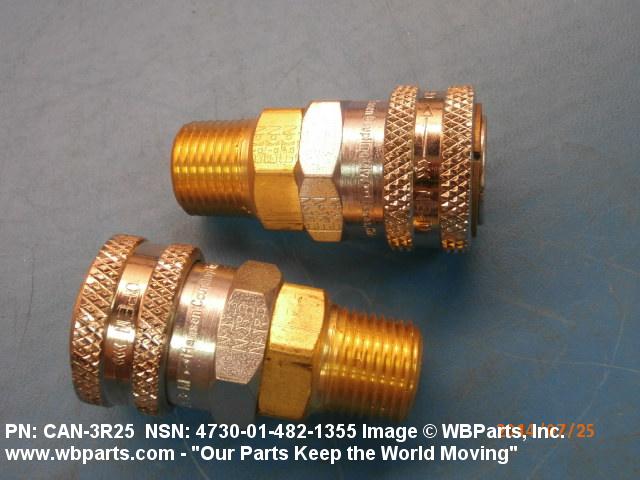

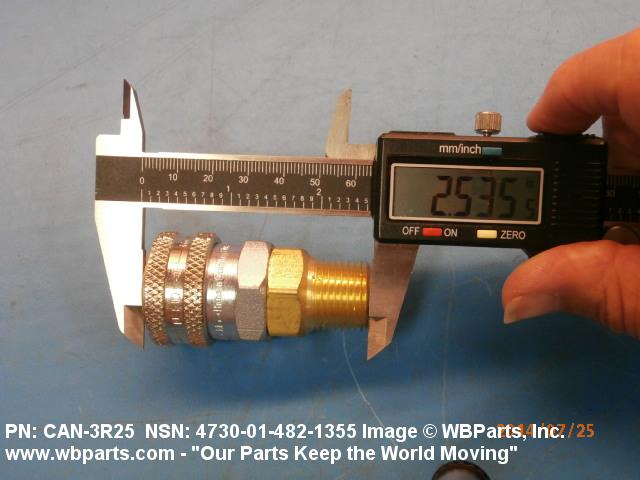

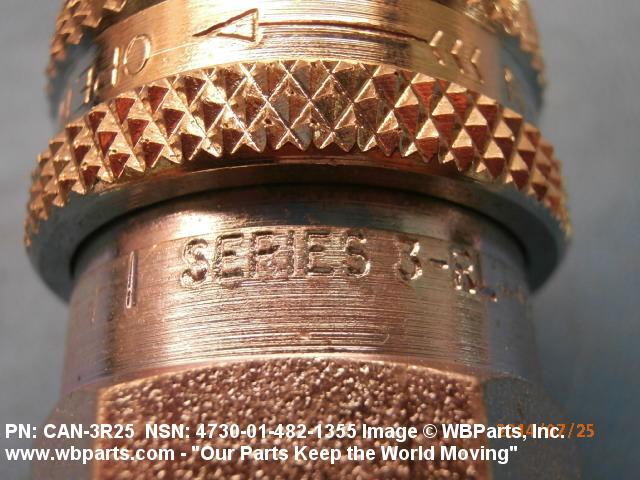

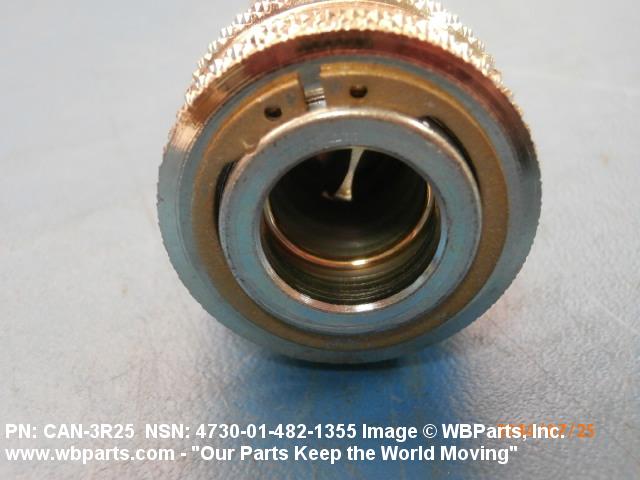

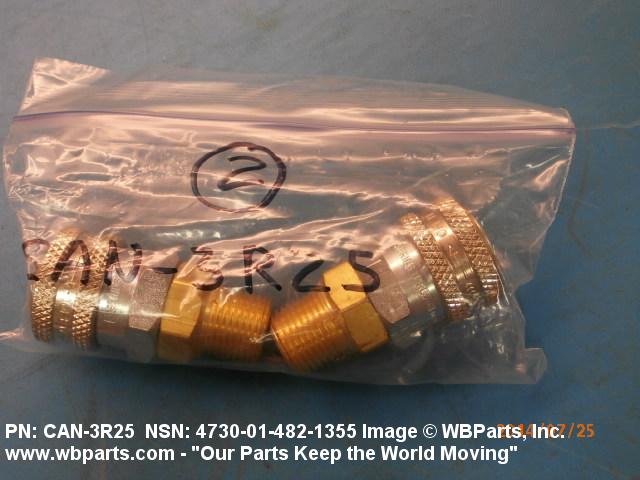

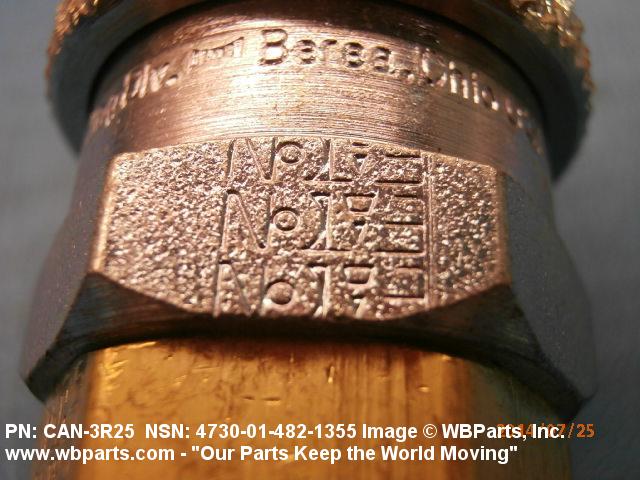

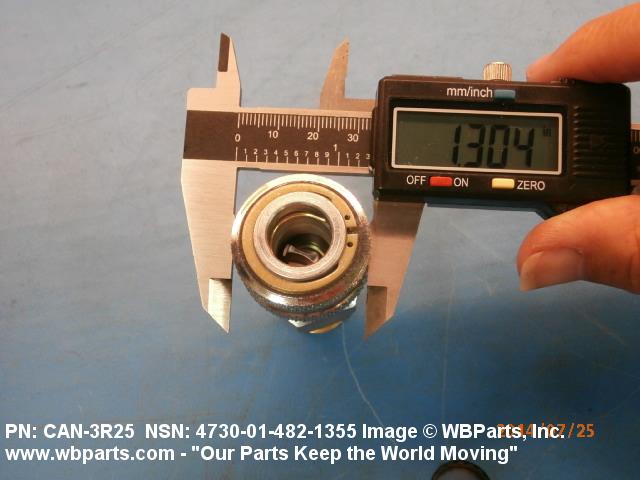

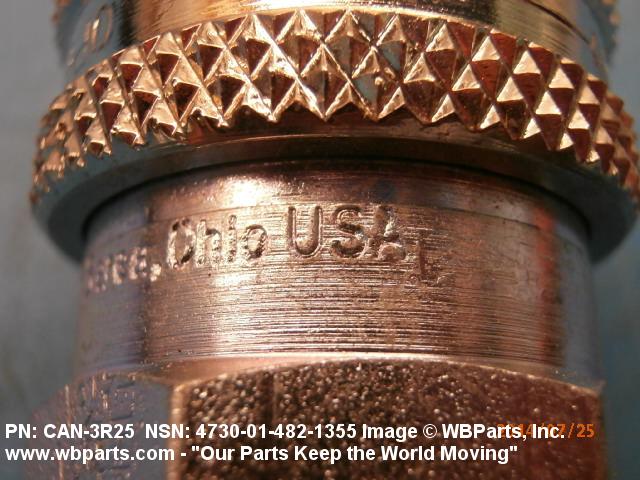

Drawings & Photos | NSN 4730-01-482-1355


Demand History | NSN 4730-01-482-1355

Part Number Request Date QTY Origin
014821355 2022-08-215 3 US
CAN3R25 2019-03-72 10 US
4730-01-482-1355 2018-09-267 48 US
4730-01-482-1355 2018-01-05 2 US
4730-01-482-1355 2018-01-04 2 US
4730-01-482-1355 2017-12-335 100 US
CAN3R25 2016-12-348 4 United States
4730-01-482-1355 2014-07-191 2 United States
4730-01-482-1355 2014-05-132 4 United States

Cross Reference | NSN 4730-01-482-1355

Part Number Cage Code Manufacturer
CAN-3R25 58501 RHINE AIR, INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-482-1355

Restrictions/Controls & Freight Information | NSN 4730-01-482-1355

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
