NSN 4730-01-477-4526 VSF1015, VSF1015N16, 10630103
Product Details | FLARED TUBE FITTING CONICAL SEAL
4730-01-477-4526 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: VSF1015, VSF1015N16, 10630103, 10630103101, 10630103-101, 4730-01-477-4526, 01-477-4526, 4730014774526, 014774526
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 AUG 2000 | 01-477-4526 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

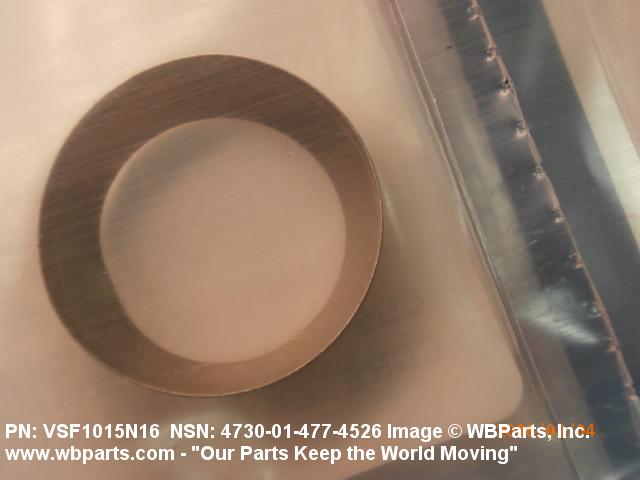

Drawings & Photos | NSN 4730-01-477-4526
Demand History | NSN 4730-01-477-4526
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| VSF1015N16 | 2024-10-282 | 10 | Japan |
| VSF1015N16 | 2024-07-200 | 456 | DIBBS |
| 4730-01-477-4526 | 2022-06-171 | 10 | Taiwan |
| 4730-01-477-4526 | 2022-03-85 | 10 | TW |
| 4730-01-477-4526 | 2021-11-313 | 2 | US |
| VSF1015N16 | 2019-10-276 | 863 | DIBBS |
| 4730-01-477-4526 | 2018-11-305 | 883 | DIBBS |
| 4730-01-477-4526 | 2018-04-93 | 192 | United States |
| 4730-01-477-4526 | 2017-09-253 | 568 | DIBBS |
| 4730-01-477-4526 | 2017-04-116 | 395 | DIBBS |
| 4730-01-477-4526 | 2016-08-225 | 395 | DIBBS |
| 4730-01-477-4526 | 2016-08-217 | 395 | DIBBS |
| VSF1015N16 | 2016-02-32 | 20 | United States |
| 4730-01-477-4526 | 2012-11-313 | 742 | DIBBS |
| 4730-01-477-4526 | 2012-01-11 | 1228 | DIBBS |
| 4730-01-477-4526 | 2011-12-341 | 1204 | DIBBS |
| 4730-01-477-4526 | 2011-07-190 | 586 | DIBBS |
| 4730-01-477-4526 | 2011-01-10 | 20 | DIBBS |
Cross Reference | NSN 4730-01-477-4526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10630103 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10630103-101 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| VSF1015 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VSF1015N16 | 66776 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VSF1015N16 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-477-4526
Related Products | NSN 4730-01-477-4526
Restrictions/Controls & Freight Information | NSN 4730-01-477-4526
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-477-4526
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
