NSN 4730-01-476-8704 AE99106E, GHN102471, GHN10247-1
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-476-8704 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE99106E, GHN102471, GHN10247-1 , 4730-01-476-8704, 01-476-8704, 4730014768704, 014768704
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JUL 2000 | 01-476-8704 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

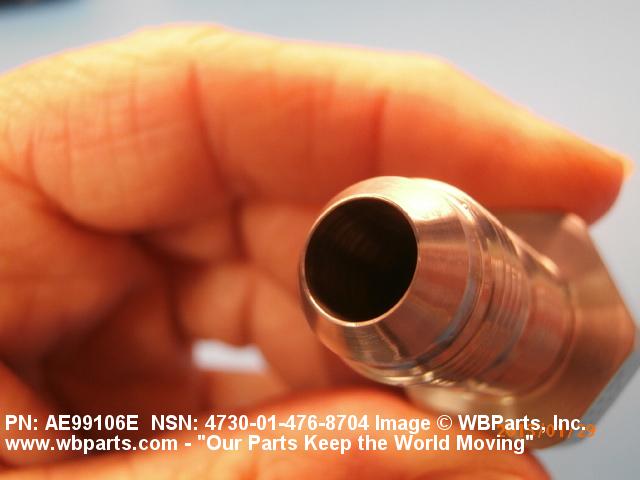

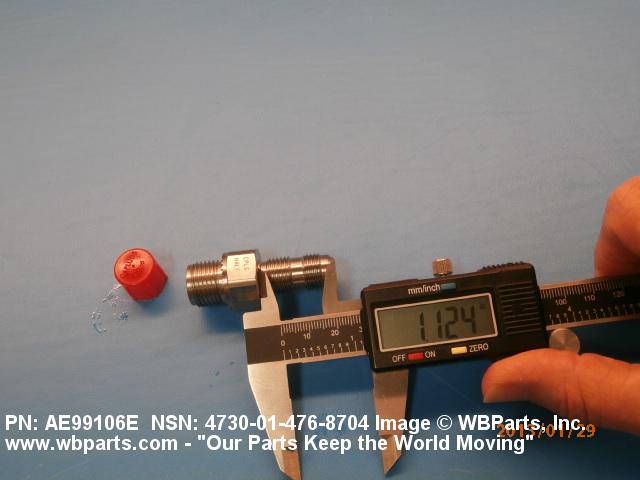

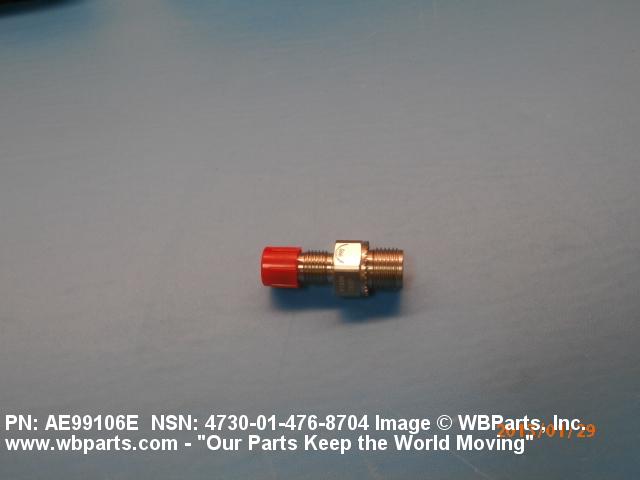

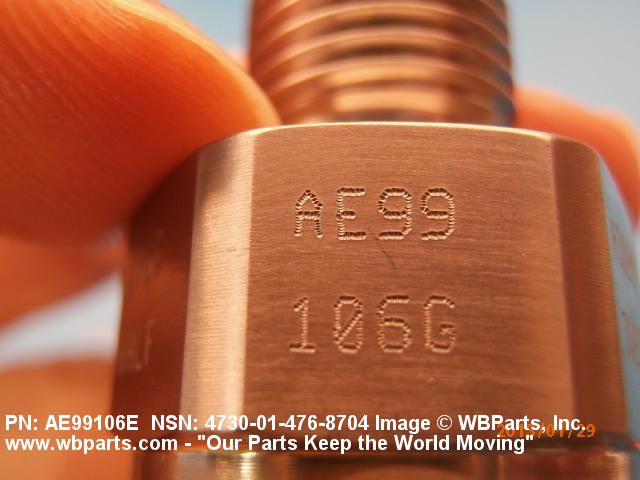

Drawings & Photos | NSN 4730-01-476-8704
Demand History | NSN 4730-01-476-8704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE99106E | 2022-06-174 | 10 | DIBBS |
| AE99106E | 2021-03-70 | 5 | DIBBS |
| AE99106E | 2020-03-72 | 3 | DIBBS |
| 4730-01-476-8704 | 2016-07-213 | 4 | US |
| 4730-01-476-8704 | 2015-12-341 | 4 | DIBBS |
| 4730-01-476-8704 | 2014-11-310 | 4 | Taiwan |
| 4730-01-476-8704 | 2014-08-224 | 1 | US |
| AE99106E | 2013-01-23 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-476-8704
Restrictions/Controls & Freight Information | NSN 4730-01-476-8704
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-476-8704
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Materiel Management Aggregation Code | VM | TL:C-130J AIRCRAFT |
| Source of Supply | F06 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
