NSN 4730-01-466-1917 AE73133M, 13213308-5, 01-466-1917
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-466-1917 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE73133M, 13213308-5, 4730-01-466-1917, 01-466-1917, 4730014661917, 132133085, 014661917
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 JUL 1999 | 01-466-1917 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-466-1917
Demand History | NSN 4730-01-466-1917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE73133M | 2024-11-316 | 96 | US |
| AE73133M | 2024-03-67 | 13 | DIBBS |
| 4730-01-466-1917 | 2018-11-317 | 52 | DIBBS |
| 4730-01-466-1917 | 2018-11-305 | 52 | DIBBS |
| 4730-01-466-1917 | 2018-08-221 | 16 | DIBBS |
| 4730-01-466-1917 | 2017-10-295 | 17 | DIBBS |
| 4730-01-466-1917 | 2017-07-208 | 8 | DIBBS |
| 4730-01-466-1917 | 2014-06-166 | 7 | DIBBS |
| 4730-01-466-1917 | 2014-04-93 | 7 | DIBBS |
| 4730-01-466-1917 | 2013-11-325 | 11 | DIBBS |
| 4730-01-466-1917 | 2012-06-159 | 7 | DIBBS |
| 4730-01-466-1917 | 2012-05-138 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-466-1917
Related Products | NSN 4730-01-466-1917
Technical Data | NSN 4730-01-466-1917
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8626 FED SPEC ALL TREATMENT RESPONSES BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| OVERALL LENGTH | 2.450 INCHES NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE FIRST FLUID END CONNECTION |

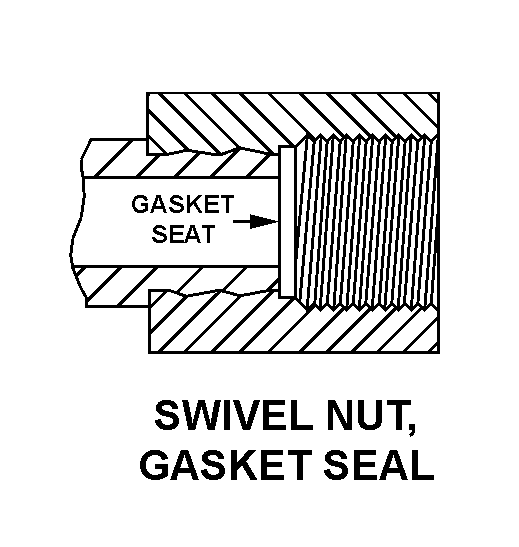

| CONNECTION STYLE | B16 SWIVEL NUT, GASKET SEAL ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL SECOND QUICK DISCONNECT END |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 1.3125 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 FIRST QUICK DISCONNECT END |
| THREAD CLASS | 3A ALL ENDS |
| SPECIAL FEATURES | OPERATING PRESSURE 3000PSI,PROOF PRESSURE 4500PSI, MIN BURST PRESSURE 7500 PSI,O RING USE PERMISSIBLE,TEMP RANGE -65F TO +275F |
| END ITEM IDENTIFICATION | ROCKET LAUNCHER, ARMORED VEHICLE MOUNTED NSN 1055-01-450-4243 |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE |
Restrictions/Controls & Freight Information | NSN 4730-01-466-1917
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-466-1917
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
