NSN 4730-01-453-9549 2599005998, 259-900599-8, 01-453-9549

Product Details | THREADED TUBE FITTING PLUG

4730-01-453-9549 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.

Part Alternates: 2599005998, 259-900599-8, 4730-01-453-9549, 01-453-9549, 4730014539549, 014539549

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	14 MAR 1998	01-453-9549	28613 ( PLUG, TUBE FITTING, THREADED )

Drawings & Photos | NSN 4730-01-453-9549

Part Number	Request Date	QTY	Origin
259-900599-8	2023-09-271	406	DIBBS
8647-8-SS	2023-09-271	406	DIBBS
259-900599-8	2023-07-200	500	DIBBS
259-900599-8	2022-08-215	500	DIBBS
259-900599-8	2022-08-213	106	DIBBS
259-900599-8	2022-07-202	106	DIBBS
259-900599-8	2022-06-174	9	DIBBS
259-900599-8	2022-06-172	67	DIBBS
259-900599-8	2022-06-160	67	DIBBS
4730-01-453-9549	2013-06-167	196	DIBBS
4730-01-453-9549	2011-09-244	119	DIBBS
4730-01-453-9549	2010-09-265	112	DIBBS
4730-01-453-9549	2010-08-239	63	DIBBS

Cross Reference | NSN 4730-01-453-9549

Part Number	Cage Code	Manufacturer
259-900599-8	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-453-9549

Compare

Related Products | NSN 4730-01-453-9549

4730-01-453-9600, 4730-01-453-9651, 4730-01-453-9831, 4730-01-454-0059, 4730-01-454-0069

Technical Data | NSN 4730-01-453-9549

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL

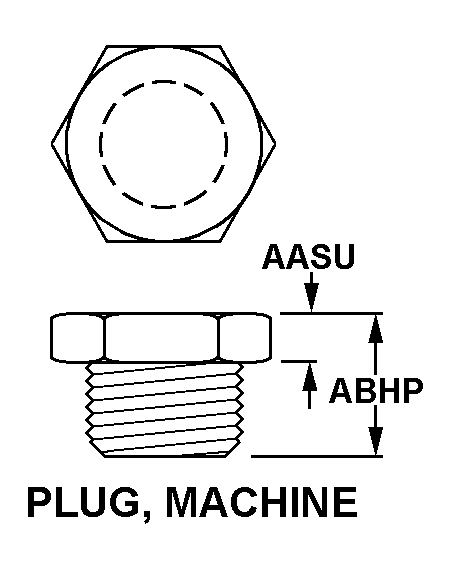

STYLE DESIGNATOR	C34 PLUG, MACHINE
HEAD HEIGHT	0.125 INCHES NOMINAL
OVERALL LENGTH	0.940 INCHES NOMINAL

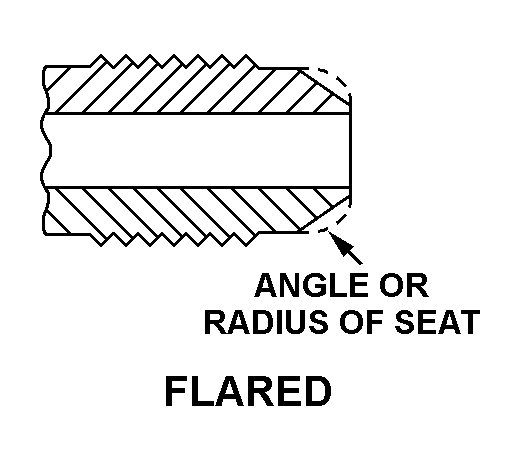

CONNECTION STYLE	J4 FLARED
THREAD SERIES DESIGNATOR	UNJF EXTERNAL
NOMINAL THREAD SIZE	0.750 INCHES EXTERNAL
THREAD CLASS	3B EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL
III END ITEM IDENTIFICATION	USED ON SUPPORT EQUIPMENT (SE),B-2 BOMBER AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-01-453-9549

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-453-9549

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
