NSN 4730-01-399-0266 AE88697E, 7548539P0002, 7548539P2

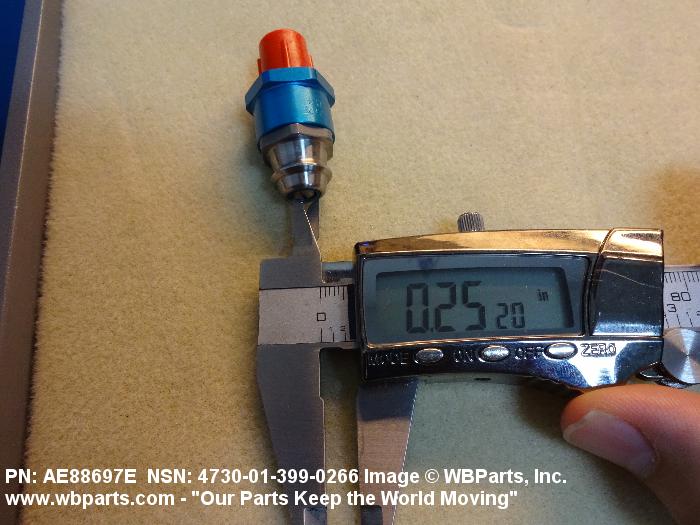

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-399-0266 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE88697E, 7548539P0002, 7548539P2, 4730-01-399-0266, 01-399-0266, 4730013990266, 013990266
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 NOV 1994 | 01-399-0266 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

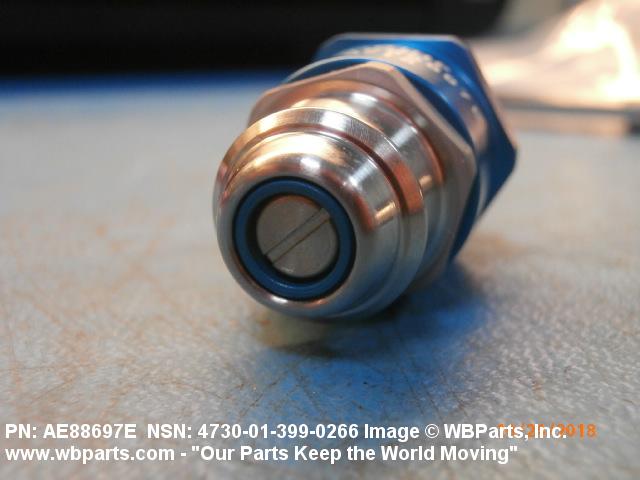

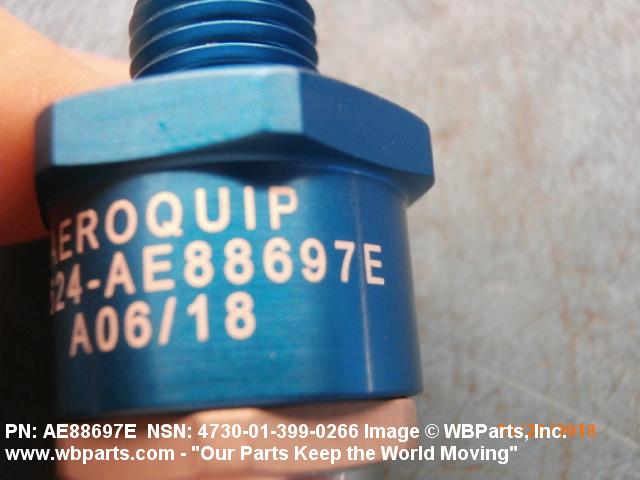

Drawings & Photos | NSN 4730-01-399-0266
Demand History | NSN 4730-01-399-0266
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-399-0266 | 2024-08-16 | 4 | US |
| AE88697E | 2023-12-05 | 3 | us |
| 4730-01-399-0266 | 2021-10-25 | 2 | US |
| 4730-01-399-0266 | 2021-04-28 | 1 | United States |
| 4730-01-399-0266 | 2021-04-12 | 1 | United States |
| AE88697E | 2020-07-23 | 7 | DIBBS |
| 4730-01-399-0266 | 2020-01-23 | 8 | US |
| AE88697E | 2019-10-31 | 2 | United States |
| AE88697E | 2019-09-24 | 1 | US |
| AE88697E | 2019-07-26 | 1 | US |
| AE88697E | 2019-04-15 | 12 | US |
| 4730-01-399-0266 | 2019-04-11 | 12 | US |
| 4730-01-399-0266 | 2018-10-16 | 2 | United States |
| 4730-01-399-0266 | 2018-10-02 | 2 | US |
| AE88697E | 2017-03-27 | 2 | United States |
| 4730-01-399-0266 | 2016-09-21 | 1 | United States |
| AE88697E | 2016-09-20 | 1 | United States |
| 4730-01-399-0266 | 2015-06-03 | 2 | United States |
| AE88697E | 2014-09-09 | 3 | United States |
| AE88697E | 2012-11-20 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-399-0266
Technical Data | NSN 4730-01-399-0266

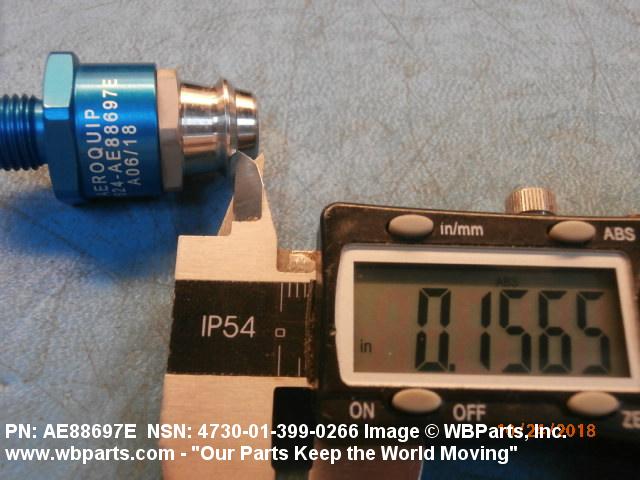

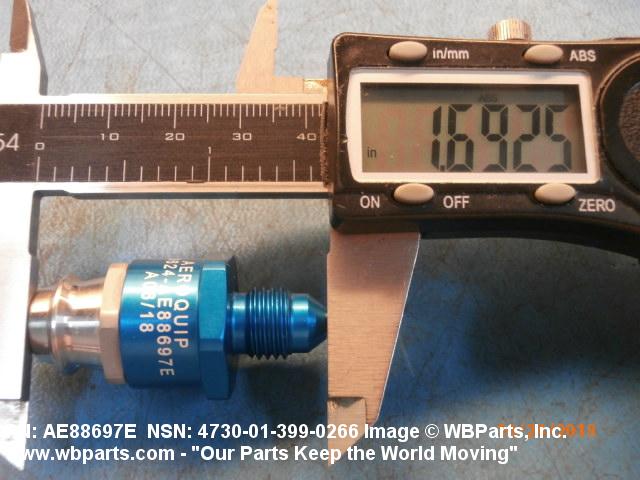

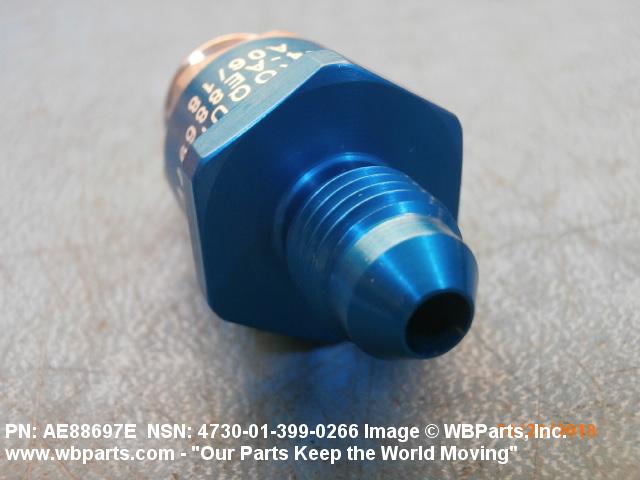

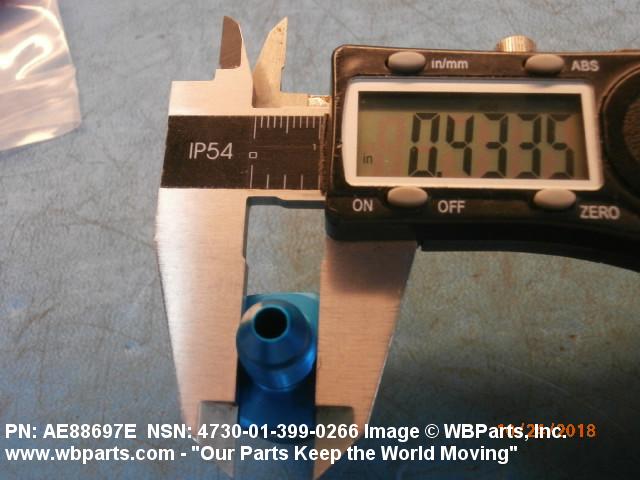

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 0.155 INCHES NOMINAL |
| OVERALL LENGTH | 1.690 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION |
| CONNECTION STYLE | D19 FLARED ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| END ITEM IDENTIFICATION | AIRCRAFT; F-14A TOMCAT |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT HYDRAULIC FLUID, SYNTHETIC HYDROCARBON BASE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, SYNTHETIC HYDROCARBON BASE |
