NSN 4730-01-391-6791 AN80612D, AN806-12D, 01-391-6791
Product Details | THREADED TUBE FITTING PLUG
4730-01-391-6791 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN80612D, AN806-12D, 4730-01-391-6791, 01-391-6791, 4730013916791, 013916791
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-391-6791 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

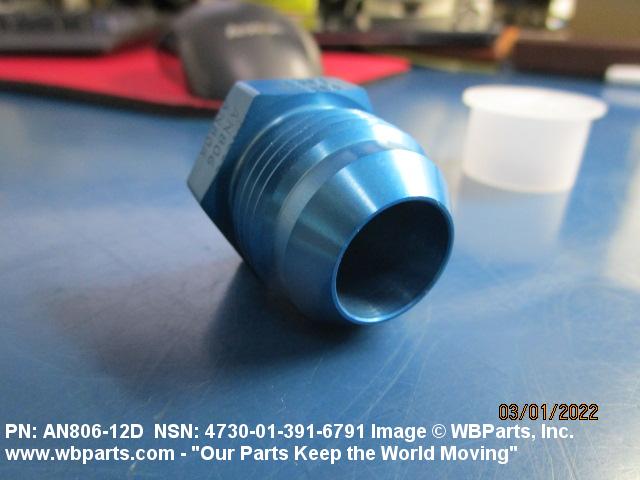

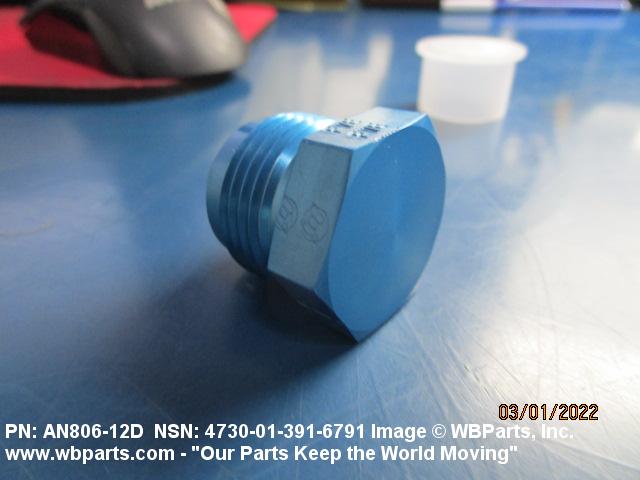

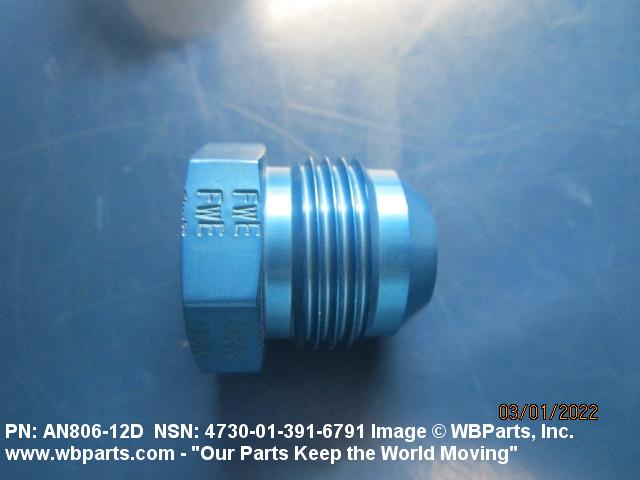

Drawings & Photos | NSN 4730-01-391-6791
Demand History | NSN 4730-01-391-6791
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-391-6791 | 2022-02-45 | 10 | United States |
Cross Reference | NSN 4730-01-391-6791
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN806-D12 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168D12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24404D12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-391-6791
Technical Data | NSN 4730-01-391-6791
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |

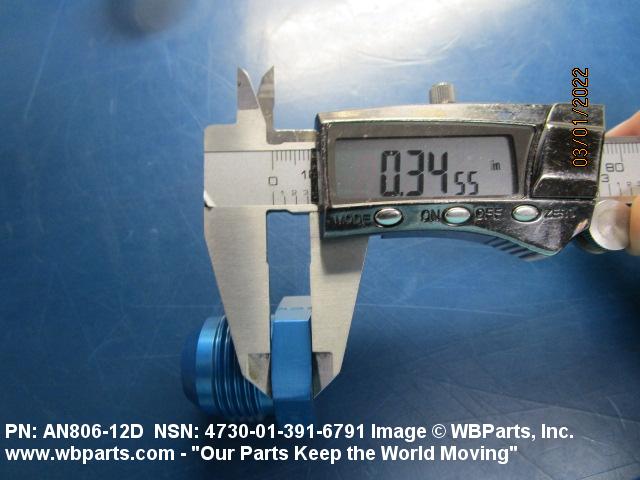

| HEAD HEIGHT | 0.391 INCHES NOMINAL |

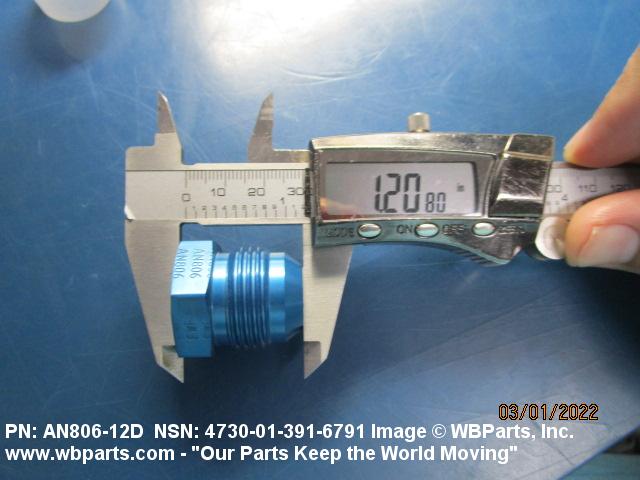

| OVERALL LENGTH | 1.203 INCHES NOMINAL |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |
| NOMINAL THREAD SIZE | 1.062 INCHES EXTERNAL |

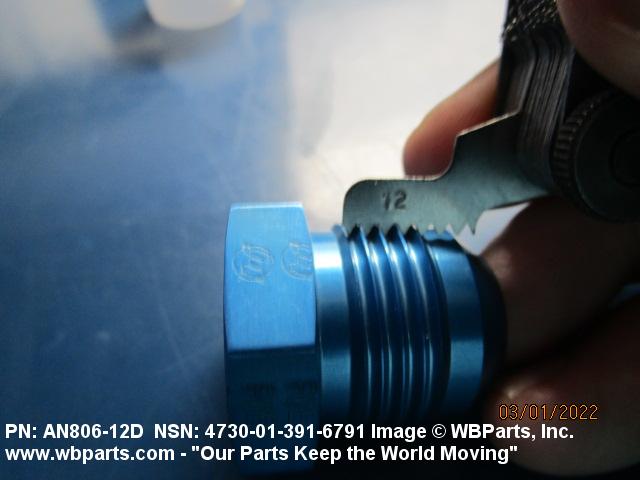

| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN806-12D |
Restrictions/Controls & Freight Information | NSN 4730-01-391-6791
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
