NSN 4730-01-376-4301 R7716, R771-6, 01-376-4301
Product Details | THREADED TUBE FITTING PLUG
4730-01-376-4301 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: R7716, R771-6, 4730-01-376-4301, 01-376-4301, 4730013764301, 013764301
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 JUN 1993 | 01-376-4301 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

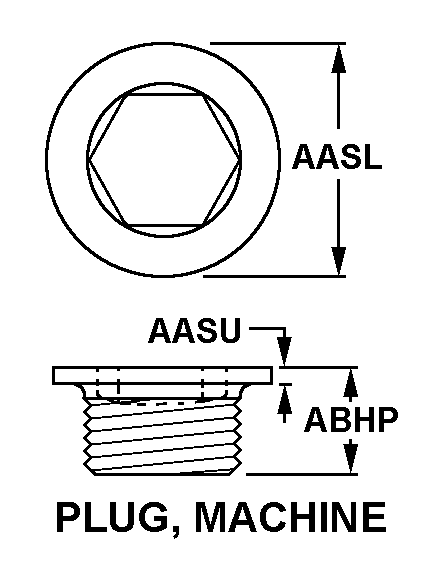

Drawings & Photos | NSN 4730-01-376-4301
Cross Reference | NSN 4730-01-376-4301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R771-6 | 98660 | LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-376-4301
Technical Data | NSN 4730-01-376-4301
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C54 PLUG, MACHINE |
| HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEAD HEIGHT | 0.069 INCHES NOMINAL |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 0.562 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 18 EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-01-376-4301
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
