NSN 4730-01-363-2300 014519S424D, 014519S4-24D, 7D0241

Product Details | QUICK DISCONNECT COUPLING HALF

4730-01-363-2300 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: 014519S424D, 014519S4-24D, 7D0241, 7D0241F24N, 4730-01-363-2300, 01-363-2300, 4730013632300, 013632300

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	27 AUG 1992	01-363-2300	18681 ( COUPLING HALF, QUICK DISCONNECT )

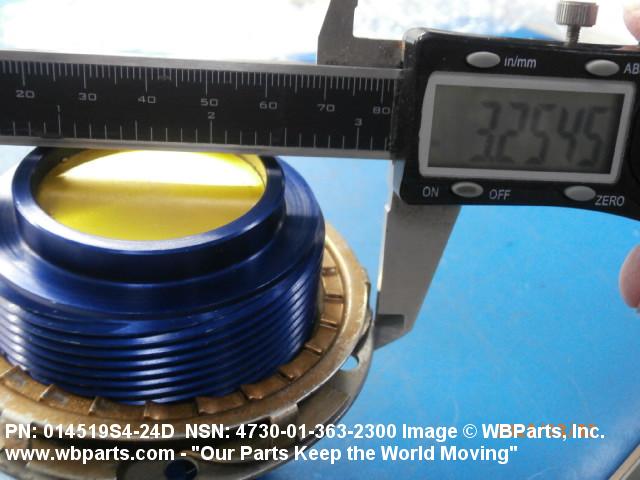

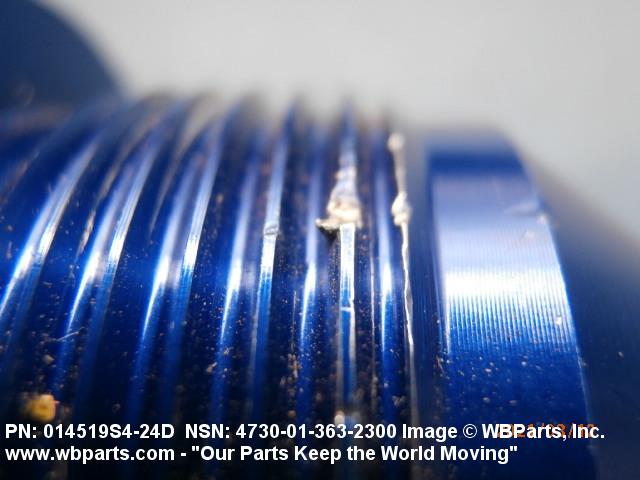

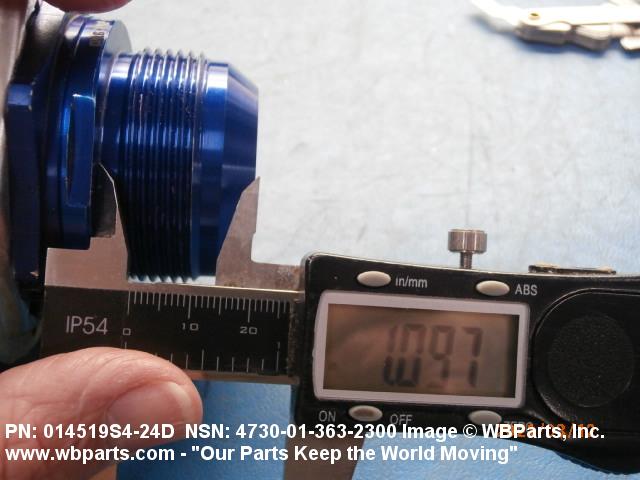

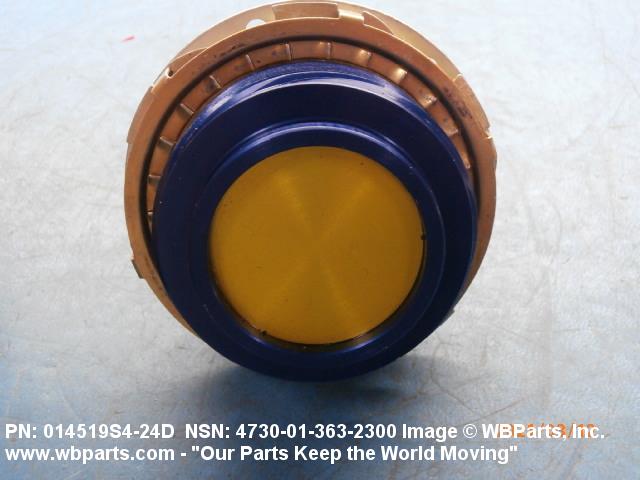

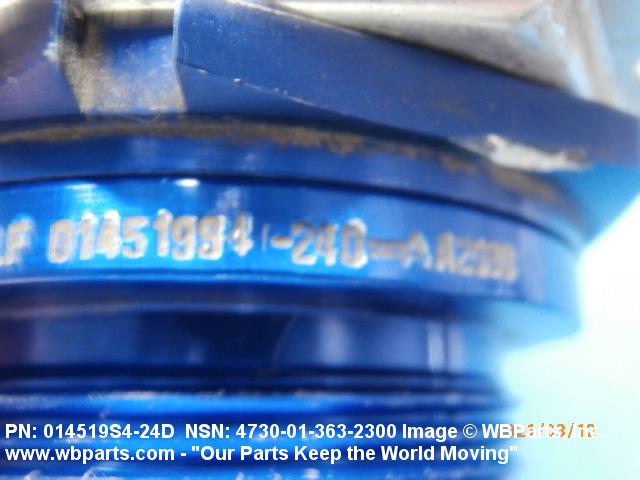

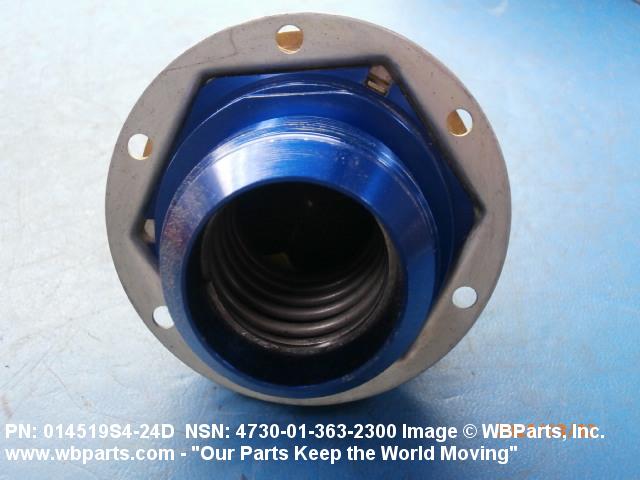

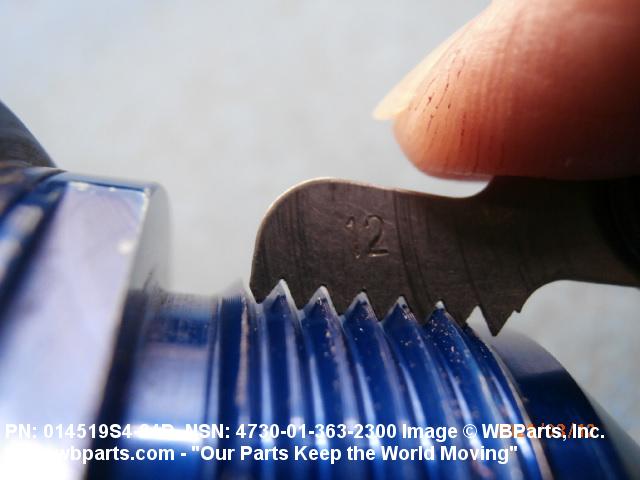

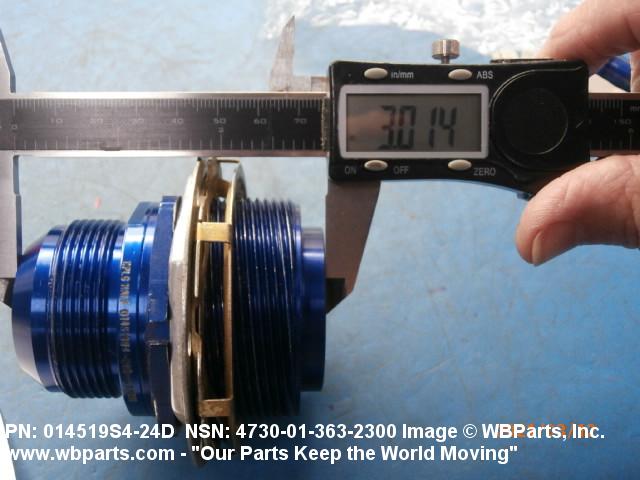

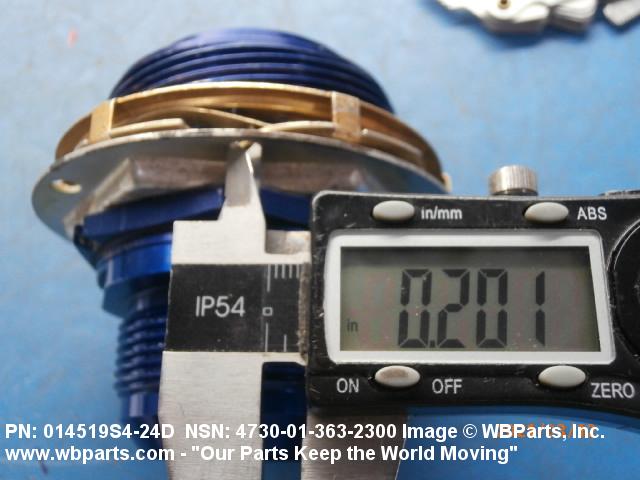

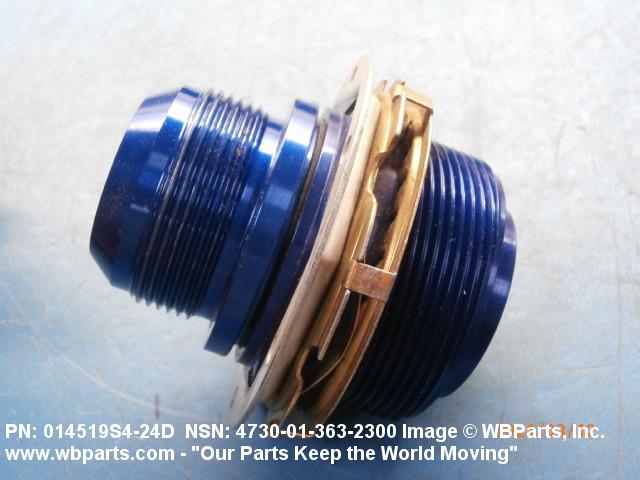

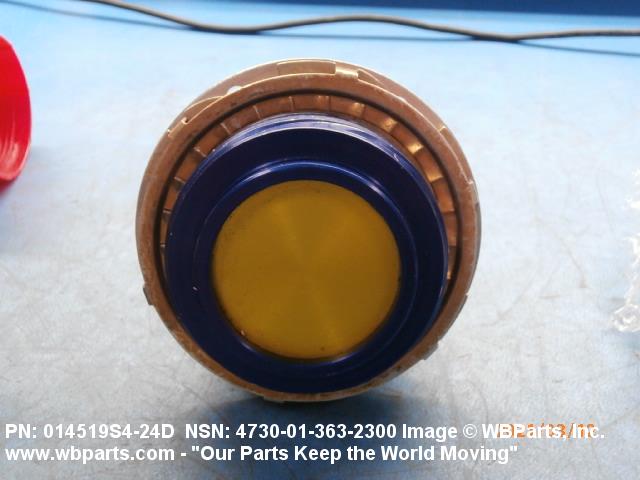

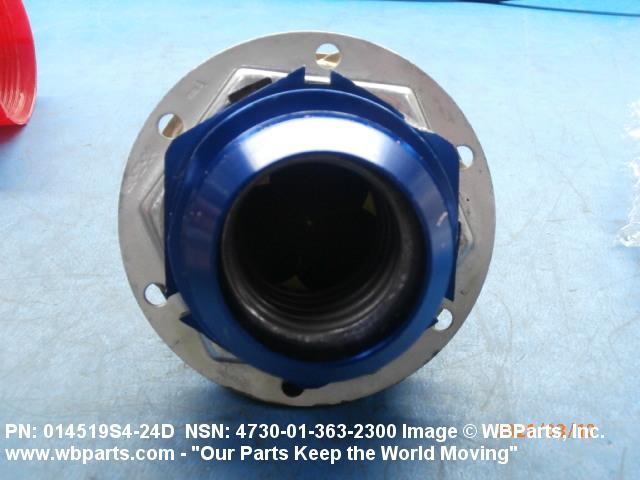

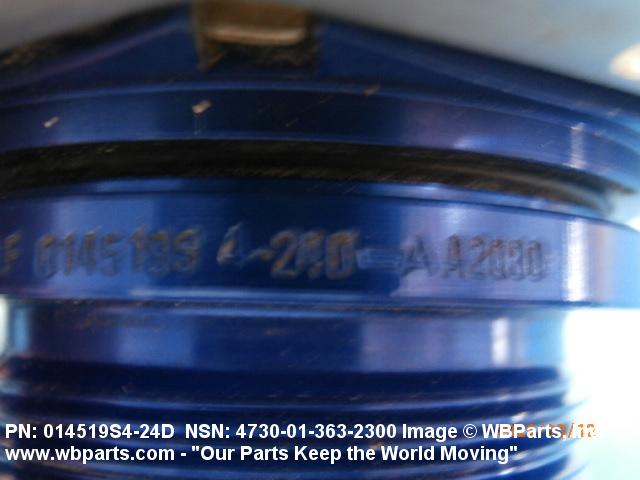

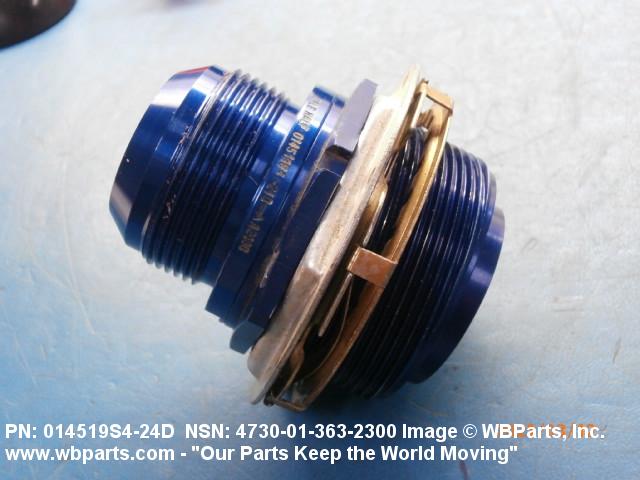

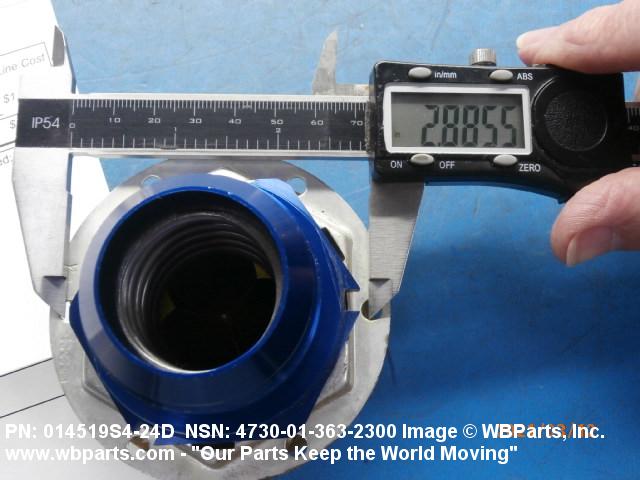

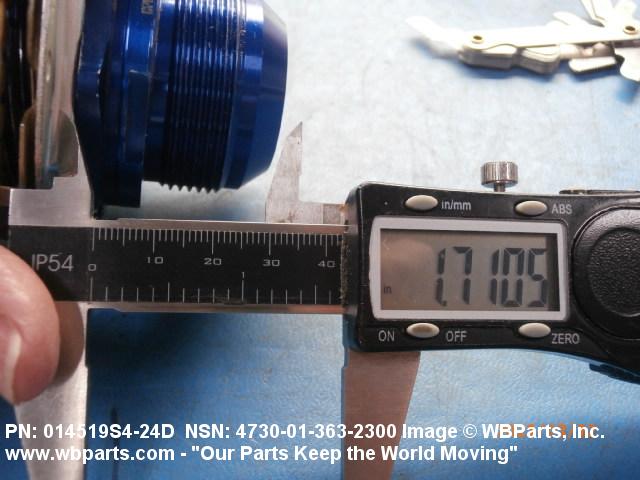

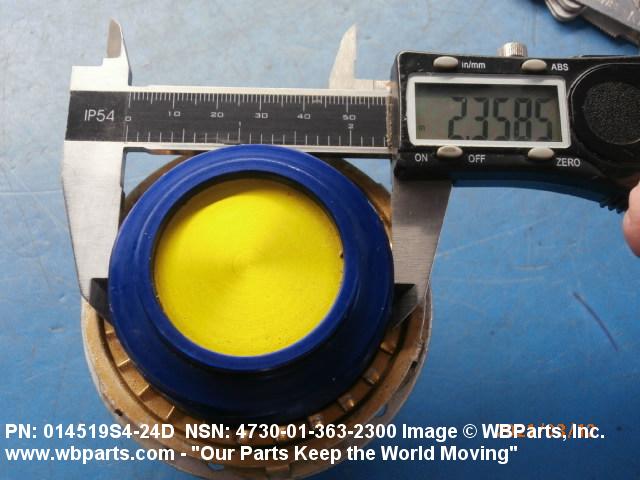

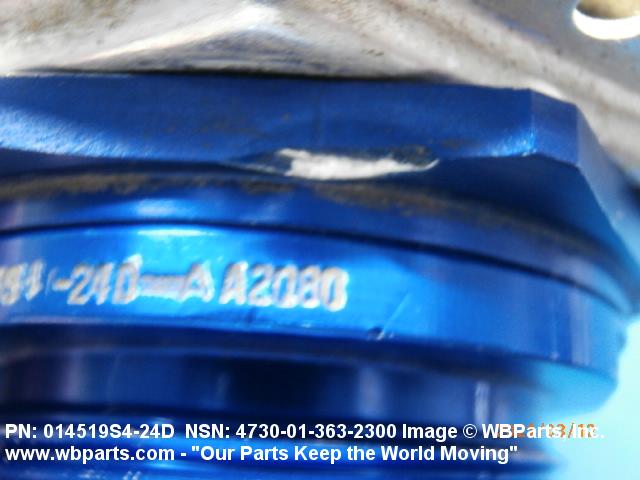

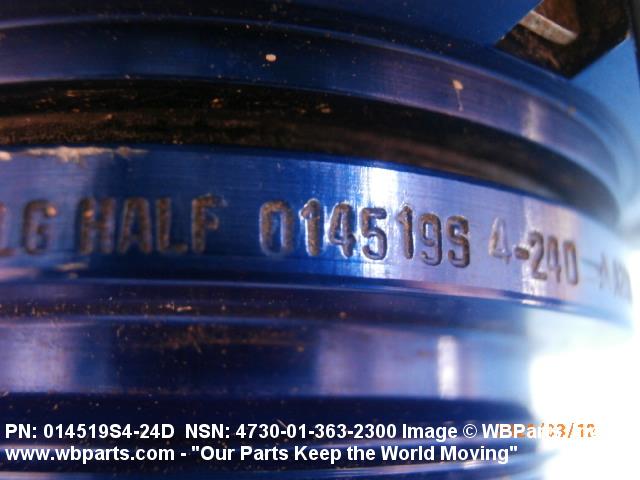

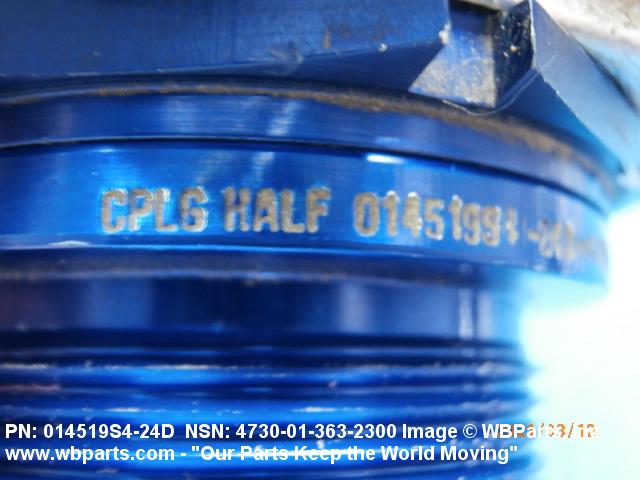

Drawings & Photos | NSN 4730-01-363-2300

Part Number	Request Date	QTY	Origin
4730-01-363-2300	2024-09-267	4	United States
014519S4-24D	2023-10-278	2	DIBBS
7D0241F24N	2023-10-278	2	DIBBS
014519S4-24D	2022-12-352	5	DIBBS
7D0241F24N	2022-12-352	5	DIBBS
014519S4-24D	2022-11-321	1	DIBBS
7D0241F24N	2022-11-321	1	DIBBS
014519S4-24D	2022-09-251	2	DIBBS
7D0241F24N	2022-09-251	2	DIBBS
4730-01-363-2300	2021-02-56	4	United States
014519S4-24D	2019-07-185	4	DIBBS
7D0241F24N	2019-07-185	4	DIBBS
4730-01-363-2300	2017-02-46	13	DIBBS
4730-01-363-2300	2016-10-284	12	DIBBS
4730-01-363-2300	2014-01-30	9	DIBBS
7D0241F24N	2012-03-66	38	us
4730-01-363-2300	2011-09-273	5	DIBBS
4730-01-363-2300	2011-08-217	3	DIBBS
4730-01-363-2300	2010-10-281	6	DIBBS

Cross Reference | NSN 4730-01-363-2300

Part Number	Cage Code	Manufacturer
014519S4-24D	00624	EATON CORPORATION DBA AEROSPACE DIV
7D0241	88277	BOEING COMPANY, THE DBA BOEING
7D0241F24N	88277	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-363-2300

Compare

Related Products | NSN 4730-01-363-2300

4730-01-363-2302, 4730-01-363-2303, 4730-01-363-2304, 4730-01-363-2305, 4730-01-363-2306

Technical Data | NSN 4730-01-363-2300

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BODY
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE BODY
SURFACE TREATMENT	ANODIZE BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BODY
STYLE DESIGNATOR	A1 MALE COUPLING HALF
CONNECTION TYPE	THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT FIRST QUICK DISCONNECT END
CONNECTION STYLE	D6 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES
QUICK DISCONNECT METHOD	SPRING PUSH-LOCK FIRST QUICK DISCONNECT END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	1.500 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UN ALL ENDS
NOMINAL THREAD SIZE	2.375 INCHES ALL ENDS
THREAD QUANTITY PER INCH	12 FIRST QUICK DISCONNECT END
THREAD CLASS	2A ALL ENDS

Restrictions/Controls & Freight Information | NSN 4730-01-363-2300

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-363-2300

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
