NSN 4730-01-242-8783 AE1630814, AE16308-14, R44119T14

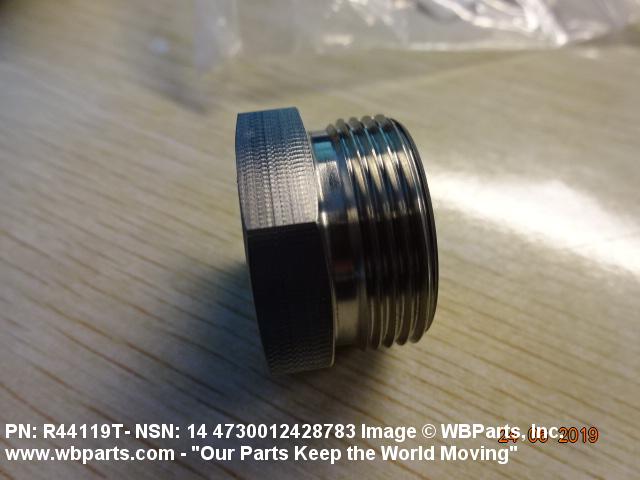

Product Details | THREADED TUBE FITTING PLUG
4730-01-242-8783 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AE1630814, AE16308-14, R44119T14, R44119T-14, 07A27014, 07A270-14, 4730-01-242-8783, 01-242-8783, 4730012428783, 012428783
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 OCT 1986 | 01-242-8783 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

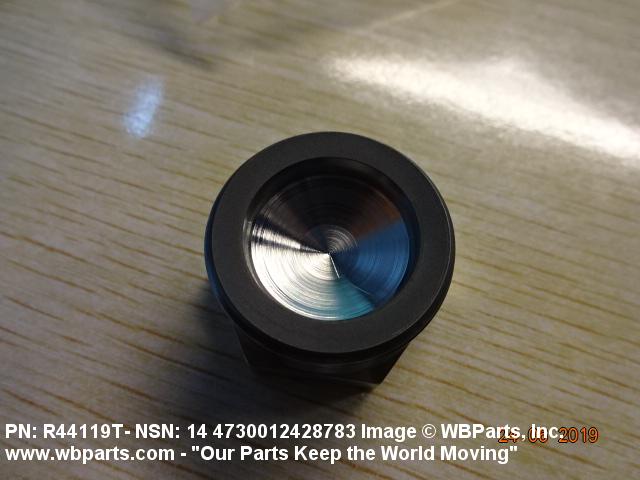

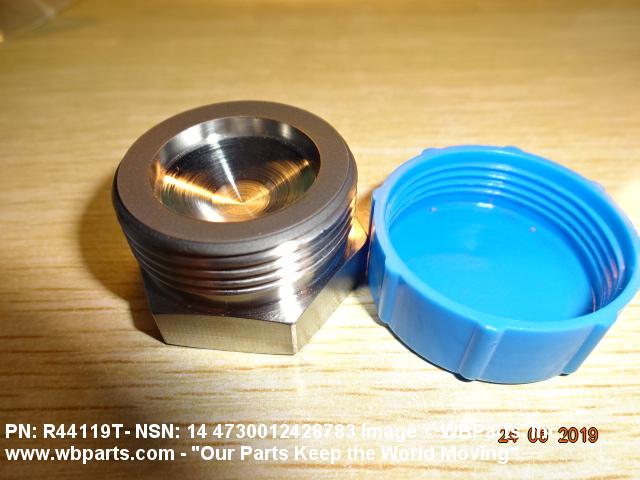

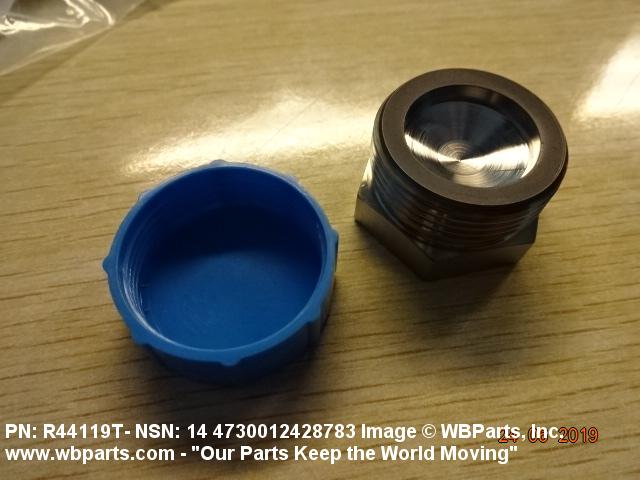

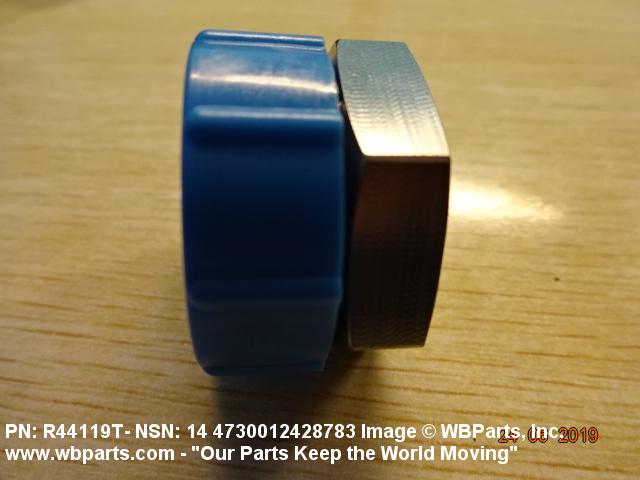

Drawings & Photos | NSN 4730-01-242-8783
Demand History | NSN 4730-01-242-8783
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-242-8783 | 2019-04-19 | 10 | United States |
| 4730-01-242-8783 | 2013-06-13 | 131 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-242-8783
Related Products | NSN 4730-01-242-8783
Technical Data | NSN 4730-01-242-8783
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |

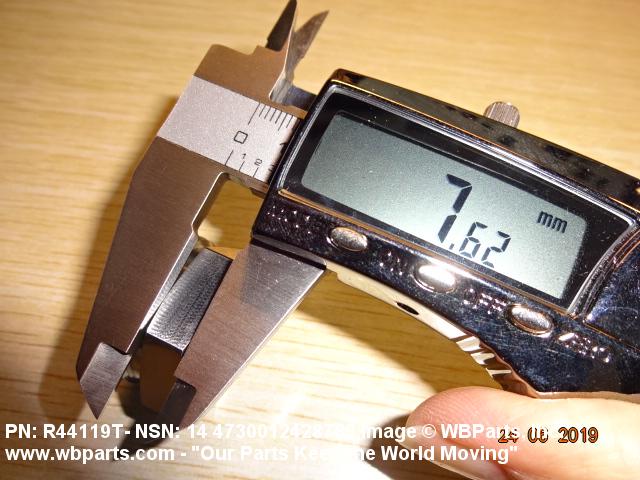

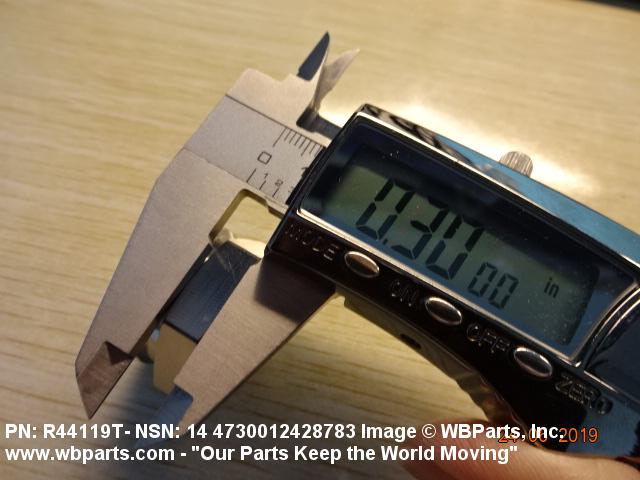

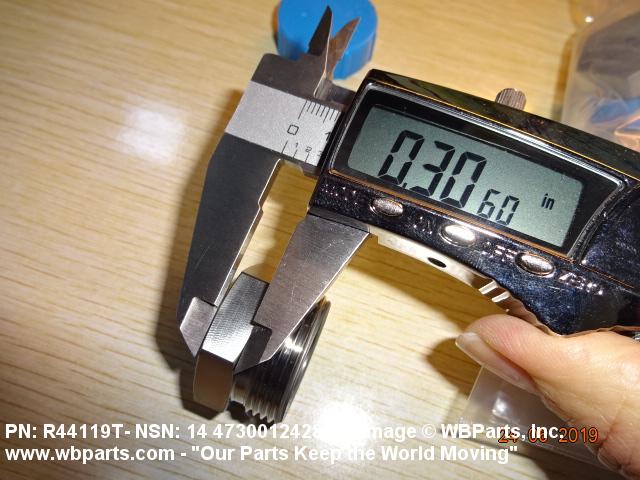

| HEAD HEIGHT | 0.306 INCHES NOMINAL |

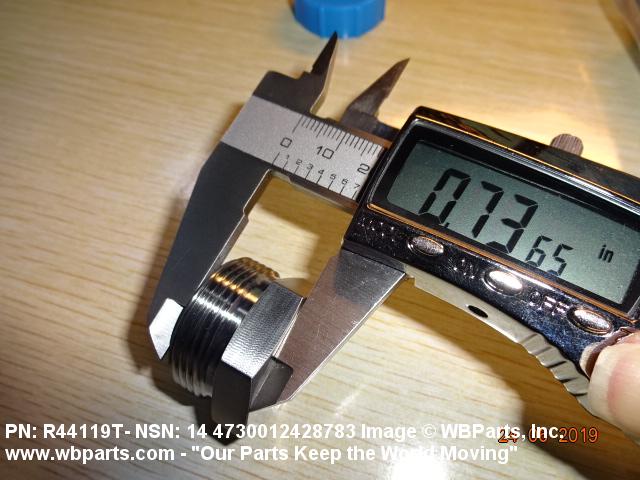

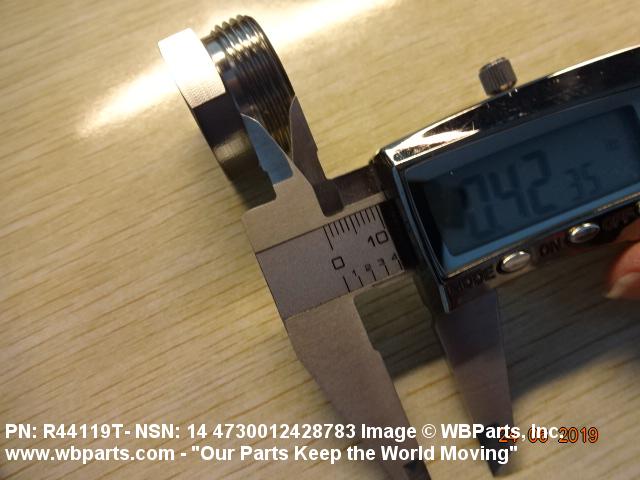

| OVERALL LENGTH | 0.736 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |

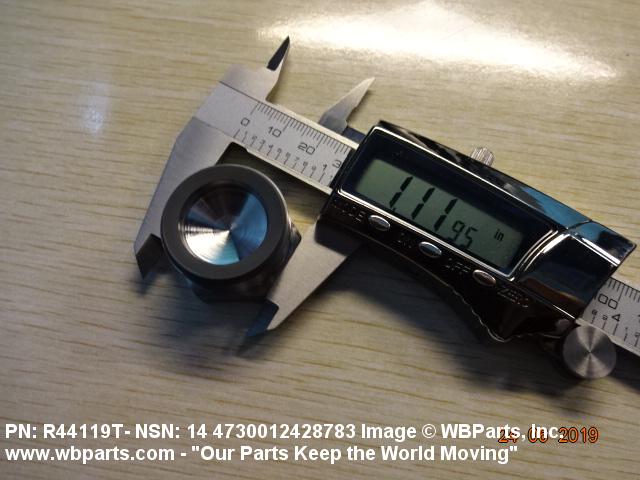

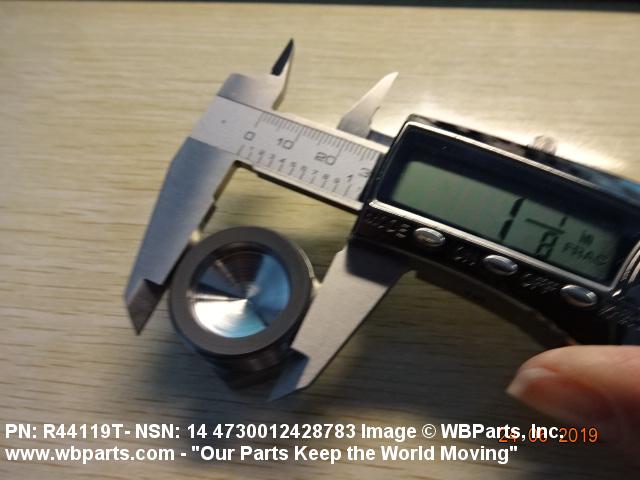

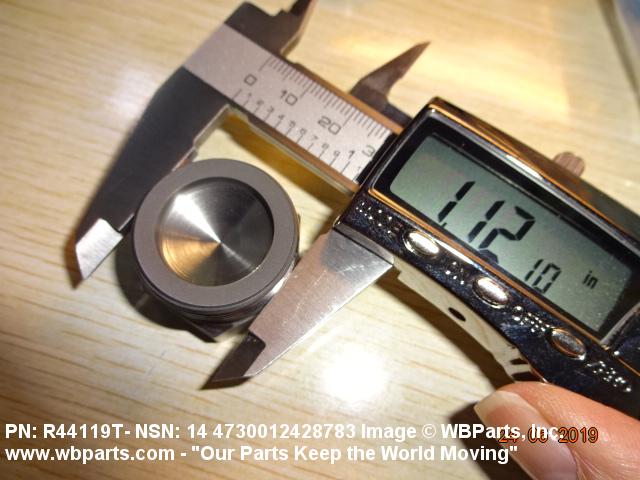

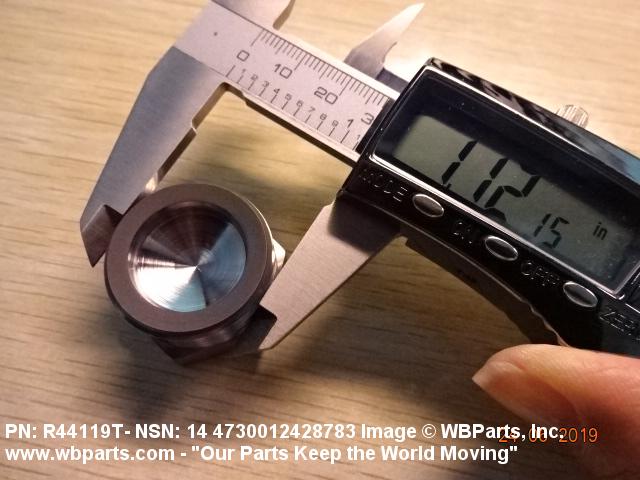

| NOMINAL THREAD SIZE | 1.1250 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SPECIAL FEATURES | U/O B1B ACFT |
| MANUFACTURERS CODE | 50599 |

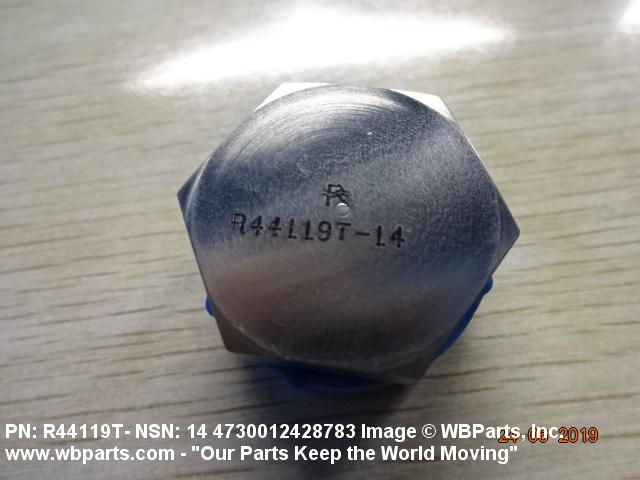

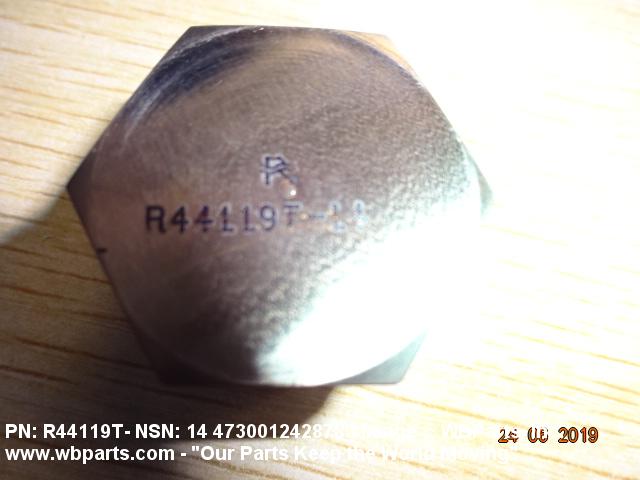

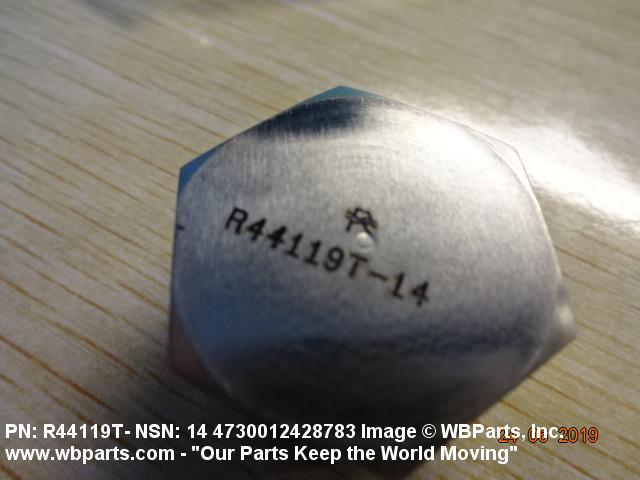

| DESIGN CONTROL REFERENCE | R44119T-14 |
Restrictions/Controls & Freight Information | NSN 4730-01-242-8783
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
