NSN 4730-01-216-2984 4039184, 01-216-2984, 012162984
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-216-2984 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 4039184, 4730-01-216-2984, 01-216-2984, 4730012162984, 012162984
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 SEP 1985 | 01-216-2984 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-216-2984
Cross Reference | NSN 4730-01-216-2984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4039184 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-216-2984
Related Products | NSN 4730-01-216-2984
Technical Data | NSN 4730-01-216-2984
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4921 ASSN STD SINGLE MATERIAL RESPONSE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| OVERALL LENGTH | 2.305 INCHES MINIMUM AND 3.335 INCHES MAXIMUM |
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT FIRST QUICK DISCONNECT END |

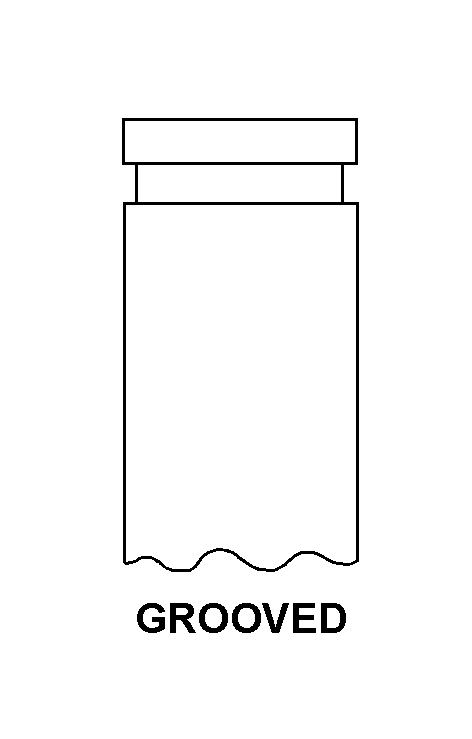

| CONNECTION STYLE | E5 GROOVED ALL ENDS |
| QUICK DISCONNECT METHOD | SPRING PUSH-LOCK ALL ENDS |
| SPECIAL FEATURES | U/O F100-PW-220 ENG |
| (NON-CORE DATA) FURNISHED ITEMS | LOCKNUT AND PREFORMED PACKING AND WASHER |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 4039184 |
