NSN 4730-01-215-8013 1711D1080, 1711D-1080, 1711D3

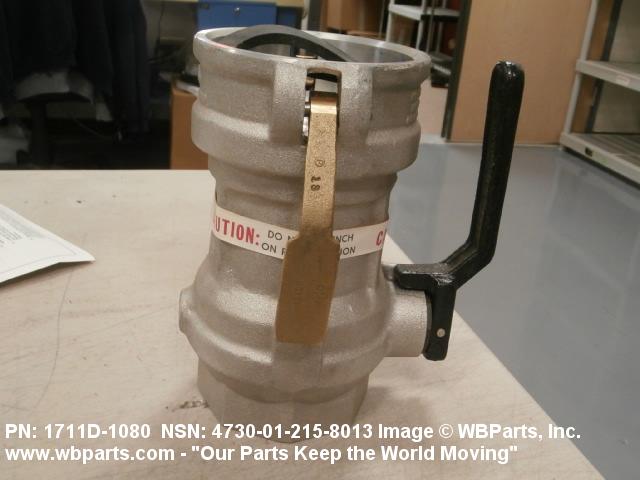

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-215-8013 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 1711D1080, 1711D-1080, 1711D3, 1711D-3, 1711DAL30, 1711D-AL30, 4730-01-215-8013, 01-215-8013, 4730012158013, 012158013
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 AUG 1985 | 01-215-8013 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

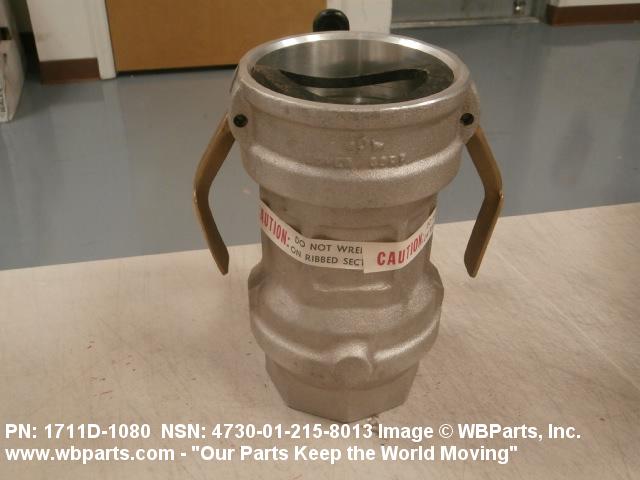

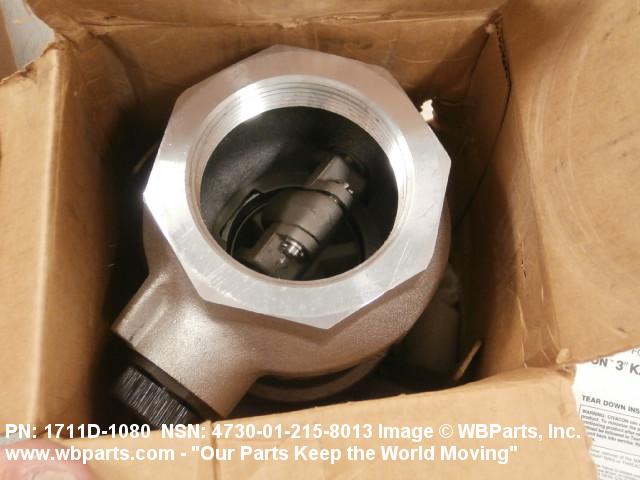

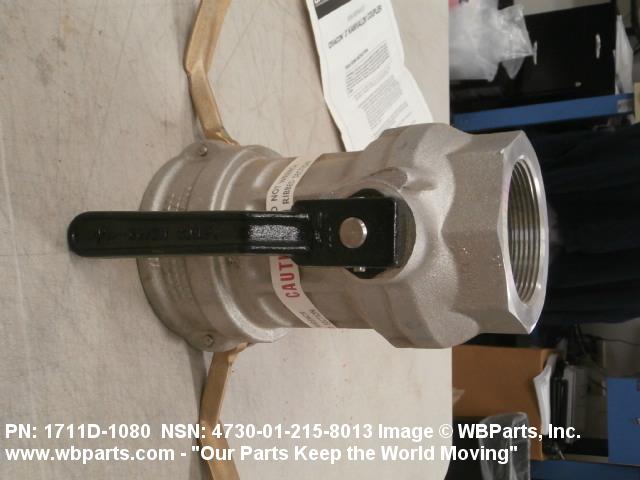

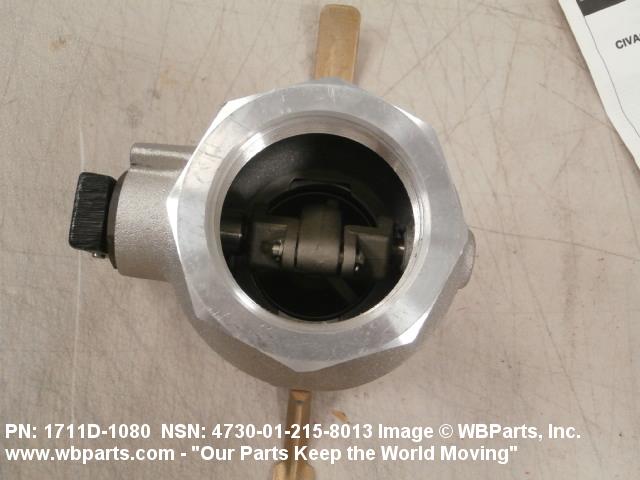

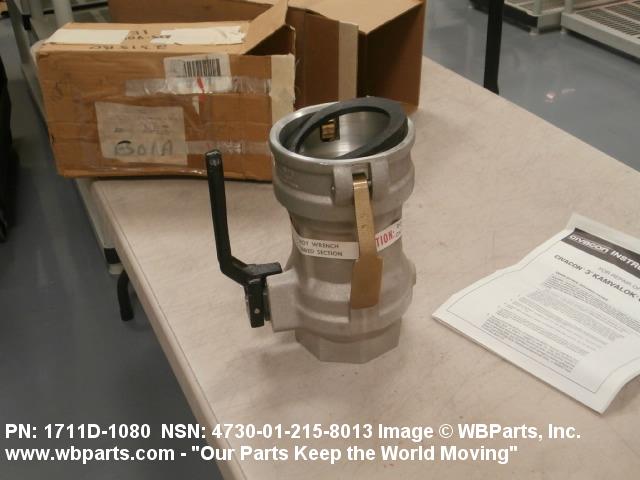

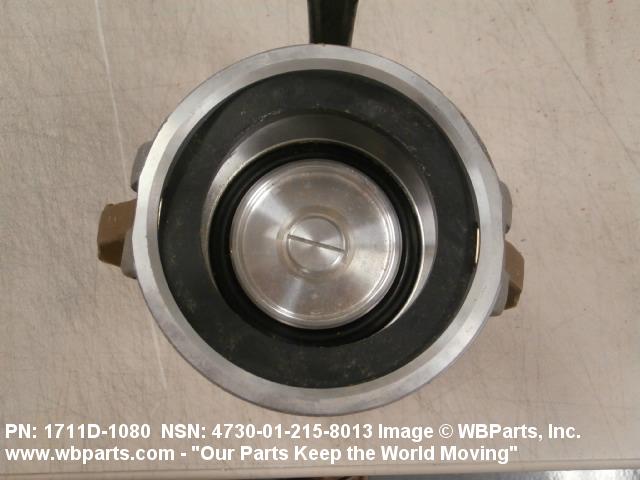

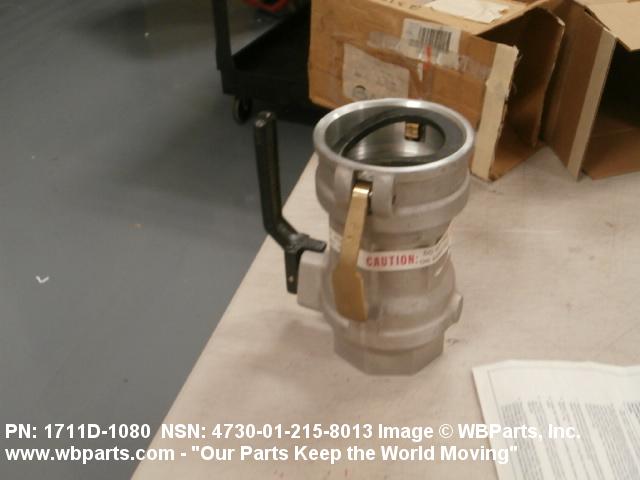

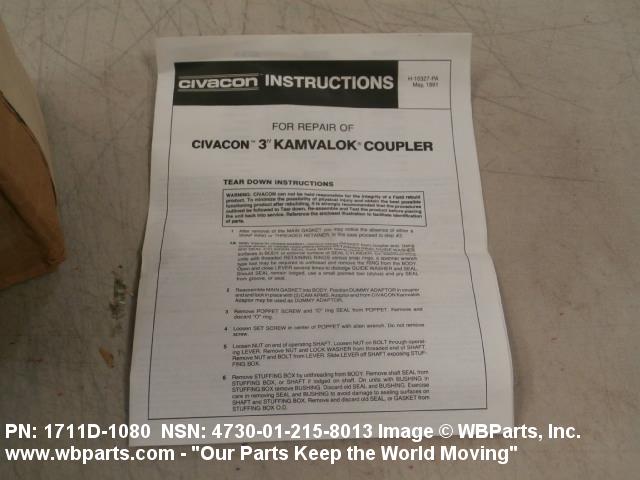

Drawings & Photos | NSN 4730-01-215-8013
Demand History | NSN 4730-01-215-8013
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-215-8013 | 2024-12-343 | 3 | SA |
| 1711DAL30 | 2014-04-97 | 1 | United States |
| 1711DAL30 | 2014-01-24 | 1 | United States |
Cross Reference | NSN 4730-01-215-8013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1711D-1080 | 81718 | OPW FUELING COMPONENTS INC. DIV OPW FUELING COMPONENTS |
| 1711D-1080 | 9H113 | DOVER RESOURCES INC DBA OPW ENGINEERED SYSTEMS |
| 1711D-3 | 9H113 | DOVER RESOURCES INC DBA OPW ENGINEERED SYSTEMS |
| 1711D-AL30 | 9H113 | DOVER RESOURCES INC DBA OPW ENGINEERED SYSTEMS |
| 1711D3 | 81718 | OPW FUELING COMPONENTS INC. DIV OPW FUELING COMPONENTS |
