NSN 4730-01-194-3732 AE98417G, 2348W098, 4120205

Product Details | QUICK DISCONNECT COUPLING HALF

4730-01-194-3732 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: AE98417G, 2348W098, 4120205, 412020-5, 4730-01-194-3732, 01-194-3732, 4730011943732, 011943732

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	14 NOV 1984	01-194-3732	18681 ( COUPLING HALF, QUICK DISCONNECT )

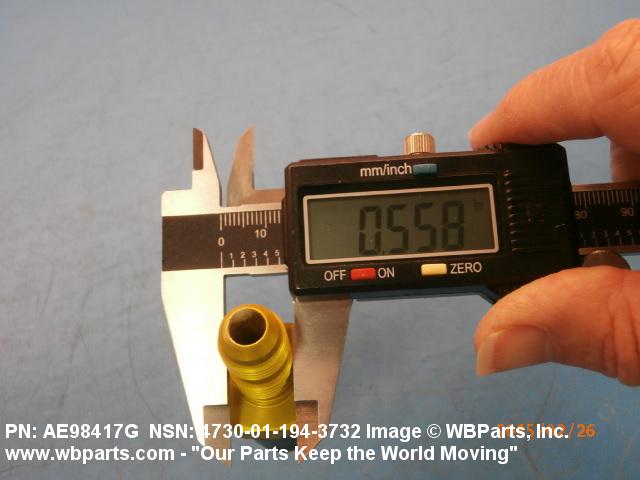

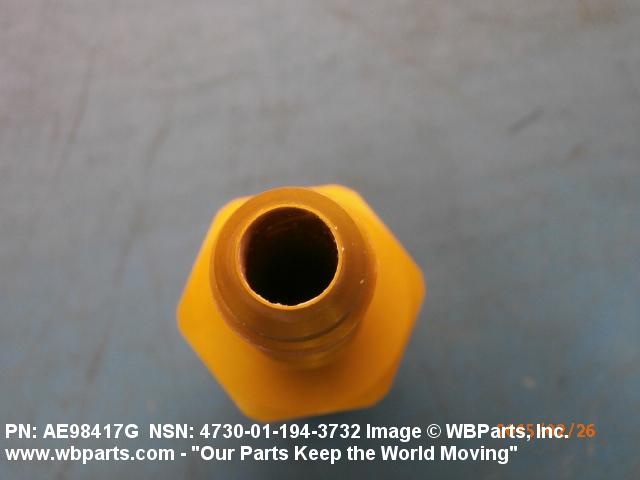

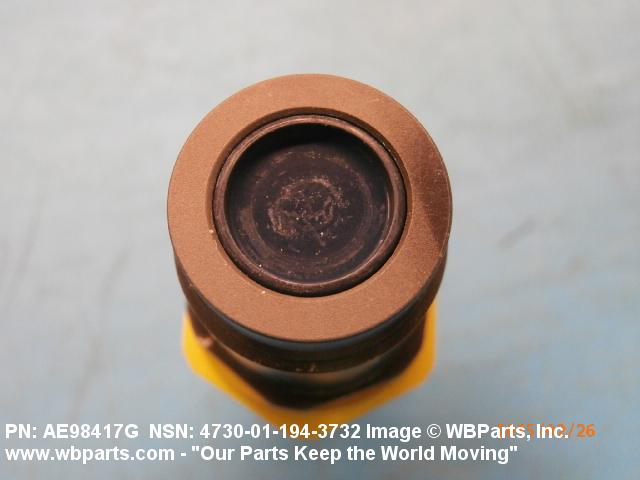

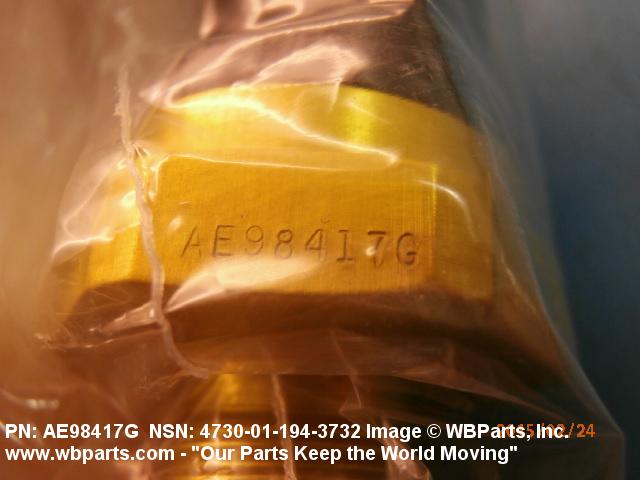

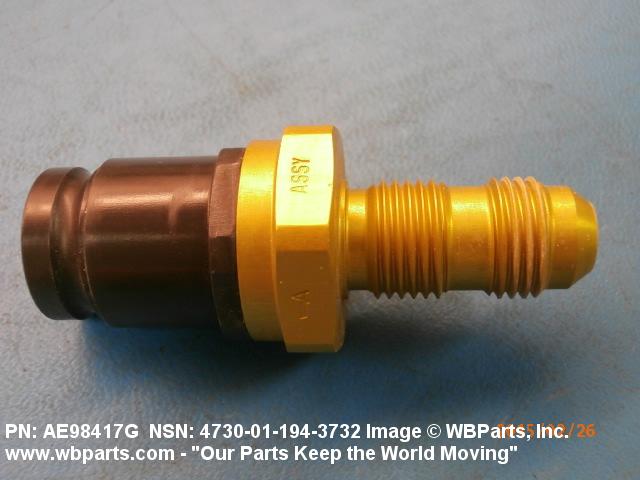

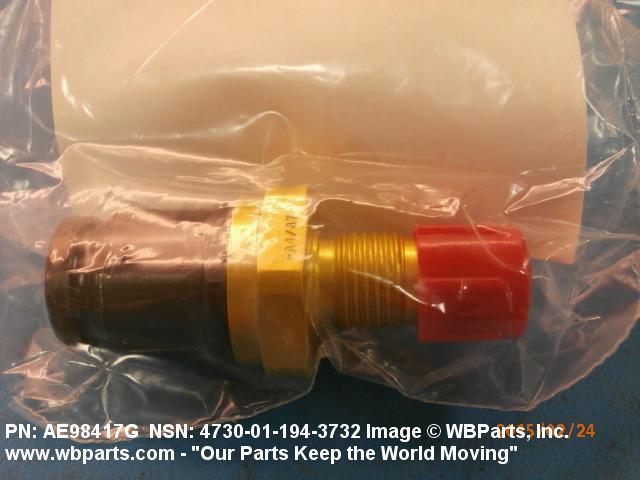

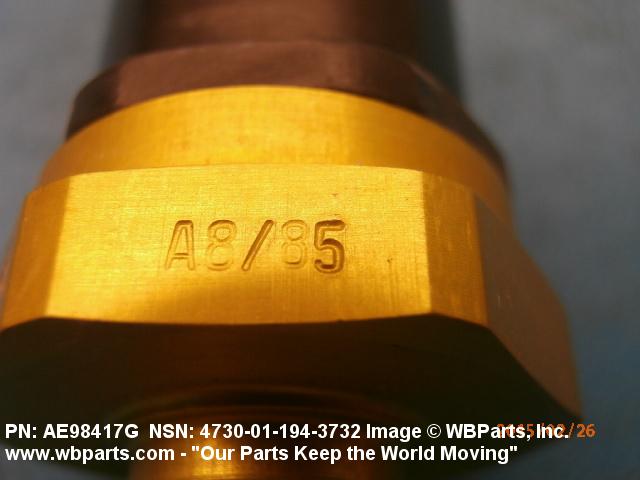

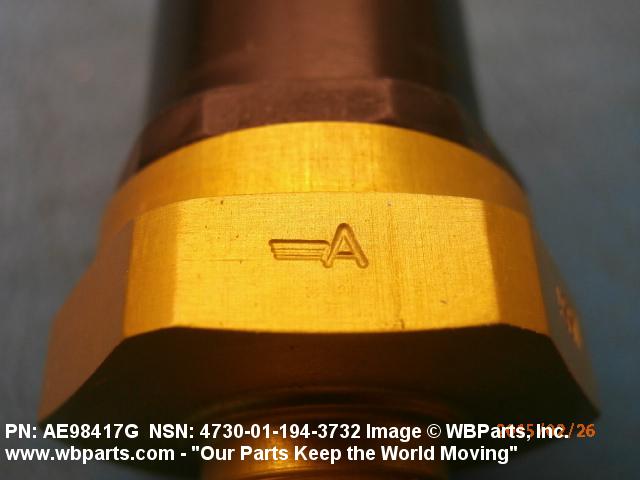

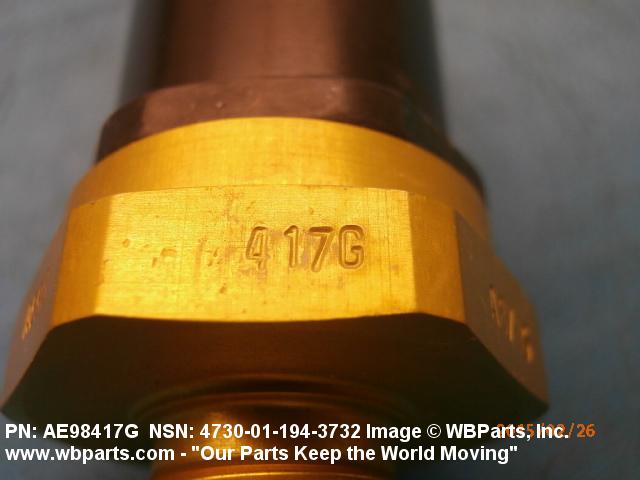

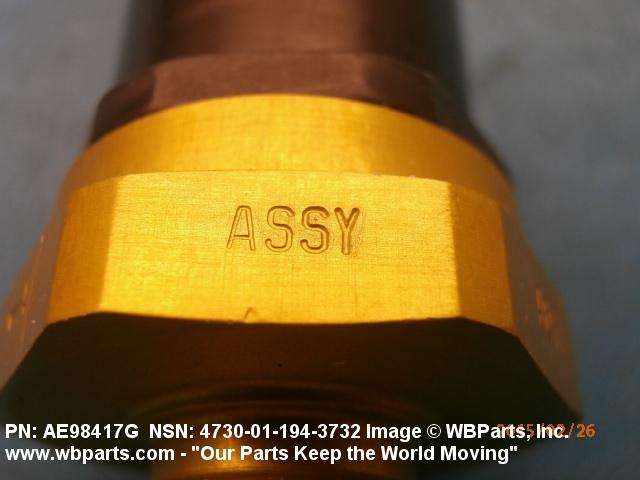

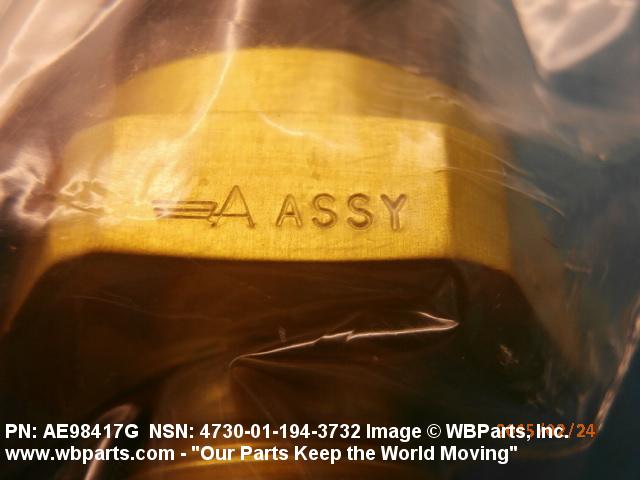

Drawings & Photos | NSN 4730-01-194-3732

Part Number	Request Date	QTY	Origin
2348W098	2024-04-116	5	DIBBS
AE98417G	2024-04-116	5	DIBBS
2348W098	2020-02-51	4	DIBBS
AE98417G	2020-02-51	4	DIBBS
4730-01-194-3732	2018-11-312	2	DIBBS
4730-01-194-3732	2016-04-119	7	DIBBS
4730-01-194-3732	2015-01-21	5	United States
4730-01-194-3732	2013-08-240	3	DIBBS
4730-01-194-3732	2010-06-159	2	DIBBS
4730-01-194-3732	2009-07-211	2	DIBBS
4730-01-194-3732	2009-04-96	3	DIBBS

Cross Reference | NSN 4730-01-194-3732

Part Number	Cage Code	Manufacturer
2348W098	U1605	HONEYWELL AEROSPACE UK DIV AEROSPACE -YEOVIL
412020-5	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
AE98417G	00624	EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-194-3732

Compare

Related Products | NSN 4730-01-194-3732

4730-01-194-4106, 4730-01-194-4119, 4730-01-194-4140, 4730-01-194-4310, 4730-01-194-4586

Technical Data | NSN 4730-01-194-3732

Characteristic	Specifications
BODY MATERIAL	ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 6061
BODY MATERIAL DOCUMENT AND CLASSIFICATION	QQA-225/6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE
BODY SURFACE TREATMENT	ANODIZE
BODY SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-7413 MIL SPEC SINGLE TREATMENT RESPONSE
BODY STYLE	1 COUPLING HALF

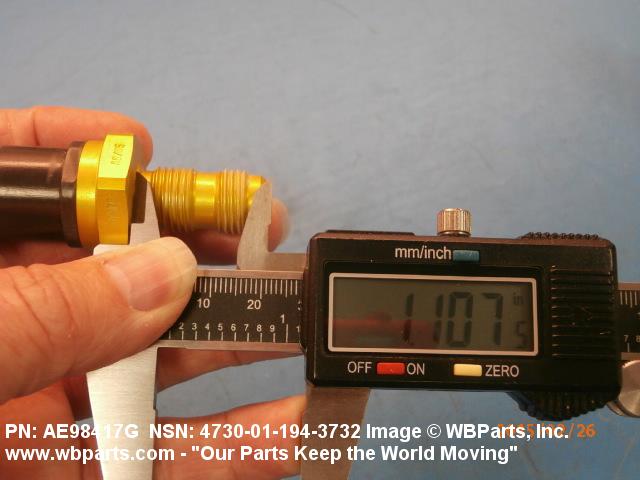

FIRST LEG LENGTH	1.078 INCHES MINIMUM AND 1.110 INCHES MAXIMUM
FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL BOSS
FIRST END STYLE DESIGNATOR	D7 EXTERNAL SEAT FOR GASKET SEAL
FIRST END THREAD SERIES DESIGNATOR	UNF

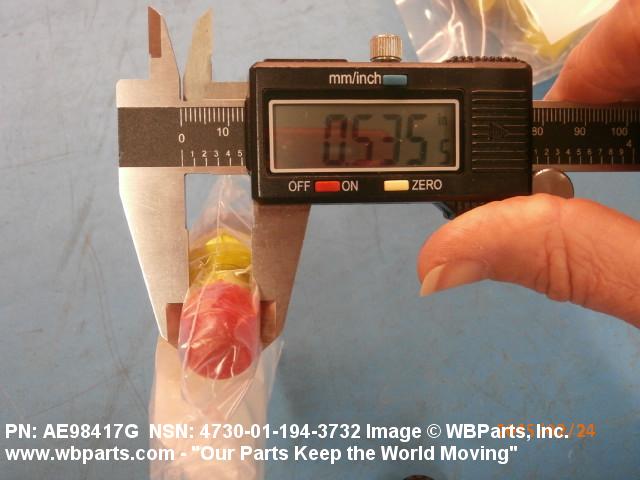

FIRST END NOMINAL THREAD SIZE	0.562 INCHES
FIRST END THREAD CLASS	3A
QUICK DISCONNECT METHOD	SPRING PUSH-LOCK ALL ENDS
III END ITEM IDENTIFICATION	AN/ALQ-161
MANUFACTURERS CODE	00624
DESIGN CONTROL REFERENCE	AE98417G

Restrictions/Controls & Freight Information | NSN 4730-01-194-3732

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	051010	COUPLINGS CONDUIT R PIPE
Less than car load rating
Less than truck load rating	R	65.0
Water commodity Code	576	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-194-3732

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EW	TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
