NSN 4730-01-181-9638 MS2196420, MS21964-20, M7560/1-20

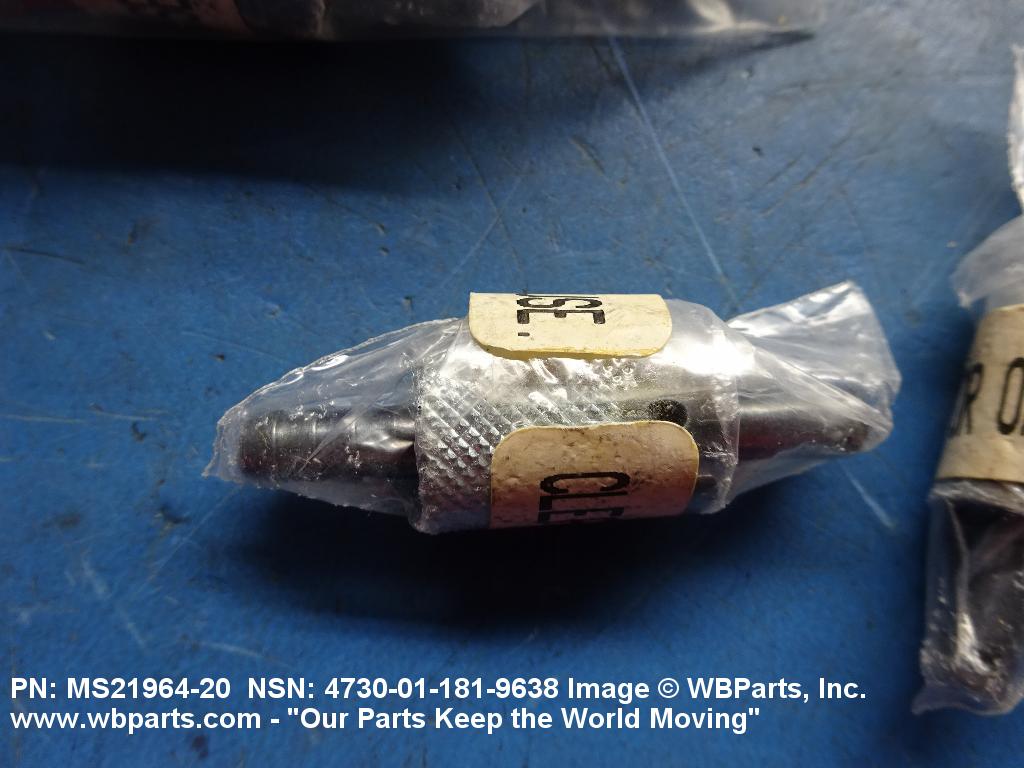

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-181-9638 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS2196420, MS21964-20, M7560/1-20, M7560120, MILDTL7560, MIL-DTL-7560, MIL-DTL-7560/1, MILDTL75601, MILV7560, MIL-V-7560, G002107001, G002-1070-01, 11471, 11-47-1, 11A47, 4195, 41A2988, 506510, 5065-10, 77737, 777-37, 8148650, 4730-01-181-9638, 01-181-9638, 4730011819638, 011819638
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 JUN 1984 | 01-181-9638 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-181-9638
Demand History | NSN 4730-01-181-9638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-181-9638 | 2024-05-135 | 2 | Singapore |
| 4730-01-181-9638 | 2022-06-178 | 10 | Romania |
| M7560120 | 2022-04-95 | 10 | Romania |
| M7560120 | 2022-03-84 | 10 | Romania |
| M7560120 | 2021-10-299 | 10 | Romania |
| 4730-01-181-9638 | 2021-04-91 | 1 | US |
| 4730-01-181-9638 | 2020-04-107 | 2 | United States |
| 4730-01-181-9638 | 2019-03-75 | 5 | United States |
| 4730-01-181-9638 | 2018-10-299 | 50 | UK |
| 4730-01-181-9638 | 2018-10-297 | 20 | UK |
| 4730-01-181-9638 | 2018-10-292 | 10 | UK |
| 4730-01-181-9638 | 2017-05-123 | 1000 | France |
| 4730-01-181-9638 | 2016-07-196 | 1977 | DIBBS |
| 4730-01-181-9638 | 2015-07-186 | 908 | DIBBS |
| 41A2988 | 2010-09-258 | 3 | Hong Kong |
| M7560120 | 2009-11-327 | 500 | DK |
| M7560120 | 2009-10-274 | 1 | United Kingdom |
| M7560120 | 2009-07-182 | 1 | US |
| MS2196420 | 2009-06-175 | 16 | Italy |
| 11471 | 2008-08-234 | 2 | Colombia |
| MS2196420 | 2007-03-79 | 10000 | United Kingdom |
| 8148650 | 2006-04-117 | 10 | US |
Cross Reference | NSN 4730-01-181-9638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-47-1 | 03WY2 | OCENCO, INCORPORATED DBA ERIE MEDICAL |
| 11A47 | 20846 | ERIE MFG CO |
| 4195 | 99227 | FLUID POWER INC |
| 41A2988 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 5065-10 | 53655 | AVOX SYSTEMS INC. |
| 777-37 | 53655 | AVOX SYSTEMS INC. |
| G002-1070-01 | 60240 | GENTEX CORPORATION DBA WESTERN OPERATIONS |
| M7560/1-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-7560 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-7560/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-V-7560 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21964-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
