NSN 4730-01-165-8009 AE83172H, ZA1452H68MT8, ZA-1452H6-8-MT8

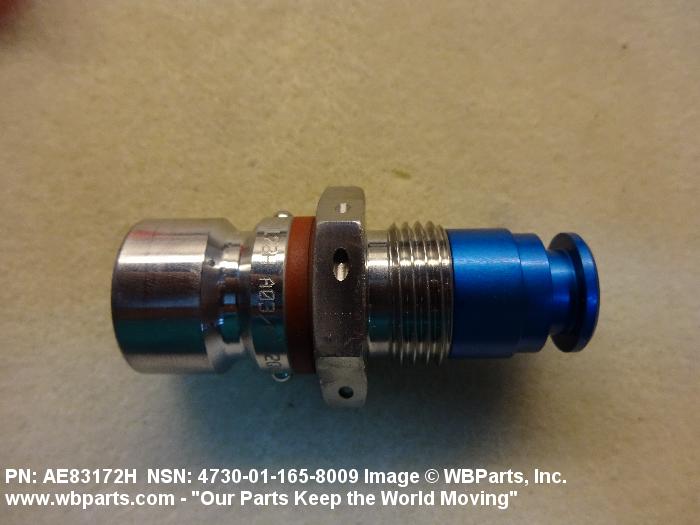

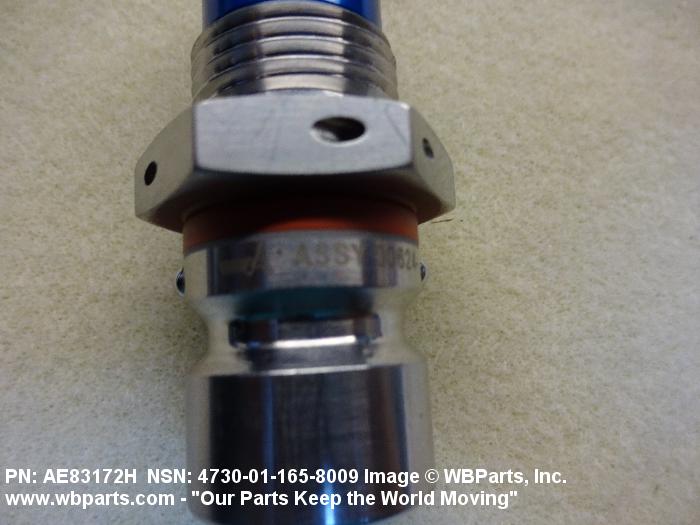

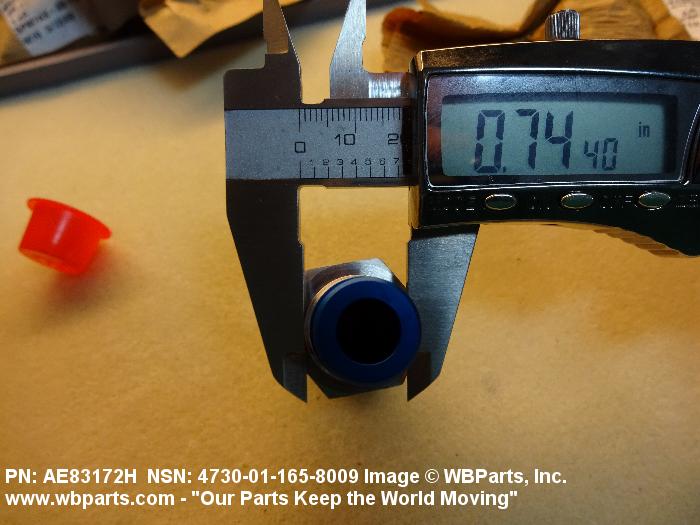

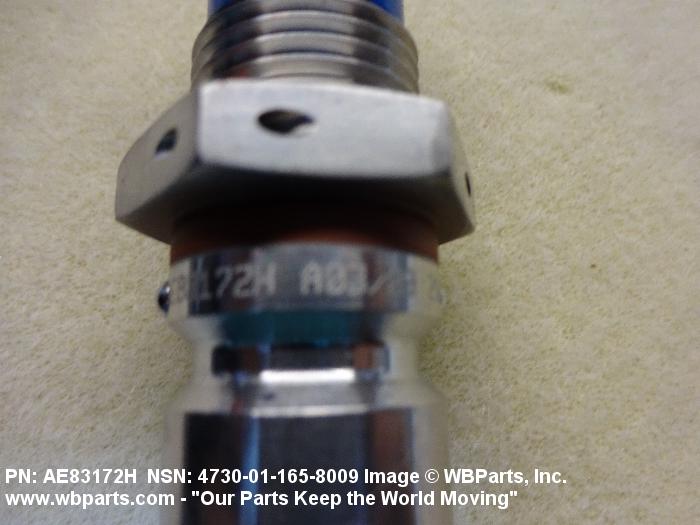

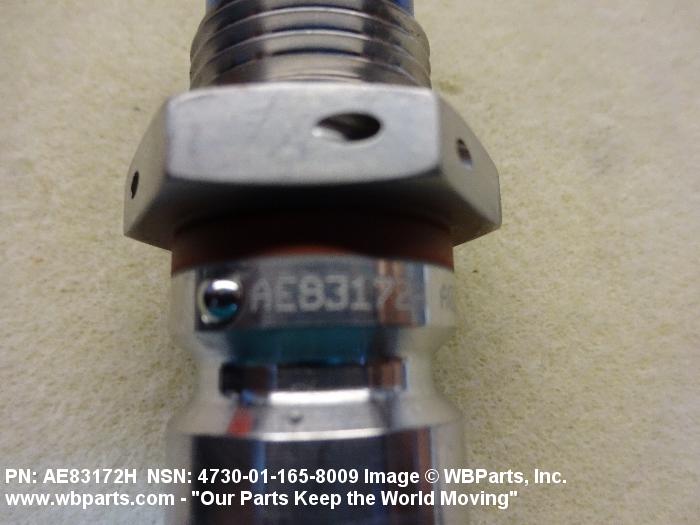

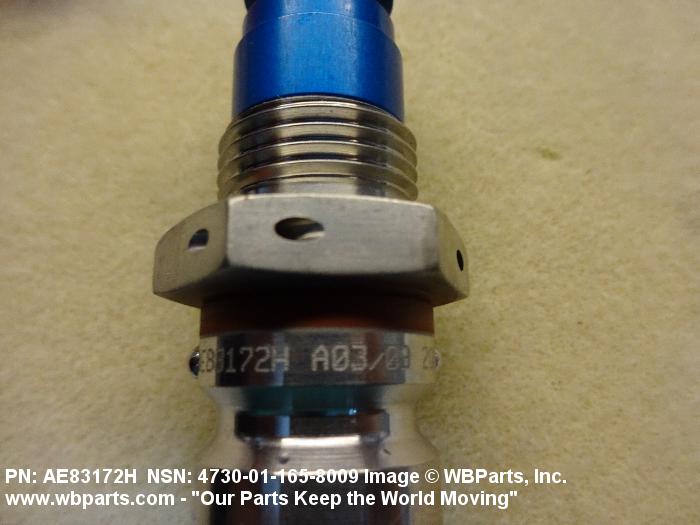

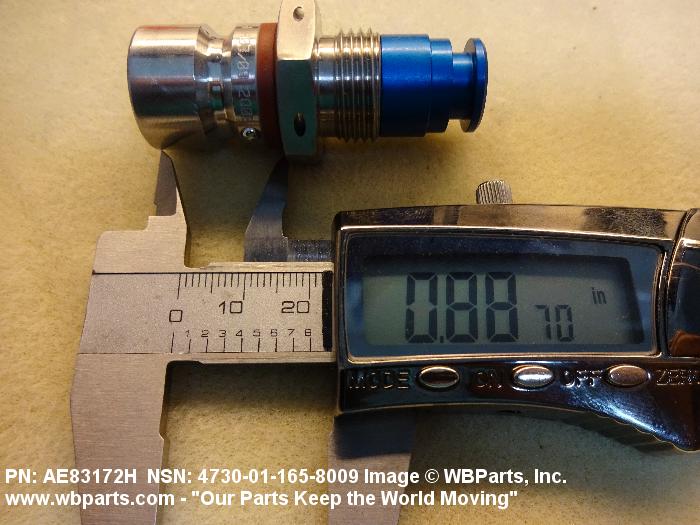

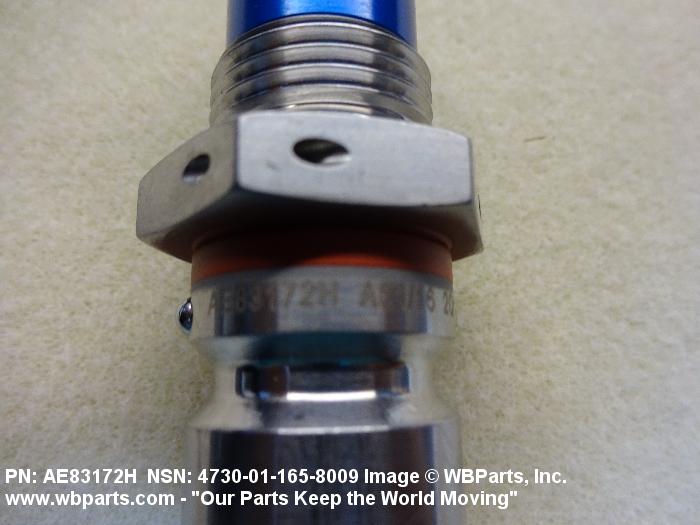

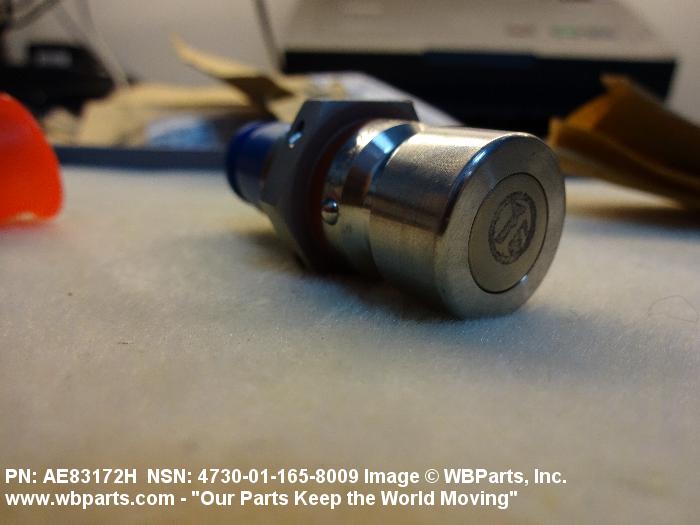

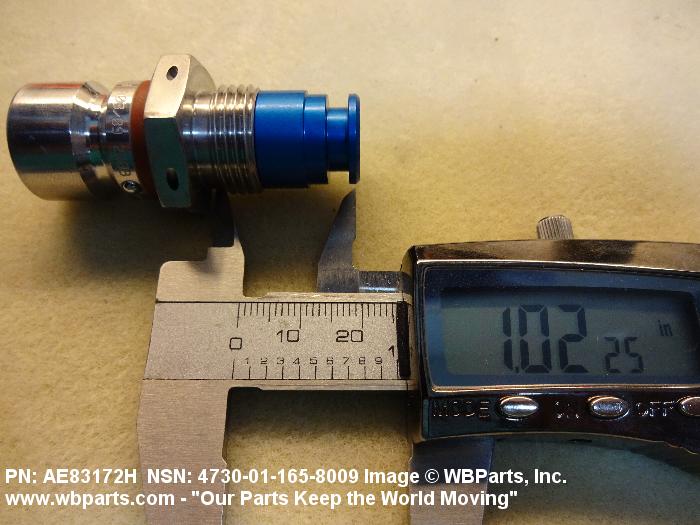

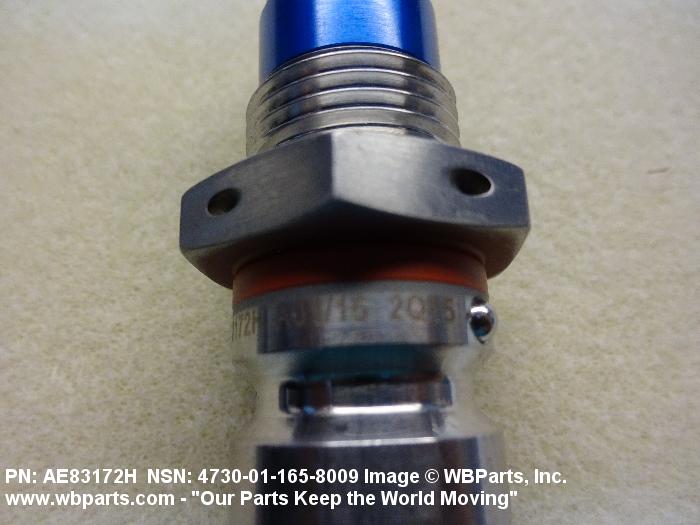

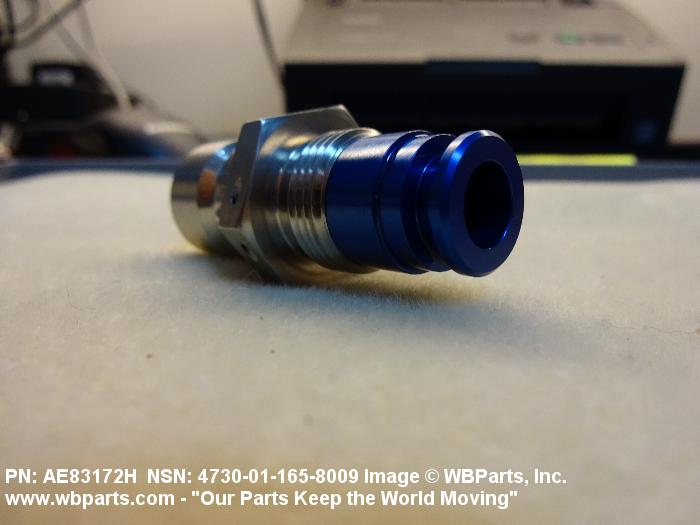

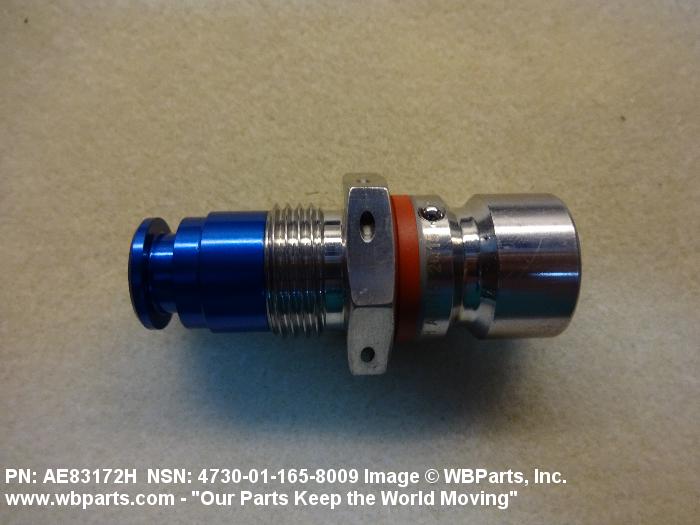

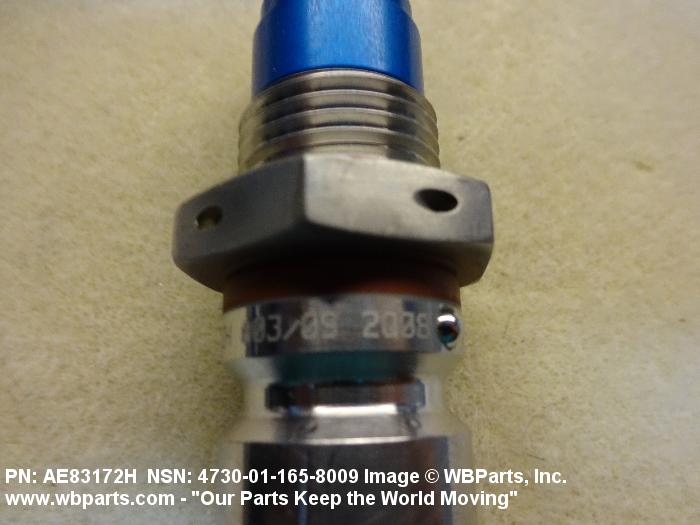

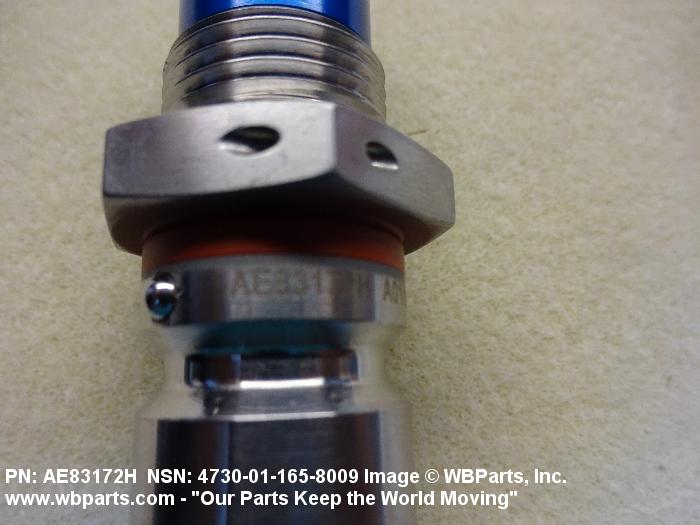

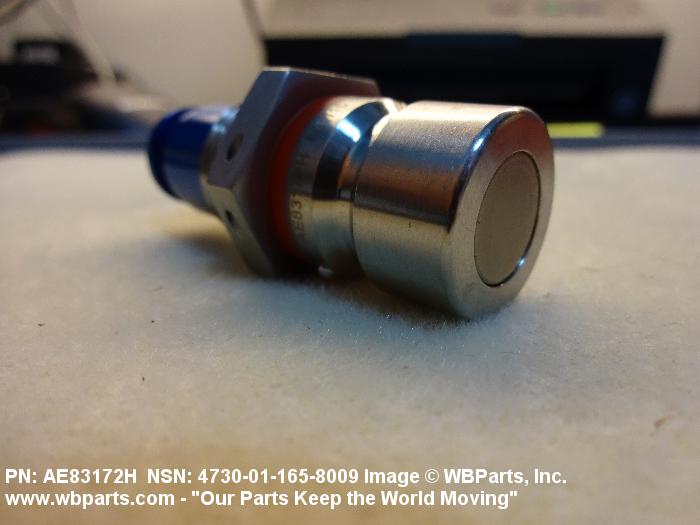

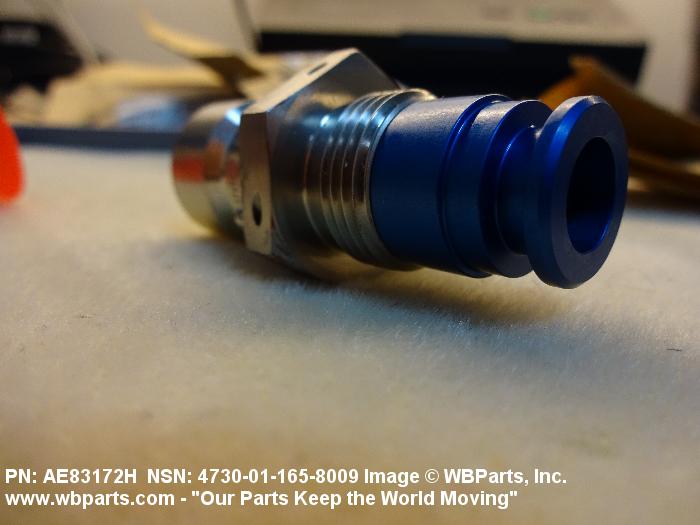

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-165-8009 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE83172H, ZA1452H68MT8, ZA-1452H6-8-MT8, 4730-01-165-8009, 01-165-8009, 4730011658009, 011658009
