NSN 4730-01-163-7199 W14492, W-1449-2, WS1449

Product Details | QUICK DISCONNECT COUPLING HALF

4730-01-163-7199 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: W14492, W-1449-2, WS1449, WS-1449, 1300 SOCKET, 1300SOCKET, 4730-01-163-7199, 01-163-7199, 4730011637199, 011637199

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	06 OCT 1983	01-163-7199	18681 ( COUPLING HALF, QUICK DISCONNECT )

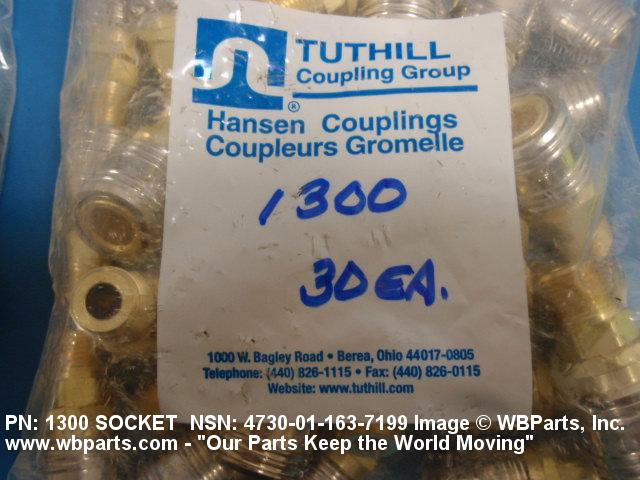

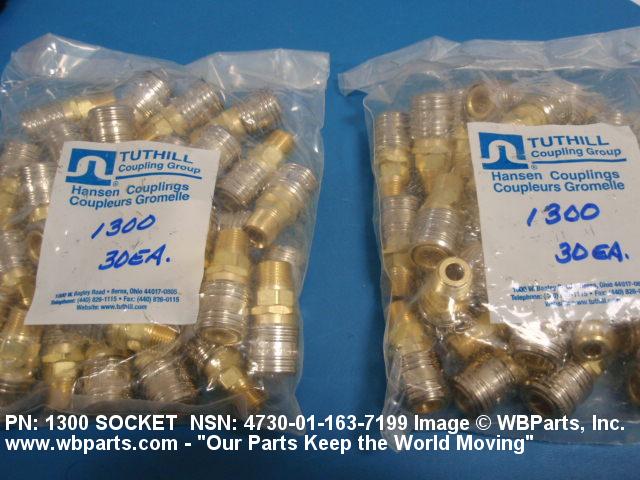

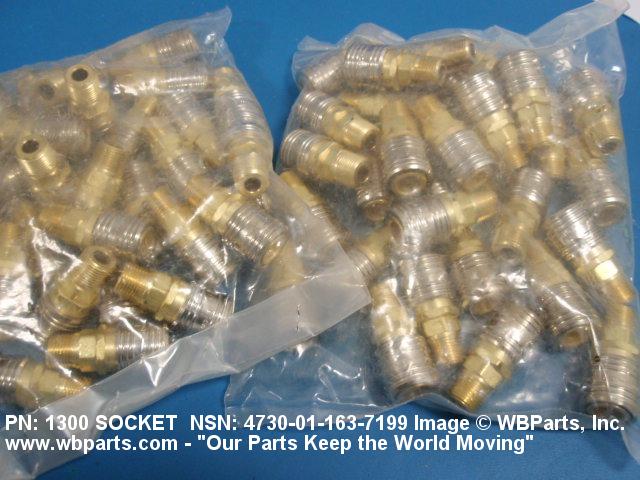

Drawings & Photos | NSN 4730-01-163-7199

Part Number	Request Date	QTY	Origin
4730-01-163-7199	2010-09-250	24	DIBBS
4730-01-163-7199	2010-03-63	48	DIBBS
4730-01-163-7199	2009-06-162	60	United States
4730-01-163-7199	2009-05-126	73	DIBBS
4730-01-163-7199	2009-05-125	6	United States
4730-01-163-7199	2009-05-125	6	United States
4730-01-163-7199	2009-03-78	48	DIBBS

Cross Reference | NSN 4730-01-163-7199

Part Number	Cage Code	Manufacturer
1300 SOCKET	73992	TUTHILL CORP HANSEN COUPLING DIV
W-1449-2	50378	3M COMPANY DIV OH&ESD
WS-1449	54681	3M COMPANY SECURITY SYSTEMS DIV
WS1449	50378	3M COMPANY DIV OH&ESD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-163-7199

Compare

Related Products | NSN 4730-01-163-7199

4730-01-163-7267, 4730-01-163-7268, 4730-01-163-7269, 4730-01-163-7270, 4730-01-163-7291

Technical Data | NSN 4730-01-163-7199

Characteristic	Specifications
MATERIAL	COPPER ALLOY AND STEEL BODY
SURFACE TREATMENT	ZINC BODY
STYLE DESIGNATOR	A1 MALE COUPLING HALF
LEG LENGTH	0.500 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
OVERALL LENGTH	2.219 INCHES MINIMUM AND 2.295 INCHES MAXIMUM
CONNECTION TYPE	THREADED EXTERNAL PIPE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS
CONNECTION STYLE	D2 PLAIN ALL ENDS
QUICK DISCONNECT METHOD	SPRING PUSH-PULL ALL ENDS
QUICK DISCONNECT NOMINAL SIZE	0.453 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	NPT ALL ENDS
NOMINAL THREAD SIZE	0.375 INCHES ALL ENDS
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	1500.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, WATER BASE 1500.0 POUNDS PER SQUARE INCH AIR

Restrictions/Controls & Freight Information | NSN 4730-01-163-7199

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052185	PIPE,TUBING,OR PIPE OR TUBING FIT
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-163-7199

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
