NSN 4730-01-149-4010 12297003, 751S1256E2, 751S-1256-E2

Product Details | QUICK DISCONNECT COUPLING HALF

4730-01-149-4010 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: 12297003, 751S1256E2, 751S-1256-E2, 7812039, 7812-039, 12297003-1, 4730-01-149-4010, 01-149-4010, 4730011494010, 011494010, 122970031

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	19 MAR 1983	01-149-4010	18681 ( COUPLING HALF, QUICK DISCONNECT )

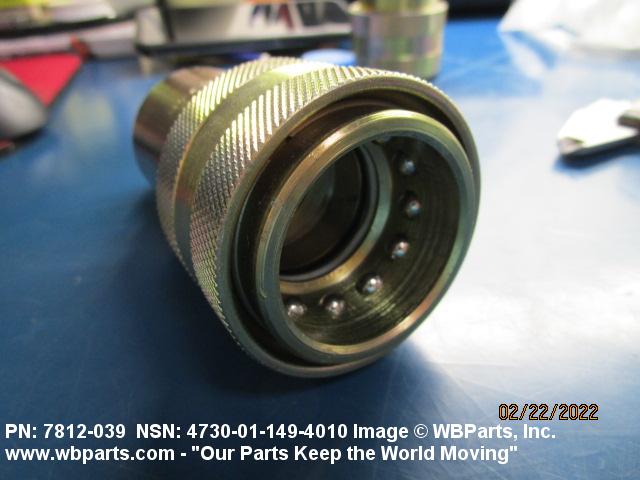

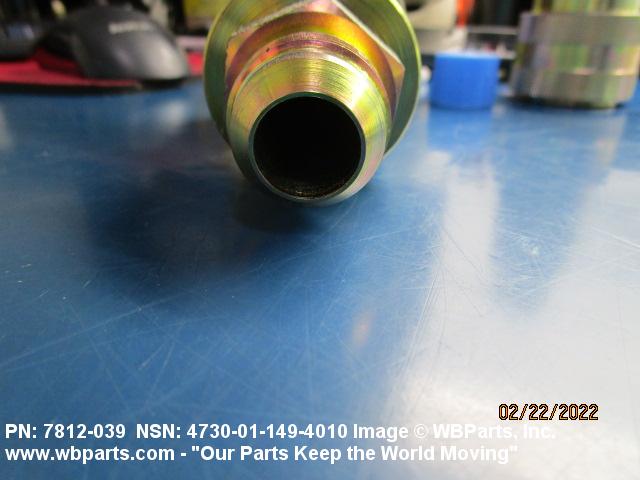

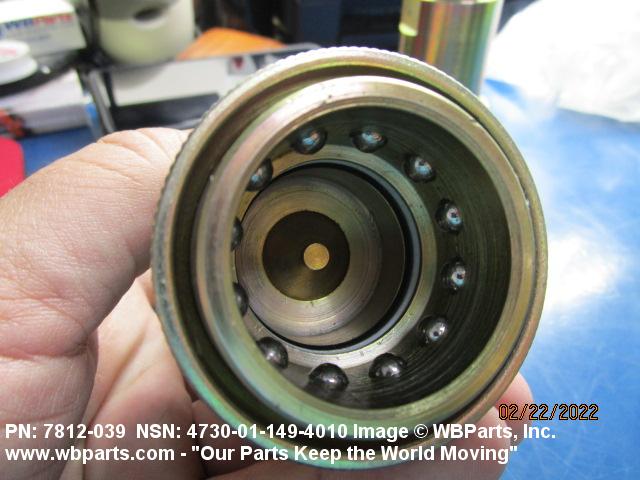

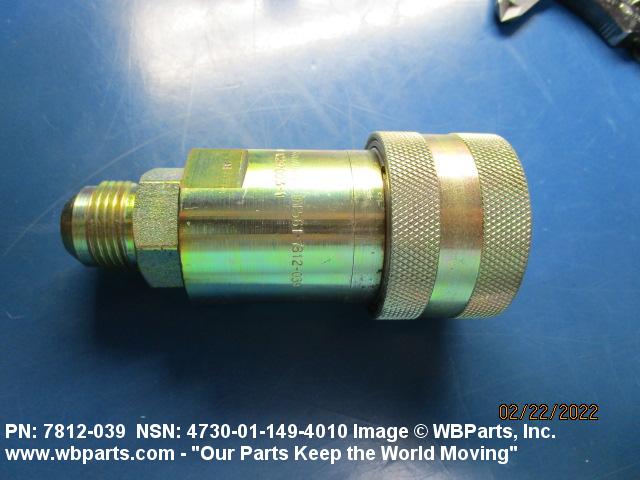

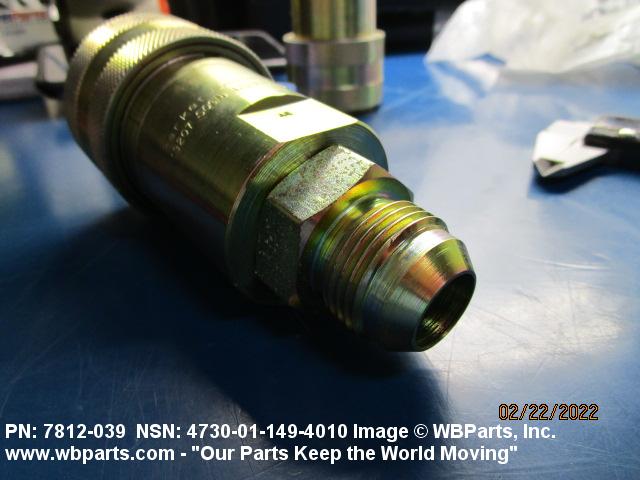

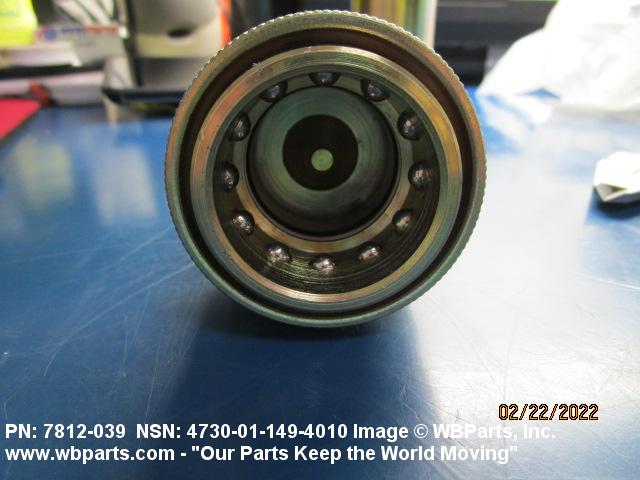

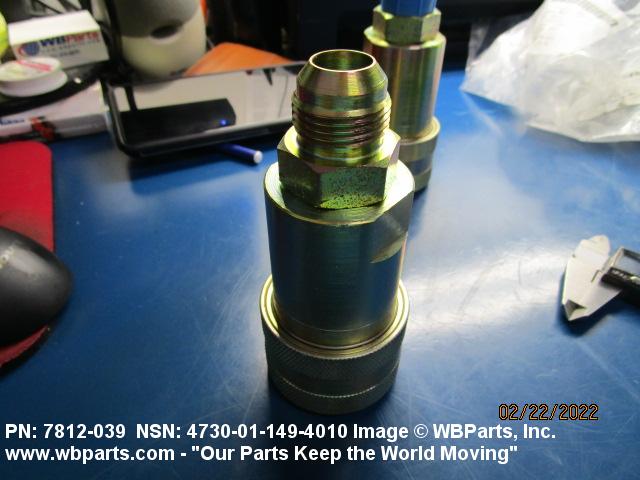

Drawings & Photos | NSN 4730-01-149-4010

Part Number	Request Date	QTY	Origin
4730-01-149-4010	2024-06-172	40	US
122970031	2023-10-299	45	US
7812-039-0020	2022-03-76	1280	DIBBS
4730-01-149-4010	2022-01-26	345	United States
7812-039	2021-11-326	345	DIBBS
7812-039	2021-11-318	345	DIBBS
7812-039	2021-07-187	709	DIBBS
7812-039	2021-06-175	709	DIBBS
7812-039	2021-02-46	900	DIBBS
7812-039	2021-01-28	900	DIBBS
7812-039	2020-10-282	245	DIBBS
7812-039	2020-05-139	338	DIBBS
7812-039	2020-05-128	338	DIBBS
7812-039	2020-02-56	265	DIBBS
7812-039	2020-01-15	485	DIBBS
7812-039	2019-11-328	242	DIBBS
7812-039	2019-08-220	245	DIBBS
7812-039	2019-02-38	362	DIBBS
7812-039	2019-02-38	273	DIBBS
4730-01-149-4010	2018-05-134	495	DIBBS
4730-01-149-4010	2018-05-121	495	DIBBS
4730-01-149-4010	2017-12-359	246	DIBBS
4730-01-149-4010	2017-10-276	181	DIBBS
4730-01-149-4010	2017-07-198	203	DIBBS
4730-01-149-4010	2017-06-173	188	DIBBS
4730-01-149-4010	2016-11-312	180	DIBBS
4730-01-149-4010	2016-05-129	196	DIBBS
12297003	2016-01-22	50	TR
4730-01-149-4010	2015-10-278	174	DIBBS
4730-01-149-4010	2015-04-111	156	DIBBS
4730-01-149-4010	2013-11-332	198	DIBBS
4730-01-149-4010	2013-08-213	22	DIBBS
4730-01-149-4010	2013-04-112	0	DIBBS
4730-01-149-4010	2012-11-334	155	DIBBS
4730-01-149-4010	2012-09-249	143	DIBBS
4730-01-149-4010	2012-08-240	24	DIBBS
4730-01-149-4010	2012-08-240	43	DIBBS
4730-01-149-4010	2012-08-240	152	DIBBS
4730-01-149-4010	2012-08-237	43	DIBBS
4730-01-149-4010	2012-07-188	24	DIBBS
4730-01-149-4010	2012-05-152	76	DIBBS
4730-01-149-4010	2012-05-126	45	DIBBS
4730-01-149-4010	2012-04-117	31	DIBBS
4730-01-149-4010	2012-04-96	11	DIBBS
4730-01-149-4010	2012-02-55	26	DIBBS
4730-01-149-4010	2012-02-52	12	DIBBS
4730-01-149-4010	2012-02-52	33	DIBBS
4730-01-149-4010	2012-02-48	12	DIBBS
4730-01-149-4010	2012-01-03	33	DIBBS
4730-01-149-4010	2011-12-353	8	DIBBS
4730-01-149-4010	2011-08-217	13	DIBBS
4730-01-149-4010	2009-12-344	2	DIBBS
4730-01-149-4010	2009-11-306	3	DIBBS
4730-01-149-4010	2009-10-292	3	DIBBS
4730-01-149-4010	2009-09-266	2	DIBBS

Cross Reference | NSN 4730-01-149-4010

Part Number	Cage Code	Manufacturer

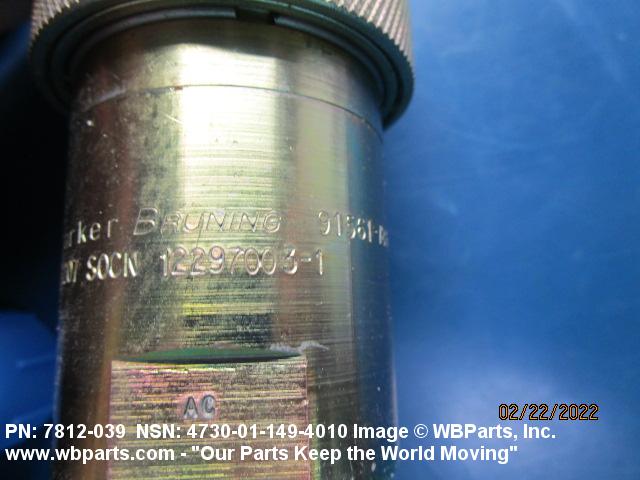

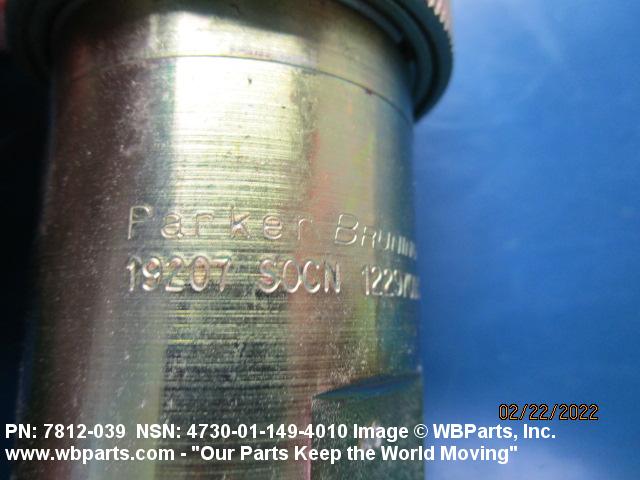

12297003	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12297003-1	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
751S-1256-E2	91561	PARKER HANNIFIN CORPORATION DBA QUICK COUPLING DIV DIV QUICK

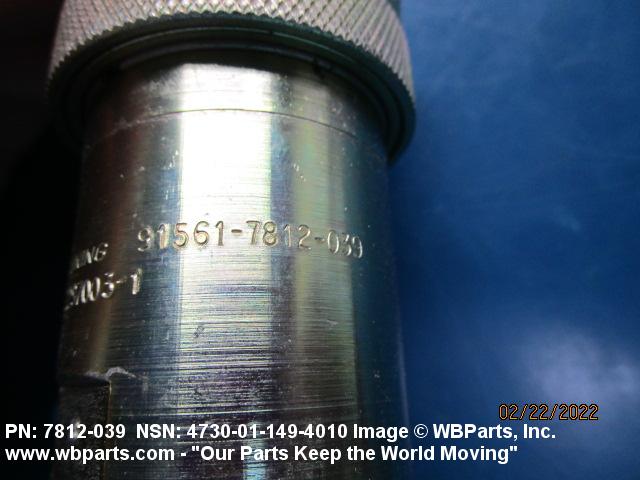

7812-039	91561	PARKER HANNIFIN CORPORATION DBA QUICK COUPLING DIV DIV QUICK

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-149-4010

Compare

Related Products | NSN 4730-01-149-4010

4730-01-149-4466, 4730-01-149-4591, 4730-01-149-4658, 4730-01-149-4887, 4730-01-149-4915

Technical Data | NSN 4730-01-149-4010

Characteristic	Specifications
BODY MATERIAL	STEEL
BODY STYLE	1 COUPLING HALF
FIRST LEG LENGTH	0.712 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	4500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	105.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON
FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	D6 FLARED
FIRST END SEAT ANGLE	37.0 DEGREES NOMINAL
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED	0.750 INCHES NOMINAL
FIRST END THREAD SERIES DESIGNATOR	UNJ
FIRST END NOMINAL THREAD SIZE	1.062 INCHES

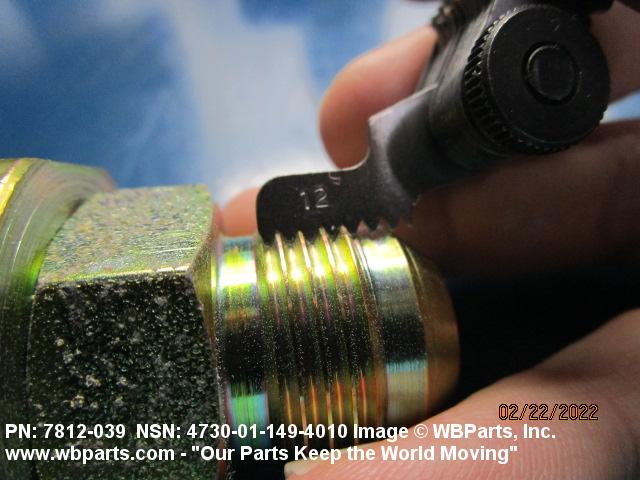

FIRST END THREAD QUANTITY PER INCH	12
FIRST END THREAD CLASS	3A
QUICK DISCONNECT METHOD	PUSH-PULL ALL ENDS
QUICK DISCONNECT END CONNECTION TYPE	INTERNAL ALL ENDS
QUICK DISCONNECT NOMINAL SIZE	0.750 INCHES ALL ENDS
SPECIAL FEATURES	USED ON THE M2,M3;2350-01-048-5920
MANUFACTURERS CODE	19207
MFR SOURCE CONTROLLING REFERENCE	12297003-1

Restrictions/Controls & Freight Information | NSN 4730-01-149-4010

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating	U	50
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-149-4010

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
