NSN 4730-01-140-6205 C7551, C755158, C7551-5-8
Product Details | TUBE FITTING BRAZING FERRULE
4730-01-140-6205 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: C7551, C755158, C7551-5-8, W903B8D, 14F038D, 14F03-8D, 4730-01-140-6205, 01-140-6205, 4730011406205, 011406205
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 OCT 1982 | 01-140-6205 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

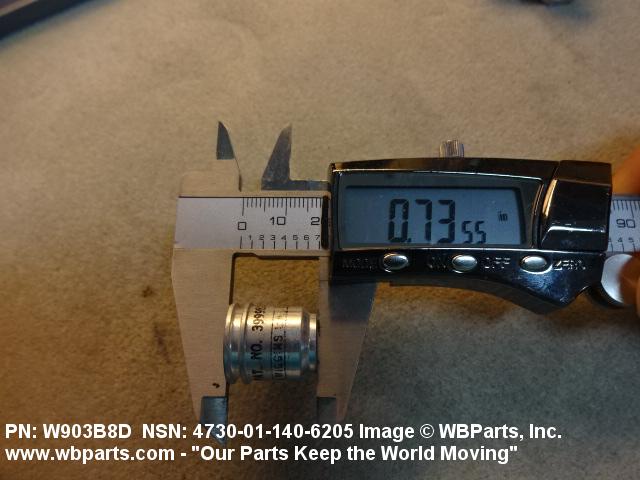

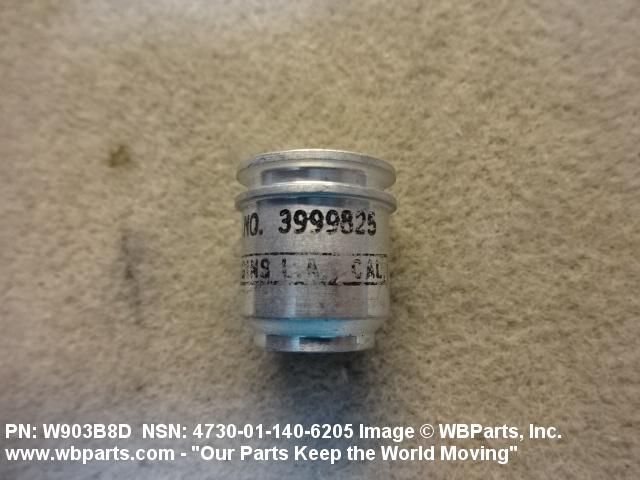

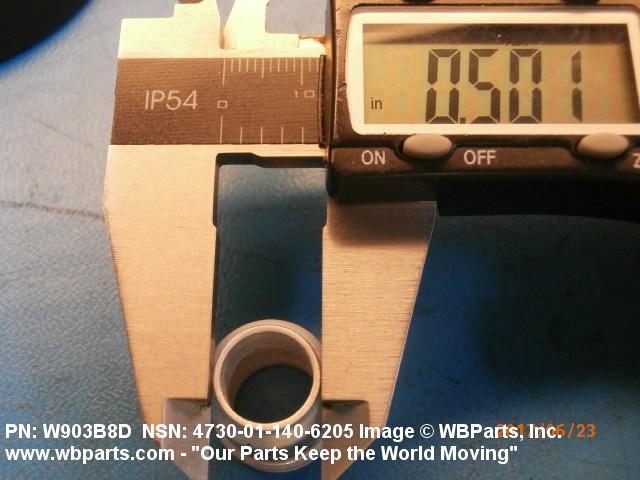

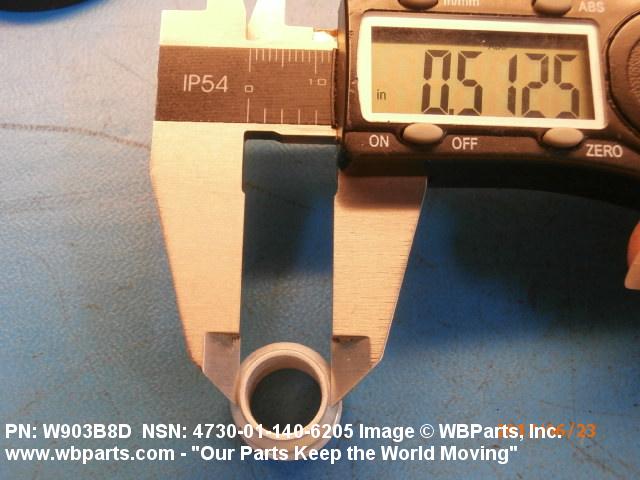

Drawings & Photos | NSN 4730-01-140-6205
Demand History | NSN 4730-01-140-6205
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| W903B8D | 2021-06-153 | 25 | Canada |
| W903B8D | 2019-02-49 | 12 | India |
| W903B8D | 2017-05-144 | 11 | India |
| 4730-01-140-6205 | 2016-04-119 | 162 | DIBBS |
| 4730-01-140-6205 | 2013-05-135 | 65 | DIBBS |
| 4730-01-140-6205 | 2013-01-04 | 23 | DIBBS |
| C755158 | 2010-11-333 | 25 | United States |
Cross Reference | NSN 4730-01-140-6205
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-140-6205
Related Products | NSN 4730-01-140-6205
Technical Data | NSN 4730-01-140-6205
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | J5 GASKET SEAL |
| OVERALL LENGTH | 0.749 INCHES MAXIMUM |
| FLANGE WIDTH | 0.170 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.689 INCHES MAXIMUM |
| SLEEVE OUTSIDE DIAMETER | 0.513 INCHES MINIMUM AND 0.537 INCHES MAXIMUM |
