Product Details | TUBE FITTING BRAZING FERRULE

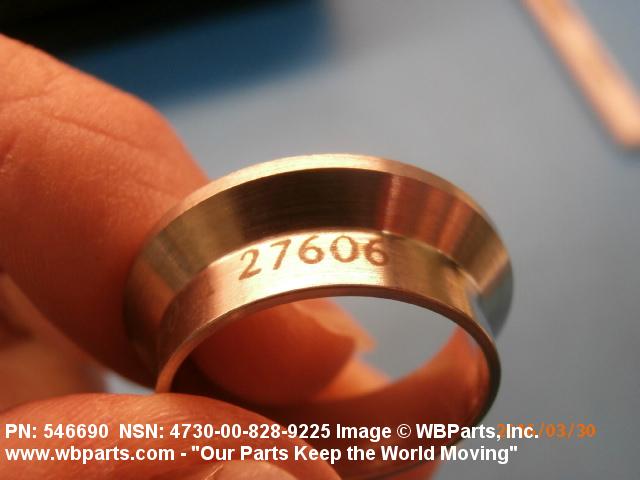

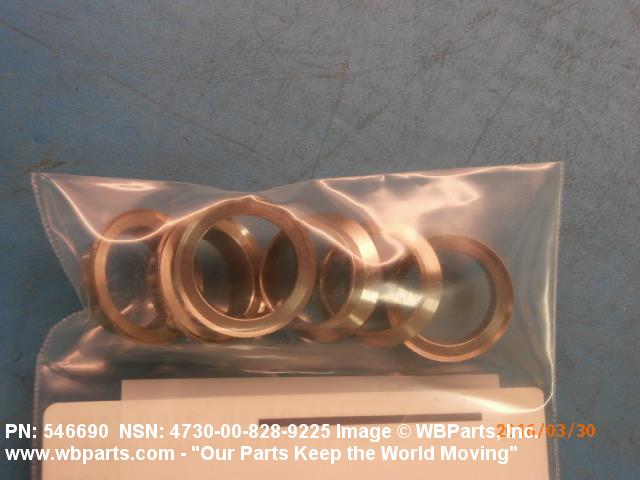

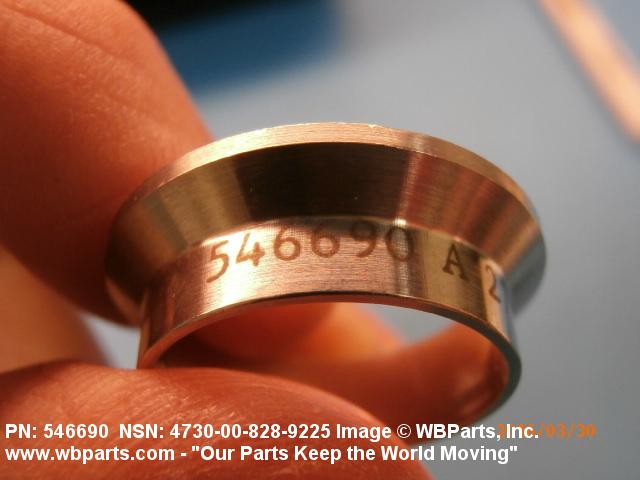

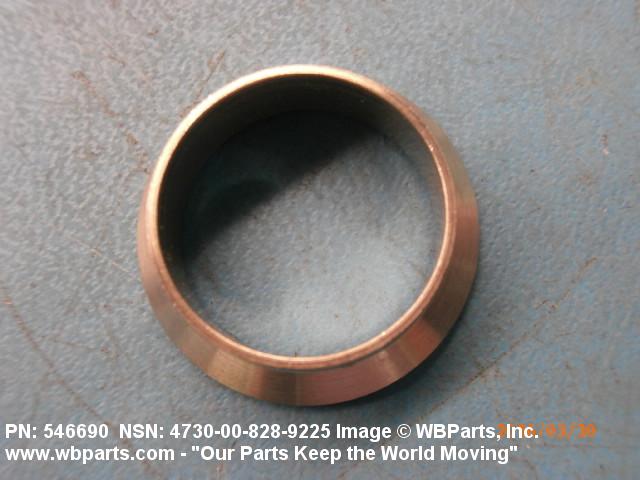

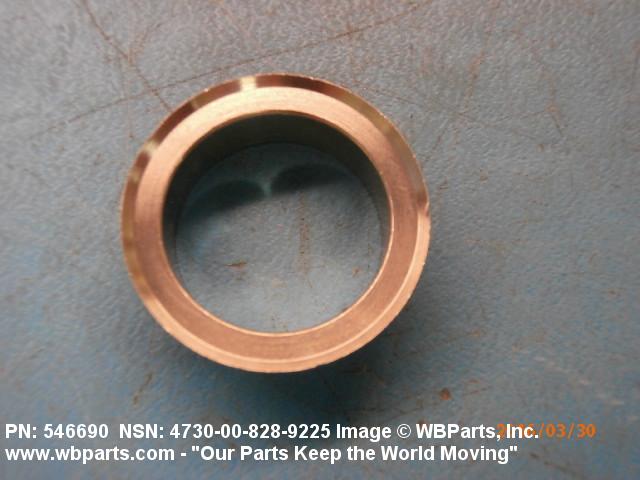

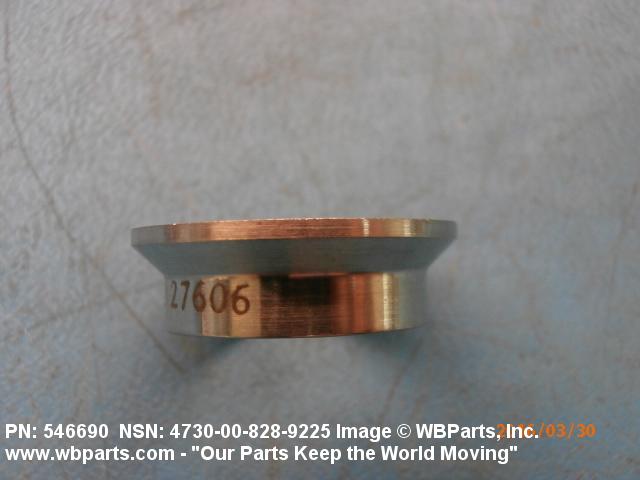

4730-00-828-9225 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: 546690, 4730-00-828-9225, 00-828-9225, 4730008289225, 008289225
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 AUG 1967 | 00-828-9225 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-828-9225
Demand History | NSN 4730-00-828-9225
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-828-9225 | 2016-03-63 | 6 | United States |
| 4730-00-828-9225 | 2015-11-308 | 244 | DIBBS |
| 4730-00-828-9225 | 2015-08-216 | 117 | DIBBS |
| 4730-00-828-9225 | 2012-11-310 | 110 | DIBBS |
| 4730-00-828-9225 | 2011-04-91 | 90 | DIBBS |
| 4730-00-828-9225 | 2011-02-49 | 62 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-828-9225
Related Products | NSN 4730-00-828-9225
Technical Data | NSN 4730-00-828-9225
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| STYLE DESIGNATOR | J3 FLARE |

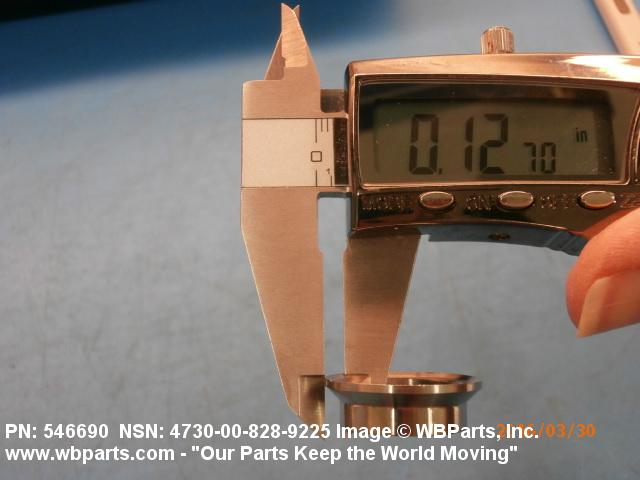

| FLANGE WIDTH | 0.125 INCHES NOMINAL |

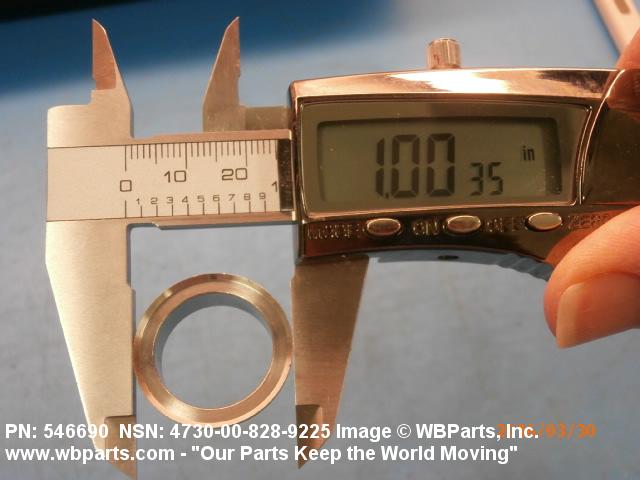

| FLANGE OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |

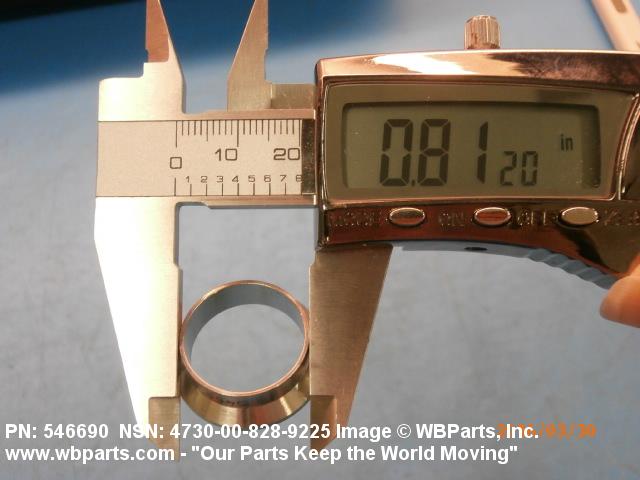

| SLEEVE OUTSIDE DIAMETER | 0.812 INCHES NOMINAL |
