NSN 4730-01-103-4432 T150S16D, T150-S1-6D, 01-103-4432

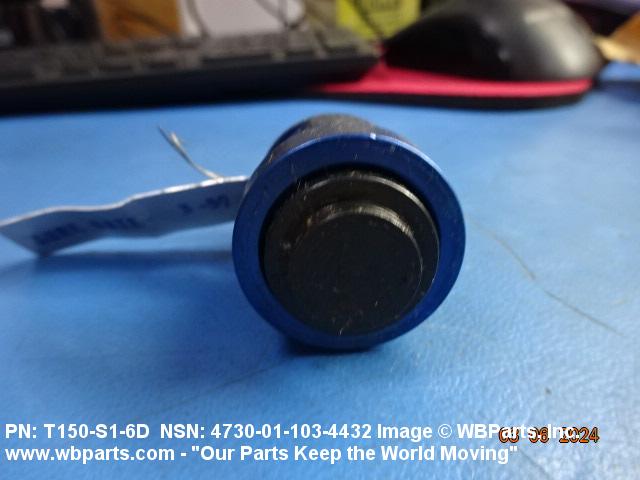

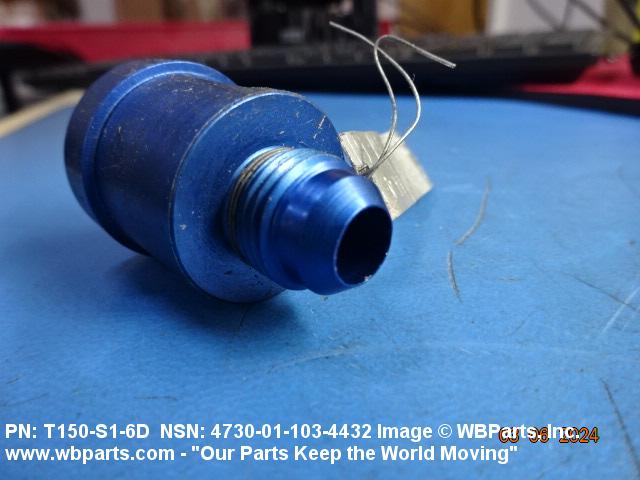

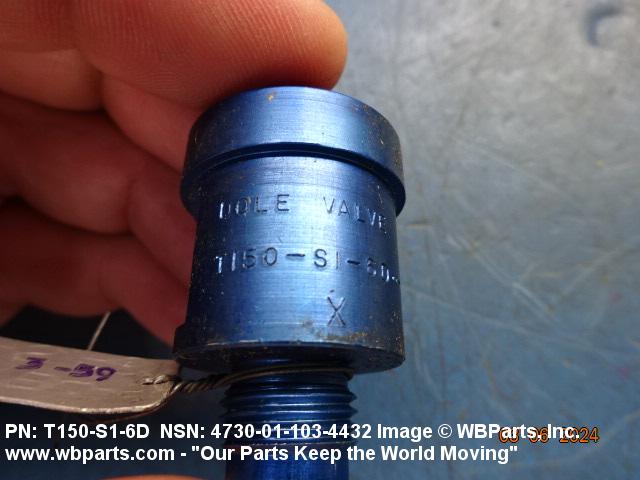

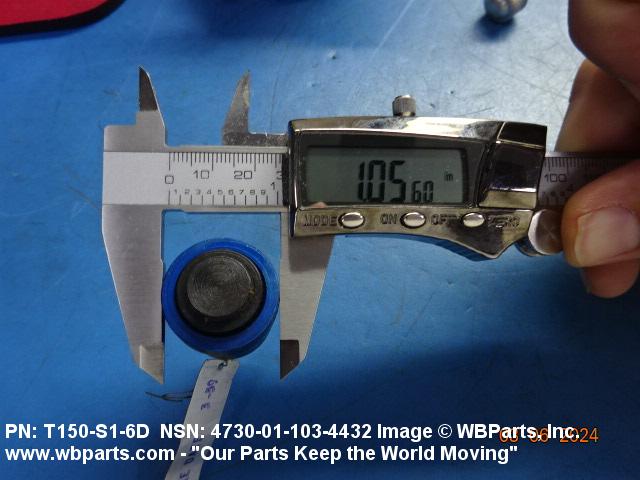

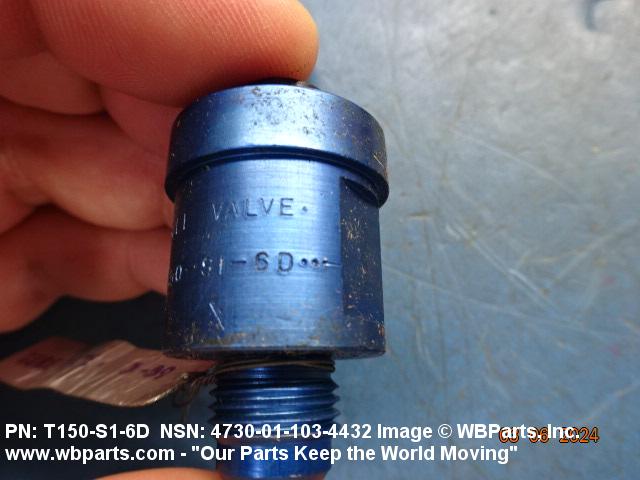

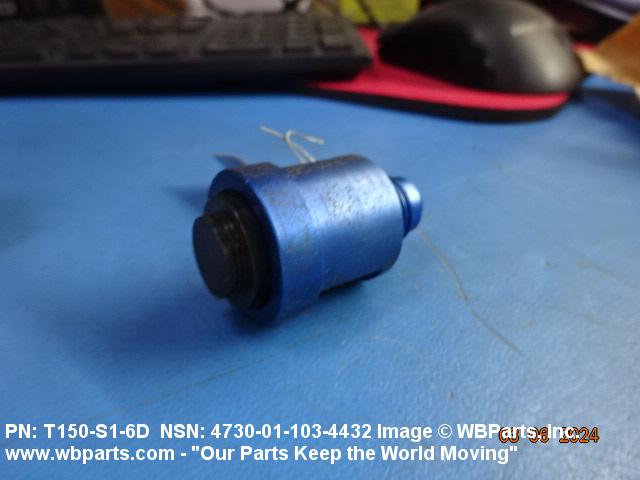

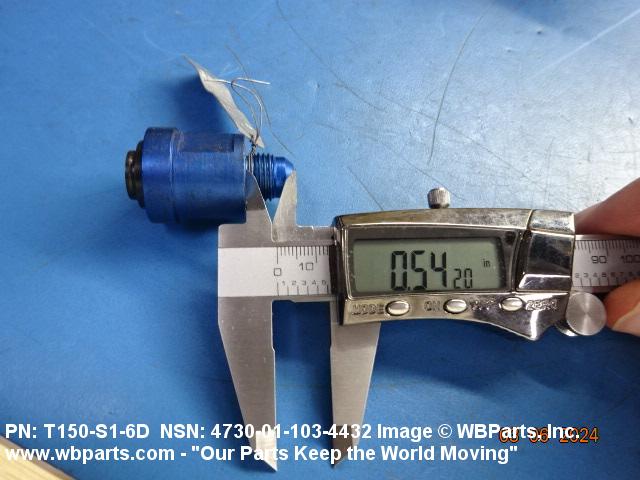

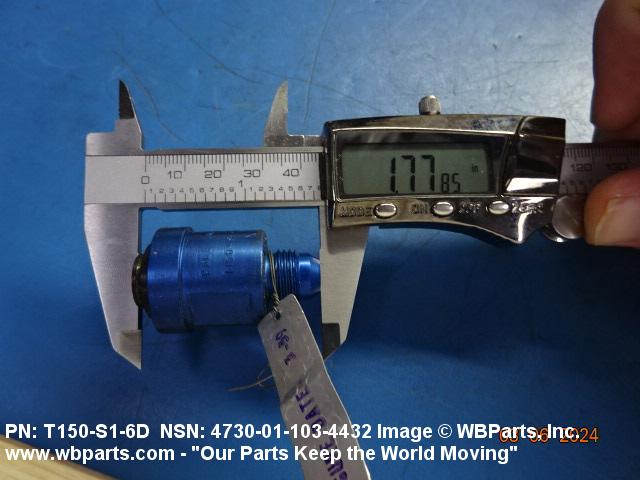

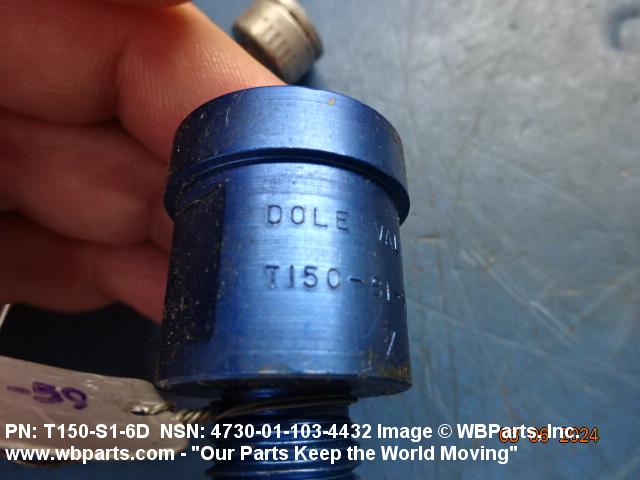

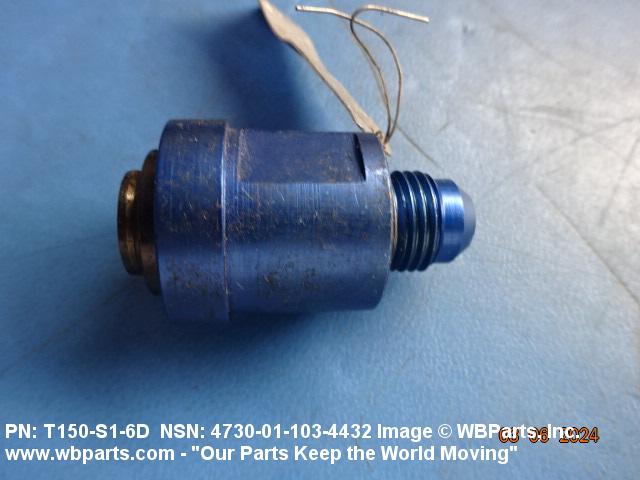

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-103-4432 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: T150S16D, T150-S1-6D, 4730-01-103-4432, 01-103-4432, 4730011034432, 011034432
