Product Details | QUICK DISCONNECT COUPLING HALF

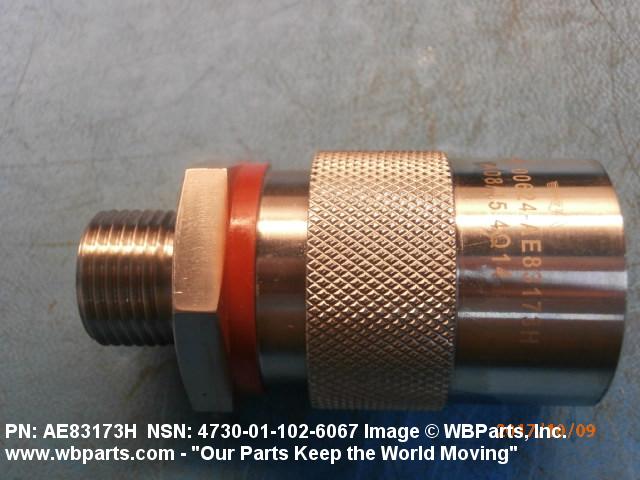

4730-01-102-6067 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: AE83173H, ZA1453H48F8, ZA-1453H4-8-F8, 4730-01-102-6067, 01-102-6067, 4730011026067, 011026067

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	23 OCT 1980	01-102-6067	18681 ( COUPLING HALF, QUICK DISCONNECT )

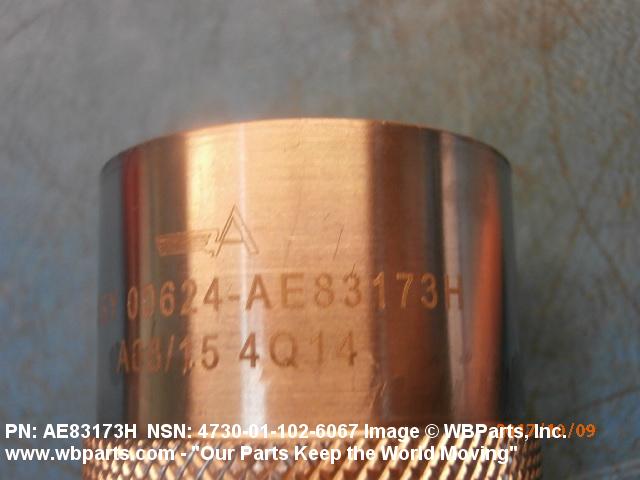

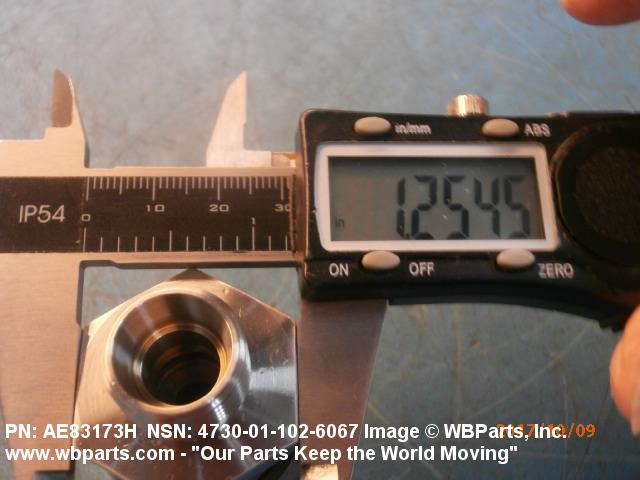

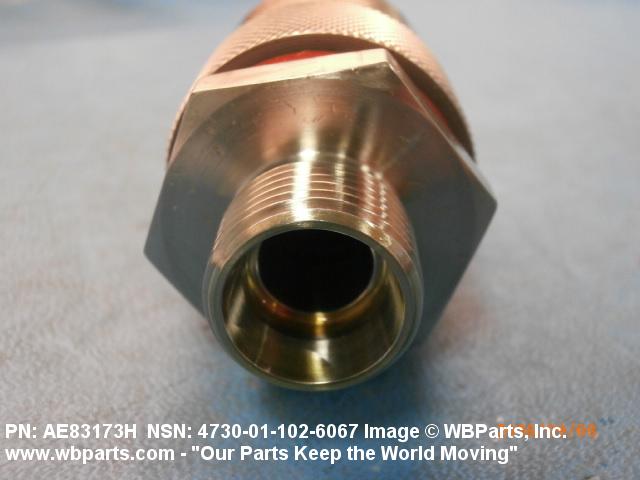

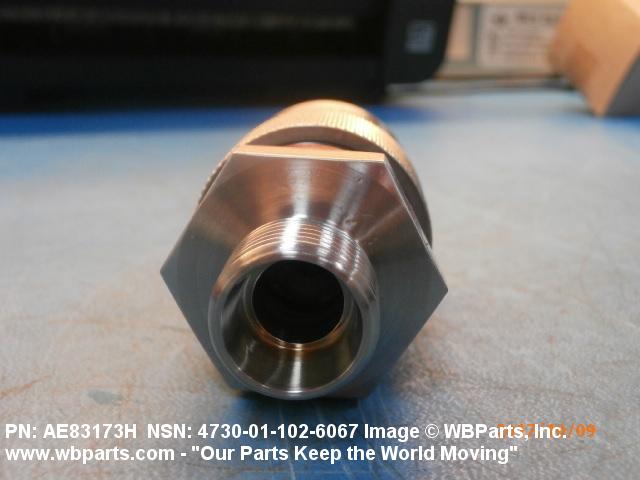

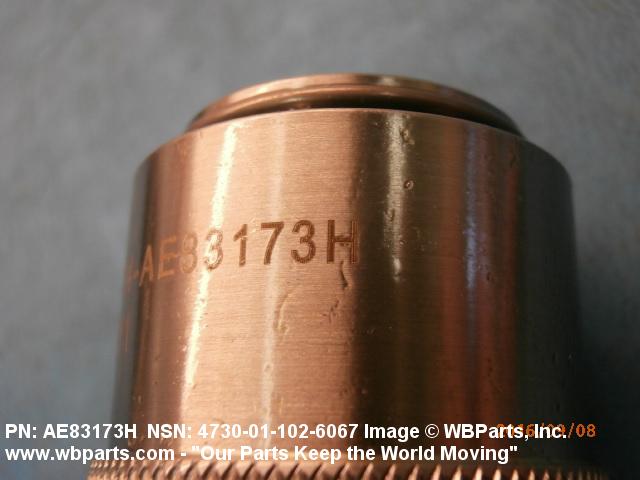

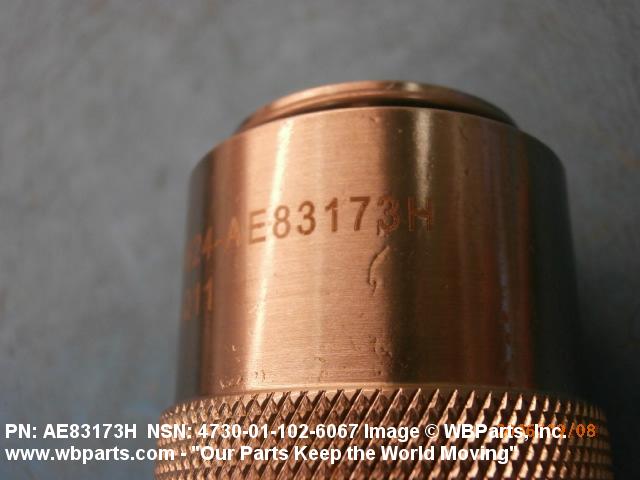

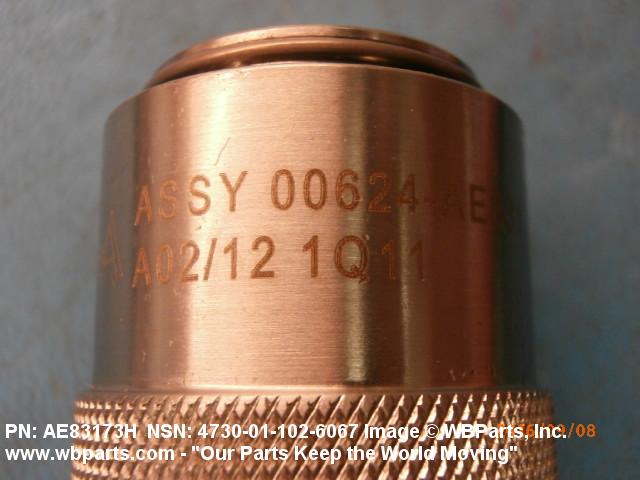

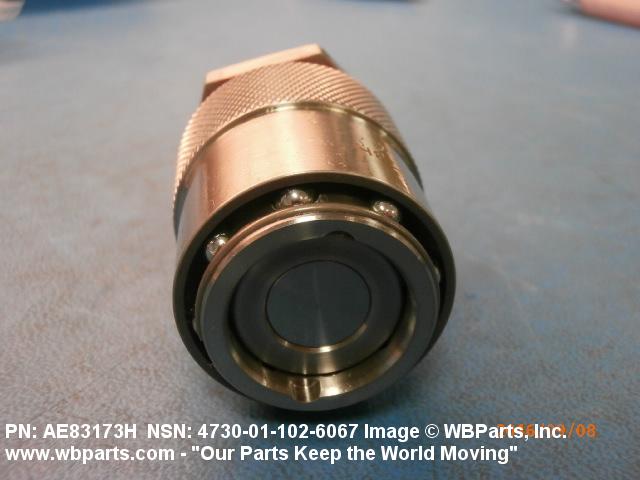

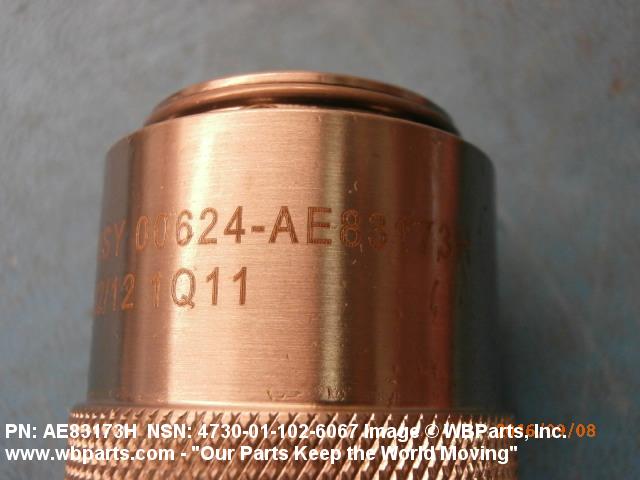

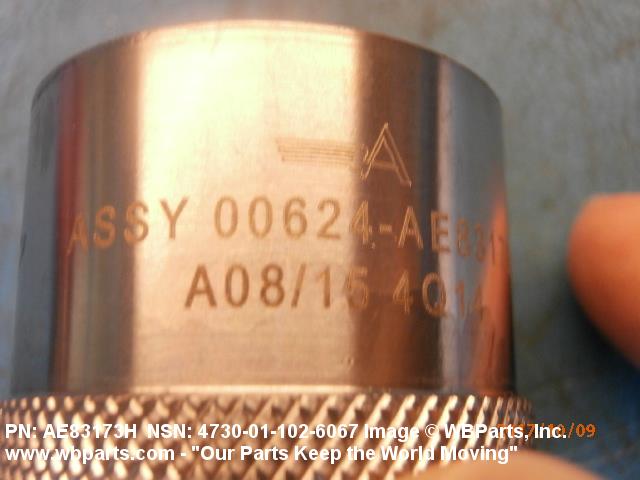

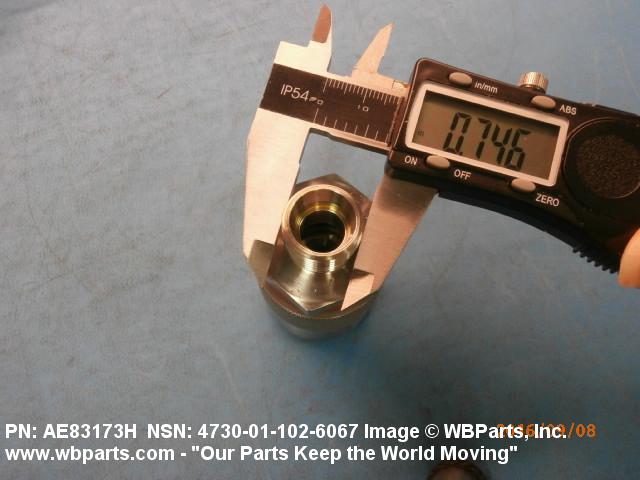

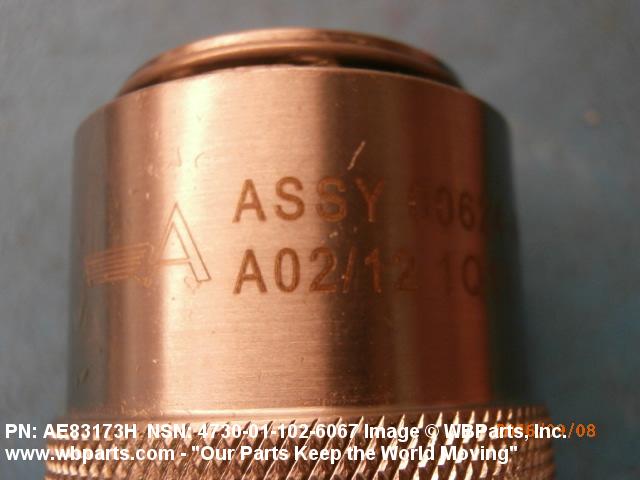

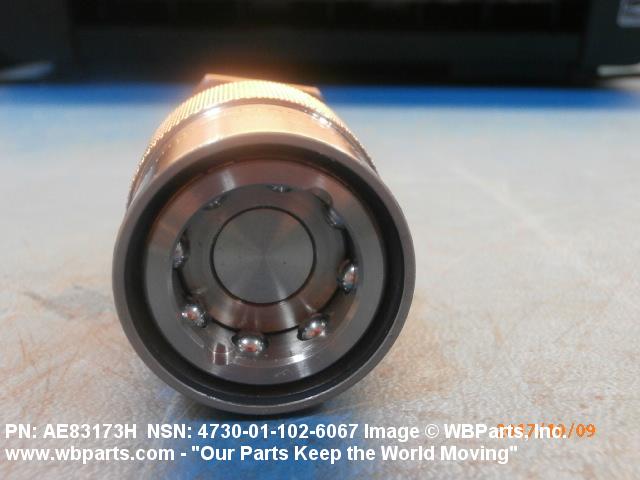

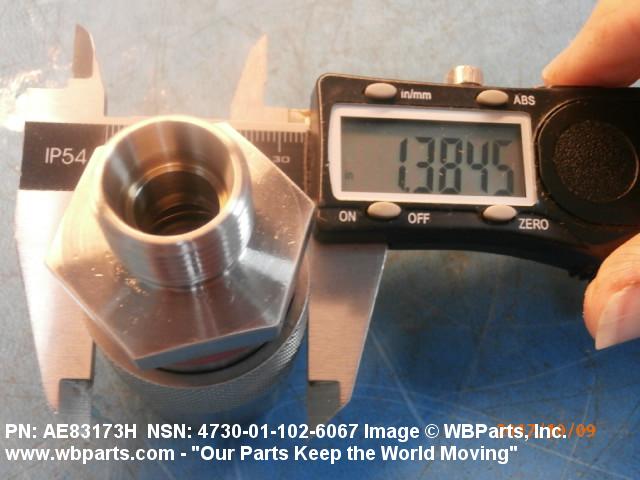

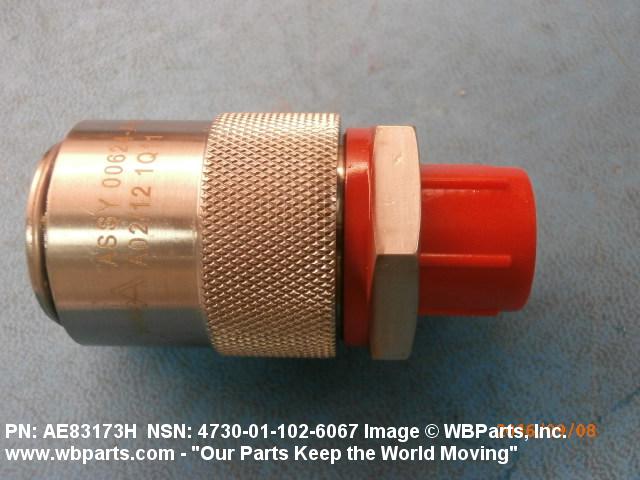

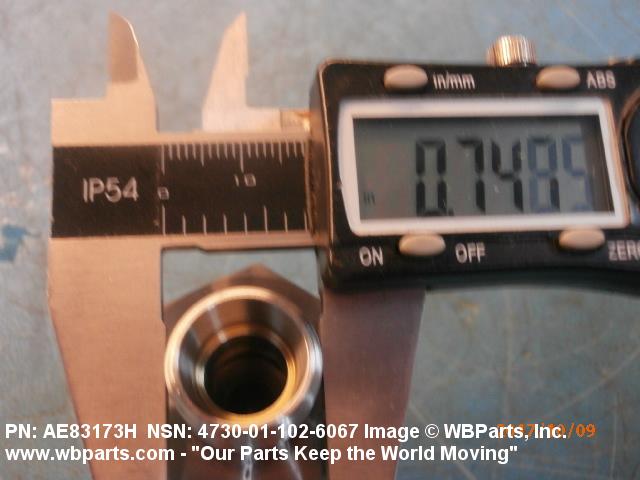

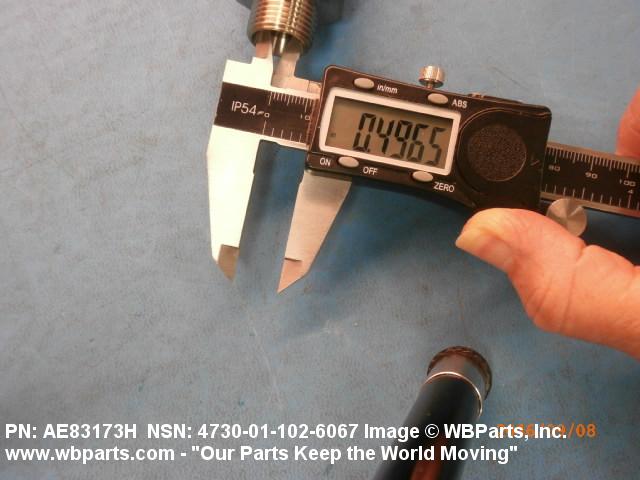

Drawings & Photos | NSN 4730-01-102-6067

Part Number	Request Date	QTY	Origin
AE83173H	2024-11-312	51	DIBBS
ZA-1453H4-8-F8	2024-11-312	51	DIBBS
AE83173H	2024-10-305	43	DIBBS
AE83173H	2024-10-305	51	DIBBS
ZA-1453H4-8-F8	2024-10-305	43	DIBBS
ZA-1453H4-8-F8	2024-10-305	51	DIBBS
AE83173H	2024-10-294	51	DIBBS
ZA-1453H4-8-F8	2024-10-294	51	DIBBS
AE83173H	2024-10-291	43	DIBBS
ZA-1453H4-8-F8	2024-10-291	43	DIBBS
AE83173H	2024-10-282	52	DIBBS
ZA-1453H4-8-F8	2024-10-282	52	DIBBS
AE83173H	2024-08-233	6	us
AE83173H	2024-08-233	6	us
4730-01-102-6067	2023-04-102	4	US
4730-01-102-6067	2022-09-270	36	Singapore
4730-01-102-6067	2022-09-251	36	Singapore
AE83173H	2022-05-144	137	DIBBS
ZA-1453H4-8-F8	2022-05-144	137	DIBBS
AE83173H	2022-03-87	424	DIBBS
ZA-1453H4-8-F8	2022-03-87	424	DIBBS
AE83173H	2022-02-41	139	DIBBS
ZA-1453H4-8-F8	2022-02-41	139	DIBBS
AE83173H	2021-12-336	120	DIBBS
ZA-1453H4-8-F8	2021-12-336	120	DIBBS
AE83173H	2021-10-280	156	DIBBS
ZA-1453H4-8-F8	2021-10-280	156	DIBBS
4730-01-102-6067	2021-01-13	15	United States
AE83173H	2020-12-344	261	DIBBS
ZA-1453H4-8-F8	2020-12-344	261	DIBBS
4730-01-102-6067	2020-10-300	3	United States
AE83173H	2020-01-22	415	DIBBS
ZA-1453H4-8-F8	2020-01-22	415	DIBBS
4730-01-102-6067	2019-05-150	459	US
AE83173H	2019-05-149	759	DIBBS
ZA-1453H4-8-F8	2019-05-149	759	DIBBS
ZA1453H48F8	2019-03-80	1	United States
4730-01-102-6067	2018-08-243	882	DIBBS
4730-01-102-6067	2018-04-103	310	DIBBS
4730-01-102-6067	2018-04-92	179	DIBBS
4730-01-102-6067	2018-01-18	104	DIBBS
4730-01-102-6067	2017-11-310	215	DIBBS
ZA1453H48F8	2017-09-261	1	United States
4730-01-102-6067	2017-09-261	132	DIBBS
4730-01-102-6067	2017-07-190	191	DIBBS
4730-01-102-6067	2017-06-159	179	DIBBS
AE83173H	2017-05-138	1	ES
ZA1453H48F8	2017-01-17	1	United States
ZA1453H48F8	2016-11-326	1	United States
AE83173H	2016-09-246	1	United States
ZA1453H48F8	2016-09-246	1	United States
4730-01-102-6067	2016-07-206	175	DIBBS
4730-01-102-6067	2015-10-274	313	DIBBS
ZA1453H48F8	2015-08-237	24	United States
4730-01-102-6067	2015-07-209	11	DIBBS
4730-01-102-6067	2014-08-240	1	DIBBS-RFPs
4730-01-102-6067	2014-06-161	170	DIBBS
4730-01-102-6067	2014-02-59	5	MANUAL
4730-01-102-6067	2013-11-325	1	DIBBS-RFPs
4730-01-102-6067	2013-11-322	187	DIBBS
4730-01-102-6067	2013-09-262	648	DIBBS
AE83173H	2013-06-152	10
4730-01-102-6067	2013-04-100	520	DIBBS
4730-01-102-6067	2012-12-357	249	DIBBS
4730-01-102-6067	2012-12-357	427	DIBBS
4730-01-102-6067	2012-08-223	249	DIBBS
4730-01-102-6067	2012-08-223	427	DIBBS
4730-01-102-6067	2012-06-160	249	DIBBS
4730-01-102-6067	2012-02-46	151	DIBBS
4730-01-102-6067	2011-03-81	224	DIBBS
4730-01-102-6067	2010-09-265	254	DIBBS
4730-01-102-6067	2010-07-208	544	DIBBS
4730-01-102-6067	2010-06-180	232	DIBBS
ZA1453H48F8	2007-09-269	1	US

Cross Reference | NSN 4730-01-102-6067

Part Number	Cage Code	Manufacturer
AE83173H	00624	EATON CORPORATION DBA AEROSPACE DIV
ZA-1453H4-8-F8	79318	MEGGITT (NORTH HOLLYWOOD), INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-102-6067

Compare

Related Products | NSN 4730-01-102-6067

4730-01-102-6543, 4730-01-102-6544, 4730-01-102-6860, 4730-01-102-7134, 4730-01-102-7135

Technical Data | NSN 4730-01-102-6067

Characteristic	Specifications
MATERIAL	ALUMINUM BODY
STYLE DESIGNATOR	A1 MALE COUPLING HALF

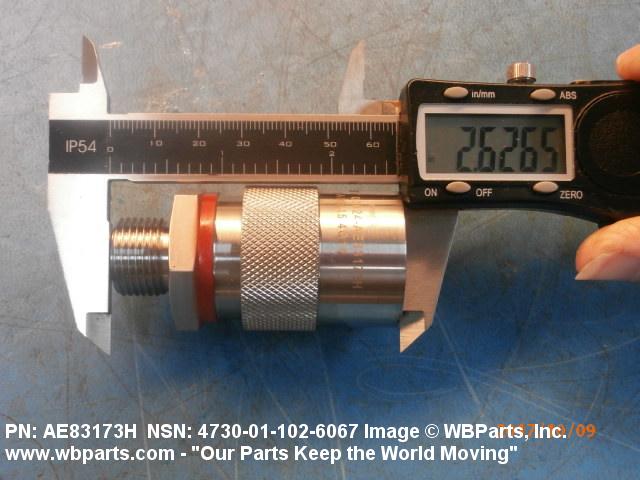

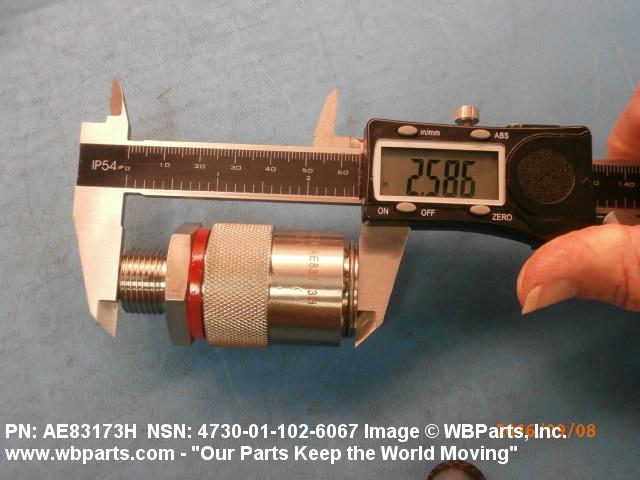

OVERALL LENGTH	2.220 INCHES NOMINAL
