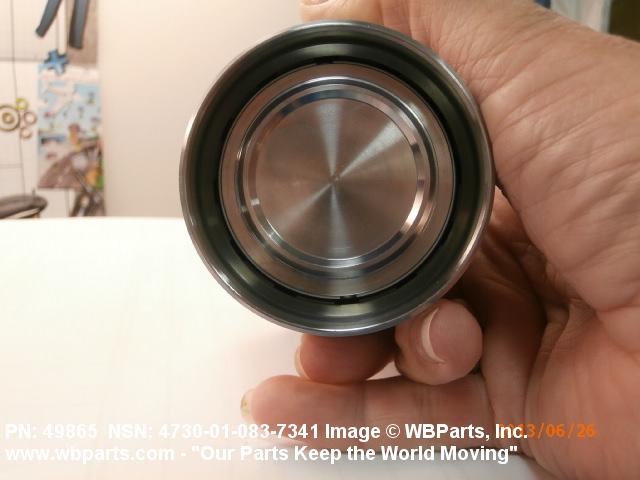

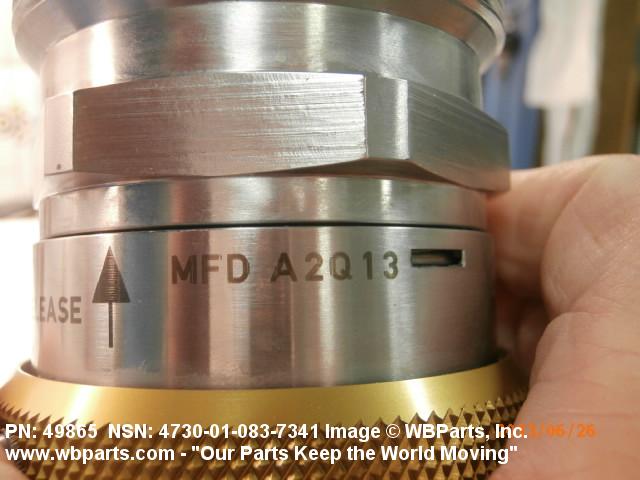

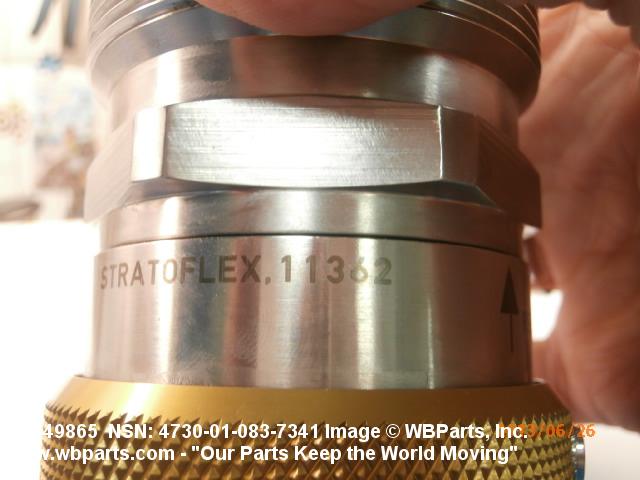

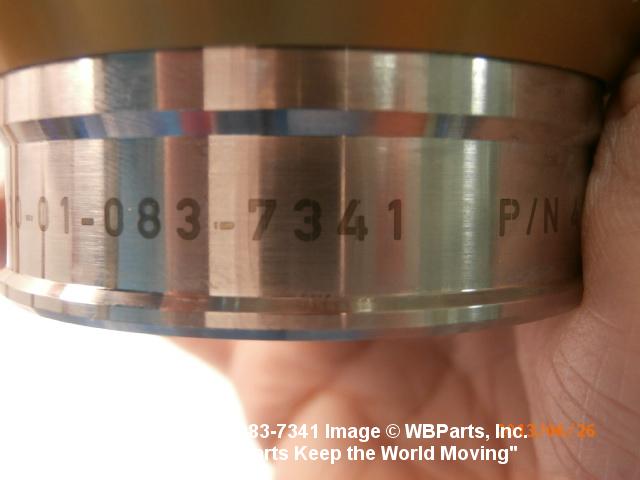

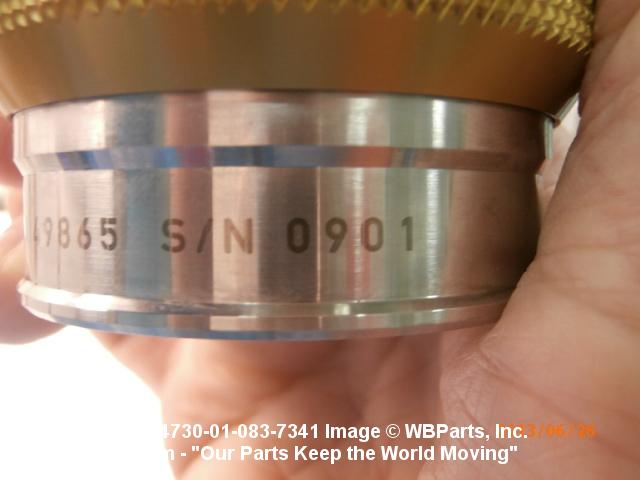

Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-083-7341 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 49865, 62103, 4730-01-083-7341, 01-083-7341, 4730010837341, 010837341
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 SEP 1979 | 01-083-7341 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

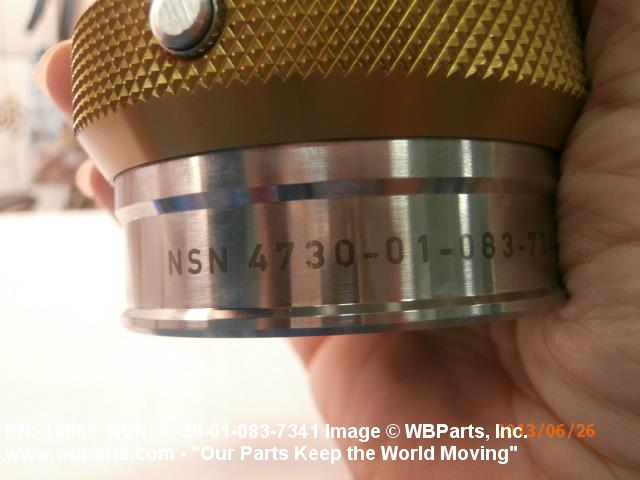

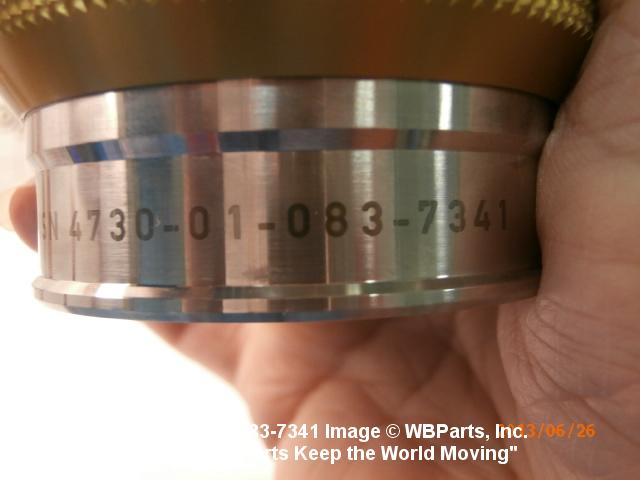

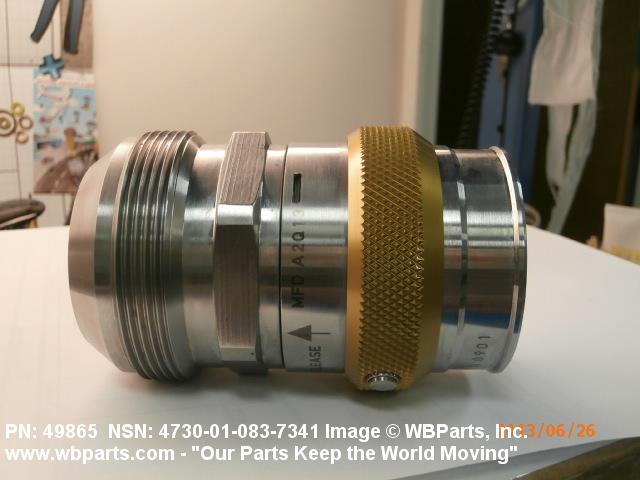

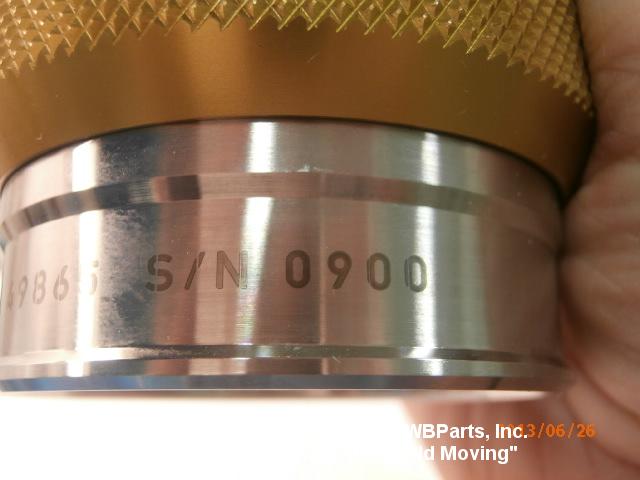

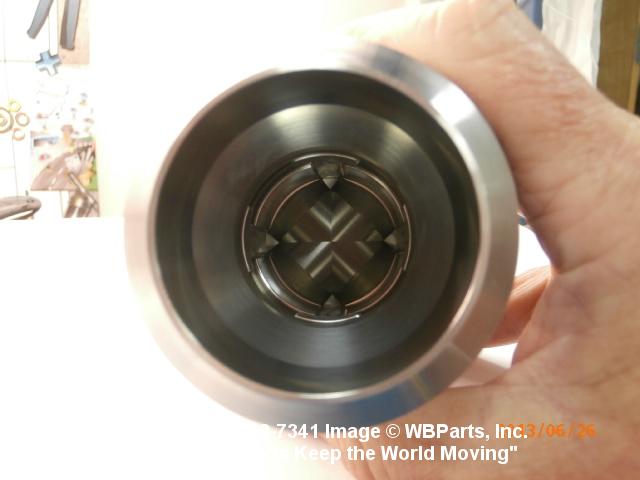

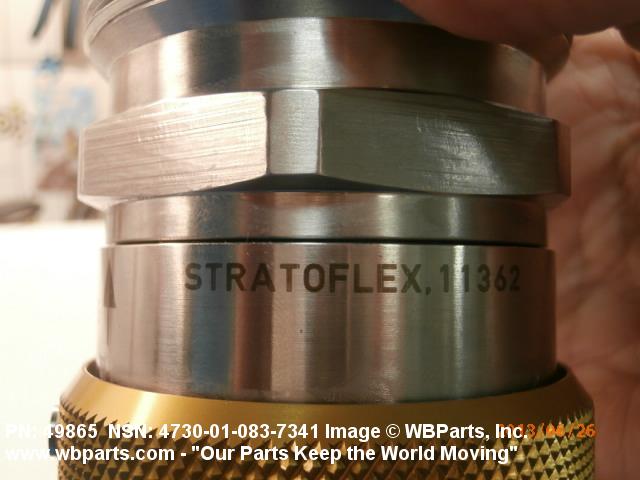

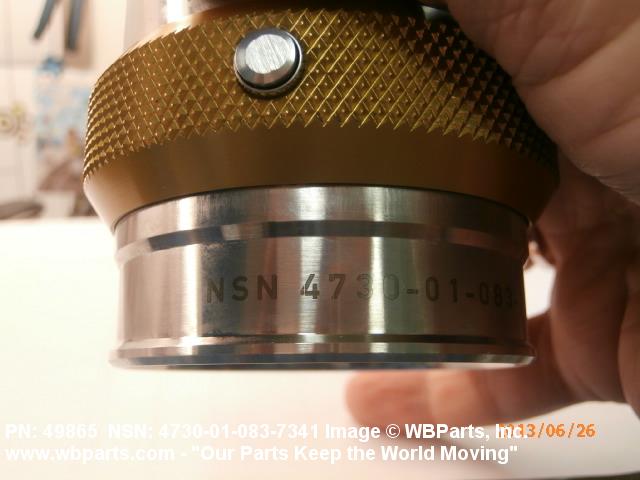

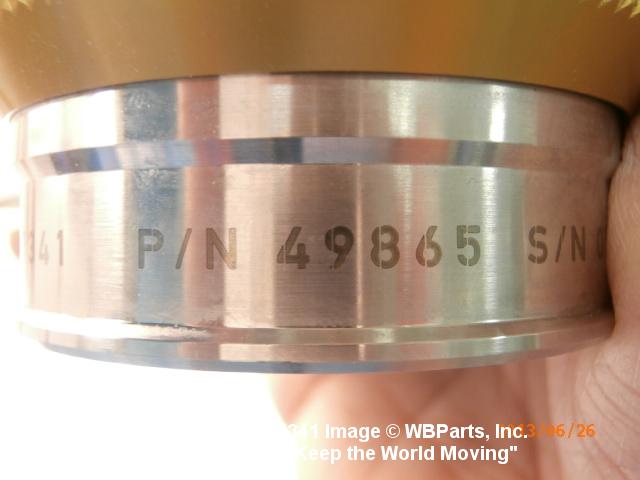

Drawings & Photos | NSN 4730-01-083-7341
Demand History | NSN 4730-01-083-7341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 49865 | 2024-07-187 | 2 | DIBBS |
| 49865 | 2024-06-179 | 2 | DIBBS |
| 49865 | 2024-06-171 | 2 | DIBBS |
| 4730-01-083-7341 | 2024-04-101 | 1 | United States |
| 49865 | 2024-01-08 | 2 | DIBBS |
| 49865 | 2023-12-361 | 2 | DIBBS |
| 49865 | 2023-12-353 | 2 | DIBBS |
| 49865 | 2023-09-258 | 2 | DIBBS |
| 49865 | 2023-09-250 | 2 | DIBBS |
| 49865 | 2023-08-214 | 2 | DIBBS |
| 49865 | 2023-07-206 | 2 | DIBBS |
| 49865 | 2023-06-172 | 1 | DIBBS |
| 4730-01-083-7341 | 2022-08-222 | 15 | US |
| 49865 | 2022-06-173 | 6 | DIBBS |
| 4730-01-083-7341 | 2021-05-144 | 4 | Russian Federation |
| 49865 | 2020-10-281 | 10 | DIBBS |
| 49865 | 2019-11-317 | 9 | DIBBS |
| 49865 | 2019-10-283 | 8 | DIBBS |
| 49865 | 2019-08-217 | 7 | DIBBS |
| 49865 | 2019-07-204 | 7 | DIBBS |
| 49865 | 2019-02-36 | 8 | DIBBS |
| 49865 | 2019-01-22 | 8 | DIBBS |
| 4730-01-083-7341 | 2018-10-283 | 4 | US |
| 4730-01-083-7341 | 2018-06-168 | 6 | DIBBS |
| 4730-01-083-7341 | 2018-01-03 | 5 | DIBBS |
| 4730-01-083-7341 | 2017-12-348 | 8 | DIBBS |
| 4730-01-083-7341 | 2017-09-260 | 4 | DIBBS |
| 4730-01-083-7341 | 2016-10-286 | 7 | DIBBS |
| 4730-01-083-7341 | 2015-06-172 | 12 | DIBBS |
| 4730-01-083-7341 | 2013-09-252 | 10 | DIBBS |
| 4730-01-083-7341 | 2013-06-156 | 9 | DIBBS |
| 4730-01-083-7341 | 2013-05-141 | 9 | DIBBS |
| 49865 | 2012-12-348 | 9 | United States |
| 4730-01-083-7341 | 2010-07-209 | 11 | DIBBS |
| 4730-01-083-7341 | 2010-07-204 | 3 | US |
| 4730-01-083-7341 | 2009-10-288 | 4 | DIBBS |
| 4730-01-083-7341 | 2008-12-352 | 20 | DIBBS |
| 4730-01-083-7341 | 2008-12-340 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-083-7341
Related Products | NSN 4730-01-083-7341
Technical Data | NSN 4730-01-083-7341

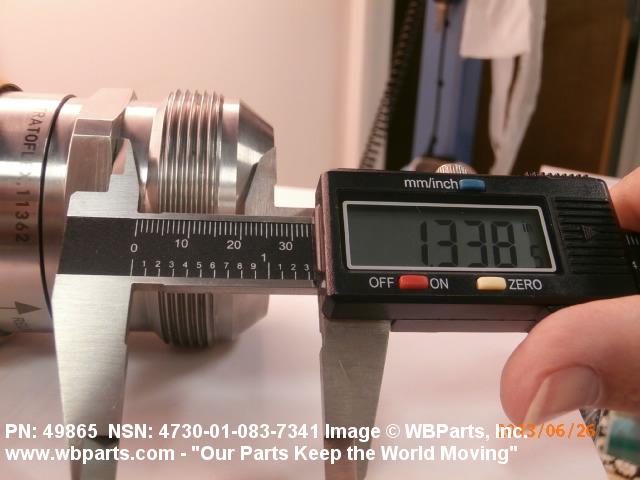

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 1.340 INCHES NOMINAL |
| OVERALL LENGTH | 3.583 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 45.0 DEGREES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |

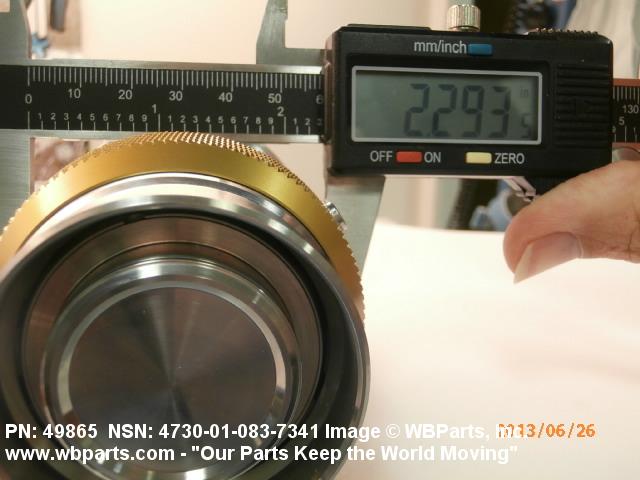

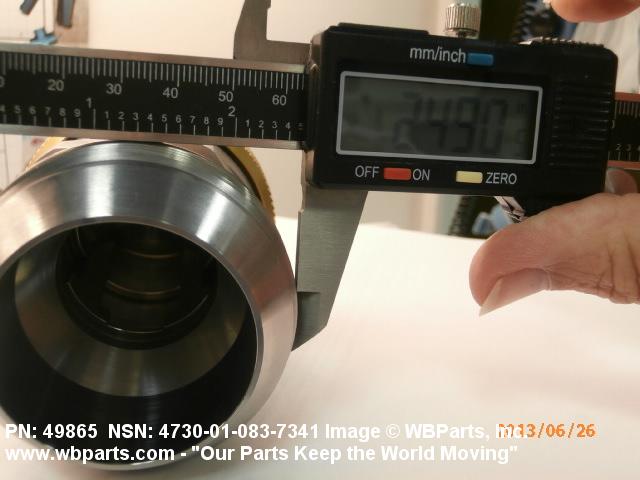

| QUICK DISCONNECT NOMINAL SIZE | 2.375 INCHES ALL ENDS |
