NSN 4730-01-070-8344 SEC07A16, DY90116, DY90-1-16
Product Details | FLARED TUBE FITTING CONICAL SEAL

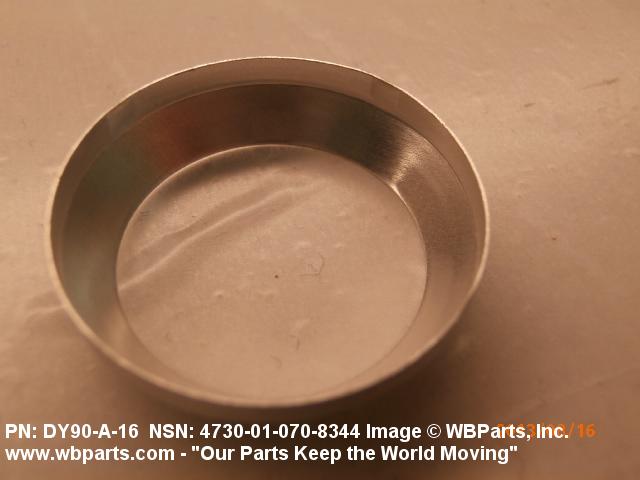

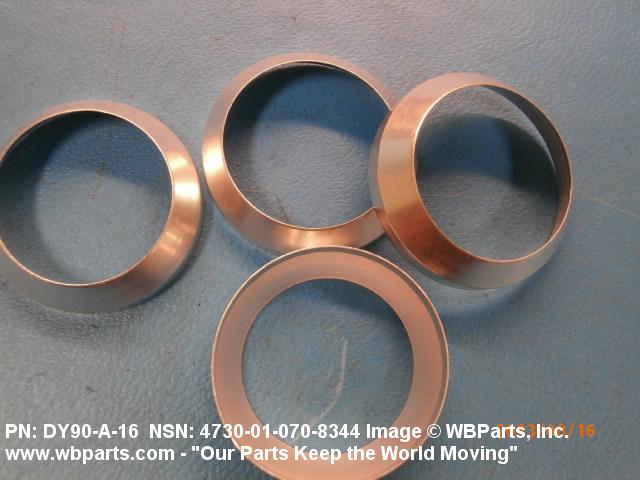

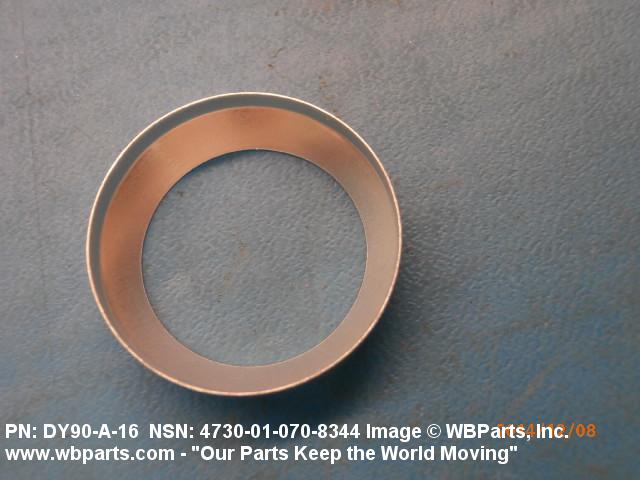

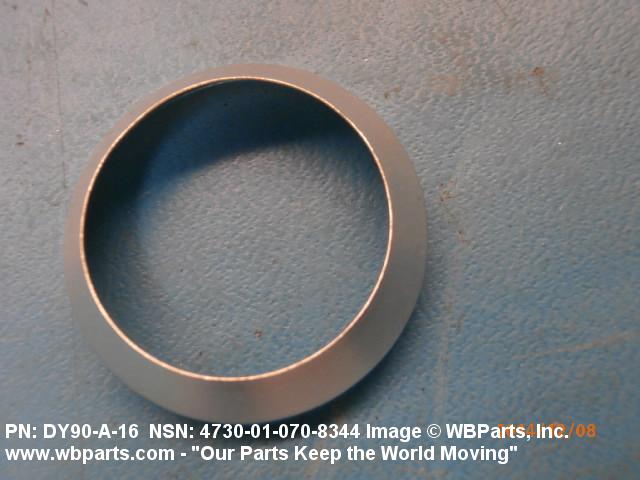

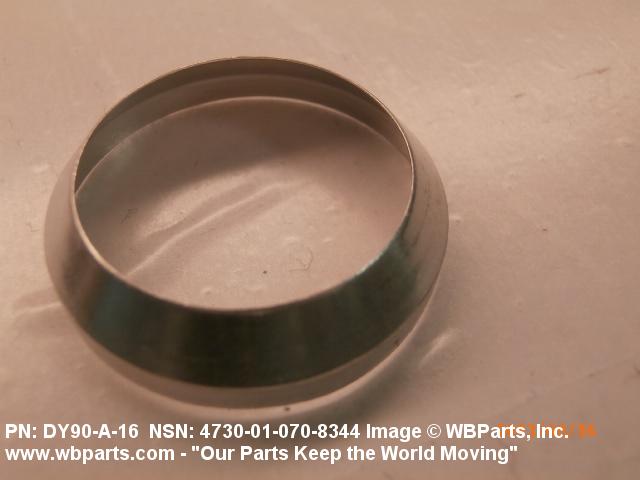

4730-01-070-8344 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: SEC07A16, DY90116, DY90-1-16, 326991P01, 7827256, 7827256-31, 7A16, 4730-01-070-8344, 01-070-8344, 4730010708344, 010708344, 782725631
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JAN 1979 | 01-070-8344 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

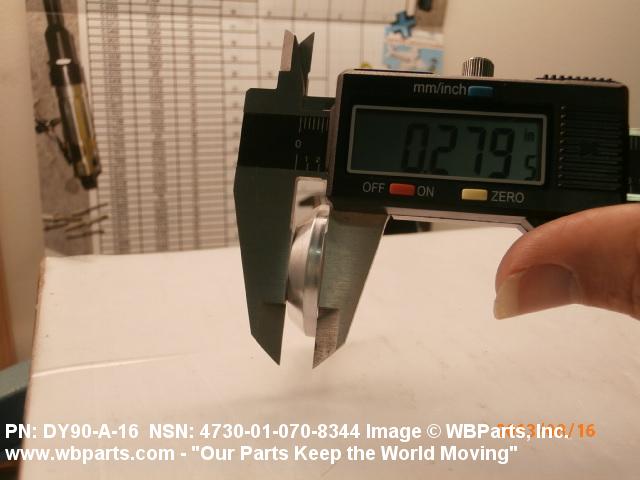

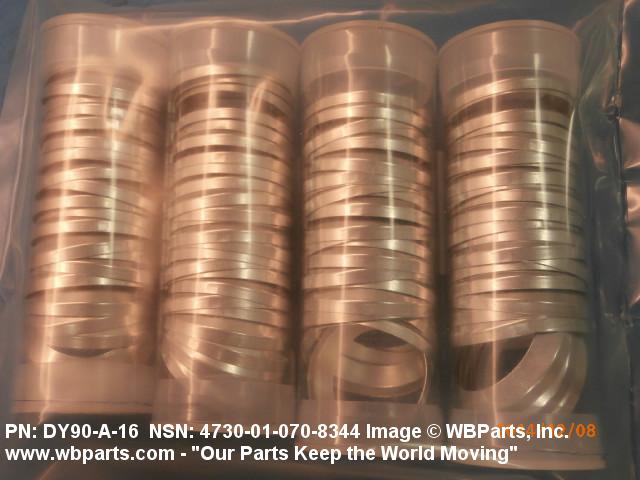

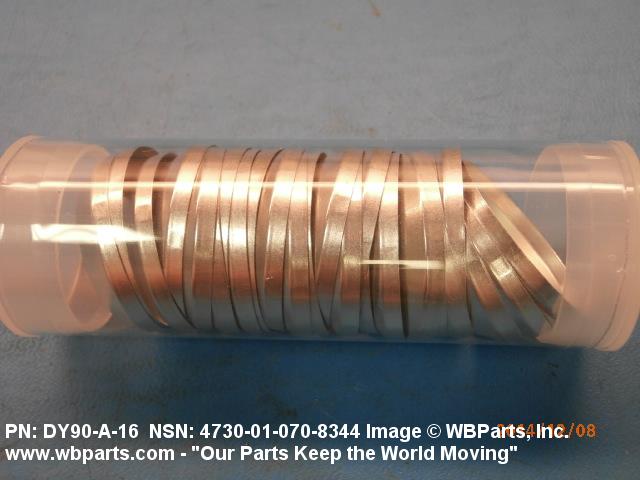

Drawings & Photos | NSN 4730-01-070-8344
Demand History | NSN 4730-01-070-8344
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-070-8344 | 2023-02-59 | 300 | United States |
| 4730-01-070-8344 | 2022-11-331 | 42 | DIBBS |
| 4730-01-070-8344 | 2021-10-298 | 74 | DIBBS |
| 4730-01-070-8344 | 2021-10-287 | 74 | DIBBS |
| 4730-01-070-8344 | 2019-09-270 | 300 | United States |
| 4730-01-070-8344 | 2018-03-66 | 300 | United States |
| 4730-01-070-8344 | 2017-07-198 | 194 | DIBBS |
| 4730-01-070-8344 | 2017-05-143 | 194 | DIBBS |
| 4730-01-070-8344 | 2017-03-72 | 300 | United States |
| 4730-01-070-8344 | 2016-03-78 | 182 | DIBBS |
| 4730-01-070-8344 | 2016-03-67 | 182 | DIBBS |
| 4730-01-070-8344 | 2016-01-14 | 250 | United States |
| 4730-01-070-8344 | 2015-09-251 | 250 | United States |
| 4730-01-070-8344 | 2015-06-163 | 250 | United States |
| 4730-01-070-8344 | 2015-02-48 | 421 | DIBBS |
| 4730-01-070-8344 | 2015-02-34 | 421 | DIBBS |
| 4730-01-070-8344 | 2014-12-335 | 600 | United States |
| 4730-01-070-8344 | 2013-07-183 | 100 | United States |
Cross Reference | NSN 4730-01-070-8344
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 326991P01 | 33654 | HOWDEN FLUID SYSTEMS |
| 326991P01 | 58163 | MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS |
| 7827256 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
| 7827256-31 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
| 7A16 | 33447 | SECO SEALS, INC. |
| DY90-1-16 | 64162 | DEL AEROSPACE, INC. |
| SEC07A16 | 33447 | SECO SEALS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-070-8344
Related Products | NSN 4730-01-070-8344
Technical Data | NSN 4730-01-070-8344
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/1, O OR ALUMINUM ALLOY,AMS 4001 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | M5 SEAL |

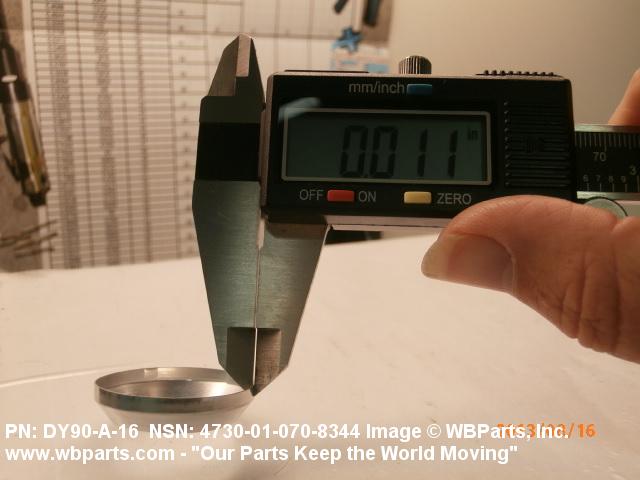

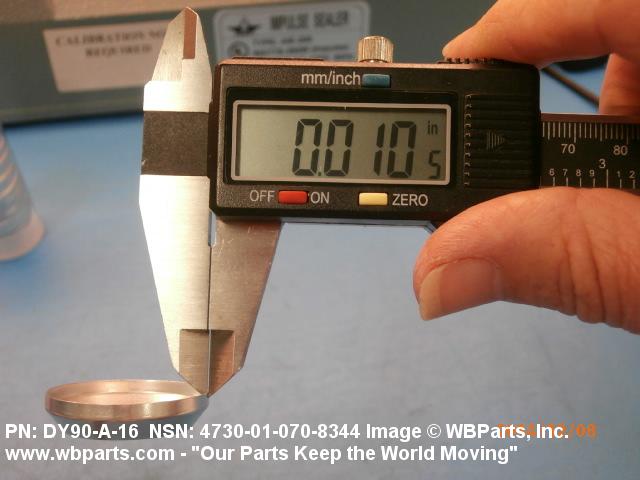

| WALL THICKNESS | 0.010 INCHES NOMINAL |
| OVERALL LENGTH | ANY ACCEPTABLE |

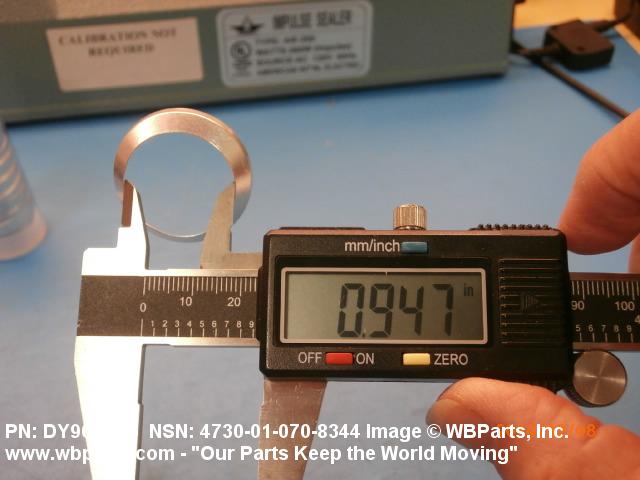

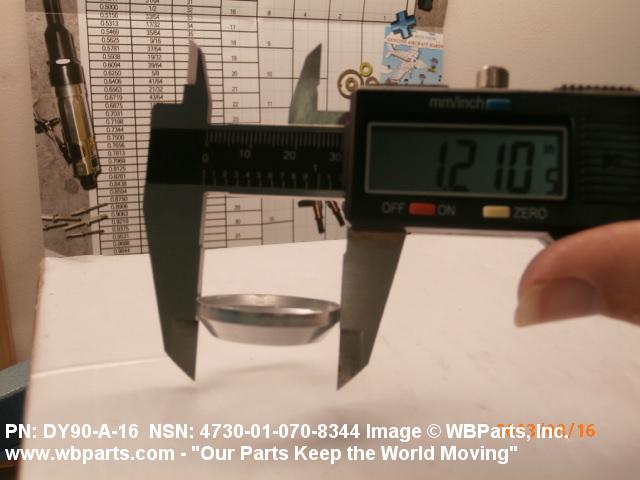

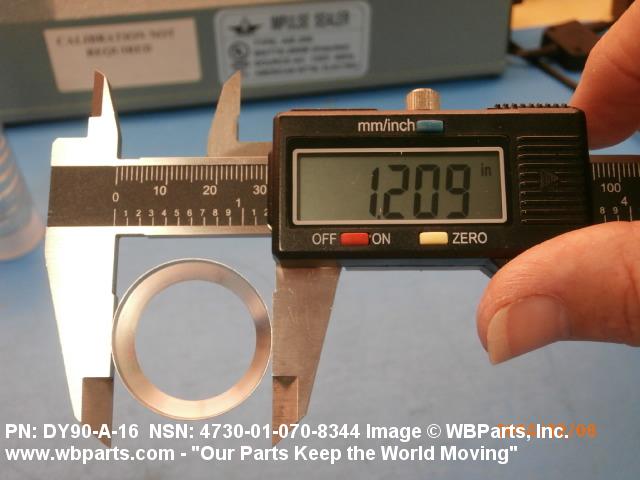

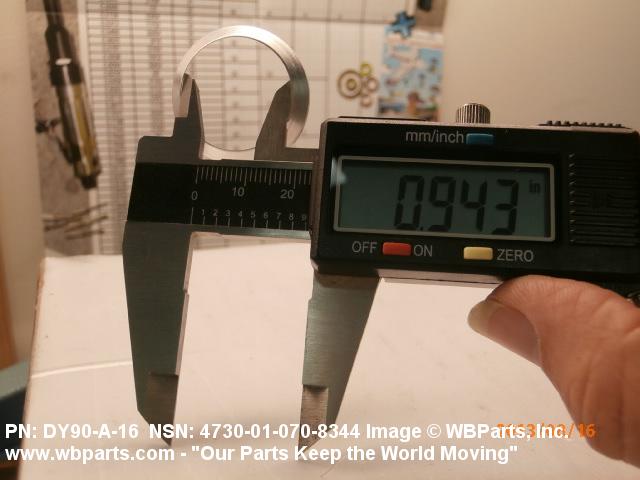

| OUTSIDE DIAMETER | 1.208 INCHES MINIMUM AND 1.213 INCHES MAXIMUM |

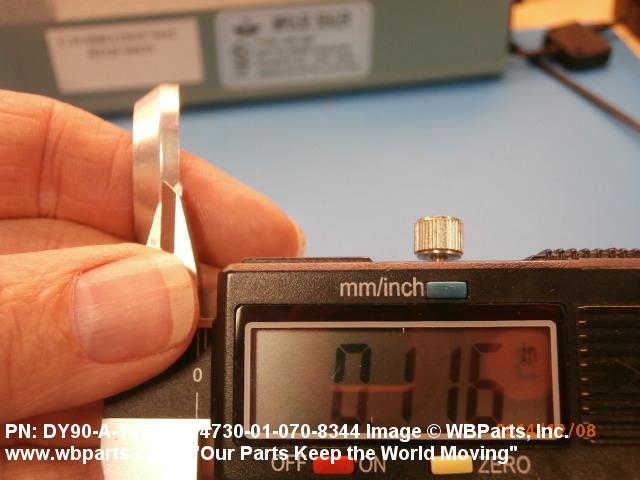

| BODY LENGTH | 0.110 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

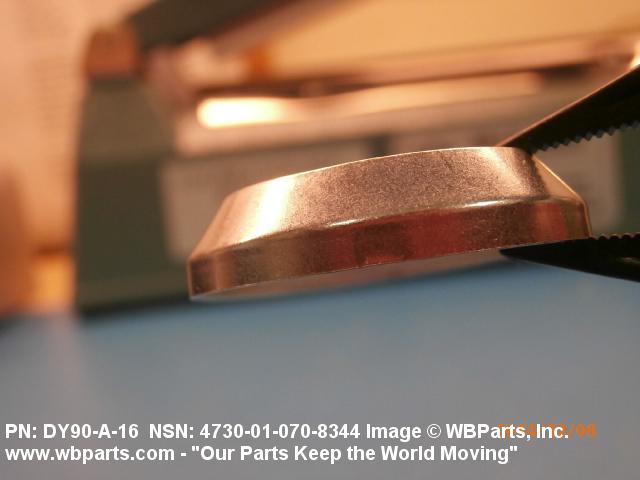

| SEAT ANGLE IN DEG | 37.0 |
Restrictions/Controls & Freight Information | NSN 4730-01-070-8344
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
