NSN 4730-01-048-9777 BD1784, BD1784PC1, 1794
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-048-9777 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: BD1784, BD1784PC1, 1794, 219020, 4730-01-048-9777, 01-048-9777, 4730010489777, 010489777
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 OCT 1977 | 01-048-9777 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-048-9777
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-048-9777
Technical Data | NSN 4730-01-048-9777
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 1.156 INCHES NOMINAL |
| OVERALL LENGTH | 2.437 INCHES NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL HOSE FIRST FLUID END CONNECTION |

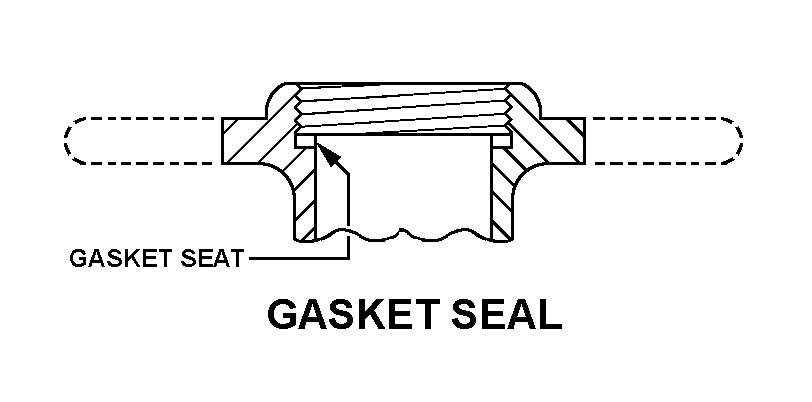

| CONNECTION STYLE | B4 GASKET SEAL ALL ENDS |
| QUICK DISCONNECT METHOD | TWO LUG UNIVERSAL ALL ENDS |
| THREAD SERIES DESIGNATOR | NPSH ALL ENDS |
| NOMINAL THREAD SIZE | 1.250 INCHES ALL ENDS |
| (NON-CORE DATA) FURNISHED ITEMS | GASKET |
