NSN 4730-01-041-5236 11437690-5, 255R117WD8, 2914555
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-041-5236 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 11437690-5, 255R117WD8, 2914555, 29145553, 2914555-3, 4730-01-041-5236, 01-041-5236, 4730010415236, 114376905, 010415236
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 MAY 1977 | 01-041-5236 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

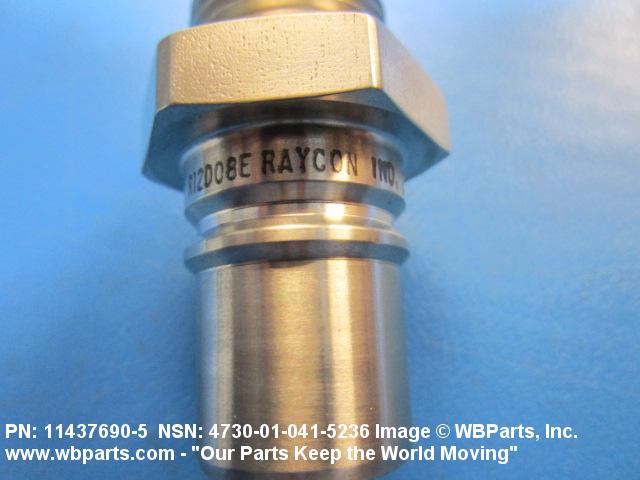

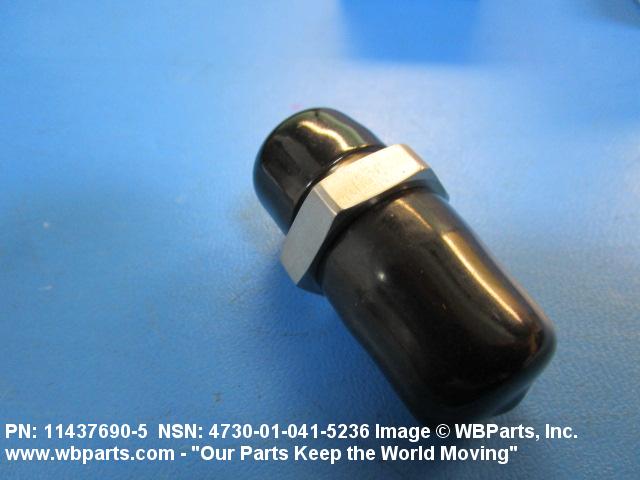

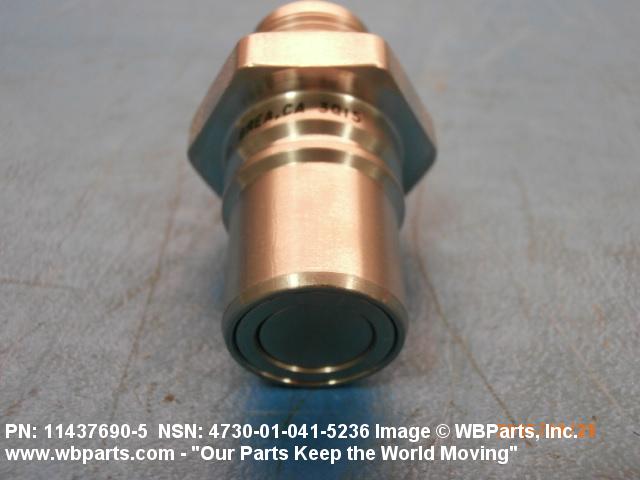

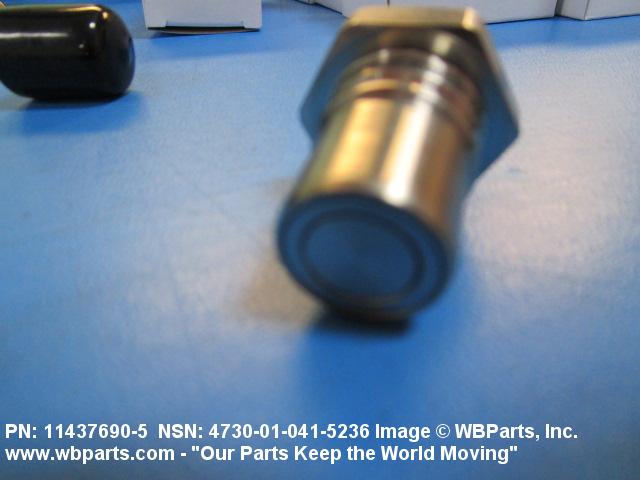

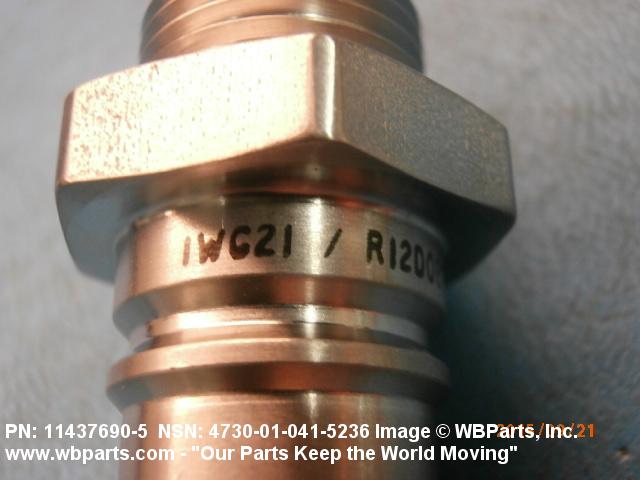

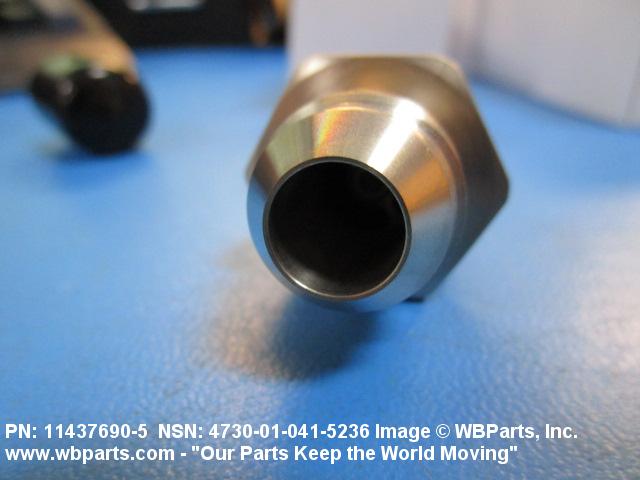

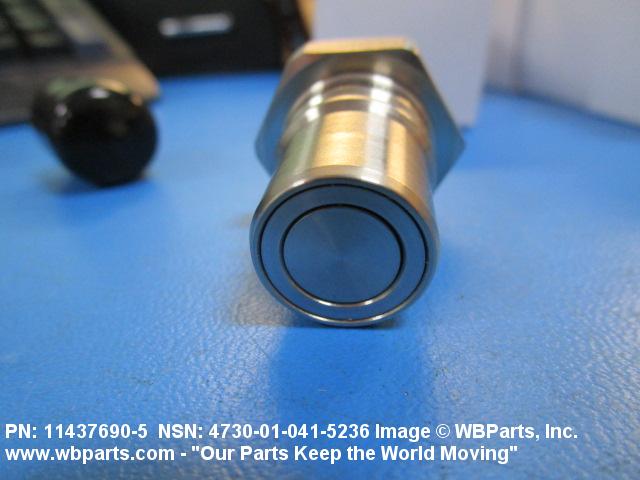

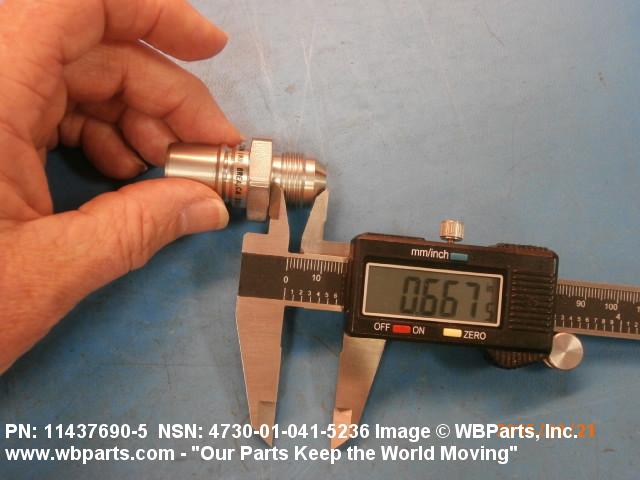

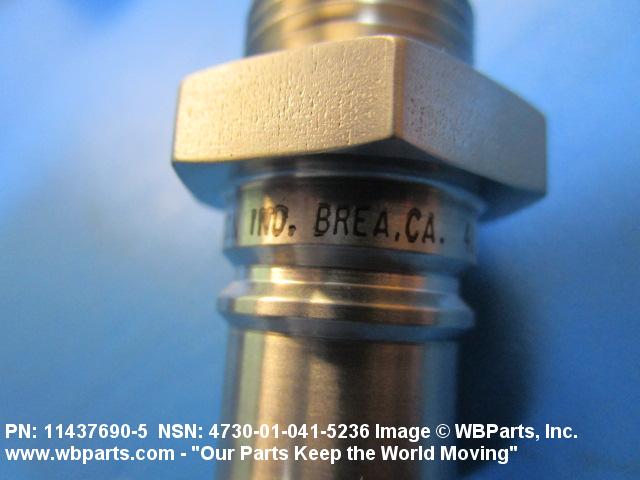

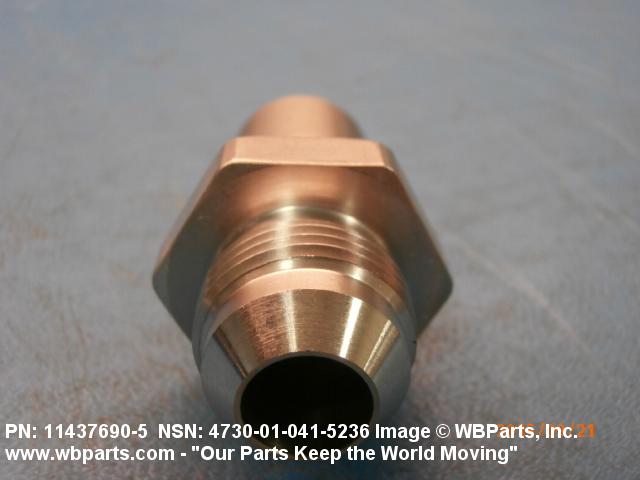

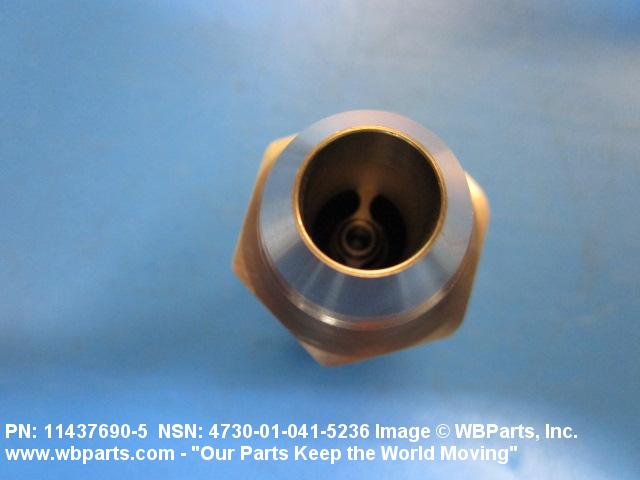

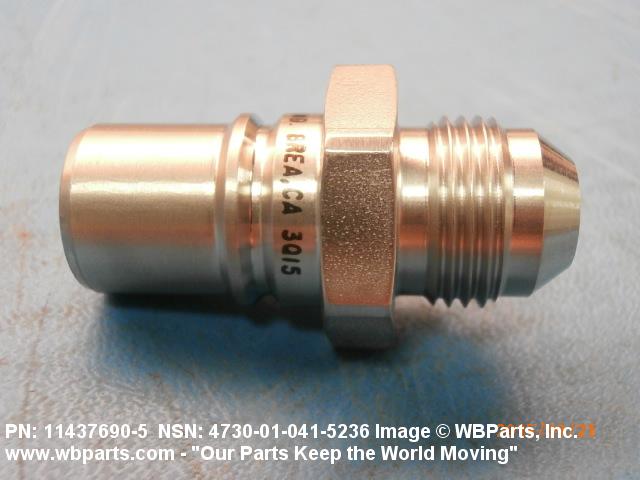

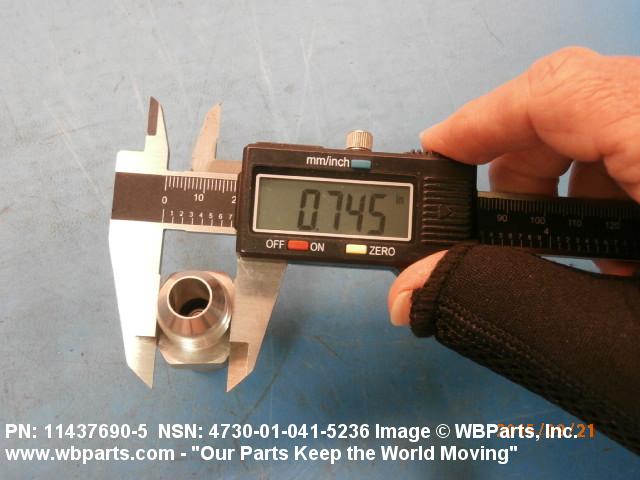

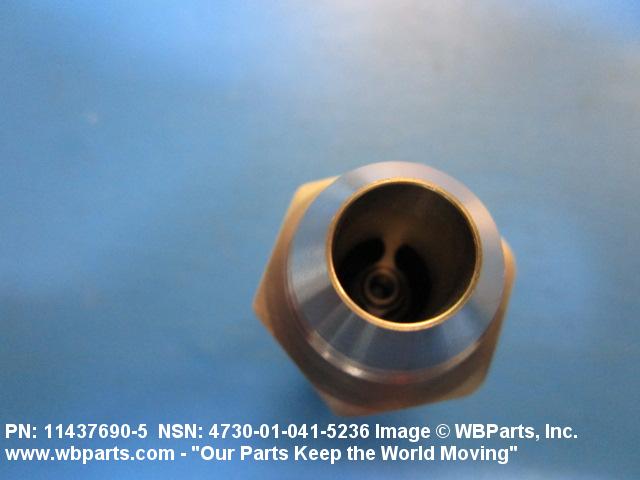

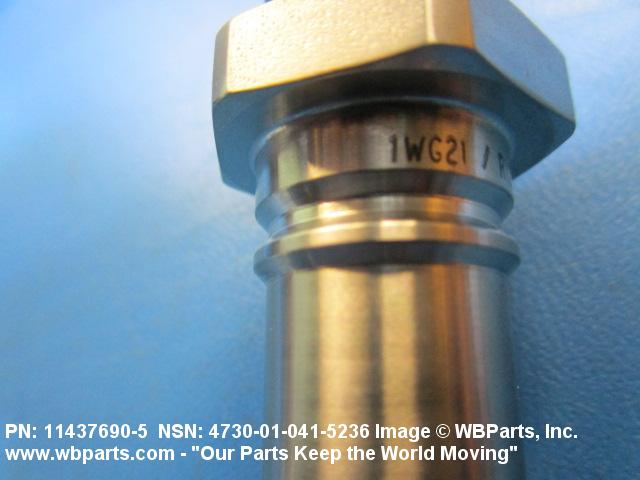

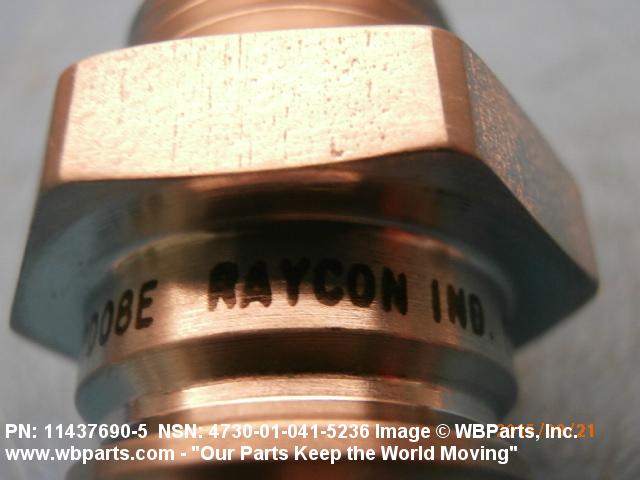

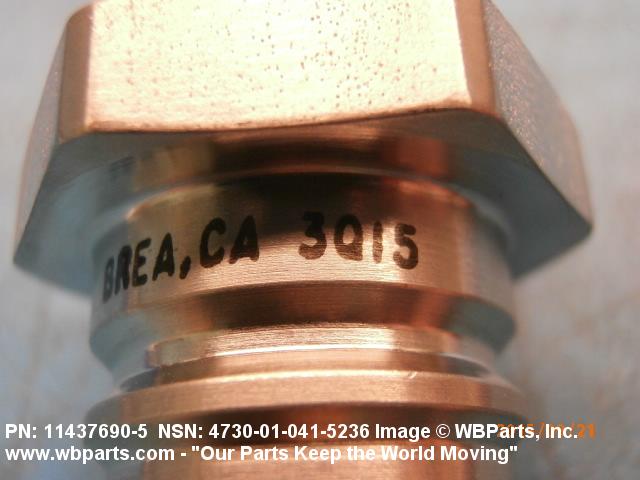

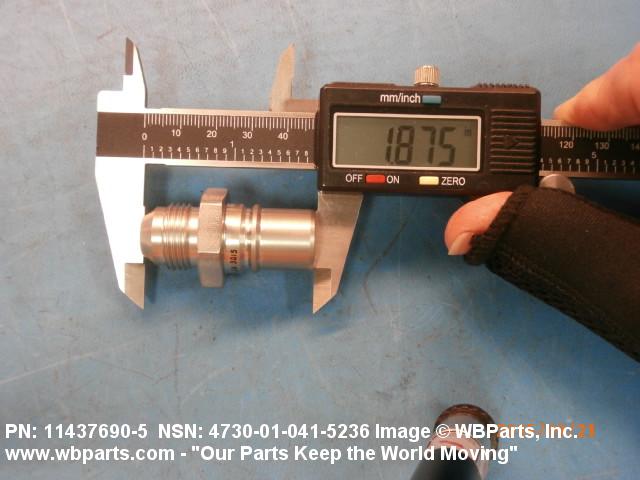

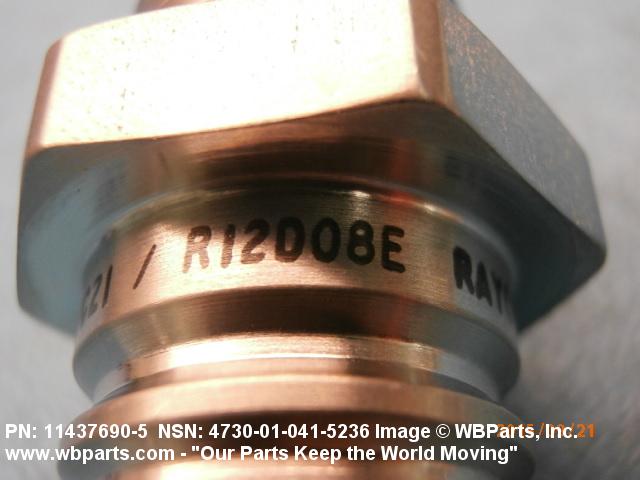

Drawings & Photos | NSN 4730-01-041-5236
