Product Details | QUICK DISCONNECT COUPLING HALF

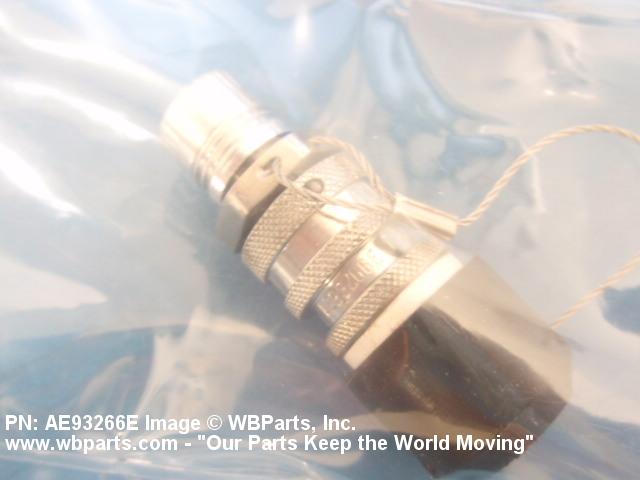

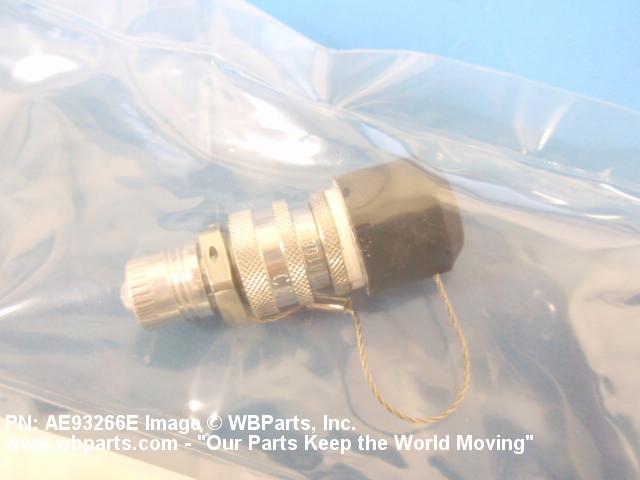

4730-01-038-4256 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE93266E, AE99784E, 71005204, 7100-5204, 1213AS640, 4730-01-038-4256, 01-038-4256, 4730010384256, 010384256
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 APR 1977 | 01-038-4256 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-038-4256
Demand History | NSN 4730-01-038-4256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-038-4256 | 2010-06-181 | 1 | Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-038-4256
Technical Data | NSN 4730-01-038-4256
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 0.535 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| OVERALL LENGTH | 2.080 INCHES MINIMUM AND 2.120 INCHES MAXIMUM |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION |
| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.3635 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| SPECIAL FEATURES | CRES WIRE ROPE 2.880 IN.LG |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 160.0 DEG FAHRENHEIT NITROGEN, GASEOUS |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 50.0 POUNDS PER SQUARE INCH NITROGEN, GASEOUS |
| MANUFACTURERS CODE | 13991 |
| MFR SOURCE CONTROLLING REFERENCE | 7100-5204 |
