NSN 4730-01-026-0961 AP390P12, ST7M250, ST7M250P12
Product Details | THREADED TUBE FITTING PLUG
4730-01-026-0961 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AP390P12, ST7M250, ST7M250P12, KSM250, KSM-250, R44119P12, R44119P-12, 4730-01-026-0961, 01-026-0961, 4730010260961, 010260961
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 AUG 1976 | 01-026-0961 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

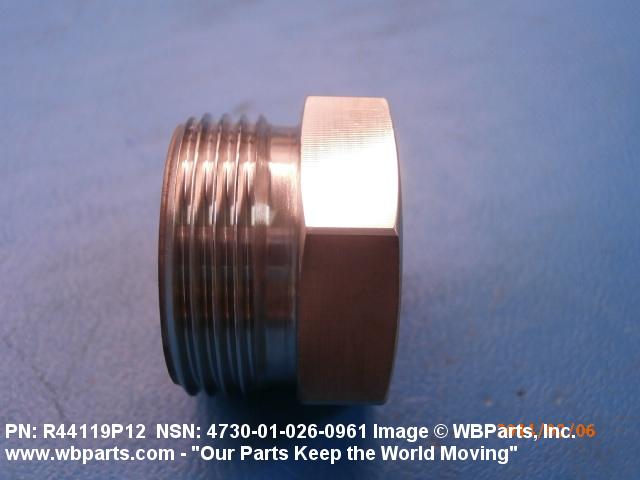

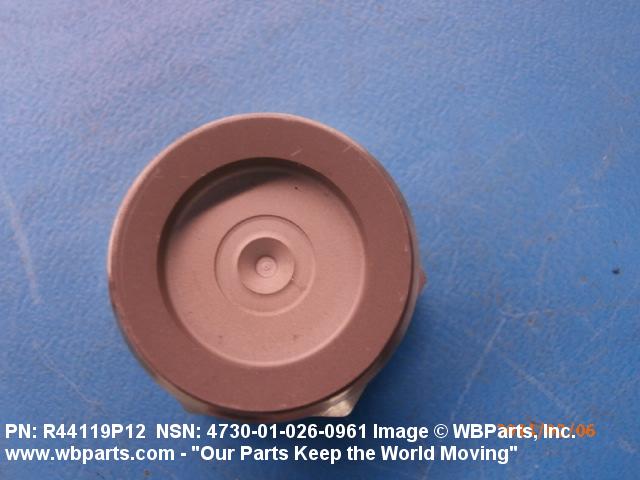

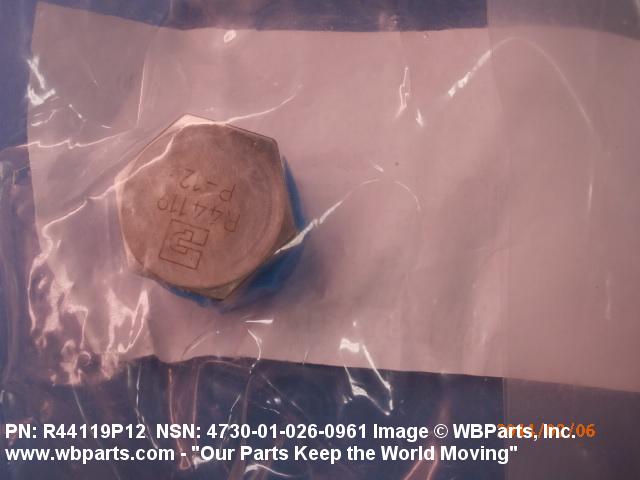

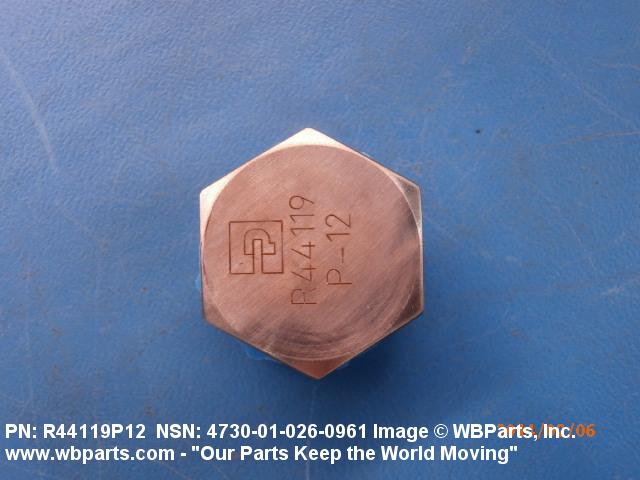

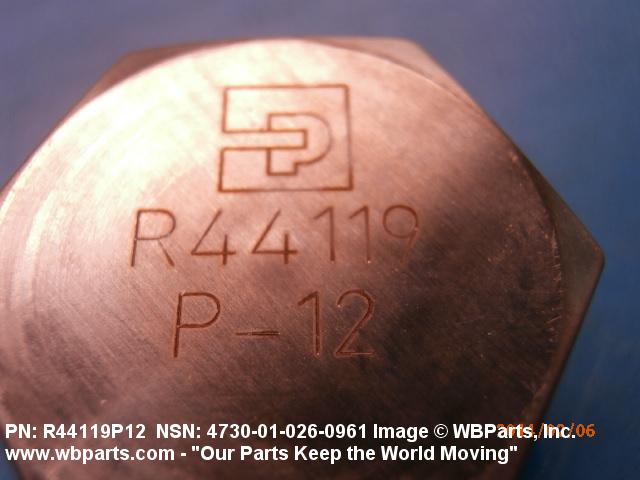

Drawings & Photos | NSN 4730-01-026-0961
Demand History | NSN 4730-01-026-0961
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AP390P12 | 2023-12-345 | 108 | DIBBS |
| R44119P-12 | 2023-12-345 | 108 | DIBBS |
| ST7M250P12 | 2023-12-345 | 108 | DIBBS |
| AP390P12 | 2023-11-334 | 108 | DIBBS |
| R44119P-12 | 2023-11-334 | 108 | DIBBS |
| ST7M250P12 | 2023-11-334 | 108 | DIBBS |
| 4730-01-026-0961 | 2023-04-101 | 10 | US |
| AP390P12 | 2022-09-265 | 108 | DIBBS |
| R44119P-12 | 2022-09-265 | 108 | DIBBS |
| ST7M250P12 | 2022-09-265 | 108 | DIBBS |
| AP390P12 | 2021-10-304 | 20 | DIBBS |
| R44119P-12 | 2021-10-304 | 20 | DIBBS |
| ST7M250P12 | 2021-10-304 | 20 | DIBBS |
| AP390P12 | 2020-10-294 | 88 | DIBBS |
| R44119P-12 | 2020-10-294 | 88 | DIBBS |
| ST7M250P12 | 2020-10-294 | 88 | DIBBS |
| AP390P12 | 2020-01-30 | 179 | DIBBS |
| R44119P-12 | 2020-01-30 | 179 | DIBBS |
| ST7M250P12 | 2020-01-30 | 179 | DIBBS |
| 4730-01-026-0961 | 2017-07-186 | 226 | DIBBS |
| 4730-01-026-0961 | 2017-06-174 | 220 | DIBBS |
| 4730-01-026-0961 | 2017-06-170 | 20 | DIBBS |
| 4730-01-026-0961 | 2017-06-163 | 220 | DIBBS |
| 4730-01-026-0961 | 2017-06-157 | 20 | DIBBS |
| 4730-01-026-0961 | 2016-09-273 | 97 | DIBBS |
| 4730-01-026-0961 | 2016-09-262 | 97 | DIBBS |
| 4730-01-026-0961 | 2016-02-60 | 81 | DIBBS |
| 4730-01-026-0961 | 2016-02-48 | 81 | DIBBS |
| 4730-01-026-0961 | 2015-11-315 | 10 | US |
| 4730-01-026-0961 | 2014-05-132 | 359 | DIBBS |
| 4730-01-026-0961 | 2014-04-120 | 359 | DIBBS |
| 4730-01-026-0961 | 2013-12-352 | 20 | United States |
| ST7M250P12 | 2012-01-10 | 1 | United States |
| 4730-01-026-0961 | 2010-02-55 | 321 | DIBBS |
| 4730-01-026-0961 | 2008-11-316 | 500 | DIBBS |
Cross Reference | NSN 4730-01-026-0961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AP390P12 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| KSM-250 | 7D964 | KINGS SCREW PRODUCTS |
| R44119P-12 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| ST7M250 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST7M250P12 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| ST7M250P12 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-026-0961
Related Products | NSN 4730-01-026-0961
Technical Data | NSN 4730-01-026-0961
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 17-4PH OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |

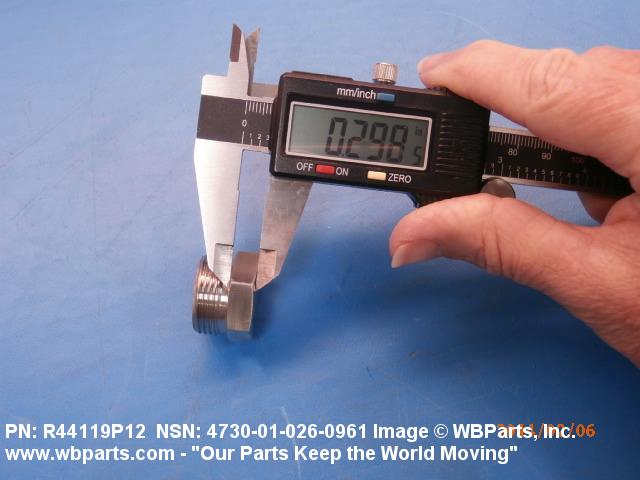

| HEAD HEIGHT | 0.300 INCHES NOMINAL |

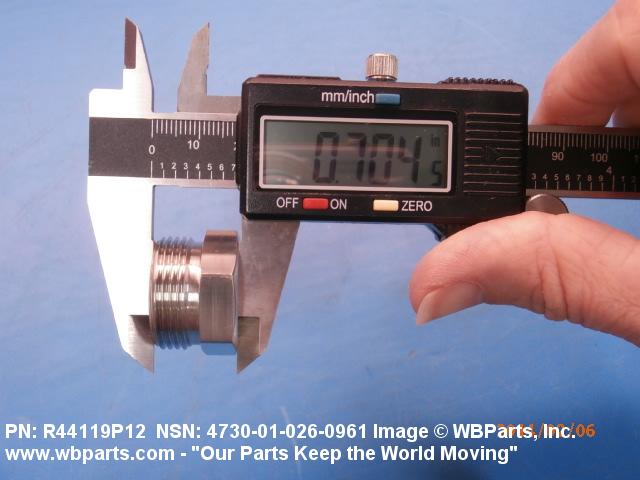

| OVERALL LENGTH | 0.712 INCHES NOMINAL |
| CONNECTION STYLE | J8 EXTERNAL SEAT FOR GASKET SEAL |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 1.000 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL RIGHT-HAND EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-01-026-0961
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-026-0961
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
