NSN 4730-00-994-0713 AP50A10, 00-994-0713, 009940713
Product Details | FLARED TUBE FITTING CONICAL SEAL
4730-00-994-0713 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Part Alternates: AP50A10, 4730-00-994-0713, 00-994-0713, 4730009940713, 009940713
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 MAR 1967 | 00-994-0713 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

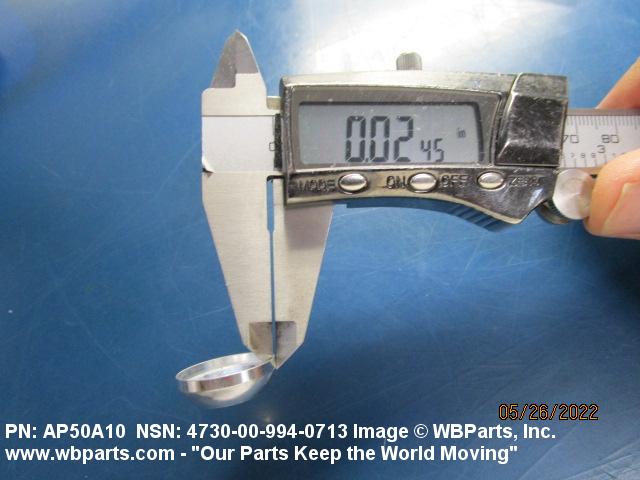

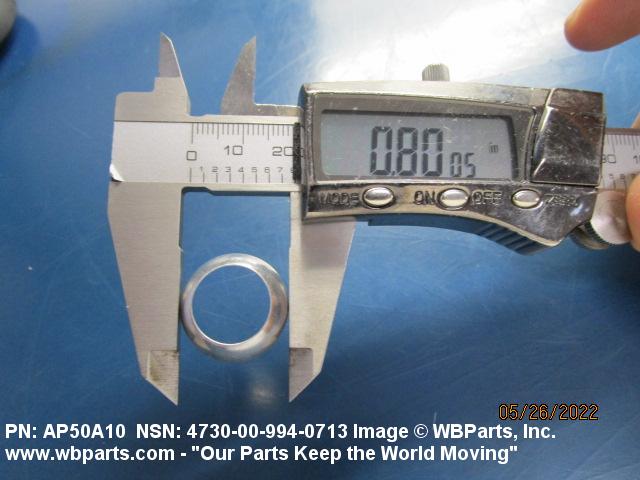

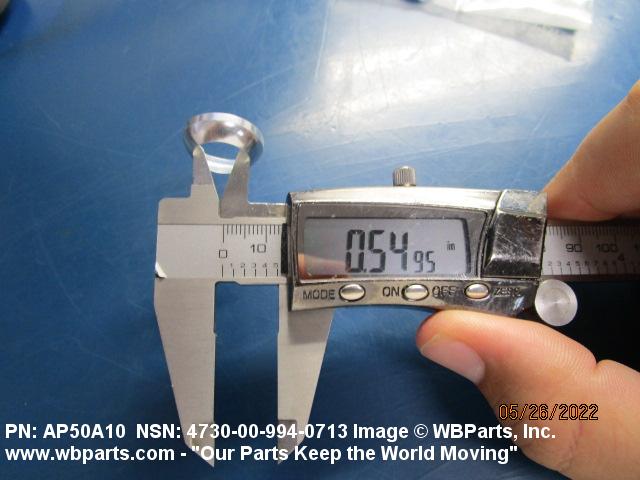

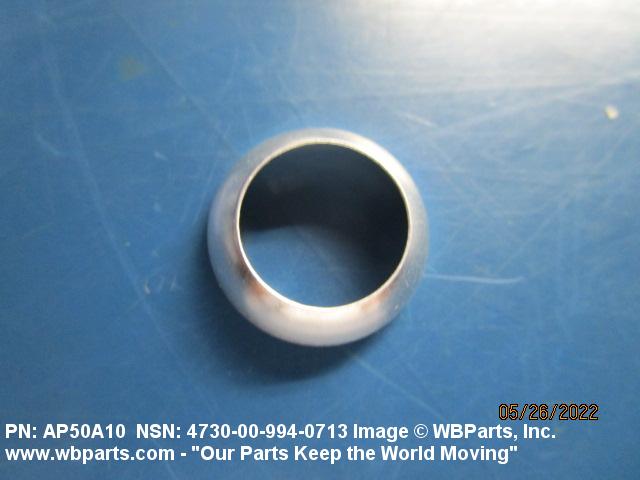

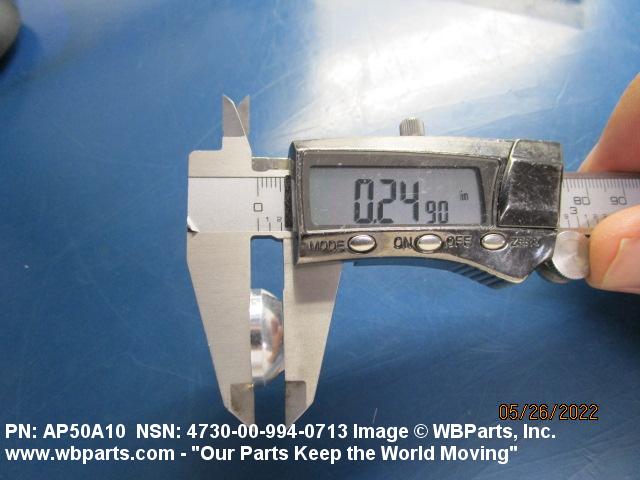

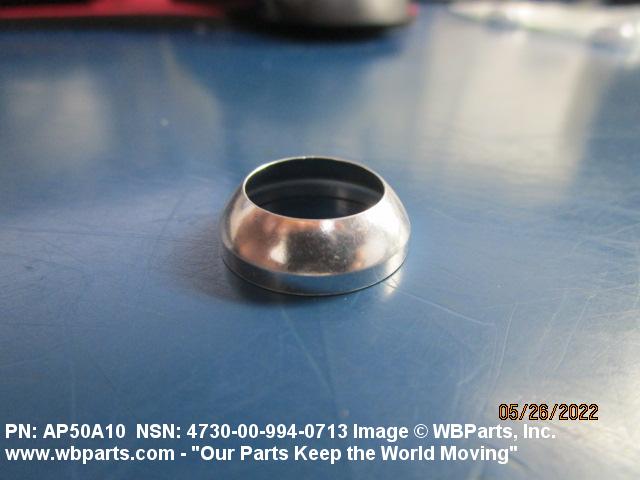

Drawings & Photos | NSN 4730-00-994-0713
Demand History | NSN 4730-00-994-0713
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AP50A10 | 2024-08-225 | 335 | United States |
| AP50A10 | 2022-11-318 | 335 | Canada |
| AP50A10 | 2022-05-130 | 335 | United States |
| AP50A10 | 2020-01-09 | 603 | DIBBS |
| AP50A10 | 2019-12-359 | 40 | DIBBS |
Cross Reference | NSN 4730-00-994-0713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AP50A10 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-994-0713
Related Products | NSN 4730-00-994-0713
Technical Data | NSN 4730-00-994-0713
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.625 INCHES NOMINAL |
| STYLE DESIGNATOR | M5 SEAL |
| WALL THICKNESS | 0.024 INCHES NOMINAL |
| OVERALL LENGTH | 0.226 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.796 INCHES NOMINAL |
| BODY LENGTH | 0.105 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
| SPECIAL FEATURES | MATERIAL PER 6061,QQ-A-325 ANNEALED |
Restrictions/Controls & Freight Information | NSN 4730-00-994-0713
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-994-0713
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
