NSN 4730-00-961-1973 MS17834, 00-961-1973, 009611973
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-961-1973 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS17834, 4730-00-961-1973, 00-961-1973, 4730009611973, 009611973
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-961-1973 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

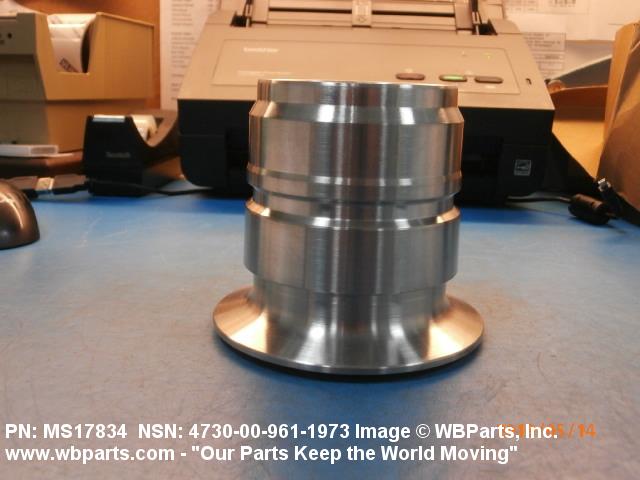

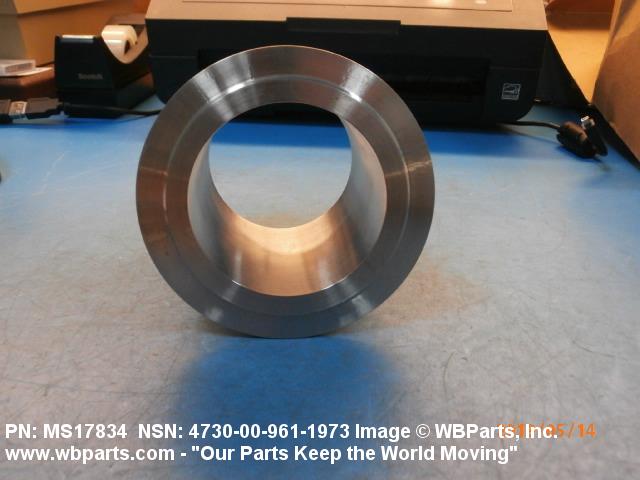

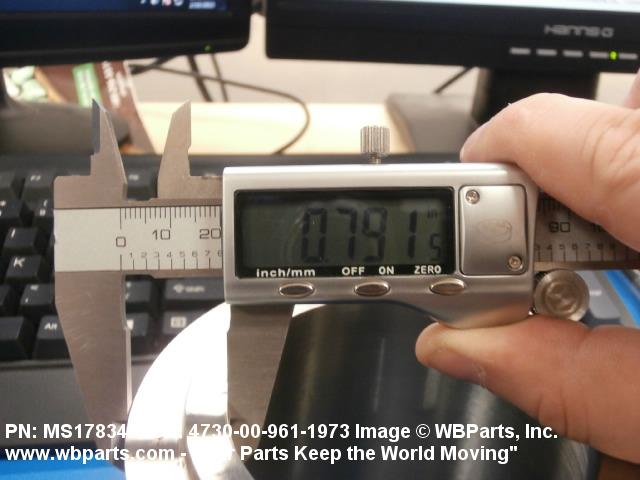

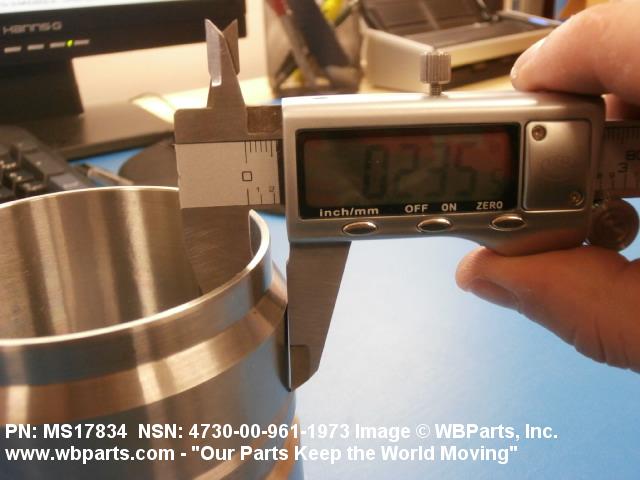

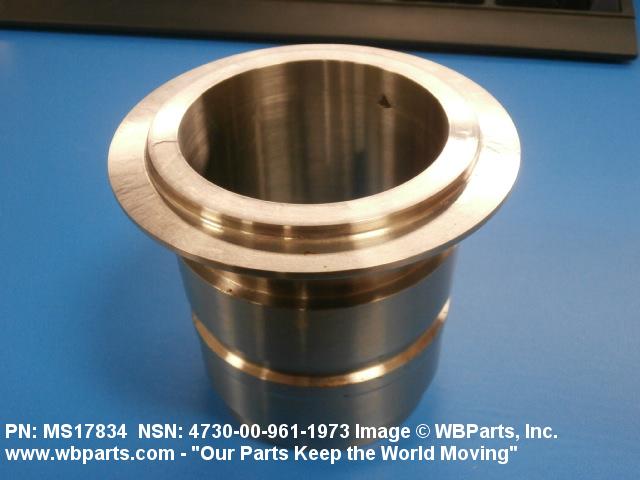

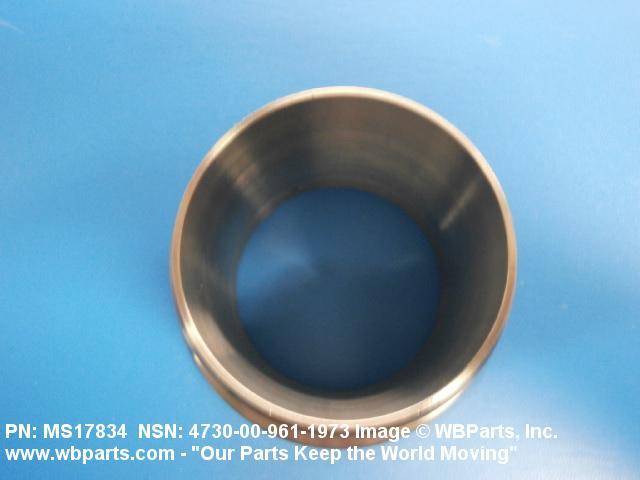

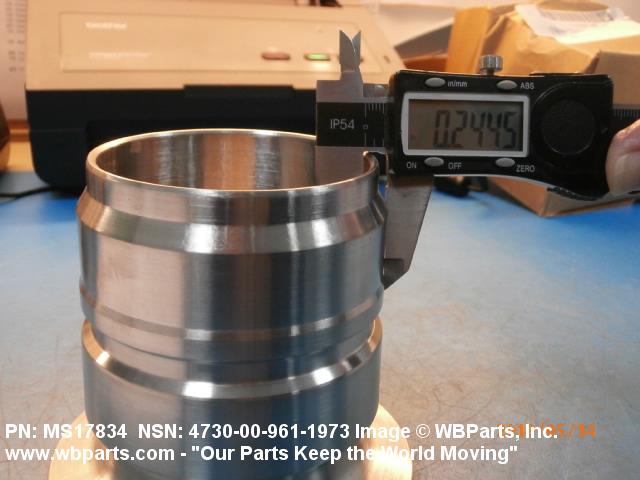

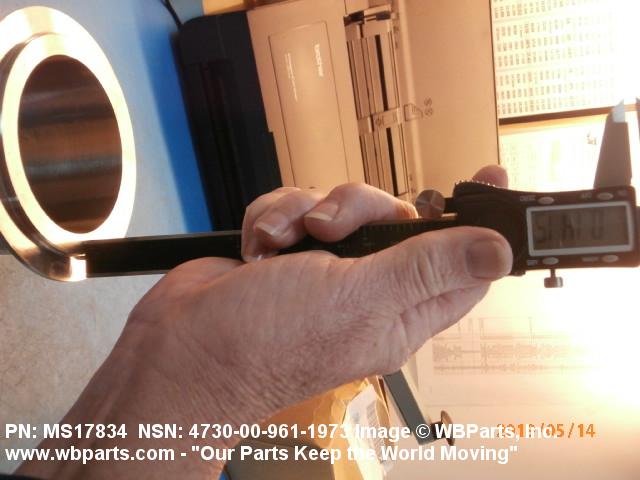

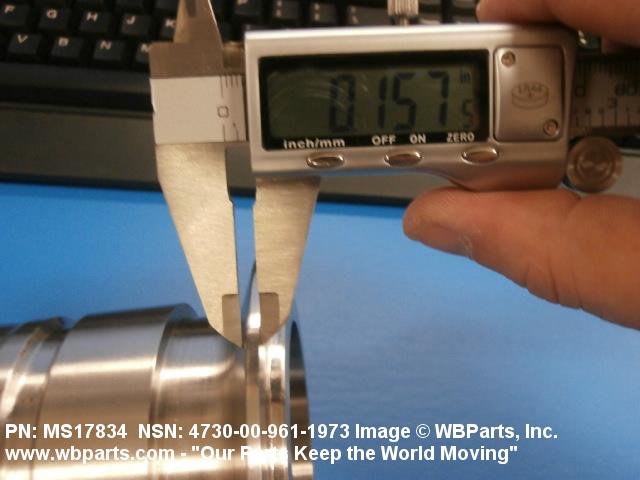

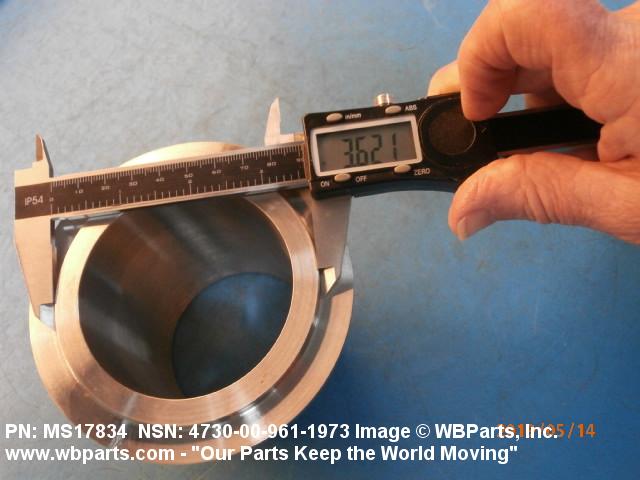

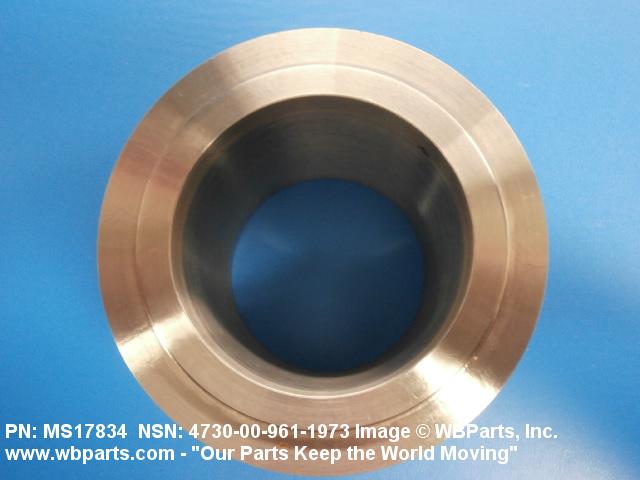

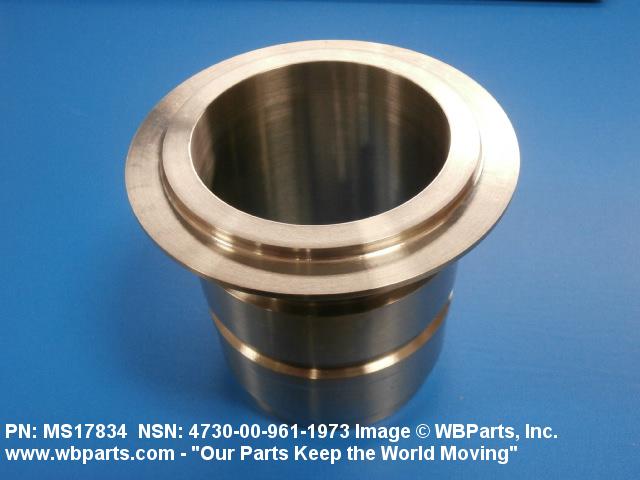

Drawings & Photos | NSN 4730-00-961-1973
Demand History | NSN 4730-00-961-1973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-961-1973 | 2024-10-305 | 21 | DIBBS |
| 4730-00-961-1973 | 2024-02-36 | 2 | United States |
| 4730-00-961-1973 | 2024-01-30 | 1 | US |
| 4730-00-961-1973 | 2023-11-317 | 1 | United States |
| 4730-00-961-1973 | 2022-05-144 | 2 | US |
| 4730-00-961-1973 | 2022-01-19 | 2 | United States |
| 4730-00-961-1973 | 2021-11-315 | 2 | US |
| MS17834 | 2021-11-314 | 3 | United States |
| 4730-00-961-1973 | 2021-07-195 | 42 | United States |
| 4730-00-961-1973 | 2021-04-102 | 28 | DIBBS |
| 4730-00-961-1973 | 2021-03-89 | 28 | DIBBS |
| 4730-00-961-1973 | 2020-11-307 | 28 | DIBBS |
| 4730-00-961-1973 | 2020-10-294 | 28 | DIBBS |
| 4730-00-961-1973 | 2020-01-16 | 18 | DIBBS |
| 4730-00-961-1973 | 2019-11-322 | 4 | United States |
| 4730-00-961-1973 | 2019-11-318 | 4 | US |
| MS17834 | 2019-09-273 | 5 | United States |
| 4730-00-961-1973 | 2019-07-202 | 14 | United States |
| 4730-00-961-1973 | 2019-03-71 | 1 | US |
| 4730-00-961-1973 | 2019-02-50 | 1 | United States |
| 4730-00-961-1973 | 2018-09-273 | 30 | DIBBS |
| 4730-00-961-1973 | 2016-03-61 | 2 | DK |
| 4730-00-961-1973 | 2015-01-12 | 1 | United States |
| MS17834 | 2014-03-90 | 10 | United States |
| 4730-00-961-1973 | 2013-01-17 | 3 | us |
| 4730-00-961-1973 | 2010-02-39 | 1 | Canada |
Cross Reference | NSN 4730-00-961-1973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS17834 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-961-1973
Related Products | NSN 4730-00-961-1973
Technical Data | NSN 4730-00-961-1973
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL COMP 303 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| BODY SURFACE TREATMENT | PASSIVATE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.156 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |

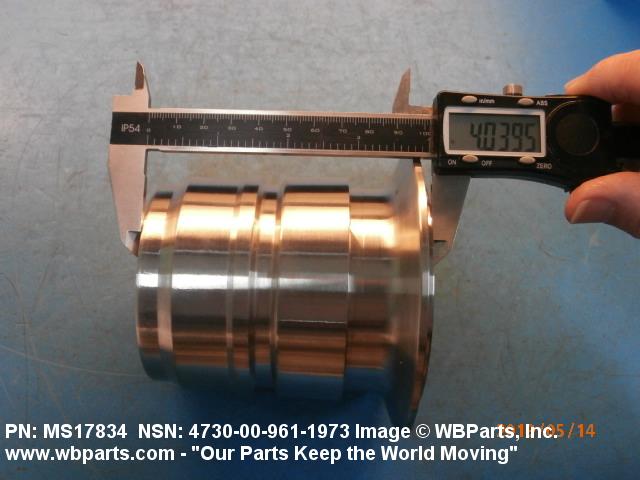

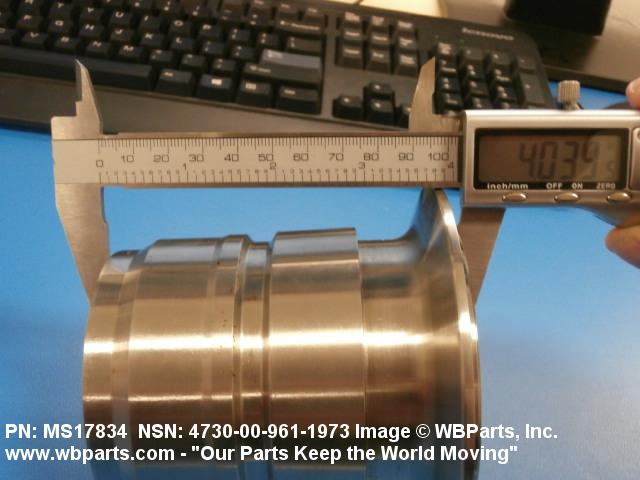

| OVERALL LENGTH | 4.010 INCHES MINIMUM AND 4.135 INCHES MAXIMUM |
| FIRST FLUID END CONNECTION TYPE | RAISED FACE FLANGE |
| FIRST END STYLE DESIGNATOR | G4 RAISED |

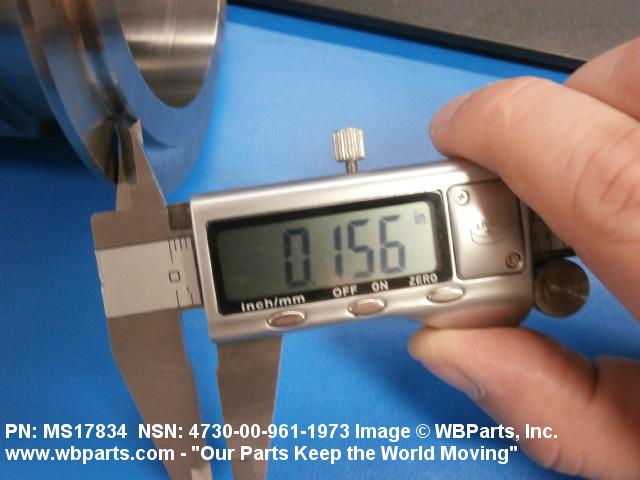

| FIRST END RAISED FACE HEIGHT | 0.156 INCHES NOMINAL |

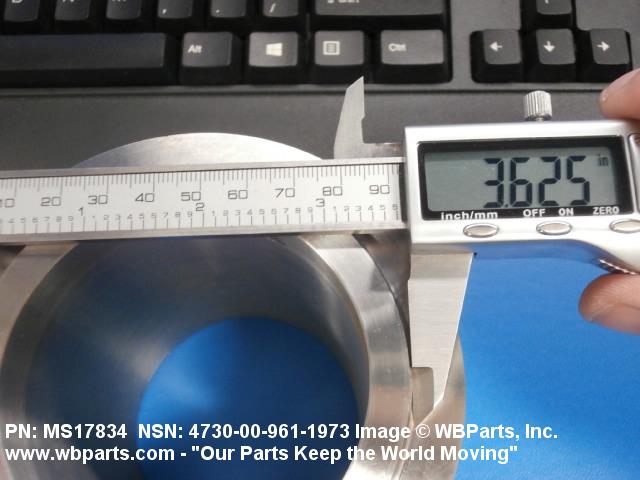

| FIRST END RAISED FACE DIAMETER | 3.625 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | 3A ROUND W/OUT BOLT HOLES |

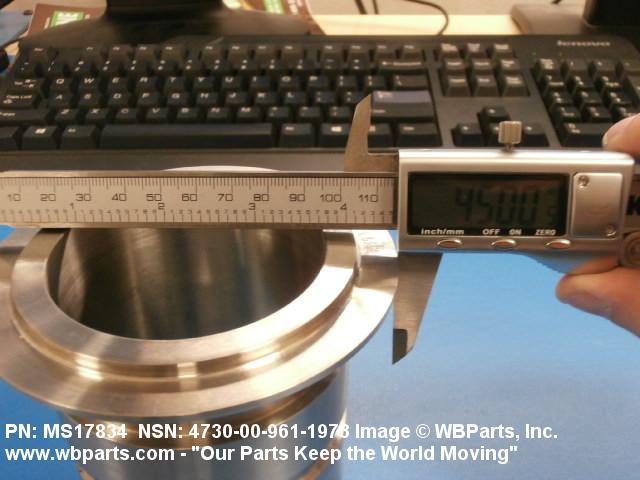

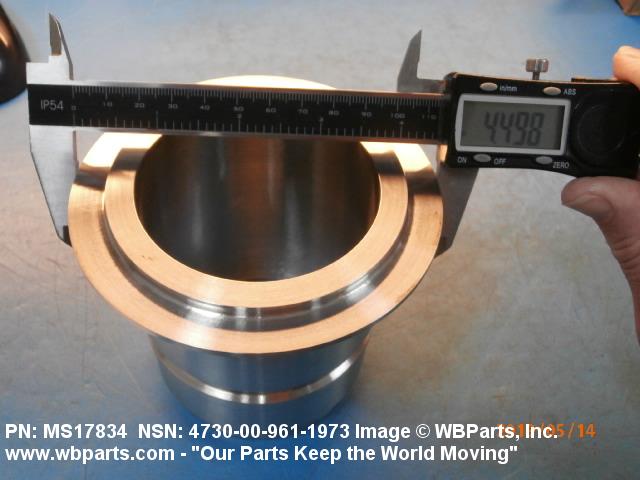

| FIRST END FLANGE OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |

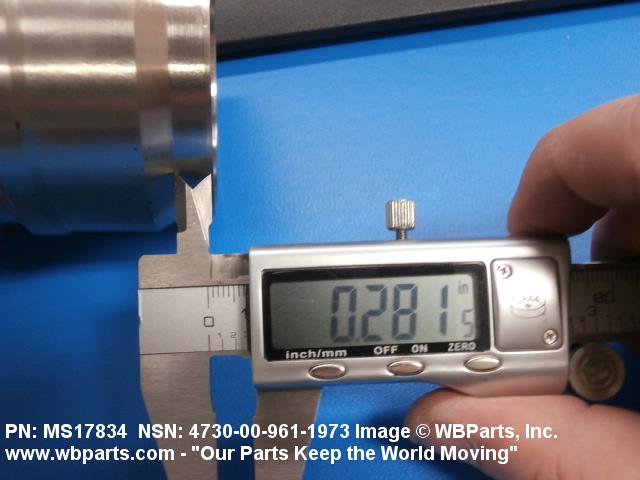

| FIRST END FLANGE THICKNESS | 0.281 INCHES NOMINAL |
| QUICK DISCONNECT METHOD | CAM-LOCKING ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | EXTERNAL ALL ENDS |
| III END ITEM IDENTIFICATION | F-18 AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17834 |
Restrictions/Controls & Freight Information | NSN 4730-00-961-1973
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-961-1973
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
