NSN 4730-00-805-4092 TE1060241, TE10602-41, 5400 3-4
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-805-4092 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: TE1060241, TE10602-41, 5400 3-4, 540034, 5400E 3/4 , 5400E34, 4730-00-805-4092, 00-805-4092, 4730008054092, 008054092
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-805-4092 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-00-805-4092
Demand History | NSN 4730-00-805-4092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5400E 3/4 | 2023-08-241 | 4 | DIBBS |
| 5400E 3/4 | 2019-06-175 | 6 | DIBBS |
| 4730-00-805-4092 | 2017-05-121 | 2 | DIBBS |
| 4730-00-805-4092 | 2016-11-320 | 1 | DIBBS |
| 4730-00-805-4092 | 2016-08-236 | 6 | DIBBS |
| 4730-00-805-4092 | 2016-03-90 | 4 | DIBBS |
| 4730-00-805-4092 | 2013-10-290 | 1 | DIBBS |
| 4730-00-805-4092 | 2013-04-99 | 3 | DIBBS |
| 4730-00-805-4092 | 2013-03-71 | 1 | DIBBS |
| 4730-00-805-4092 | 2011-07-193 | 6 | DIBBS |
| 4730-00-805-4092 | 2010-11-315 | 1 | DIBBS |
| 4730-00-805-4092 | 2010-11-315 | 2 | DIBBS |
| 4730-00-805-4092 | 2010-10-301 | 2 | DIBBS |
| 4730-00-805-4092 | 2010-02-50 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-805-4092
Related Products | NSN 4730-00-805-4092
Technical Data | NSN 4730-00-805-4092
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| LEG LENGTH | 0.812 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| OVERALL LENGTH | 3.094 INCHES NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |

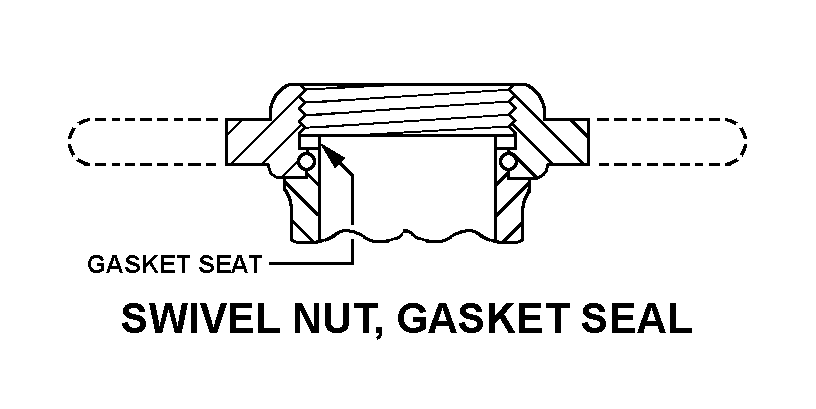

| CONNECTION STYLE | B5 SWIVEL NUT, GASKET SEAL ALL ENDS |
| QUICK DISCONNECT METHOD | SPRING PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.656 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| (NON-CORE DATA) FURNISHED ITEMS | PREFORMED PACKING |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 250.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE -65.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE 160.0 DEG FAHRENHEIT OXYGEN, GASEOUS -40.0 DEG FAHRENHEIT OXYGEN, GASEOUS |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3500.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE 3500.0 POUNDS PER SQUARE INCH OXYGEN, GASEOUS 3500.0 POUNDS PER SQUARE INCH GAS |
