NSN 4730-00-804-1921 MS243954, MS24395-4, AN8344
Product Details | TUBE TEE

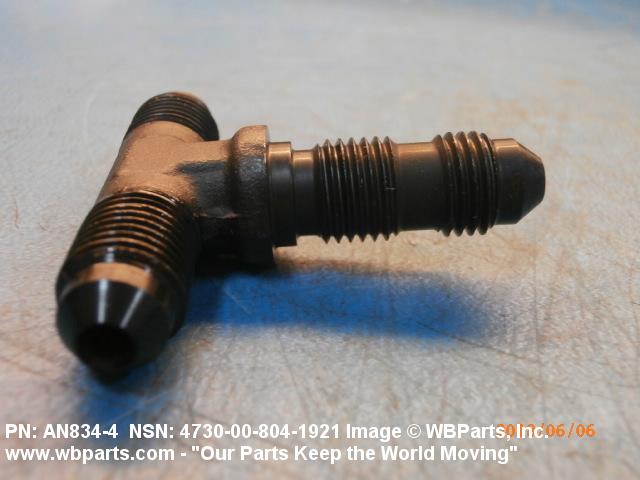

4730-00-804-1921 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS243954, MS24395-4, AN8344, AN834-4, MILF5509, 4WJTXS, 4730-00-804-1921, 00-804-1921, 4730008041921, 008041921
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-804-1921 | 03809 ( TEE, TUBE ) |

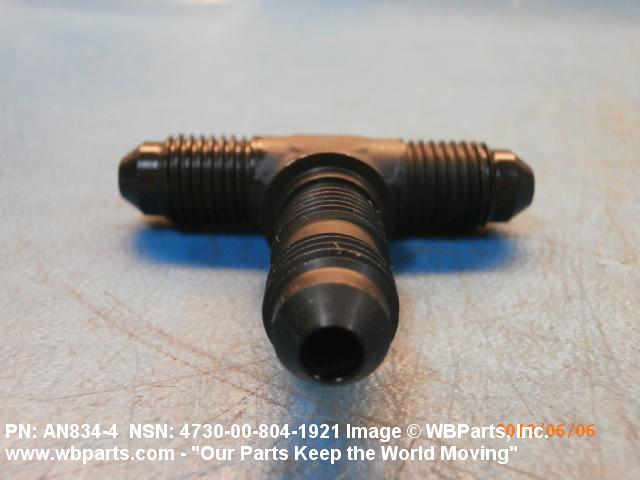

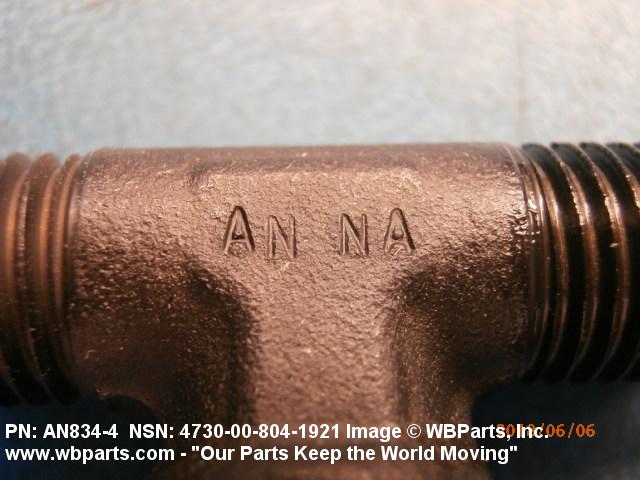

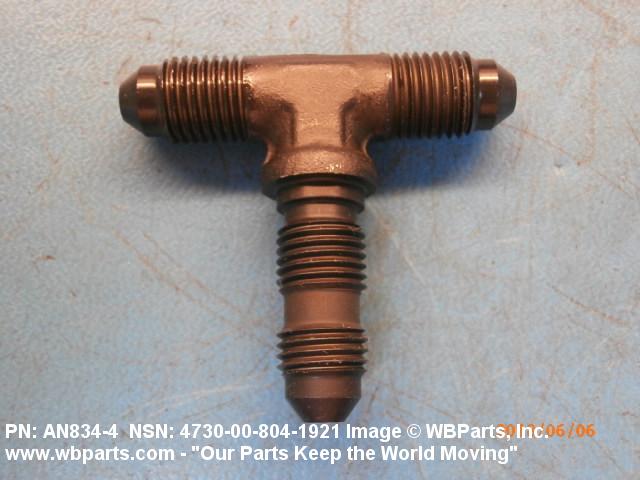

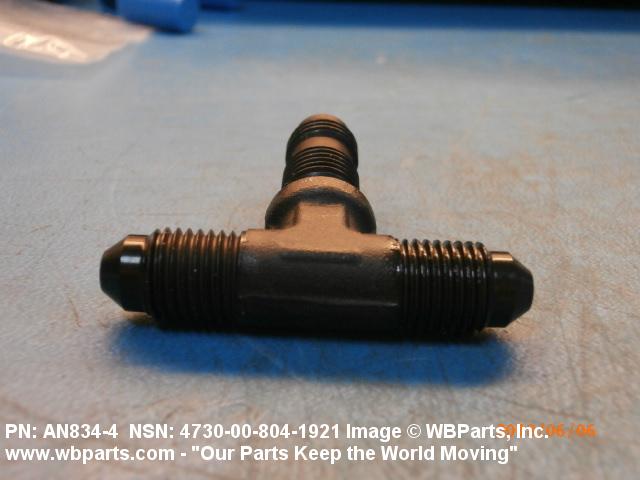

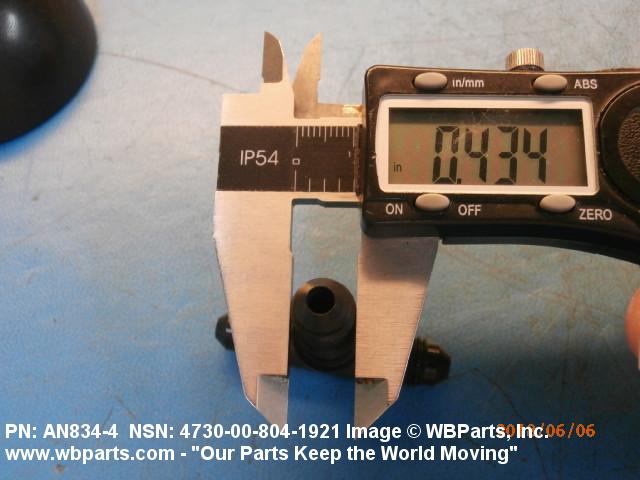

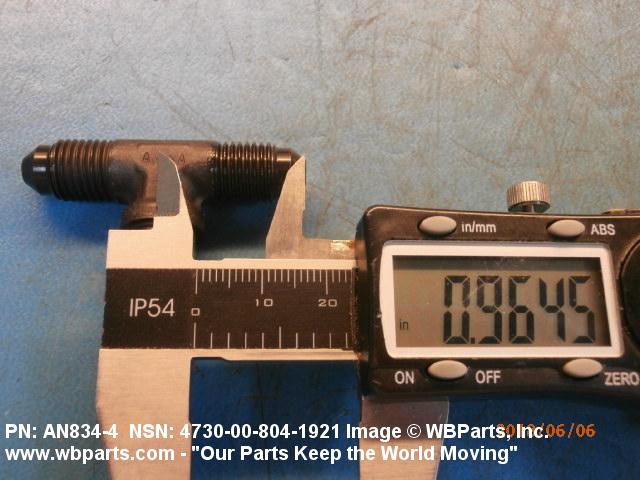

Drawings & Photos | NSN 4730-00-804-1921
Demand History | NSN 4730-00-804-1921
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILF5509 | 2018-07-201 | 6 | United States |
| AN8344 | 2018-05-123 | 5 | China |
| 4730-00-804-1921 | 2018-04-108 | 1 | United States |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
| AN8344 | 2006-08-214 | 2 | US |
Cross Reference | NSN 4730-00-804-1921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4WJTXS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4WJTXS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4WJTXS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| AN834-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24395-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-804-1921
Related Products | NSN 4730-00-804-1921
Technical Data | NSN 4730-00-804-1921

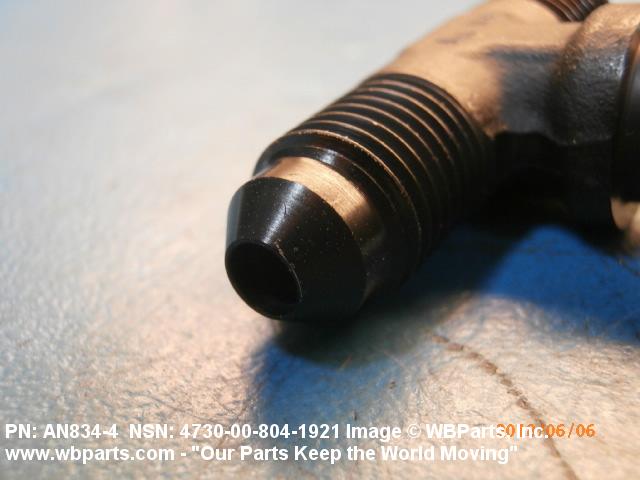

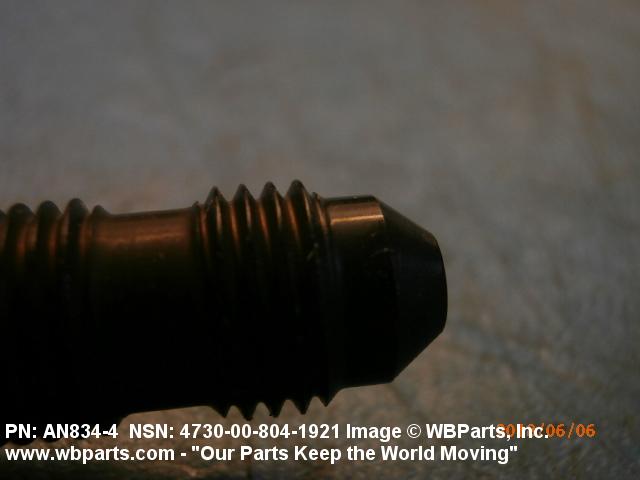

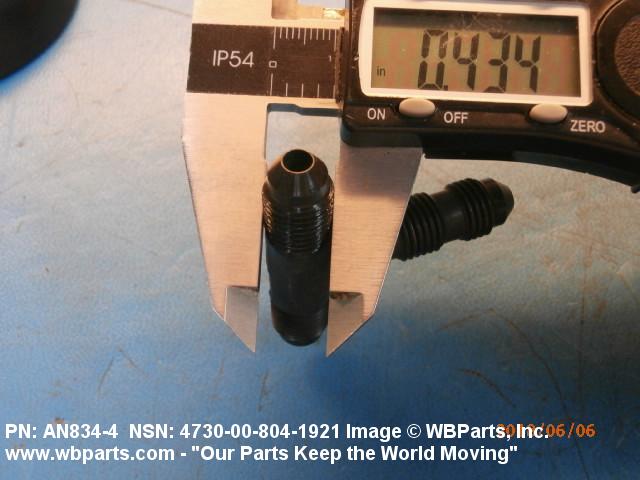

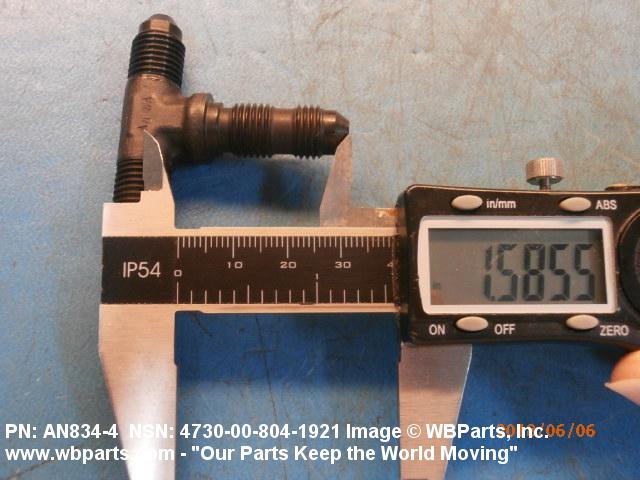

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE AIR 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 3RD END BULKHEAD |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES 3RD END BULKHEAD |
| THREAD CLASS | 2A ALL ENDS 2A 3RD END BULKHEAD |
| LEG LENGTH | 0.970 INCHES NOMINAL 1ST END 0.970 INCHES NOMINAL 2ND END 1.590 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | USED ON GRUMMAN AIRCRAFT,MODEL A10 |
| SPECIFICATION/STANDARD DATA | 96906-MS24395 GOVERNMENT STANDARD AND 81349-MIL-F-5509 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | HORNET AIRCRAFT, F/A-18 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF5509 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24395-4 |
