NSN 4730-00-722-0086 MS24402D8, AN8248D, AN824-8D

Product Details | TUBE TEE

4730-00-722-0086 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.

Part Alternates: MS24402D8, AN8248D, AN824-8D, AS1035D080808, BACH50A438D, BACH50A43-8D, Z00.N7730061822, Z00N7730061822, 01100, 2136978D, 213697-8D, 2554825, 255482-5, 3110325, 488 509, 488509, 6026910148L, 6026-9101-48L, 6026910148R, 6026-9101-48R, 4730-00-722-0086, 00-722-0086, 4730007220086, 007220086

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-722-0086	03809 ( TEE, TUBE )

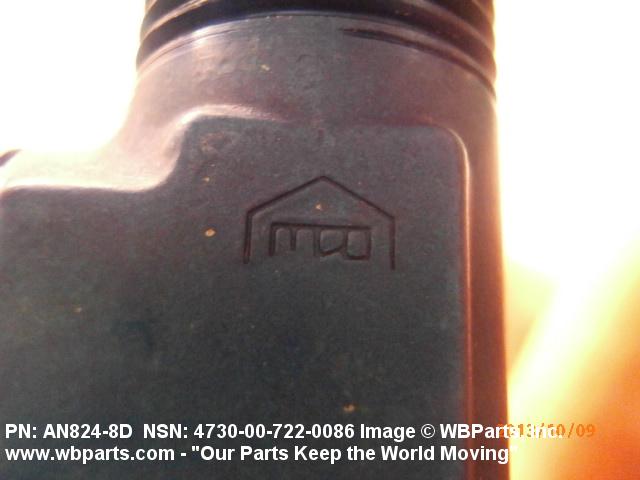

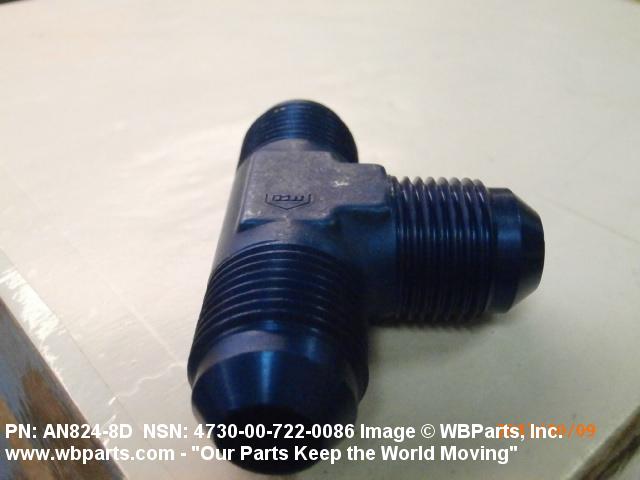

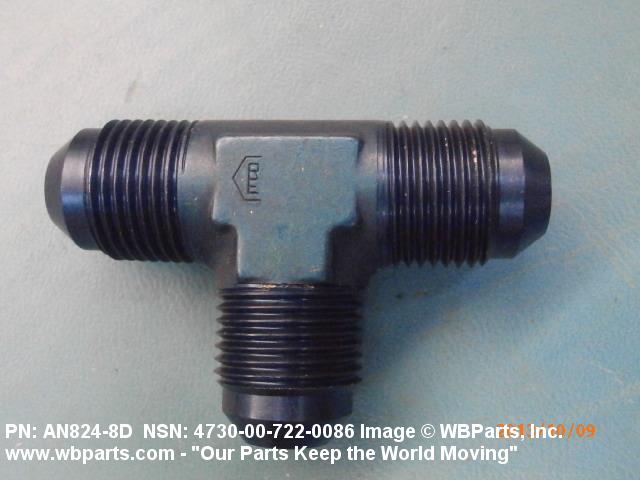

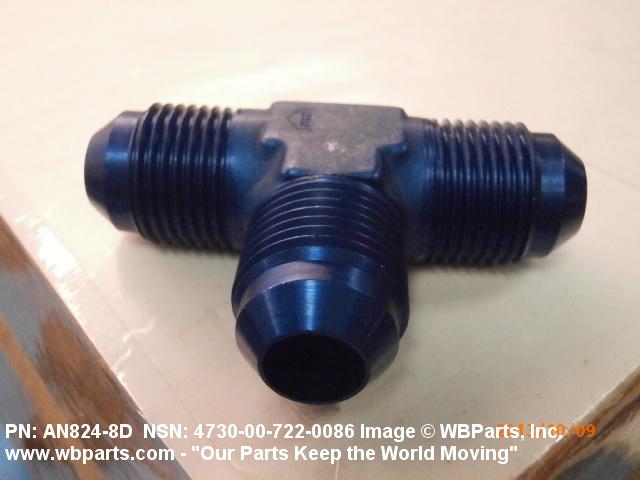

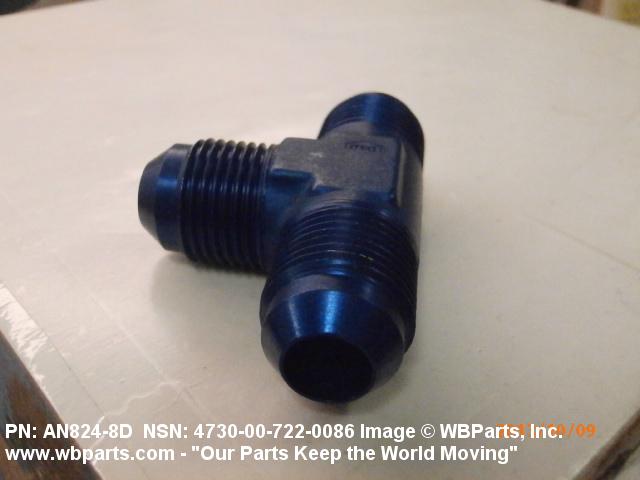

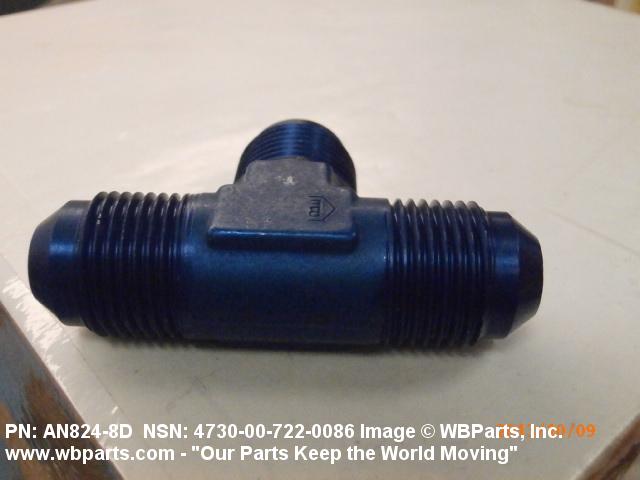

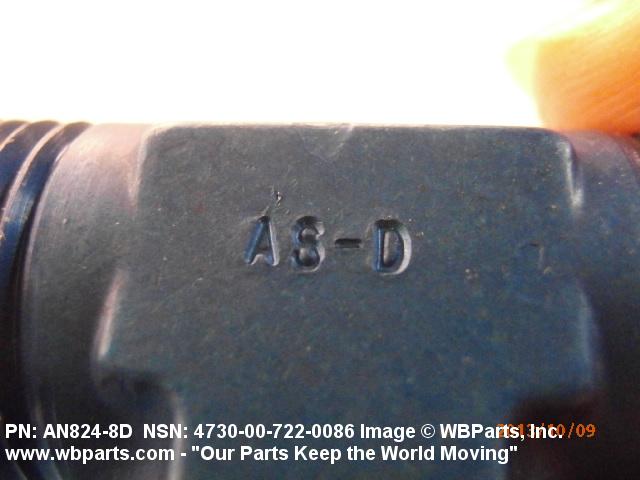

Drawings & Photos | NSN 4730-00-722-0086

Part Number	Request Date	QTY	Origin
4730-00-722-0086	2024-08-242	251	DIBBS
01100	2021-07-194	8	United States
4730-00-722-0086	2021-03-63	101	DIBBS
4730-00-722-0086	2019-05-126	212	DIBBS
4730-00-722-0086	2018-04-116	120	DIBBS
4730-00-722-0086	2016-05-140	39	DIBBS
4730-00-722-0086	2016-05-129	39	DIBBS
AN8248D	2013-08-241	10	Ukraine
4730-00-722-0086	2013-05-148	1	Indonesia
4730-00-722-0086	2013-05-148	1	Indonesia
4730-00-722-0086	2013-03-65	170	DIBBS
AN8248D	2012-10-296	2	Czech Republic
4730-00-722-0086	2012-08-226	139	DIBBS
4730-00-722-0086	2011-06-155	107	DIBBS
4730-00-722-0086	2010-06-173	6	US

Cross Reference | NSN 4730-00-722-0086

Part Number	Cage Code	Manufacturer
01100	48431	POWER INDUSTRIES INC
213697-8D	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
255482-5	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
3110325	001JK	EMBRAER S/A
3110325	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
488 509	77294	PIPER AIRCRAFT INC.
6026-9101-48L	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-9101-48R	36378	RAYTHEON TECHNICAL SERVICES COMPANY
AN824-8D	00624	EATON CORPORATION DBA AEROSPACE DIV
AN824-8D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN824-8D	13899	HYDRO FITTING MANUFACTURING CORPORATION
AN824-8D	14397	FABER ENTERPRISES, INC.
AN824-8D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN824-8D	22995	CROWN FITTING CO INC
AN824-8D	30974	AEROFIT, LLC
AN824-8D	71563	COLLINS ENGINEERING CORP
AN824-8D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS1035D080808	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACH50A43-8D	81205	THE BOEING COMPANY DBA BOEING
MS24402D8	00624	EATON CORPORATION DBA AEROSPACE DIV
MS24402D8	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS24402D8	1L812	TRISTAR AEROSPACE INC
MS24402D8	50948	PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN
MS24402D8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24402D8	R1120	SATAIR A/S
Z00.N7730061822	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-722-0086

Compare

Related Products | NSN 4730-00-722-0086

4730-00-722-0087, 4730-00-722-0169, 4730-00-722-0640, 4730-00-722-0641, 4730-00-722-0642

Technical Data | NSN 4730-00-722-0086

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE	B64 FLARED ALL ENDS
SEAT ANGLE	37.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.500 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS

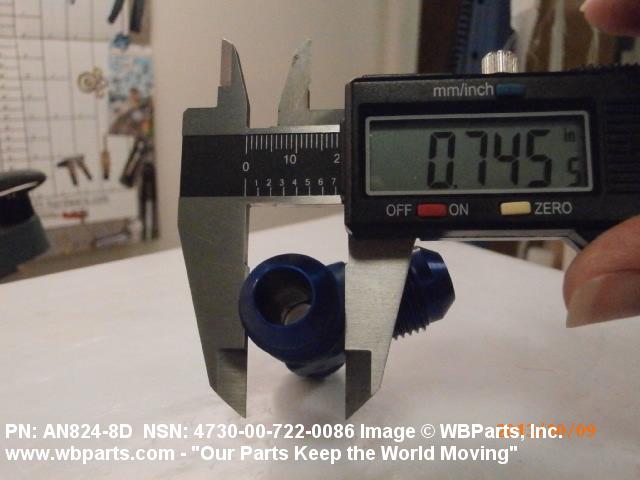

NOMINAL THREAD SIZE	0.750 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS

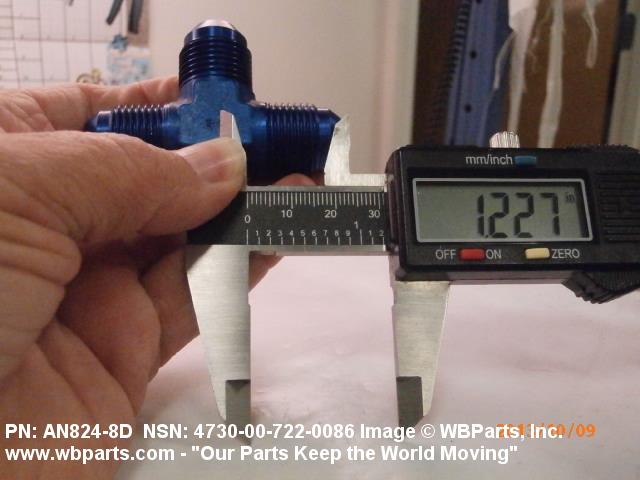

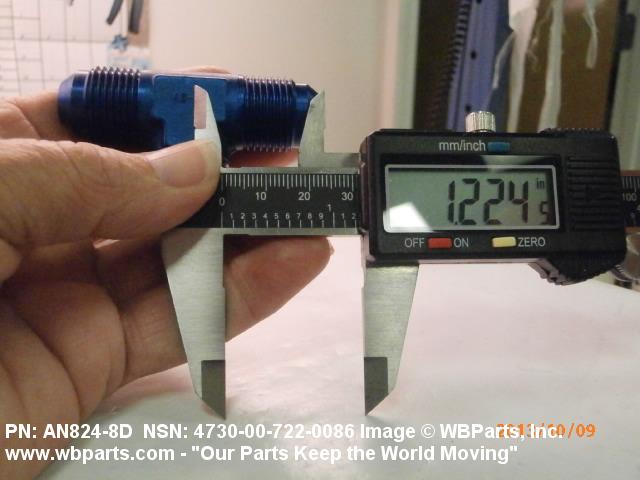

LEG LENGTH	1.219 INCHES NOMINAL ALL ENDS
SPECIFICATION/STANDARD DATA	88044-AN824 GOVERNMENT STANDARD AND 96906-MS24402 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	GRUMMAN A-10 ACFT

Restrictions/Controls & Freight Information | NSN 4730-00-722-0086

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-722-0086

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
