NSN 4730-00-720-1810 MS51523A4S, MS51523-A4S, MS51523B4S

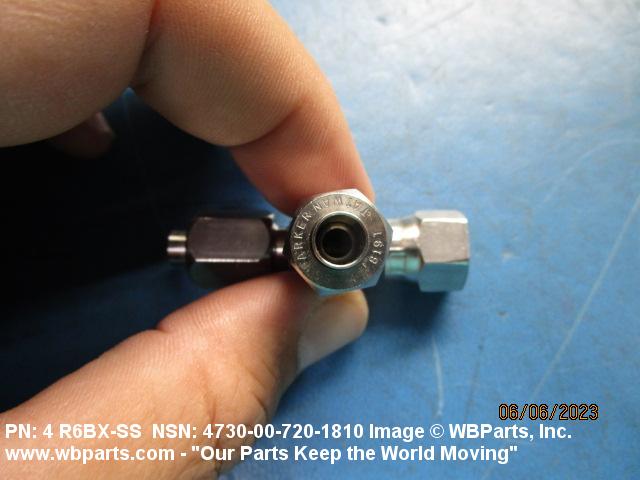

Product Details | TUBE TEE
4730-00-720-1810 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS51523A4S, MS51523-A4S, MS51523B4S, R6XSS, R6X-SS, J6264SS, J626-4SS, MILF18866, MIL-F-18866, 0008004513, 000-8004-513, 0008006208, 000-8006-208, 4R6BXSS, 8491696, 4730-00-720-1810, 00-720-1810, 4730007201810, 007201810
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-720-1810 | 03809 ( TEE, TUBE ) |

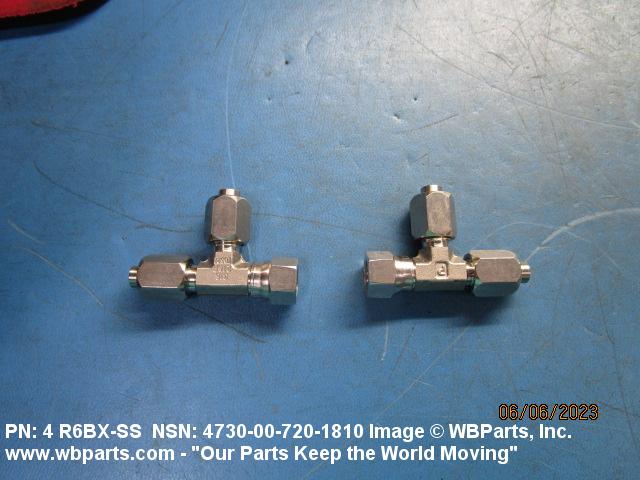

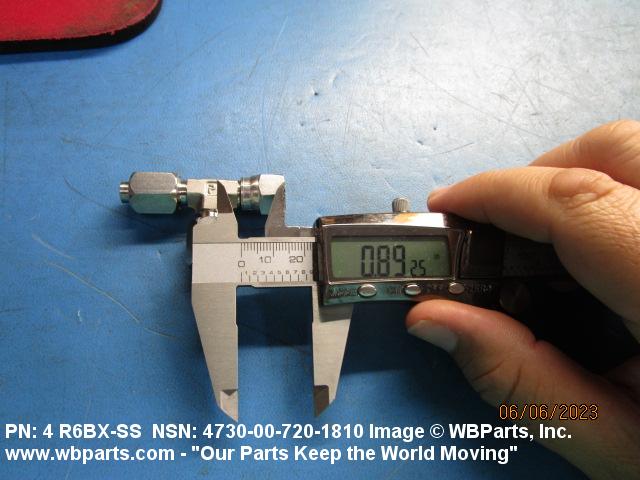

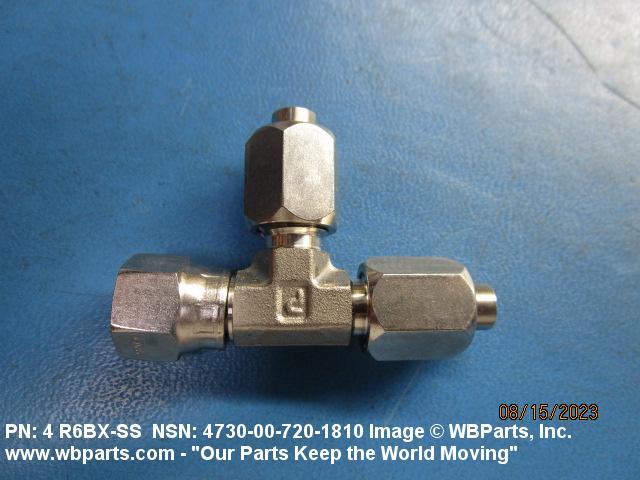

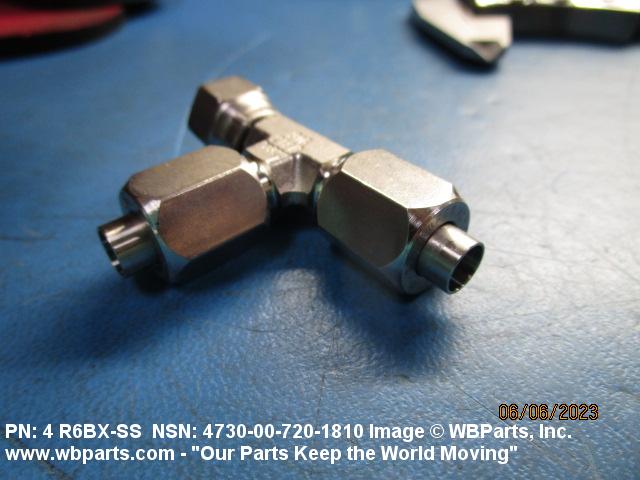

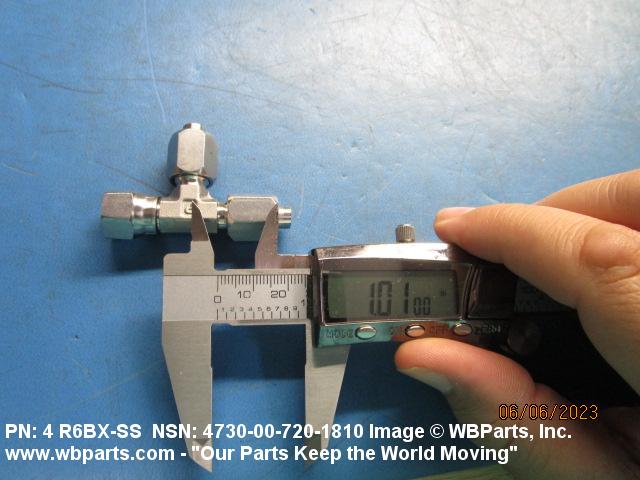

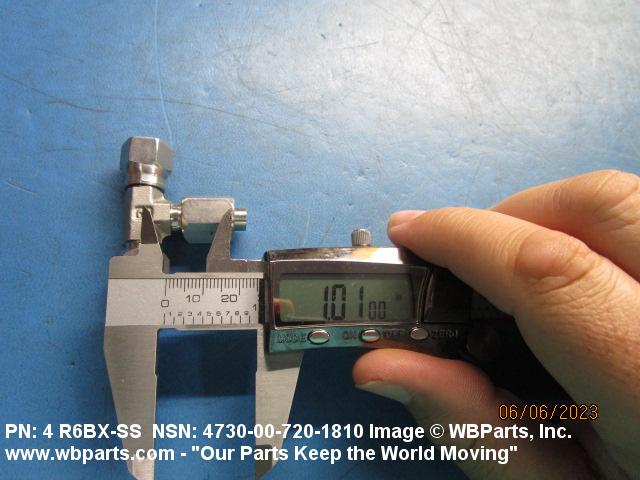

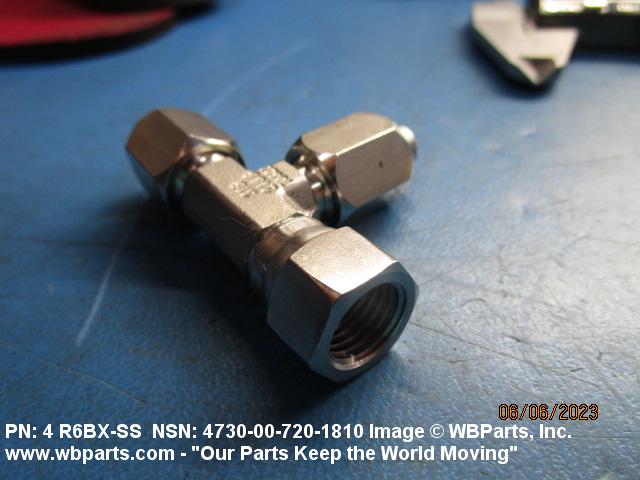

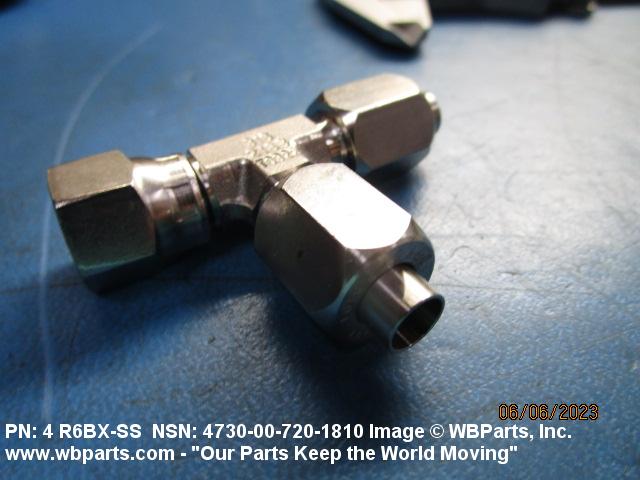

Drawings & Photos | NSN 4730-00-720-1810
Demand History | NSN 4730-00-720-1810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51523B4S | 2024-06-159 | 10 | United States |
| 4730-00-720-1810 | 2024-02-53 | 693 | US |
| 4730-00-720-1810 | 2024-02-47 | 693 | US |
| 4R6BXSS | 2023-04-104 | 2 | United States |
| 4R6BXSS | 2023-04-100 | 2 | United States |
| 4730-00-720-1810 | 2021-11-313 | 1 | US |
| MS51523B4S | 2021-11-313 | 1 | US |
| MS51523B4S | 2020-06-160 | 2 | US |
| 4730-00-720-1810 | 2011-08-242 | 18 | DE |
| MS51523B4S | 2010-07-197 | 1 | US |
Cross Reference | NSN 4730-00-720-1810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000-8004-513 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 000-8006-208 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 4R6BXSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4R6BXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4R6BXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 8491696 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| J626-4SS | 54214 | BOWES MFG INC |
| MIL-F-18866 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51523-A4S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51523B4S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R6X-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
