NSN 4730-00-720-1100 MS219124C, MS21912-4C, MS21912J4
Product Details | TUBE TEE

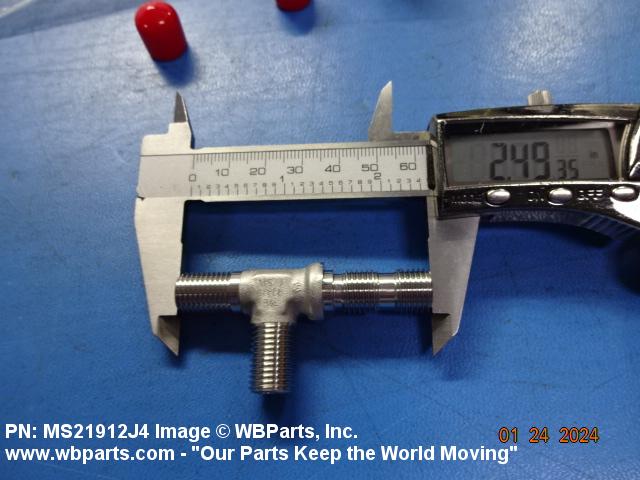

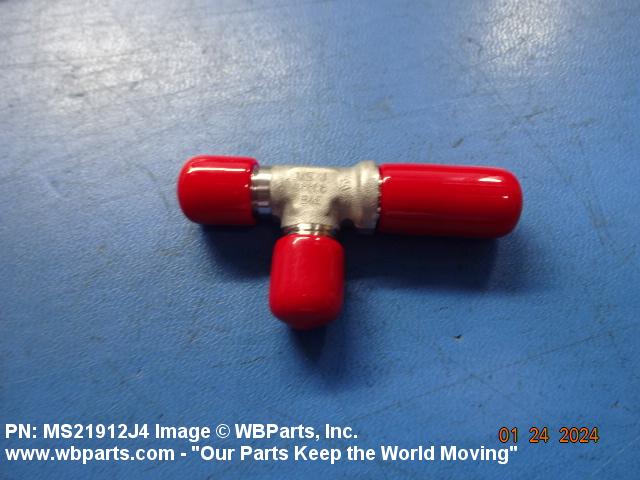

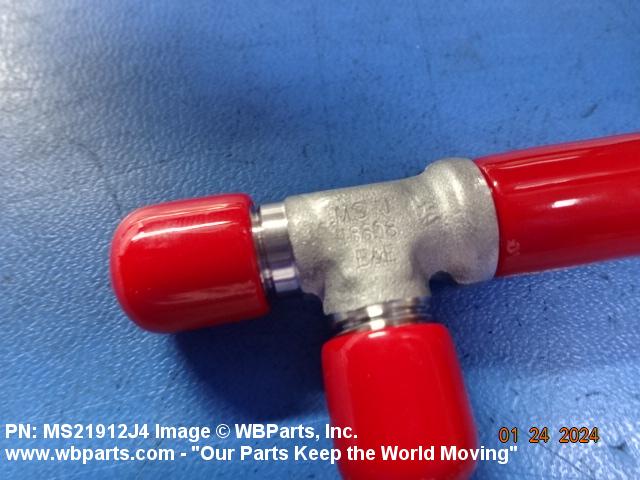

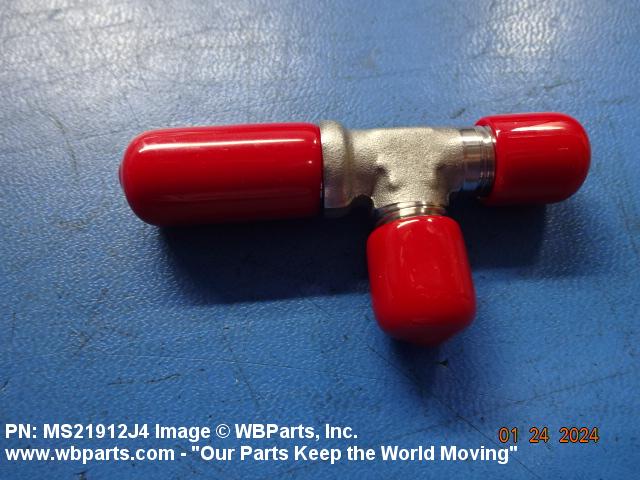

4730-00-720-1100 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS219124C, MS21912-4C, MS21912J4, AS18280, AS21912, 4730-00-720-1100, 00-720-1100, 4730007201100, 007201100
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-720-1100 | 03809 ( TEE, TUBE ) |
Drawings & Photos | NSN 4730-00-720-1100
Demand History | NSN 4730-00-720-1100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21912J4 | 2024-04-114 | 24 | United States |
| MS21912J4 | 2023-12-352 | 40 | United States |
| 4730-00-720-1100 | 2018-02-45 | 365 | DIBBS |
| 4730-00-720-1100 | 2017-10-302 | 243 | DIBBS |
| 4730-00-720-1100 | 2016-01-26 | 64 | DIBBS |
| MS21912J4 | 2015-09-268 | 36 | us |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-720-1100 | 2014-06-176 | 150 | United States |
| 4730-00-720-1100 | 2012-04-107 | 128 | DIBBS |
| 4730-00-720-1100 | 2012-01-06 | 87 | DIBBS |
| 4730-00-720-1100 | 2009-12-350 | 13 | DIBBS |
Cross Reference | NSN 4730-00-720-1100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-720-1100
Related Products | NSN 4730-00-720-1100
Technical Data | NSN 4730-00-720-1100
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AERONAUTICAL FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |

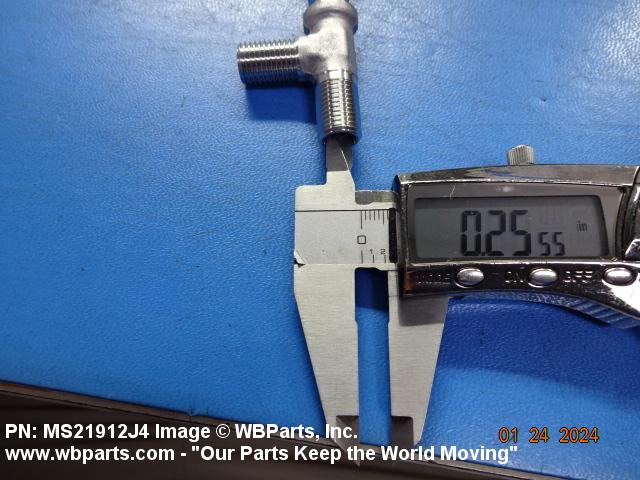

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |

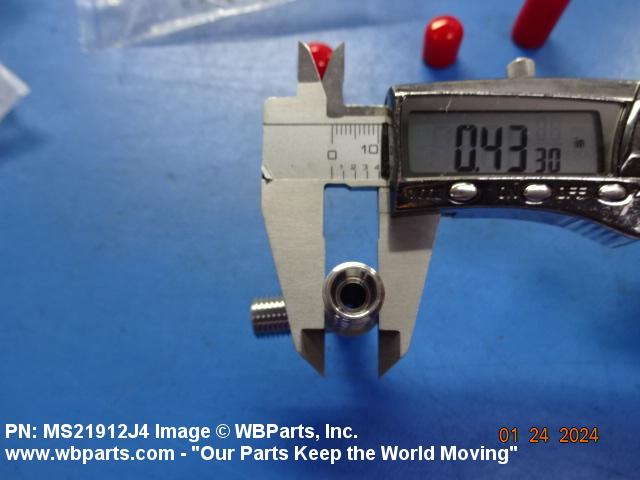

| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

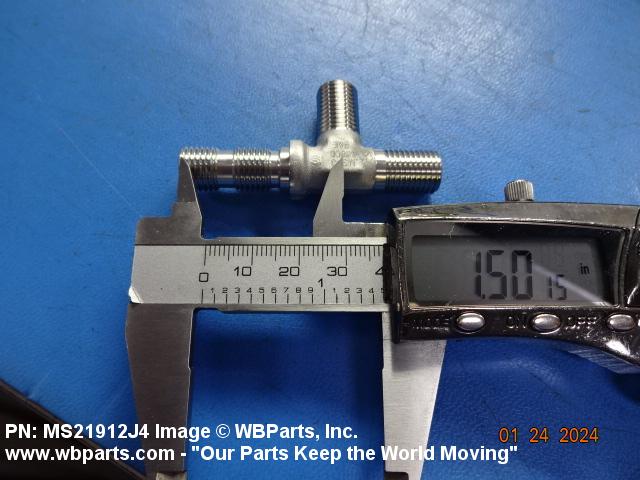

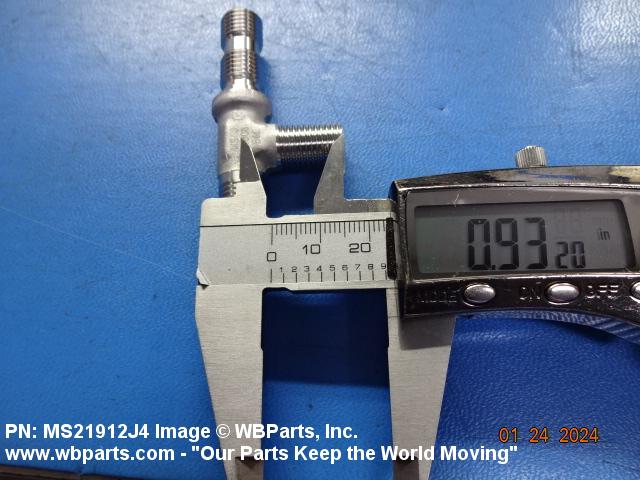

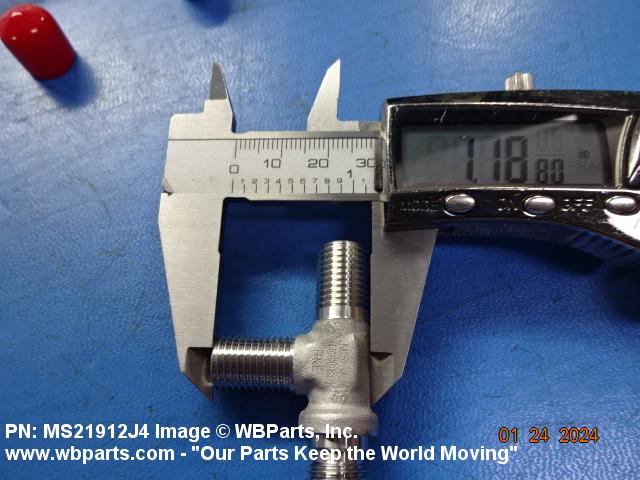

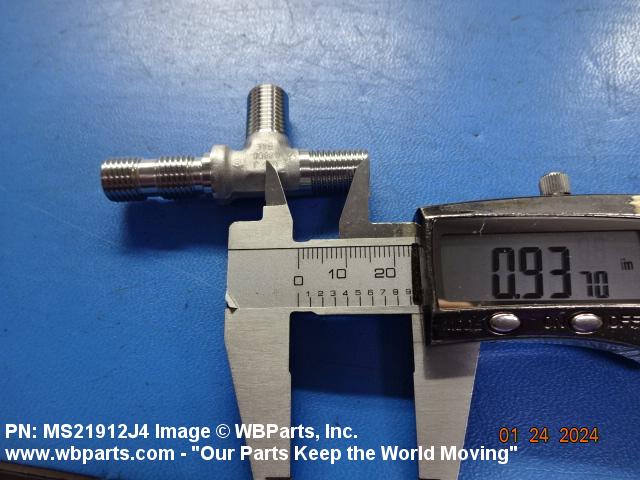

| LEG LENGTH | 1.500 INCHES NOMINAL 1ST END 0.938 INCHES NOMINAL 2ND END 0.938 INCHES NOMINAL 3RD END |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21912 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT, GALAXY C-5 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21912J4 |
