NSN 4730-00-689-1932 2D1080C, 450953, 7371C
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-689-1932 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 2D1080C, 450953, 7371C, 7371-C, 4730-00-689-1932, 00-689-1932, 4730006891932, 006891932
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 MAR 1972 | 00-689-1932 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

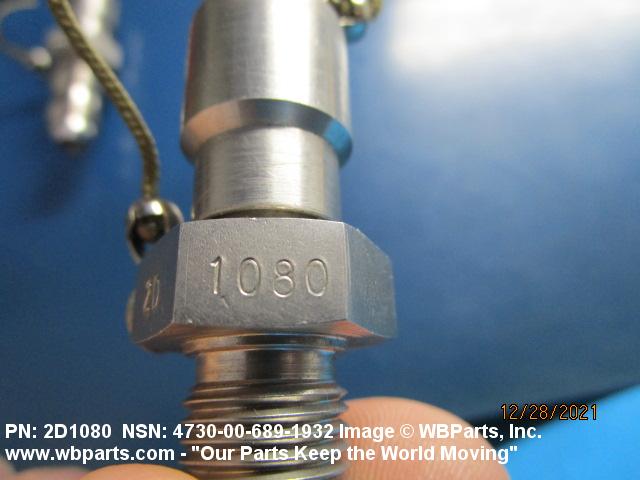

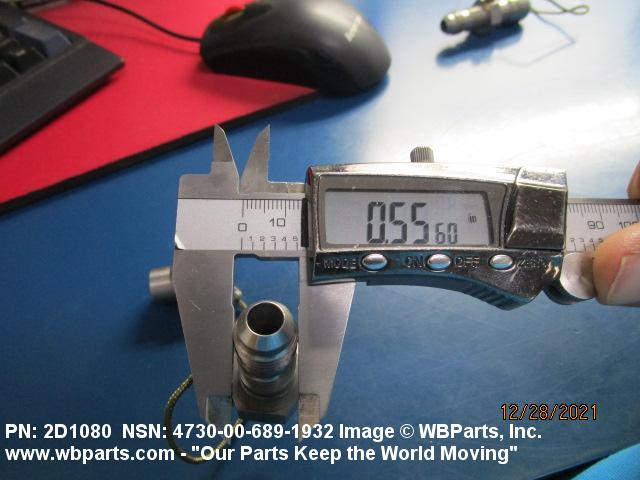

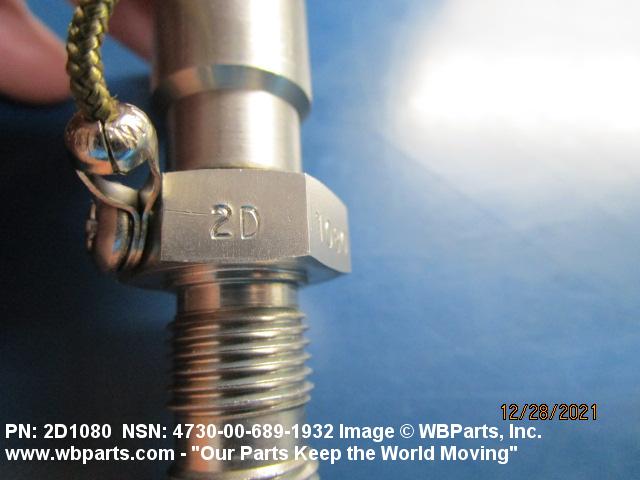

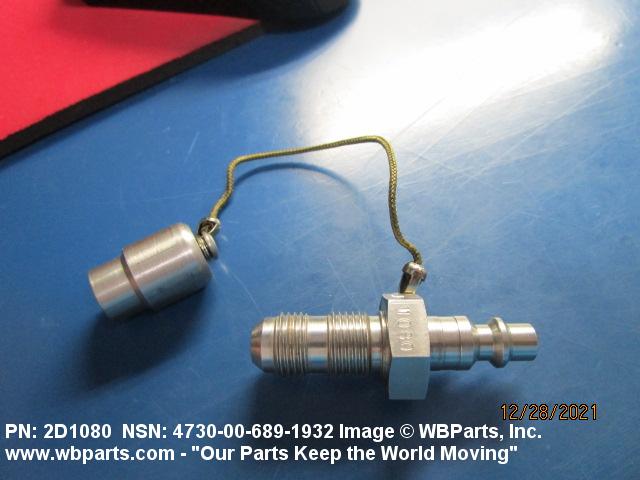

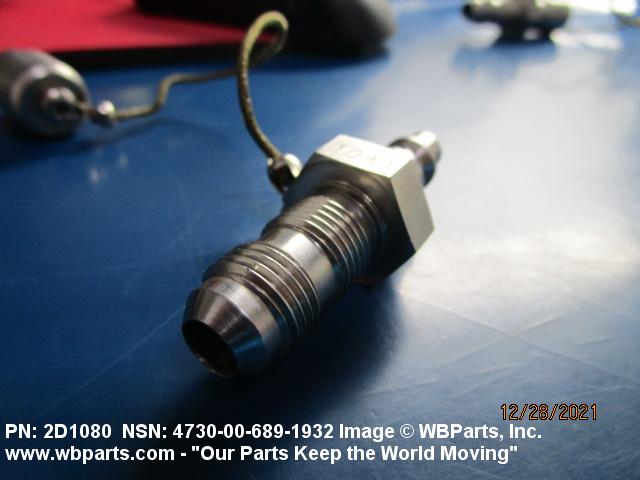

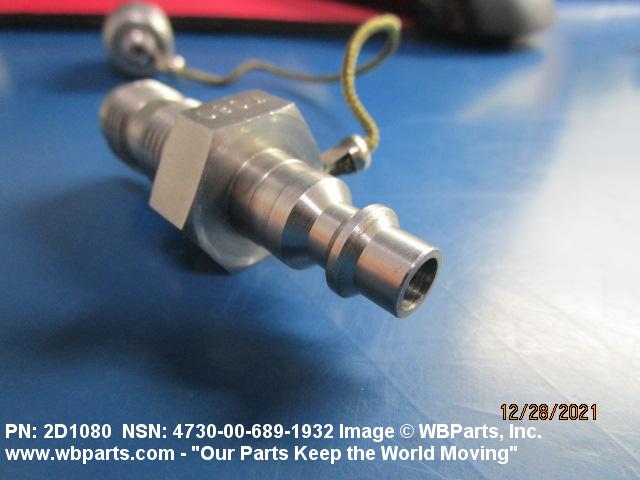

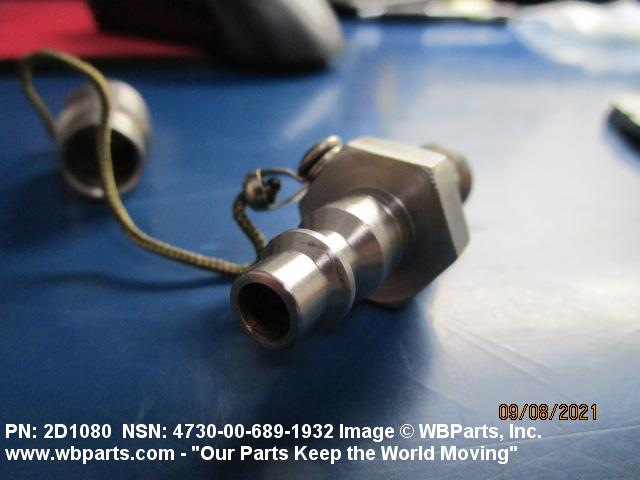

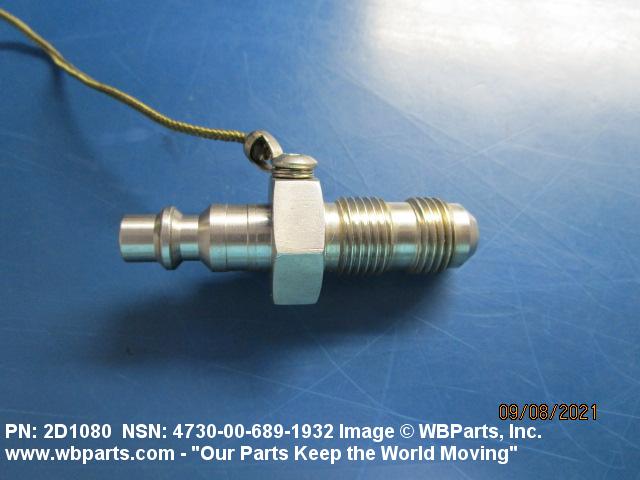

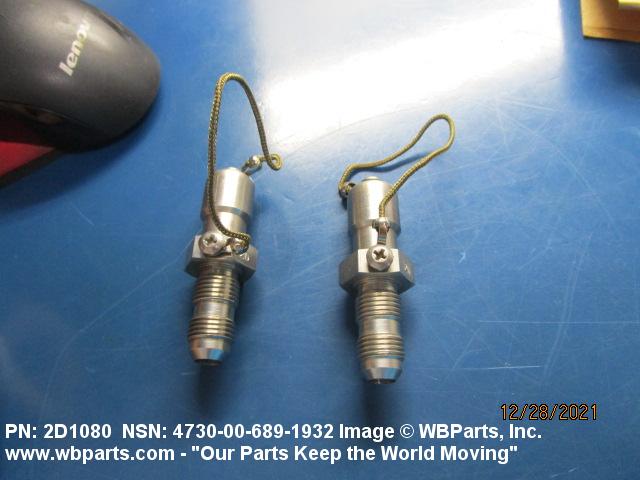

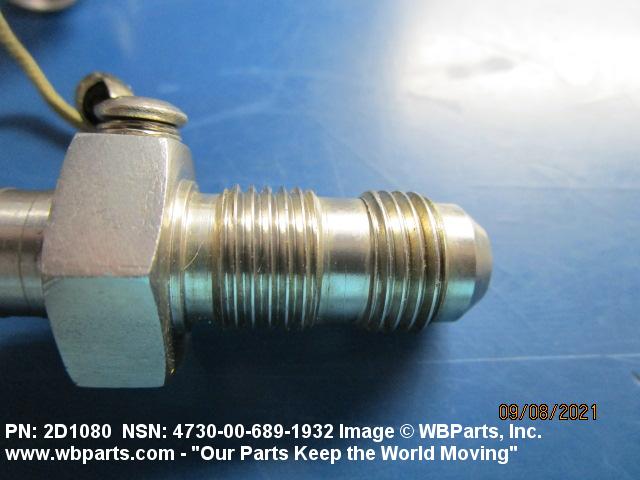

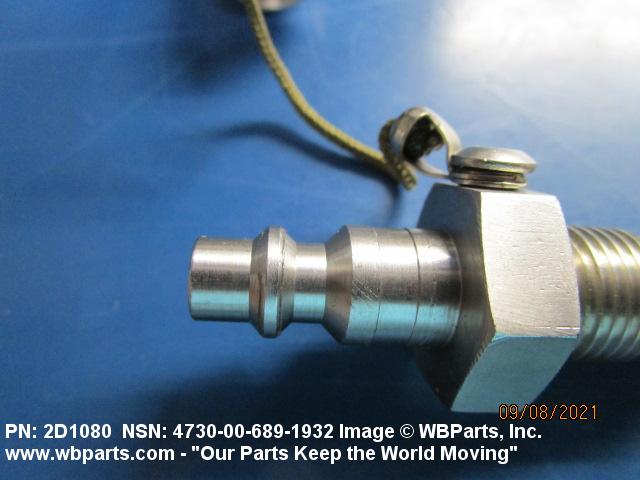

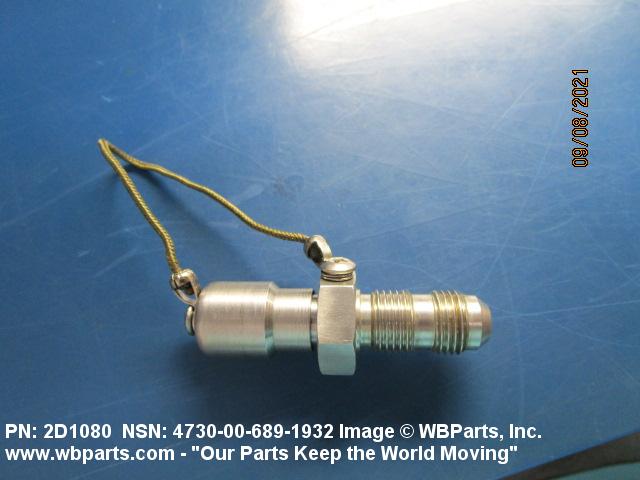

Drawings & Photos | NSN 4730-00-689-1932
Demand History | NSN 4730-00-689-1932
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7371-C | 2024-05-144 | 5 | DIBBS |
| 7371-C | 2023-04-96 | 4 | DIBBS |
| 7371-C | 2022-06-174 | 6 | DIBBS |
| 7371-C | 2022-03-60 | 1 | DIBBS |
| 4730-00-689-1932 | 2021-12-355 | 2 | United States |
| 4730-00-689-1932 | 2021-08-242 | 3 | United States |
| 7371-C | 2021-08-231 | 2 | DIBBS |
| 7371-C | 2021-08-220 | 2 | DIBBS |
| 7371-C | 2021-07-210 | 3 | DIBBS |
| 7371-C | 2021-07-199 | 3 | DIBBS |
| 7371-C | 2021-06-171 | 1 | DIBBS |
| 7371-C | 2021-06-171 | 3 | DIBBS |
| 4730-00-689-1932 | 2021-06-162 | 100 | United States |
| 7371-C | 2021-04-104 | 3 | DIBBS |
| 7371-C | 2019-01-16 | 1 | DIBBS |
| 4730-00-689-1932 | 2018-12-361 | 1 | DIBBS |
| 4730-00-689-1932 | 2018-10-284 | 3 | DIBBS |
| 4730-00-689-1932 | 2015-12-349 | 2 | DIBBS |
| 4730-00-689-1932 | 2012-07-191 | 2 | DIBBS |
| 4730-00-689-1932 | 2010-02-50 | 1 | DIBBS |
| 4730-00-689-1932 | 2009-04-117 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-689-1932
Related Products | NSN 4730-00-689-1932
Technical Data | NSN 4730-00-689-1932
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |

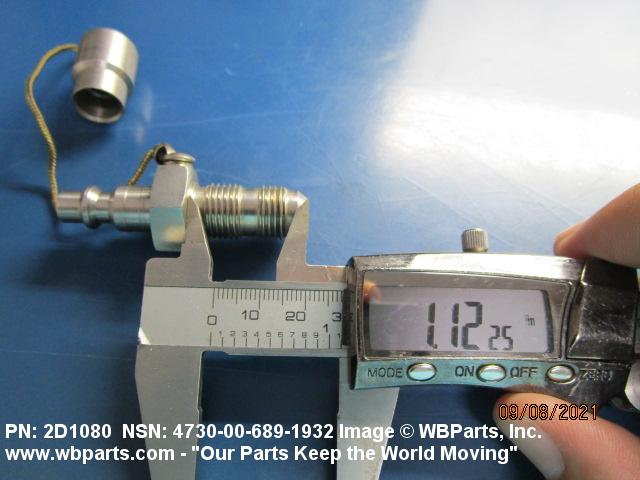

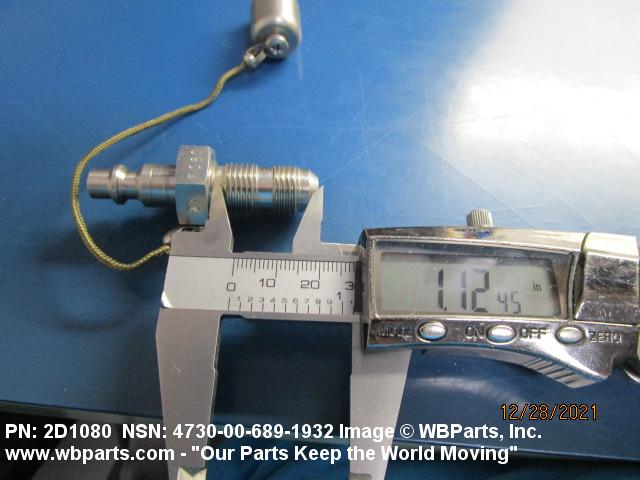

| LEG LENGTH | 1.125 INCHES NOMINAL |

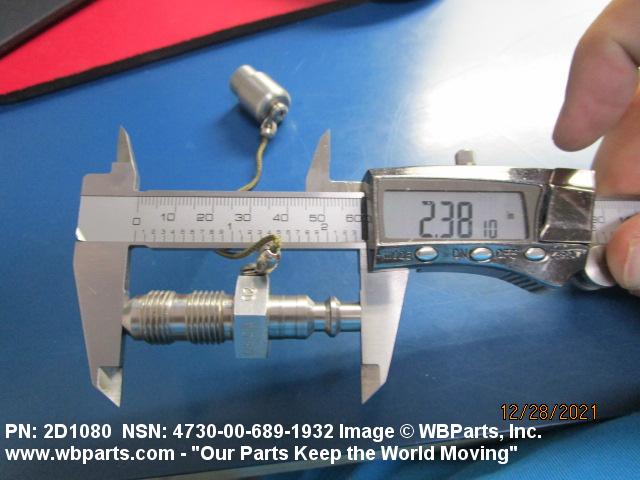

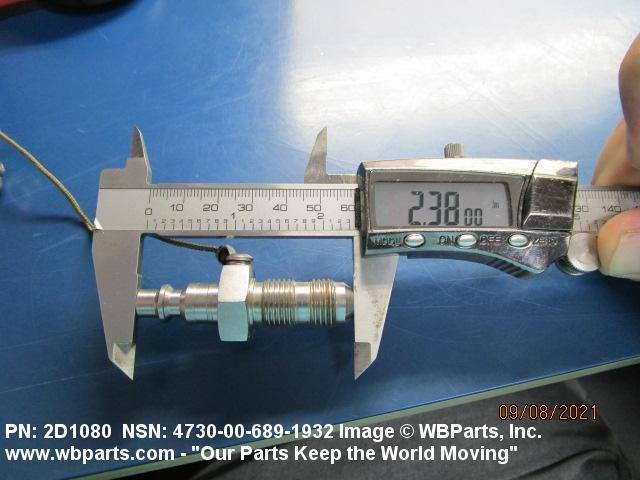

| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION EXTERNAL QUICK DISCONNECT ALL ENDS |
| CONNECTION STYLE | D6 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.438 INCHES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| SPECIAL FEATURES | BULKHEAD THREADS LOCATED ON FLUID CONNECTION END |
| (NON-CORE DATA) FURNISHED ITEMS | CAP AND WIRE ROPE |
