NSN 4730-00-684-6913 MS24392D16, AN81516D, AN815-16D
Product Details | TUBE NIPPLE
4730-00-684-6913 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: MS24392D16, AN81516D, AN815-16D, AS4841, AS5174, AS5174D1616, 4730-00-684-6913, 00-684-6913, 4730006846913, 006846913
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-684-6913 | 03783 ( NIPPLE, TUBE ) |

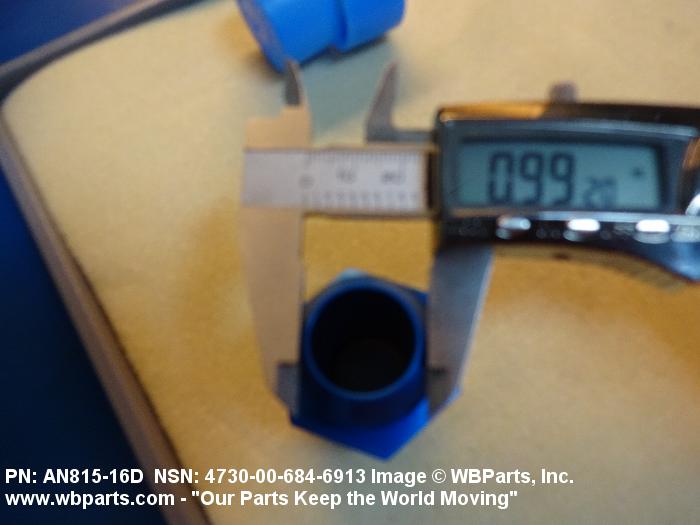

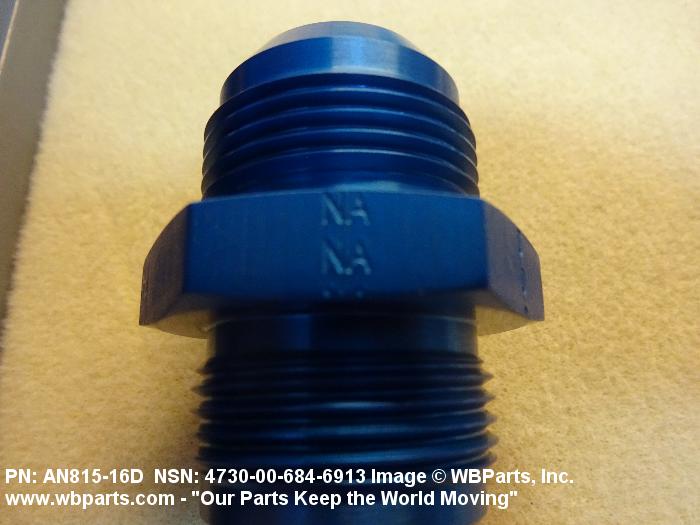

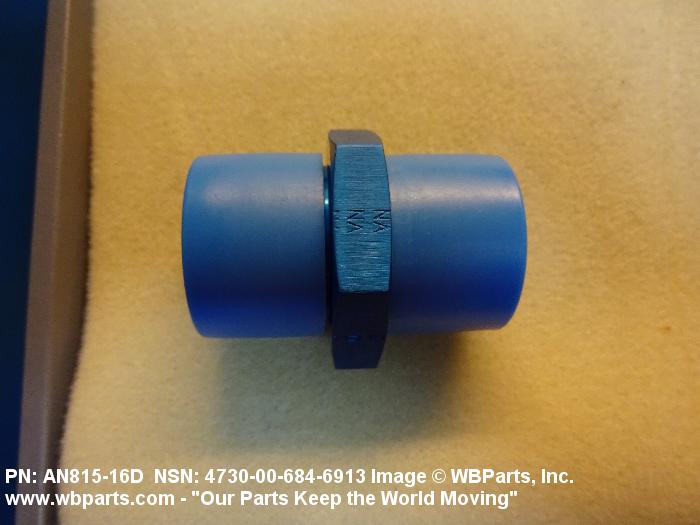

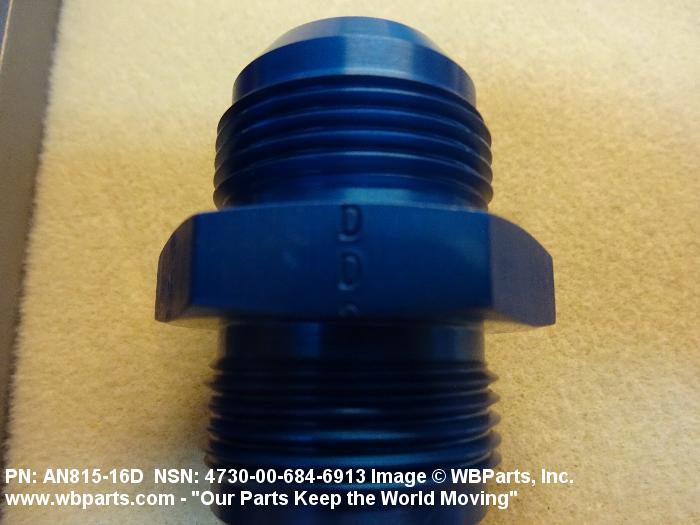

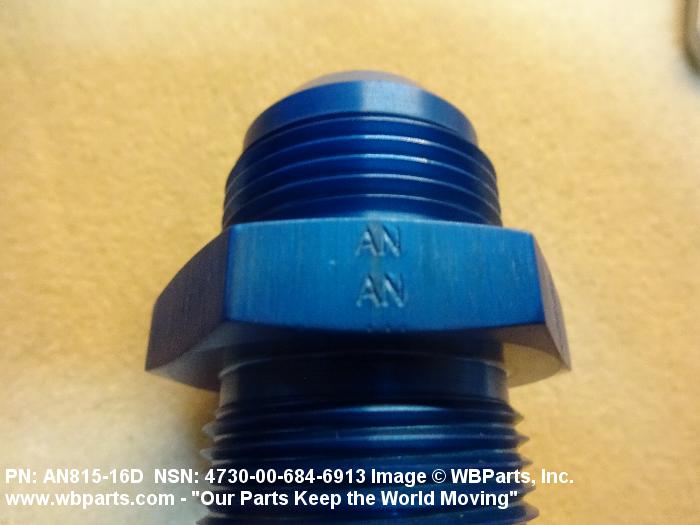

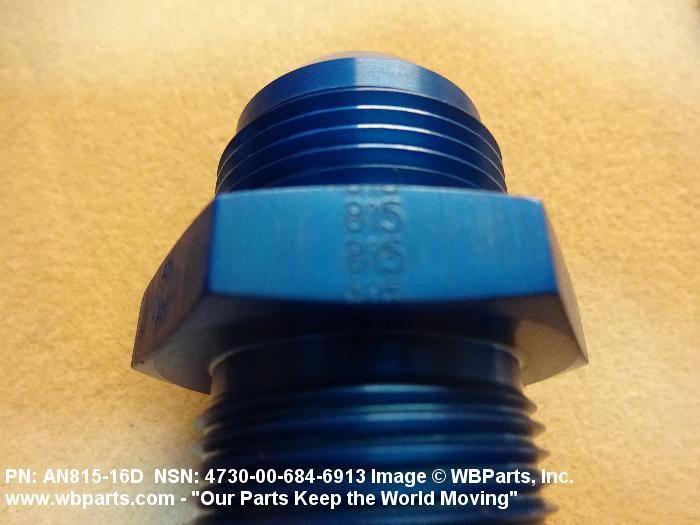

Drawings & Photos | NSN 4730-00-684-6913
Demand History | NSN 4730-00-684-6913
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-684-6913 | 2024-10-278 | 336 | DIBBS |
| 4730-00-684-6913 | 2024-09-267 | 336 | DIBBS |
| 4730-00-684-6913 | 2023-11-320 | 321 | DIBBS |
| 4730-00-684-6913 | 2023-06-152 | 255 | DIBBS |
| 4730-00-684-6913 | 2022-04-118 | 872 | DIBBS |
| 4730-00-684-6913 | 2022-01-04 | 10 | US |
| 4730-00-684-6913 | 2021-01-04 | 731 | DIBBS |
| 4730-00-684-6913 | 2020-12-351 | 603 | DIBBS |
| 4730-00-684-6913 | 2019-05-136 | 1129 | DIBBS |
| 4730-00-684-6913 | 2018-08-235 | 657 | DIBBS |
| 4730-00-684-6913 | 2018-07-190 | 794 | DIBBS |
| 4730-00-684-6913 | 2018-06-179 | 794 | DIBBS |
| 4730-00-684-6913 | 2018-03-63 | 586 | DIBBS |
| 4730-00-684-6913 | 2018-01-08 | 680 | DIBBS |
| 4730-00-684-6913 | 2017-12-362 | 680 | DIBBS |
| AN81516D | 2017-07-199 | 25 | United States |
| 4730-00-684-6913 | 2017-05-135 | 531 | DIBBS |
| 4730-00-684-6913 | 2017-05-124 | 531 | DIBBS |
| 4730-00-684-6913 | 2017-04-102 | 201 | DIBBS |
| AN81516D | 2017-01-17 | 15 | United Arab Emirates |
| AN81516D | 2016-09-266 | 1 | United States |
| AN81516D | 2016-09-266 | 1 | United States |
| AN81516D | 2015-09-244 | 10 | United States |
| AN81516D | 2015-09-244 | 10 | United States |
| AS5174D1616 | 2014-06-157 | 50 | United States |
| AS5174 | 2013-11-310 | 6 | US |
| AN815-16D | 2012-07-184 | 1 | United States |
| AN815-16D | 2012-04-115 | 4 | IN |
| 4730-00-684-6913 | 2012-02-46 | 447 | DIBBS |
| 4730-00-684-6913 | 2011-08-213 | 593 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-684-6913 | 2010-12-337 | 454 | DIBBS |
| 4730-00-684-6913 | 2010-09-267 | 372 | DIBBS |
| 4730-00-684-6913 | 2009-10-294 | 341 | DIBBS |
| 4730-00-684-6913 | 2009-06-162 | 261 | DIBBS |
Cross Reference | NSN 4730-00-684-6913
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN815-16D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174D1616 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24392D16 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24392D16 | 22995 | CROWN FITTING CO INC |
| MS24392D16 | 71563 | COLLINS ENGINEERING CORP |
| MS24392D16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-684-6913
Related Products | NSN 4730-00-684-6913
Technical Data | NSN 4730-00-684-6913
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.000 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

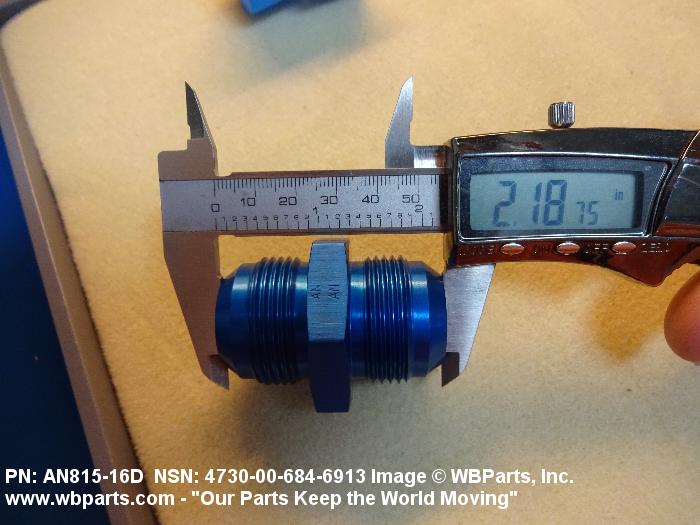

| NOMINAL OVERALL LENGTH | 2.188 INCHES |
| SPECIAL FEATURES | GRUMMAN AIRCRAFT CORP,A-10 AIRCRAFT MODEL |
| SPECIFICATION/STANDARD DATA | 96906-MS24392 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-684-6913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104340 | BARS/RODS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 572 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-684-6913
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
