NSN 4730-00-684-6915 MS24392D8, AN8158D, AN815-8D

Product Details | BOSS NIPPLE

4730-00-684-6915 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.

Part Alternates: MS24392D8, AN8158D, AN815-8D, AS4841, AS5174, AS5174D0808, Z00.N7730061225, Z00N7730061225, 4091D3, 6026910113L, 6026-9101-13L, 6026910114R, 6026-9101-14R, 7243898, 724389-8, 7M637 , 7M637BD8D, 7M637BD-8D , 8161497, 4730-00-684-6915, 00-684-6915, 4730006846915, 006846915

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-684-6915	26952 ( NIPPLE, BOSS )

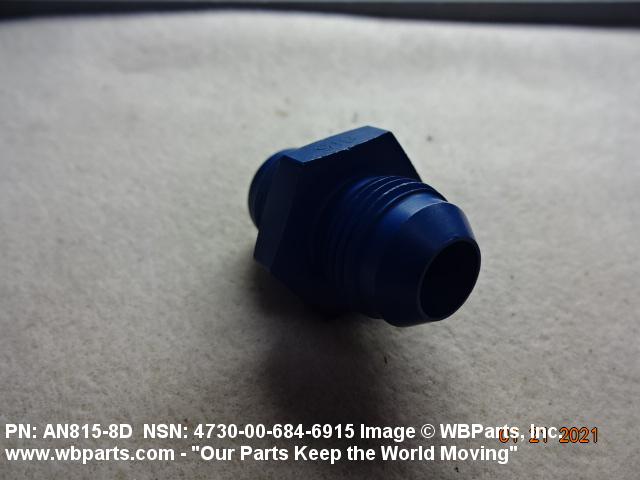

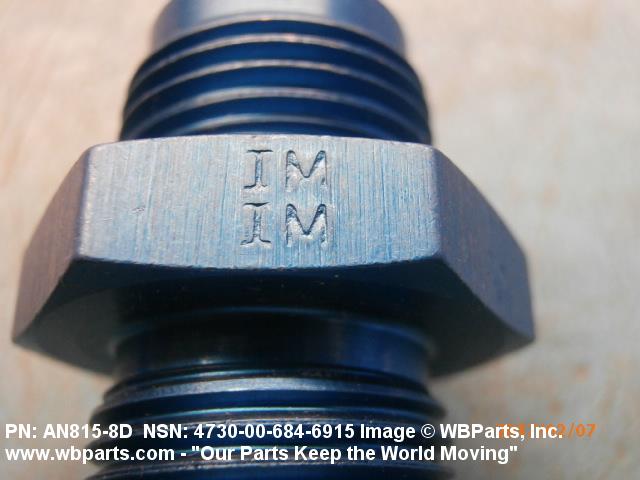

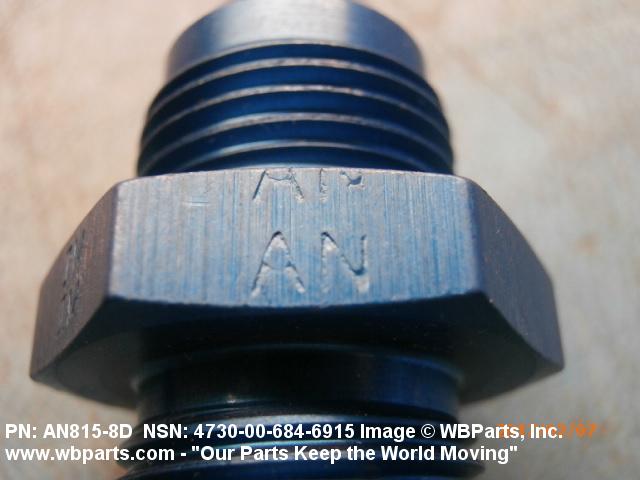

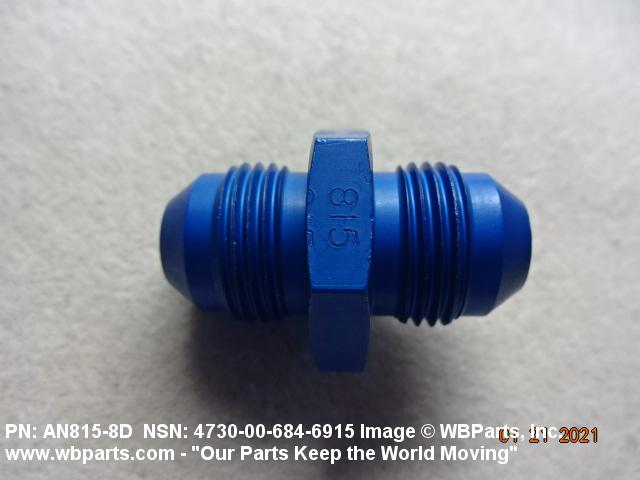

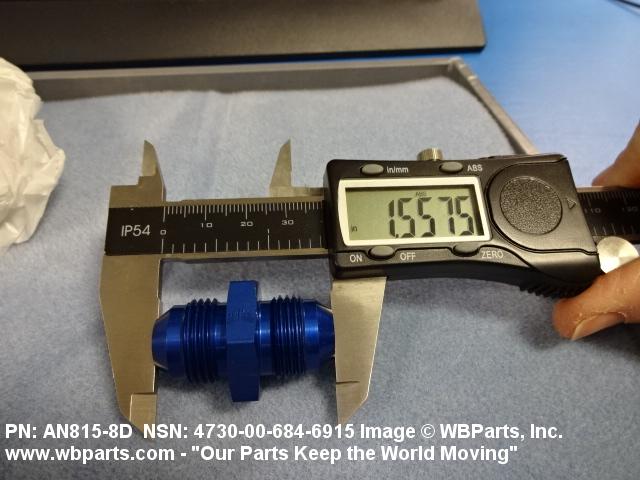

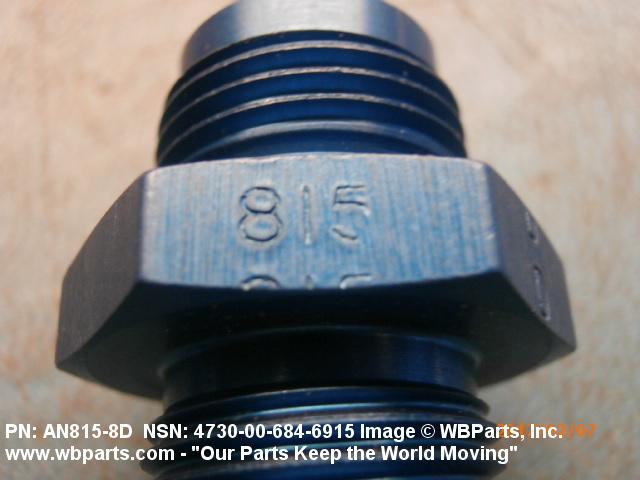

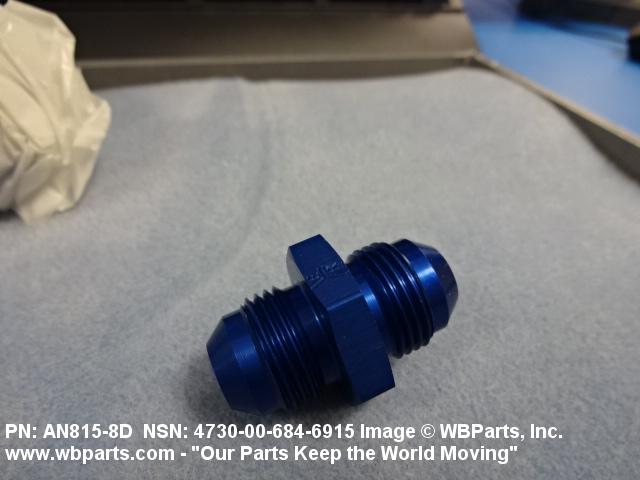

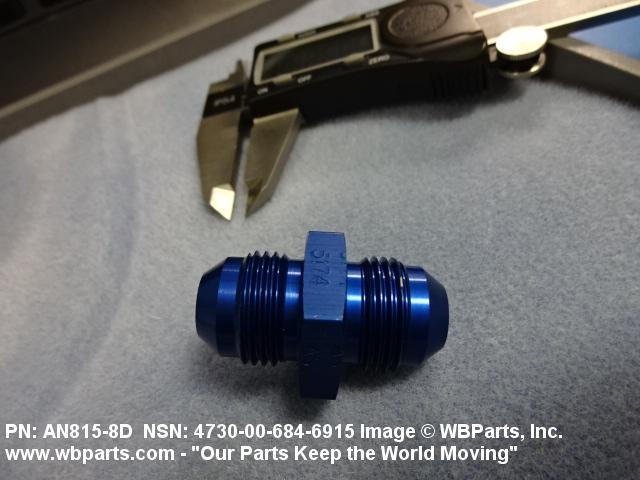

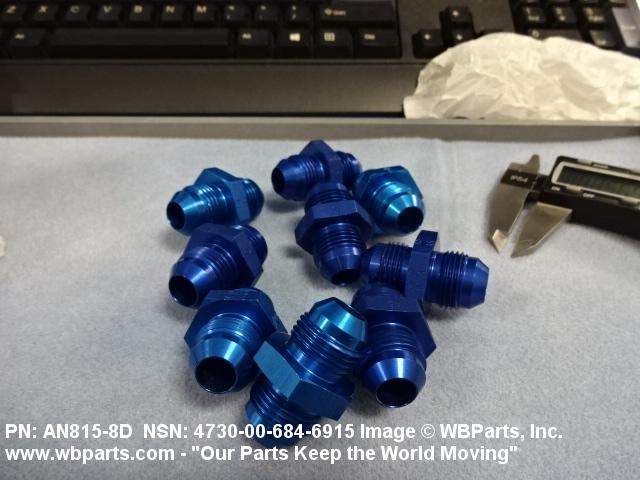

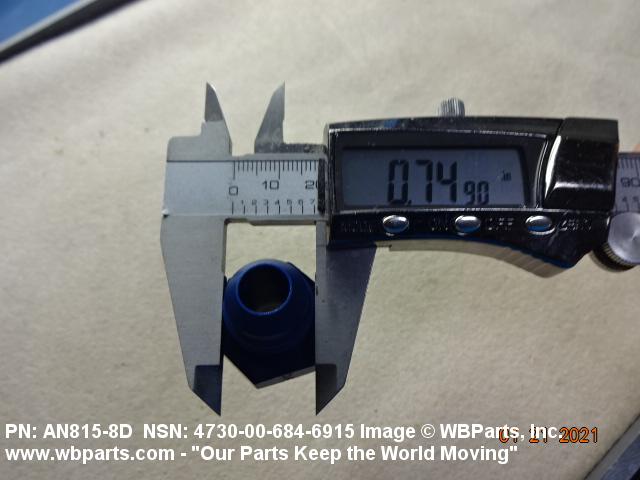

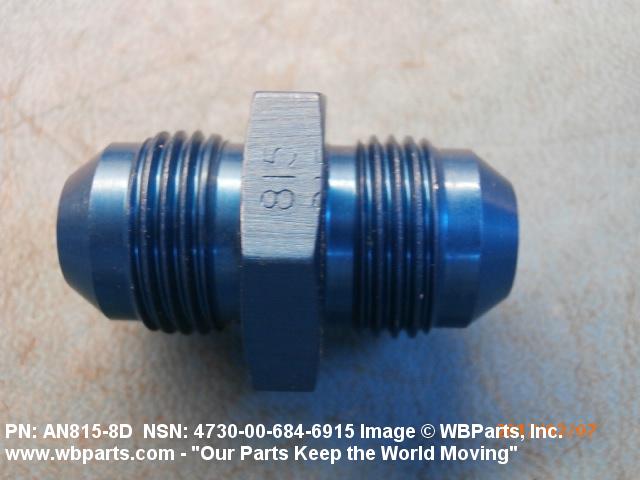

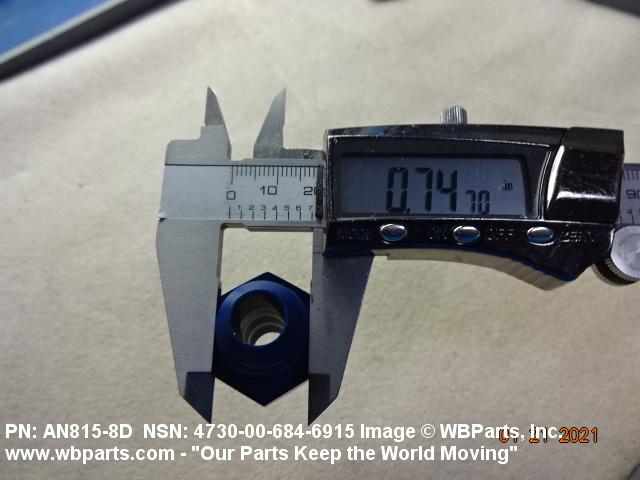

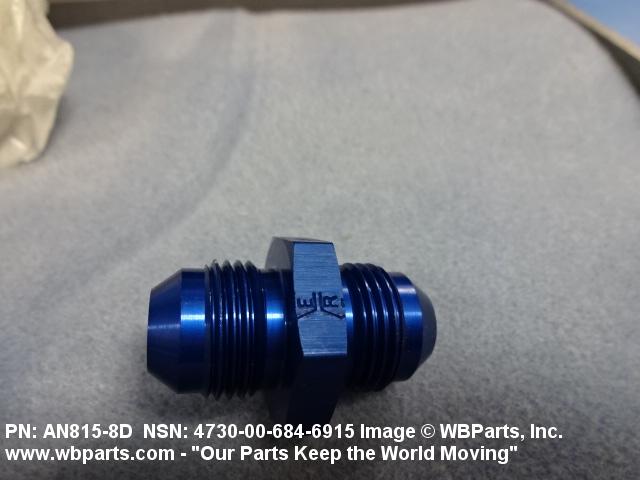

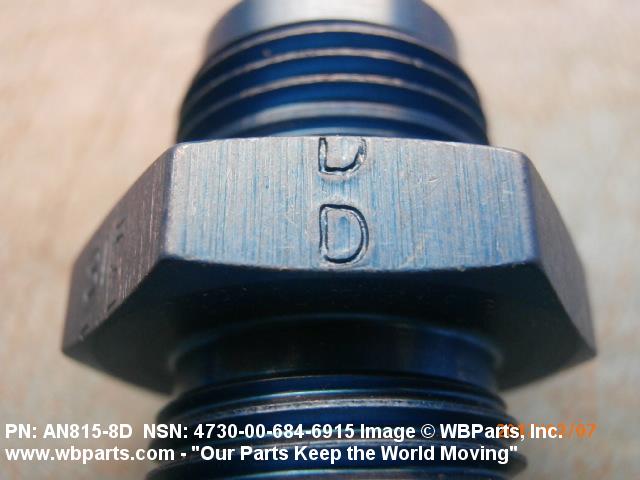

Drawings & Photos | NSN 4730-00-684-6915

Part Number	Request Date	QTY	Origin
AS5174D0808	2024-09-250	1	Uganda
7M637BD-8D	2024-08-221	3907	DIBBS
AS5174D0808	2024-08-221	3907	DIBBS
7M637BD-8D	2024-06-182	3907	DIBBS
AS5174D0808	2024-06-182	3907	DIBBS
AN8158D	2023-10-286	10	us
7M637BD-8D	2023-09-260	3907	DIBBS
AS5174D0808	2023-09-260	3907	DIBBS
7M637BD-8D	2023-05-149	3907	DIBBS
AS5174D0808	2023-05-149	3907	DIBBS
7M637BD-8D	2023-02-58	1606	DIBBS
AS5174D0808	2023-02-58	1606	DIBBS
7M637BD-8D	2022-09-263	1336	DIBBS
AS5174D0808	2022-09-263	1336	DIBBS
7M637BD-8D	2022-07-209	926	DIBBS
AS5174D0808	2022-07-209	926	DIBBS
7M637BD-8D	2022-05-123	182	DIBBS
AN815-8D	2022-05-123	182	DIBBS
AS5174D0808	2022-05-123	182	DIBBS
AN8158D	2021-04-120	1	United States
4730-00-684-6915	2020-07-196	24	Philippines
4730-00-684-6915	2019-10-279	1452	DIBBS
4730-00-684-6915	2019-02-43	1	United States
4730-00-684-6915	2018-12-364	1	US
4730-00-684-6915	2018-05-128	3436	DIBBS
4730-00-684-6915	2018-01-08	3641	DIBBS
AS5174D0808	2017-11-332	10	US
4730-00-684-6915	2017-07-188	1139	DIBBS
4730-00-684-6915	2017-03-72	1311	DIBBS
4730-00-684-6915	2016-12-356	1139	DIBBS
AN8158D	2016-12-337	4	Pakistan
AN8158D	2016-06-173	4	Pakistan
AN8158D	2016-06-154	30	United States
AN8158D	2016-05-124	4	Pakistan
AN8158D	2016-03-81	1	us
4730-00-684-6915	2016-02-41	2466	DIBBS
AS5174D0808	2016-02-33	10	United States
MS24392D8	2014-11-314	7	IN
AN8158D	2014-02-55	40	US
AN8158D	2014-02-55	40	US
AS5174	2013-11-310	6	US
4730-00-684-6915	2013-05-148	3	Indonesia
AS5174D0808	2012-07-191	14	Italy
AN815-8D	2012-07-184	1	United States
AS4841	2011-03-69	8
Z00N7730061225	2011-01-06	1	FR
AN8158D	2010-11-305	500	US
4730-00-684-6915	2009-12-344	100	US
4730-00-684-6915	2007-02-59	5	US

Cross Reference | NSN 4730-00-684-6915

Part Number	Cage Code	Manufacturer
4091D3	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
6026-9101-13L	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-9101-14R	36378	RAYTHEON TECHNICAL SERVICES COMPANY
724389-8	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
8161497	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN815-8D	00624	EATON CORPORATION DBA AEROSPACE DIV
AN815-8D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN815-8D	13899	HYDRO FITTING MANUFACTURING CORPORATION
AN815-8D	14397	FABER ENTERPRISES, INC.
AN815-8D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN815-8D	22995	CROWN FITTING CO INC
AN815-8D	30974	AEROFIT, LLC
AN815-8D	34374	P/M ENGINEERING CO INC
AN815-8D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN815-8D	R1120	SATAIR A/S
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5174	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5174D0808	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24392D8	14397	FABER ENTERPRISES, INC.
MS24392D8	22995	CROWN FITTING CO INC
MS24392D8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z00.N7730061225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-684-6915

Compare

Related Products | NSN 4730-00-684-6915

4730-00-684-6916, 4730-00-684-6917, 4730-00-684-6918, 4730-00-684-6920, 4730-00-684-6921

Technical Data | NSN 4730-00-684-6915

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
STYLE DESIGNATOR	A56 FLARED W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL BOSS ALL ENDS
CONNECTION STYLE	B81 FLARED W/GASKET SEAL ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS

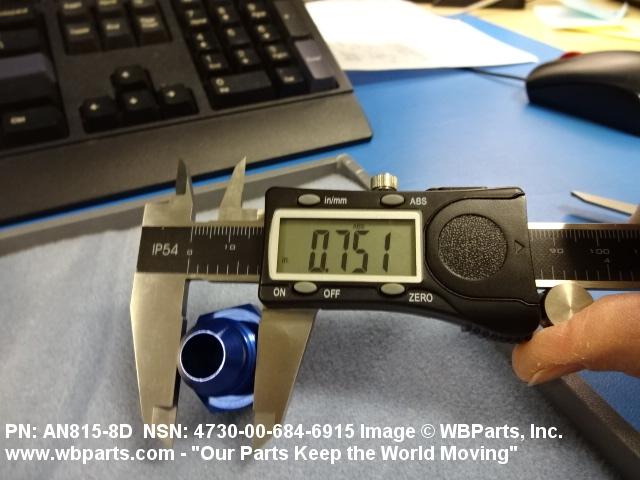

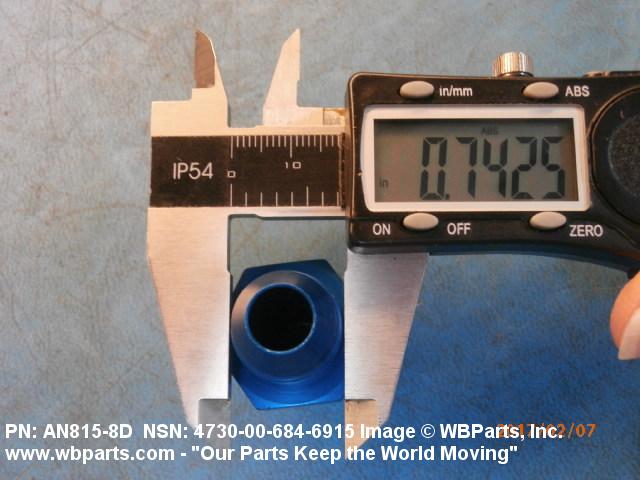

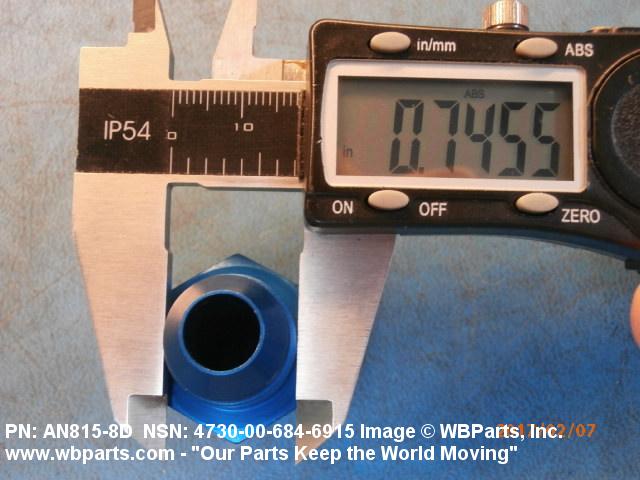

NOMINAL THREAD SIZE	0.750 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS

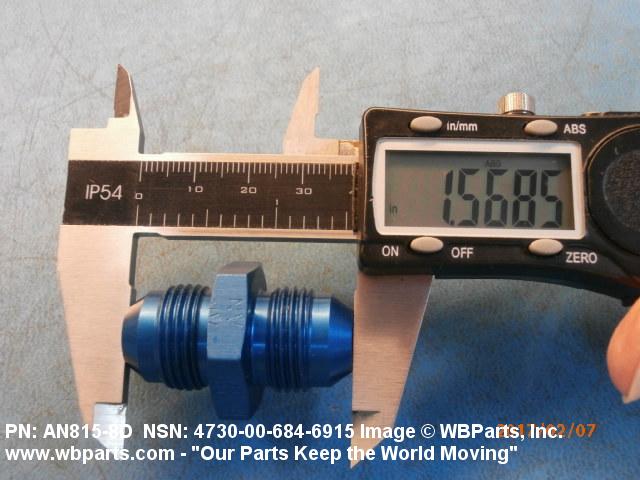

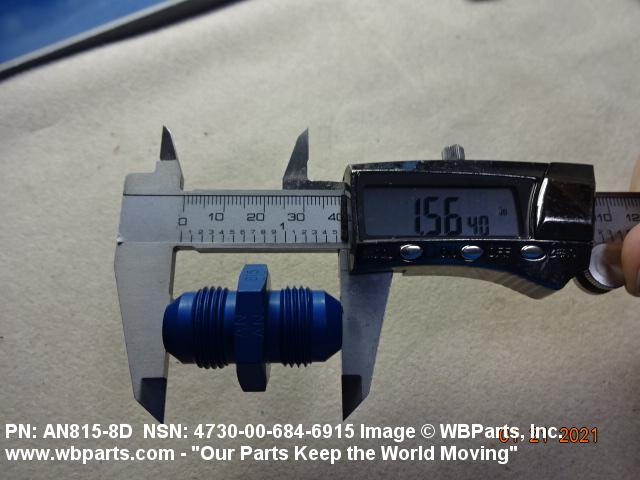

NOMINAL OVERALL LENGTH	1.562 INCHES
SPECIFICATION/STANDARD DATA	96906-MS24392 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-684-6915

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-684-6915

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
