NSN 4730-00-600-1762 MS244752, MS24475-2, MILDTL25677
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-600-1762 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS244752, MS24475-2, MILDTL25677, MIL-DTL-25677, MIL-DTL-25677/3, MILDTL256773, MILN25677, MIL-N-25677, 58A72B12, 4730-00-600-1762, 00-600-1762, 4730006001762, 006001762
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-600-1762 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

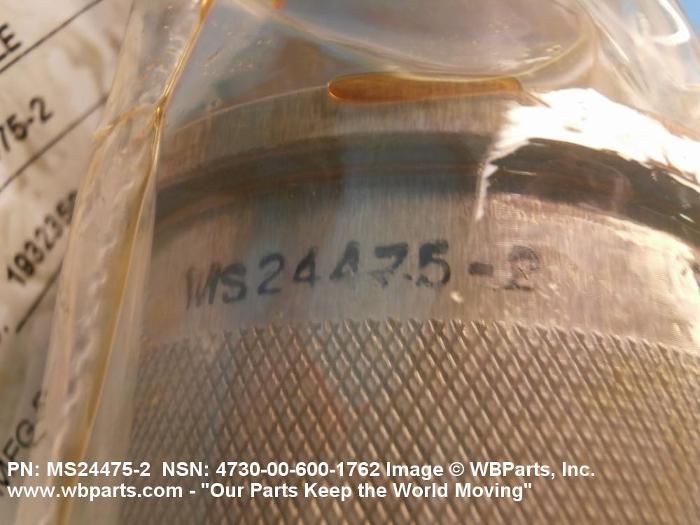

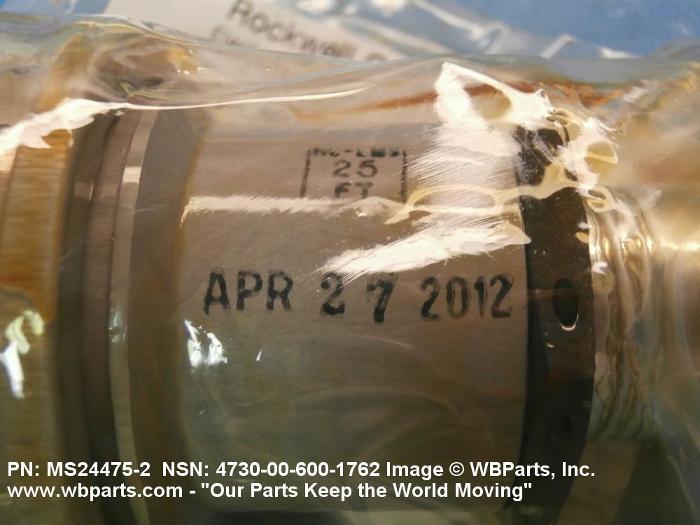

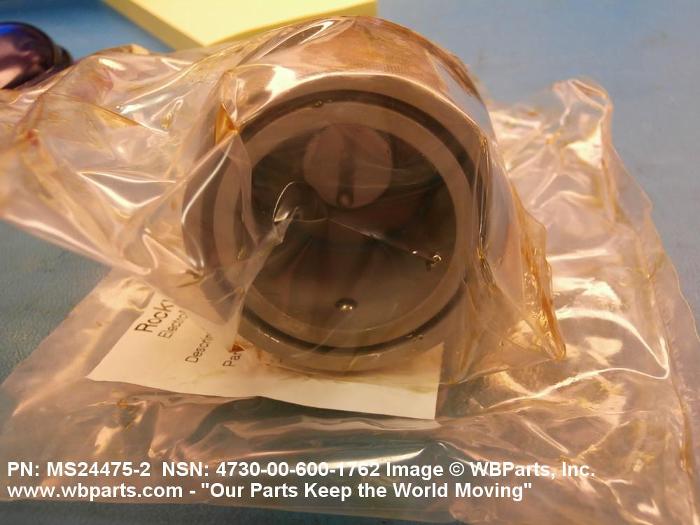

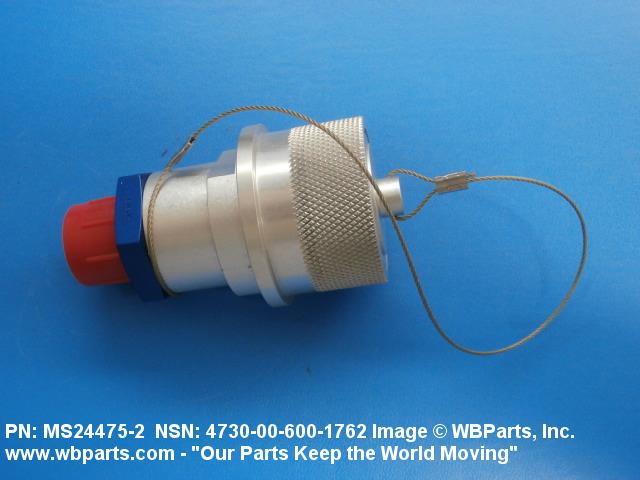

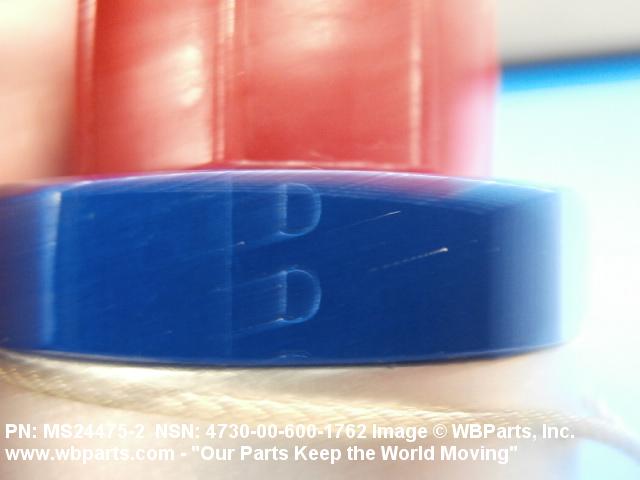

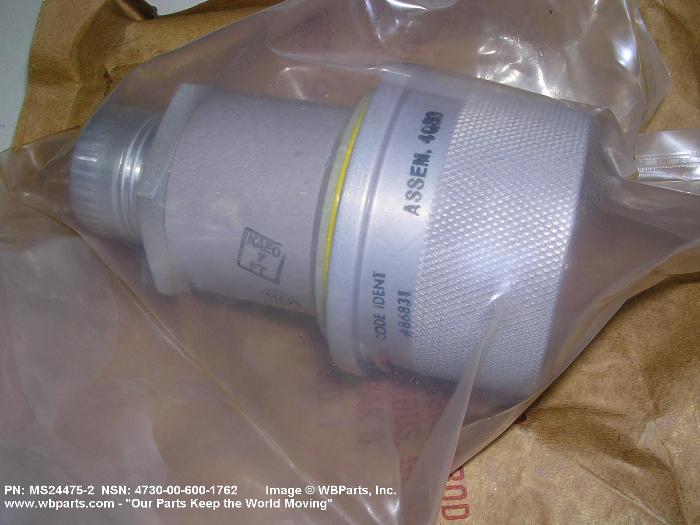

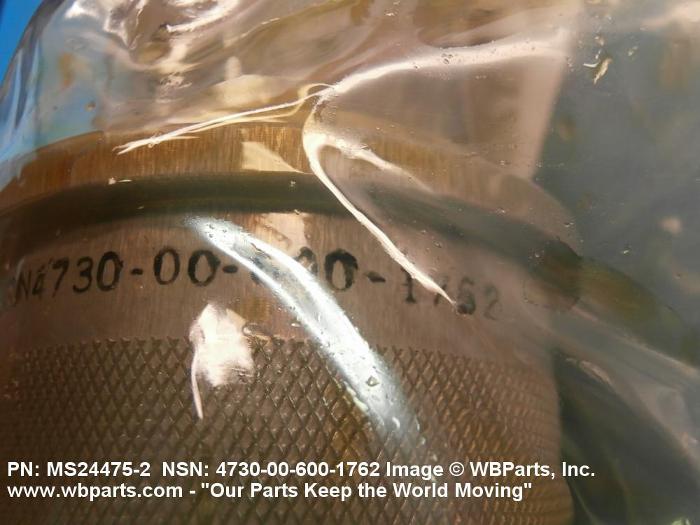

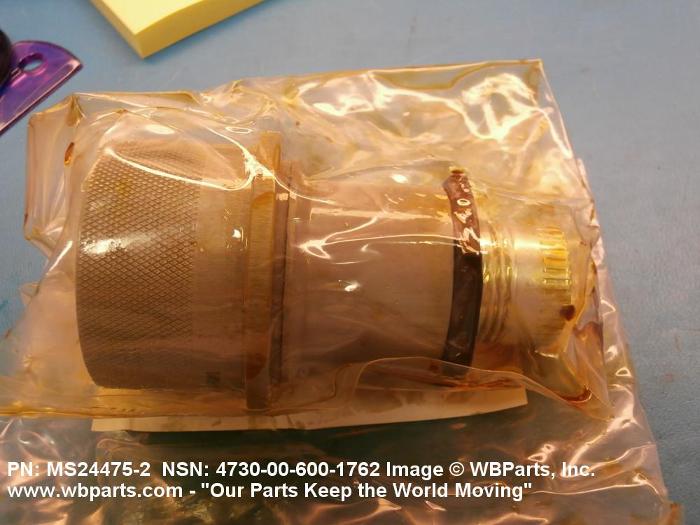

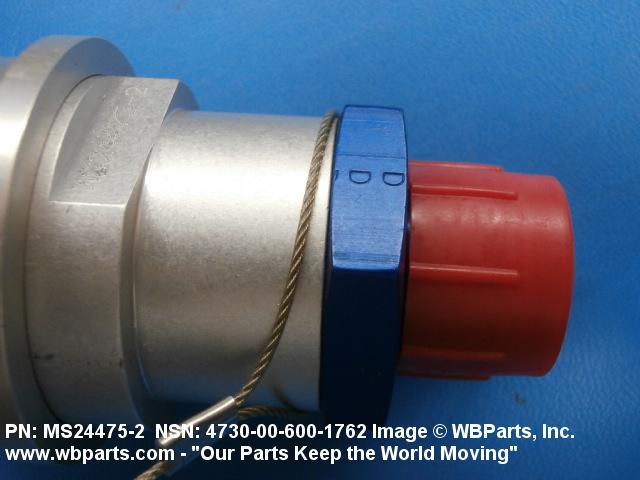

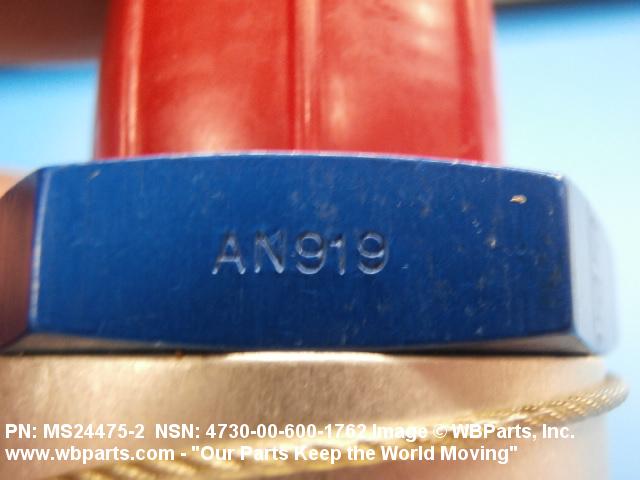

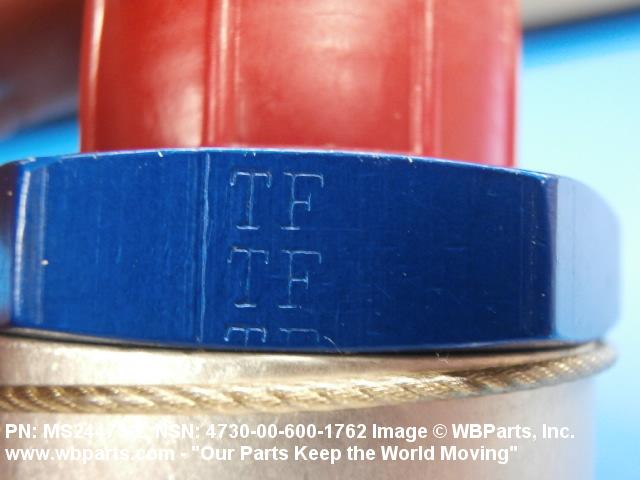

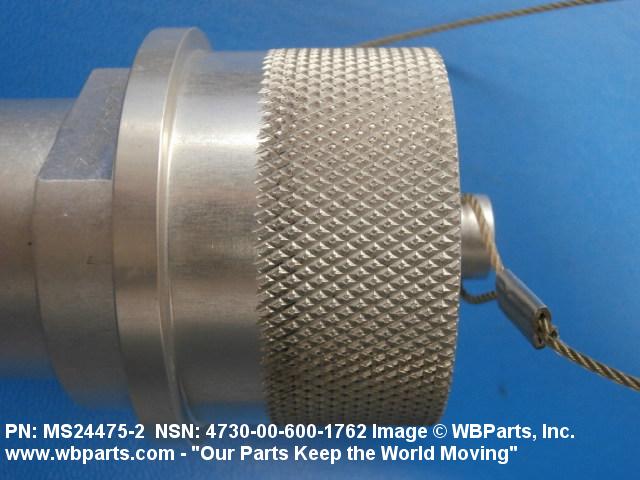

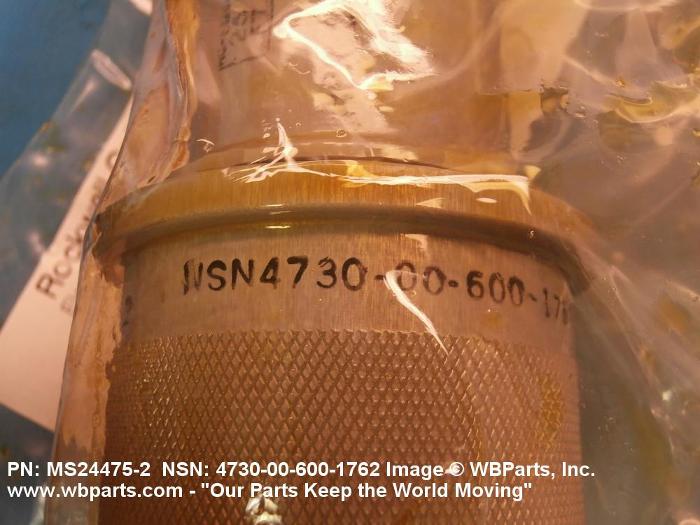

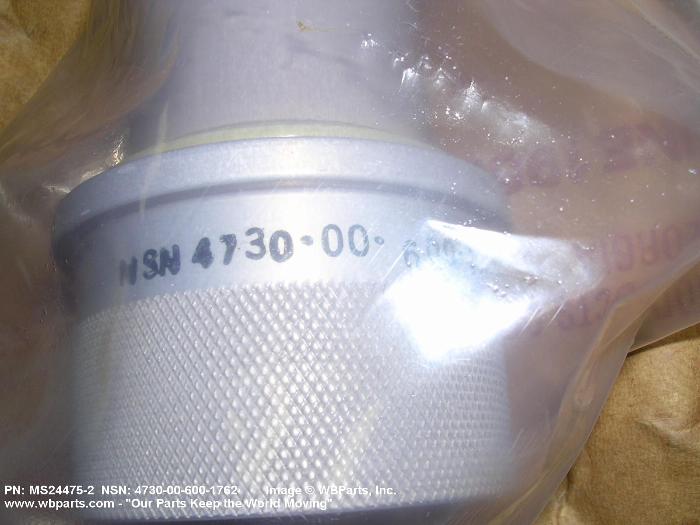

Drawings & Photos | NSN 4730-00-600-1762
Demand History | NSN 4730-00-600-1762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS244752 | 2025-03-69 | 2 | United States |
| MS244752 | 2024-10-299 | 4 | United States |
| 4730-00-600-1762 | 2024-10-284 | 23 | DIBBS |
| MS244752 | 2024-10-277 | 4 | United States |
| 4730-00-600-1762 | 2024-06-165 | 22 | DIBBS |
| 4730-00-600-1762 | 2024-04-102 | 22 | DIBBS |
| 4730-00-600-1762 | 2024-02-58 | 4 | US |
| 4730-00-600-1762 | 2023-12-361 | 4 | IN |
| 4730-00-600-1762 | 2023-08-243 | 51 | DIBBS |
| 4730-00-600-1762 | 2023-07-194 | 11 | DIBBS |
| 4730-00-600-1762 | 2023-05-128 | 2 | United States |
| 4730-00-600-1762 | 2023-04-103 | 37 | DIBBS |
| 4730-00-600-1762 | 2023-01-31 | 4 | United States |
| 4730-00-600-1762 | 2022-09-262 | 4 | DIBBS |
| 4730-00-600-1762 | 2022-08-223 | 16 | DIBBS |
| MS244752 | 2022-04-101 | 2 | United States |
| 4730-00-600-1762 | 2022-02-54 | 3 | DIBBS |
| 4730-00-600-1762 | 2022-02-53 | 3 | DIBBS |
| 4730-00-600-1762 | 2021-12-361 | 9 | DIBBS |
| 4730-00-600-1762 | 2021-12-350 | 9 | DIBBS |
| 4730-00-600-1762 | 2021-10-277 | 93 | DIBBS |
| 4730-00-600-1762 | 2021-09-262 | 93 | DIBBS |
| 4730-00-600-1762 | 2021-08-238 | 4 | United States |
| 4730-00-600-1762 | 2021-03-70 | 2 | United States |
| 4730-00-600-1762 | 2021-02-57 | 6 | United States |
| 4730-00-600-1762 | 2021-02-32 | 2 | IT |
| 4730-00-600-1762 | 2020-10-276 | 7 | US |
| 4730-00-600-1762 | 2020-10-276 | 7 | US |
| 4730-00-600-1762 | 2020-10-275 | 15 | DIBBS |
| 4730-00-600-1762 | 2020-09-261 | 7 | DIBBS |
| 4730-00-600-1762 | 2020-06-163 | 3 | Oman |
| 4730-00-600-1762 | 2019-10-298 | 1 | US |
| MS244752 | 2018-06-170 | 1 | United States |
| MS244752 | 2017-12-362 | 5 | US |
| 4730-00-600-1762 | 2017-04-101 | 2 | United States |
| 4730-00-600-1762 | 2017-03-61 | 109 | DIBBS |
| MS244752 | 2017-02-58 | 1 | United Kingdom |
| 4730-00-600-1762 | 2016-12-364 | 100 | DIBBS |
| 4730-00-600-1762 | 2016-10-287 | 27 | DIBBS |
| 4730-00-600-1762 | 2016-09-262 | 55 | DIBBS |
| MS244752 | 2015-11-321 | 3 | Italy |
| 4730-00-600-1762 | 2015-07-210 | 49 | DIBBS |
| 4730-00-600-1762 | 2015-07-205 | 4 | United States |
| 4730-00-600-1762 | 2015-07-204 | 4 | United States |
| 4730-00-600-1762 | 2015-05-125 | 47 | DIBBS |
| MS244752 | 2015-05-121 | 4 | ES |
| 4730-00-600-1762 | 2015-02-54 | 42 | DIBBS |
| MS244752 | 2015-02-44 | 2 | United States |
| 4730-00-600-1762 | 2014-05-132 | 10 | United States |
| 4730-00-600-1762 | 2014-03-77 | 1 | US |
| MS244752 | 2013-03-64 | 3 | United States |
| 4730-00-600-1762 | 2012-12-363 | 0 | DIBBS |
| 4730-00-600-1762 | 2011-08-228 | 1 | United States |
| 4730-00-600-1762 | 2010-12-343 | 36 | DIBBS |
| 4730-00-600-1762 | 2010-11-306 | 1 | US |
| 4730-00-600-1762 | 2010-08-217 | 54 | DIBBS |
| 4730-00-600-1762 | 2009-11-334 | 47 | DIBBS |
| 4730-00-600-1762 | 2009-10-292 | 45 | DIBBS |
| 4730-00-600-1762 | 2009-08-216 | 23 | DIBBS |
| 4730-00-600-1762 | 2009-01-22 | 82 | DIBBS |
| 4730-00-600-1762 | 2008-11-322 | 38 | DIBBS |
| MILDTL256773 | 2008-01-11 | 3 | United States |
Cross Reference | NSN 4730-00-600-1762
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 58A72B12 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MIL-DTL-25677 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-25677/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-N-25677 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24475-2 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| MS24475-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-600-1762
Related Products | NSN 4730-00-600-1762
Technical Data | NSN 4730-00-600-1762
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY OR STEEL CORROSION RESISTING |
| BODY SURFACE TREATMENT | ANODIZE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 0.860 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 POUNDS PER SQUARE INCH FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 71.1 DEG CELSIUS FUEL/OIL, HYDROCARBON |
| OVERALL LENGTH | 3.860 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UN |
| FIRST END NOMINAL THREAD SIZE | 1.062 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 |
| FIRST END THREAD CLASS | 3A |
| QUICK DISCONNECT METHOD | SPRING PUSH-LOCK ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | INTERNAL ALL ENDS |
| FEATURES PROVIDED | SAFETY LOCKING FEATURE AND SELF-SEALING |
| III MATING END IDENTIFICATION | ROYLYN INC. COUPLING HALF,QUICK DISCONNECT,PART NO.8749 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-25677 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24475-2 |
Restrictions/Controls & Freight Information | NSN 4730-00-600-1762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-600-1762
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
